FLOOR TRIM

Removal and Installation

INFOID:0000000006158499

REMOVAL

1. Remove the front seats. Refer to

SE-30, "Removal and Installation For Front Seat"

.

2. Remove the subwoofer, if equipped. Refer to

AV-180, "Removal and Installation"

.

3. Remove the navigation display control unit, if equipped. Refer to

AV-345, "Removal and Installation"

.

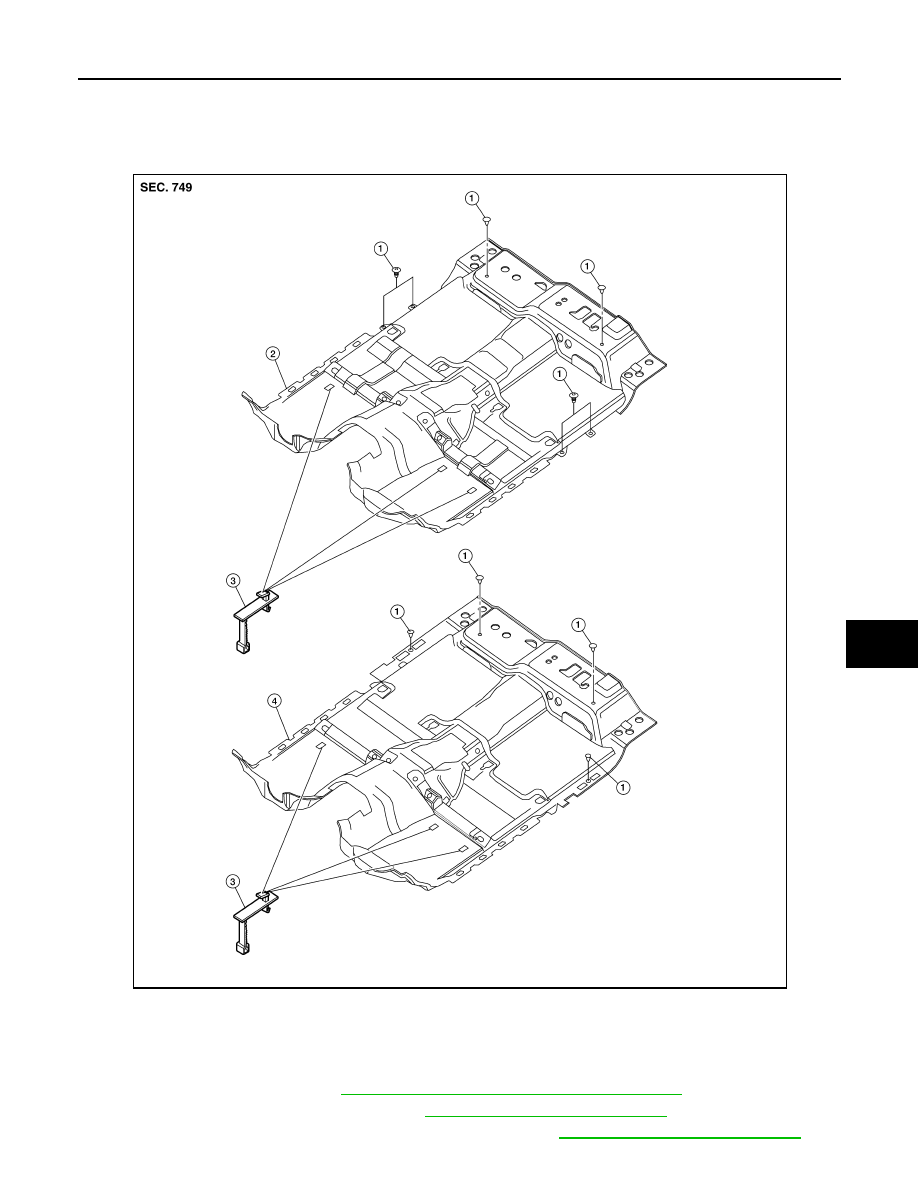

1.

Push pin

2.

King Cab carpet

3.

Floor mat hooks

4.

Crew Cab carpet

AWJIA0437ZZ

INT-20

< REMOVAL AND INSTALLATION >

FLOOR TRIM

4. Remove the rear seats. Refer to

SE-36, "Removal and Installation"

.

5. Remove the lower seat belt anchors. Refer to

SB-13, "Removal and Installation"

.

6. Remove the lower body side trim. Refer to

INT-14, "Removal and Installation"

.

7. Remove the center console, if equipped. Refer to

IP-19, "Removal and Installation"

.

8. Remove the floor mat hooks from front carpet.
9. Remove the carpet.

INSTALLATION

Installation is in the reverse order of removal.

HEADLINING

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

HEADLINING

Removal and Installation

INFOID:0000000006158500

Crew Cab

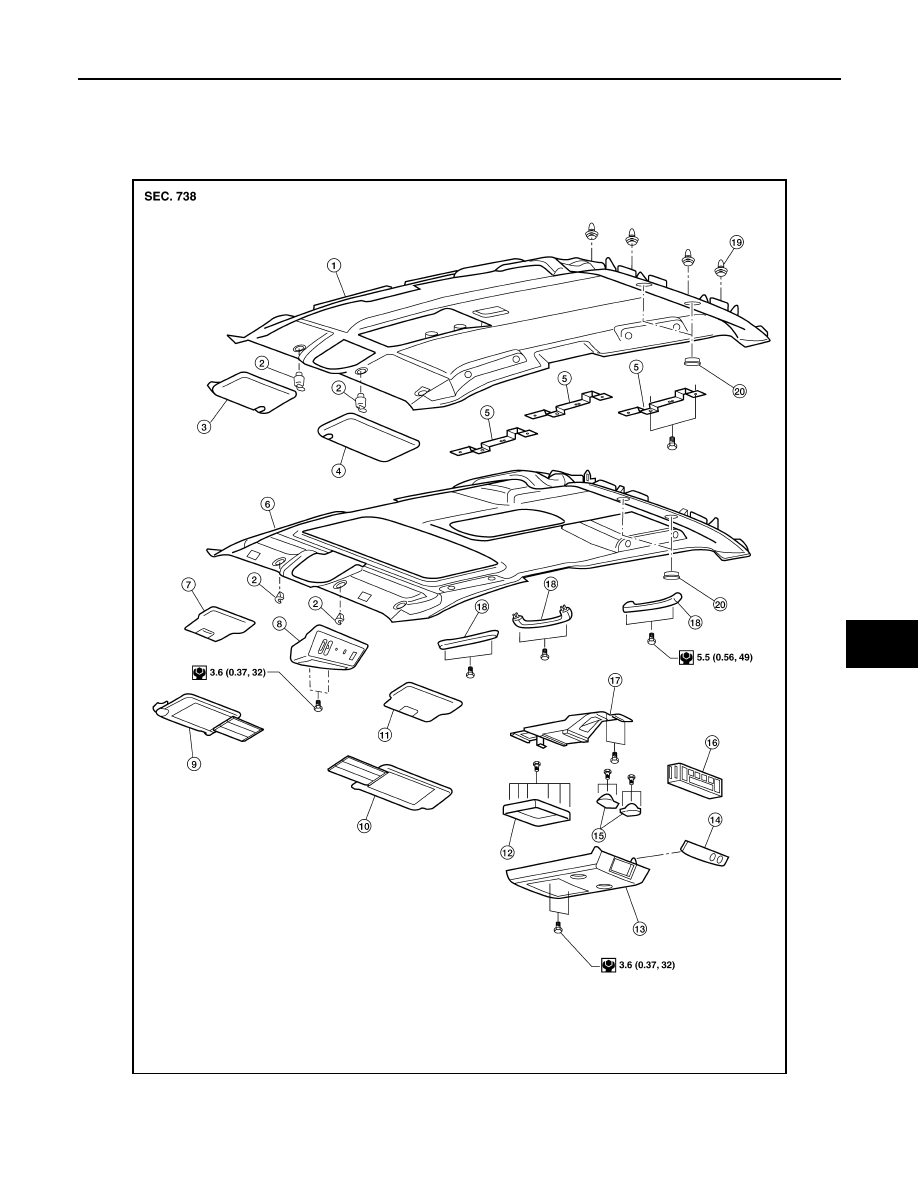

AWJIA0380GB

1.

Headlining (without sunroof)

2.

Sunvisor holder

3.

Sunvisor assembly standard LH

4.

Sunvisor assembly standard RH

5.

Assist grip bracket

6.

Headlining (with sunroof)

INT-22

< REMOVAL AND INSTALLATION >

HEADLINING

7.

Dual sun visor assembly LH (if
equipped)

8.

Front roof console

9.

Extended sun visor assembly LH

10. Extended sun visor assembly RH

11. Dual sun visor assembly RH (if

equipped)

12. Rear storage bin or DVD display

13. Rear roof console

14. Rear roof console finisher

15. Lamp assembly

16. Rear audio control assembly (if

equipped)

17. Rear roof console bracket

18. Assist grip

19. Plastic clips

20. High mounted stop lamp access cov-

er (CHMSL)
