Nissan Titan A60. Manual - part 668





BODY SIDE TRIM

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finisher.

LOWER DASH SIDE FINISHER

Removal

1. Remove the push pin from lower dash side finisher.
2. Remove the front kicking plate.
3. Remove the lower dash side finisher and front kicking plate together.
4. Remove the lower dash side finisher from front kicking plate.

Installation

Installation is in the reverse order of removal.

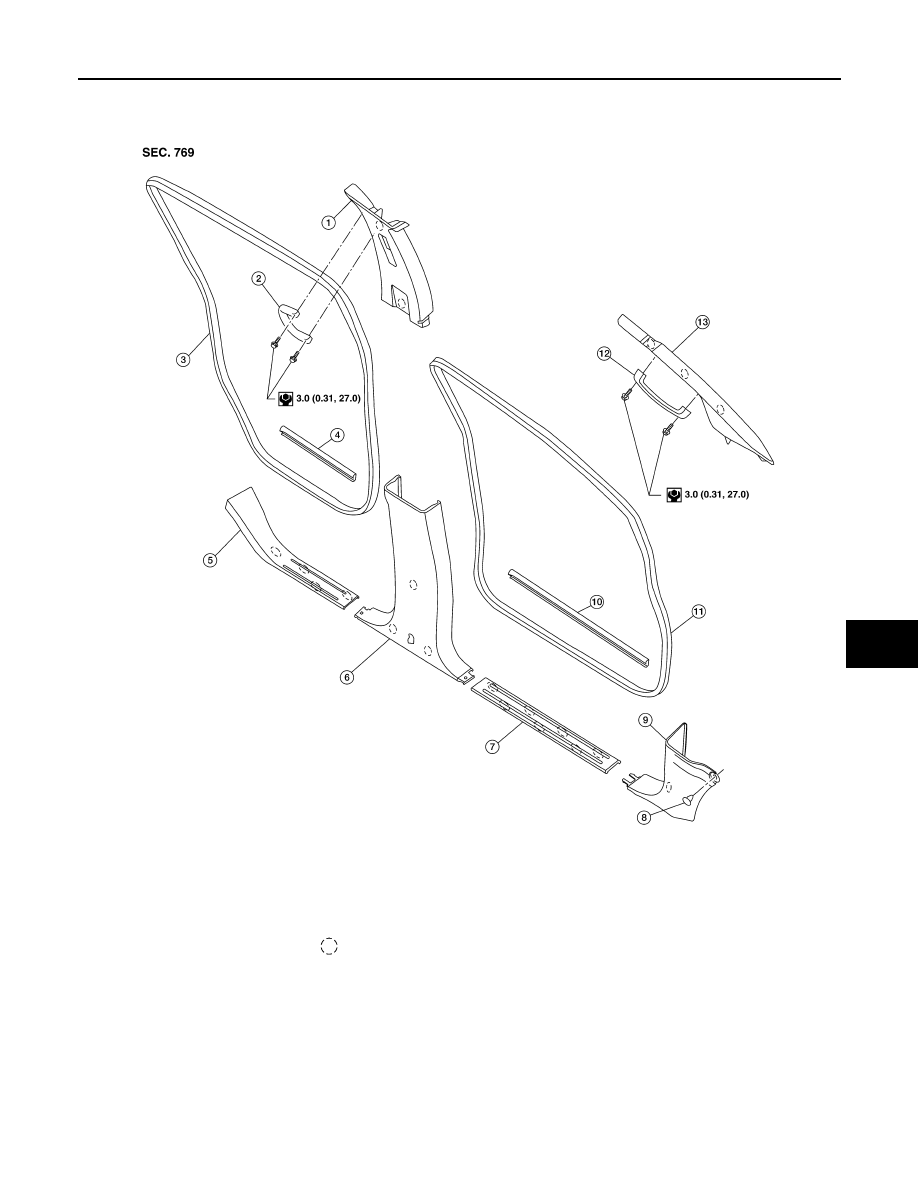

1.

Center pillar upper finisher

2.

Center pillar assist grip

3.

Rear door welt

4.

Rear door parting seal

5.

Rear kicking plate

6.

Center pillar lower finisher

7.

Front kicking plate

8.

Plastic clip C103

9.

Lower dash side finisher

10. Front door parting seal

11. Front door welt

12. Front pillar assist grip

13. Front pillar finisher

Pawl

WIIA1002E

INT-16

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

CENTER PILLAR LOWER FINISHER

Removal

1. Remove the seat belt lower anchor. Refer to

SB-13, "Removal and Installation"

• On RH side, disconnect seat belt tension sensor.

2. Remove the front and rear kicking plates.
3. Remove the center pillar lower finisher.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR UPPER FINISHER

Removal

1. Remove the front and rear door welts.
2. Remove the front and rear kicking plates.
3. Remove the center pillar lower finisher.
4. Remove the seat belt shoulder anchor and D ring. Refer to

SB-4, "Removal and Installation of Front Seat

Belt"

.

5. Remove the center pillar assist grip.
6. Remove the center pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR FINISHER

Removal

1. Remove the front pillar assist grip.
2. Remove the front pillar finisher.

Installation

Installation is in the reverse order of removal.

KICKING PLATES

Removal

Release the clips and remove the front and/or rear kicking plates.

Installation

Installation is in the reverse order of removal.

DOOR PARTING SEALS

Removal

1. Open the front and/or rear doors fully.
2. Release the clips and remove the parting seals.

Installation

Installation is in the reverse order of removal.

REAR

BODY SIDE TRIM

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

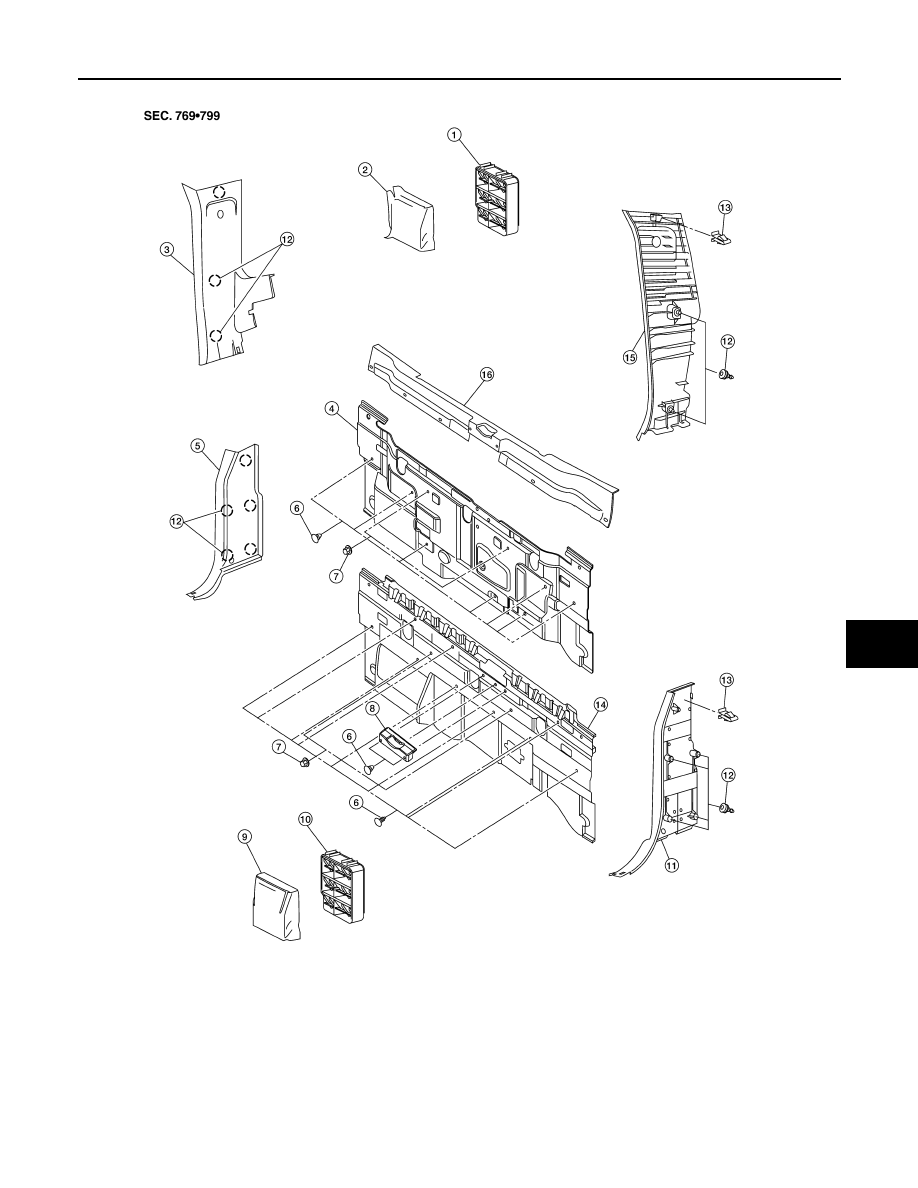

1.

Drafter duct (Crew Cab)

2.

Drafter duct cover (Crew Cab)

3.

Rear upper finisher RH

4.

Rear panel (Crew Cab)

5.

Rear lower finisher RH

6.

Push pin

7.

Nut

8.

Center anchor bracket cover

9.

Drafter duct cover (King Cab)

10. Drafter duct (King Cab)

11. Rear lower finisher LH

12. Plastic clip C101

13. Metal clip

14. Rear panel (King Cab)

15. Rear upper finisher LH

16. Rear panel upper finisher

WIIA1003E

INT-18

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

CAUTION:

• Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.

Removal

1. Remove rear seats. Refer to

SE-36, "Removal and Installation"

.

2. Remove rear kicking plates.
3. Remove seat belt anchor bolts. Refer to

SB-13, "Removal and Installation"

.

4. Remove seatback latch strikers. Refer to

SE-36, "Removal and Installation"

.

5. Remove rear lower finishers LH/RH.
6. Remove rear upper finishers LH/RH.
7. Remove center anchor bracket cover, if equipped.
8. Remove rear panel upper finisher and rear panel.
9. Remover drafter duct cover and drafter duct.

Installation

Installation is in the reverse order of removal.
