• Remove the screws behind pull handle escutcheon.

5. Remove the armrest.

• Remove the screw behind armrest.

6. Remove the window crank handle, using a suitable tool (if equipped).
7. Remove the memory seat switch (if equipped).

• Disconnect the harness connector.

8. Remove the step lamp.

• Disconnect the harness connector.

9. Remove the door finisher and disconnect the lock cable and handle cable from the inside door handle

assembly. Refer to

INT-10, "Removal and Installation"

.

10. Remove the door lock knob.
11. Remove the inside door handle assembly screws and remove the inside door handle assembly.

Installation

Installation is in the reverse order of removal.

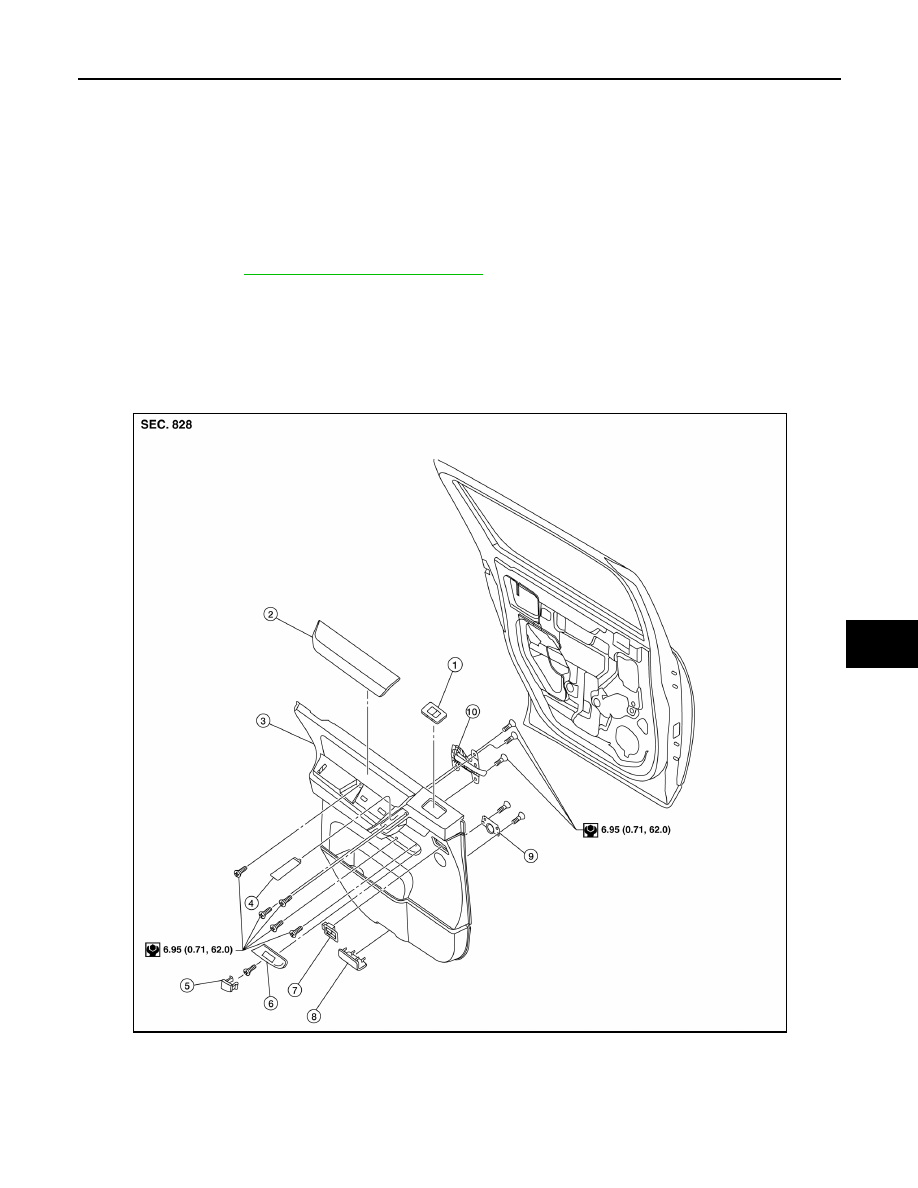

REAR DOOR - CREW CAB

1.

Power window switch assembly

2.

Armrest

3.

Rear door finisher LH

4.

Pull handle cover

5.

Cap

6.

Pull handle escutcheon

7.

Door lock knob

8.

Step lamp (if equipped)

9.

Rear door tweeter

10. Inside door handle assembly

AWJIA0545GB

INT-12

< REMOVAL AND INSTALLATION >

DOOR FINISHER

Removal

1. Remove the power window switch assembly.

• Disconnect the harness connector.

2. Remove the pull handle cover.

• Remove the screws behind pull handle cover.

3. Remove the cap from pull handle escutcheon and remove screw.
4. Remove the pull handle escutcheon.

• Remove the screws behind pull handle escutcheon.

5. Remove the armrest.

• Remove the screws behind armrest.

6. Remove the step lamp (if equipped).

• Disconnect the harness connector.

7. Remove the door finisher and disconnect lock cable and handle cable from the door handle assembly.

Refer to

INT-10, "Removal and Installation"

.

• Disconnect the rear door tweeter speaker connector.

8. Remove the door lock knob.
9. Remove the rear door tweeter speaker.

Installation

Installation is in the reverse order of removal.

REAR DOOR - KING CAB

AWJIA0546GB

DOOR FINISHER

INT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Removal

1. Remove the upper and lower seat belt anchor bolts. Refer to

SB-13, "Removal and Installation"

.

2. Release the clips and remove seat belt retractor cover.
3. Remove the armrest.
4. Remove the screws behind armrest.
5. Release the clips and remove rear door finisher.

Installation

Installation is in the reverse order of removal.

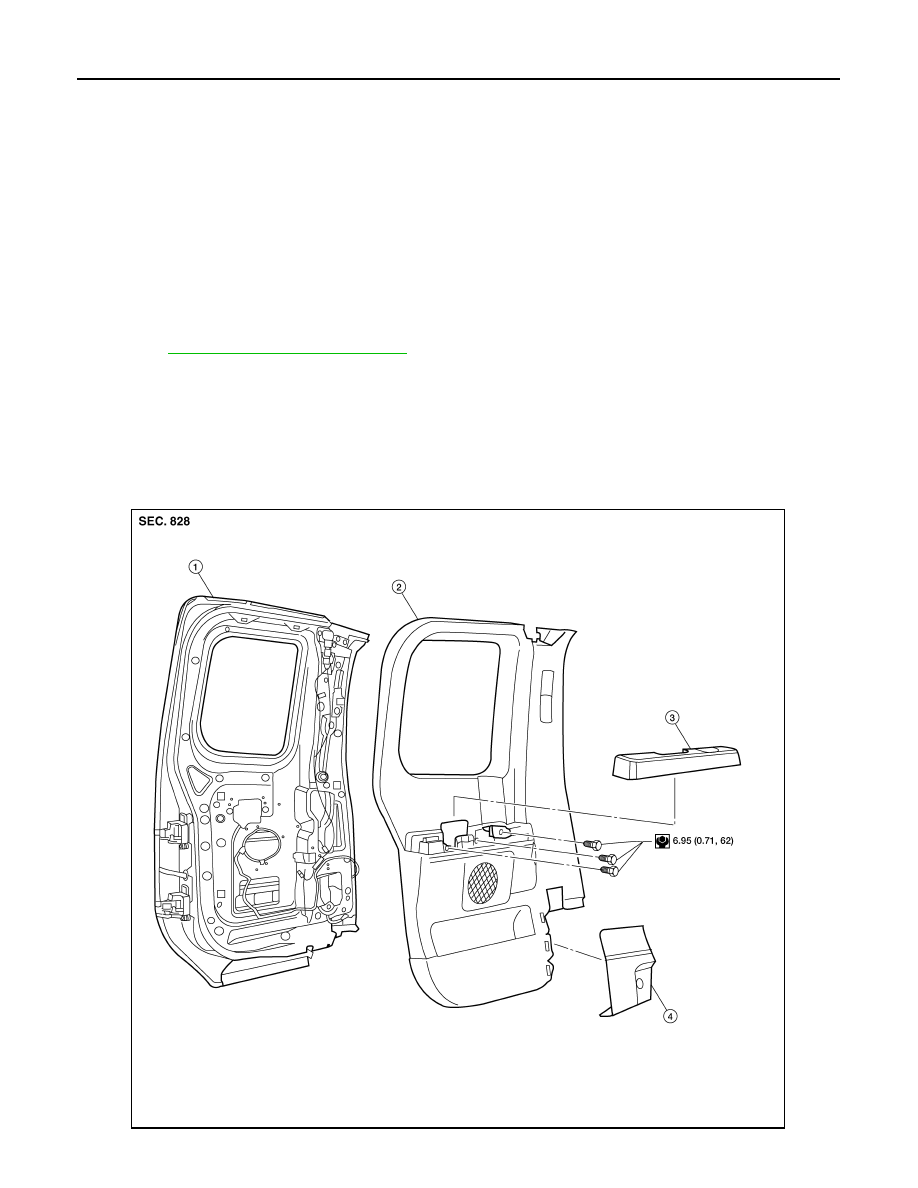

1.

Rear door LH

2.

Rear door finisher

3.

Armrest

4.

Seat belt retractor cover

INT-14

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

BODY SIDE TRIM

Removal and Installation

INFOID:0000000006158498

KING CAB

CAUTION:

• Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.

• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finisher.

CREW CAB

CAUTION:

• Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.

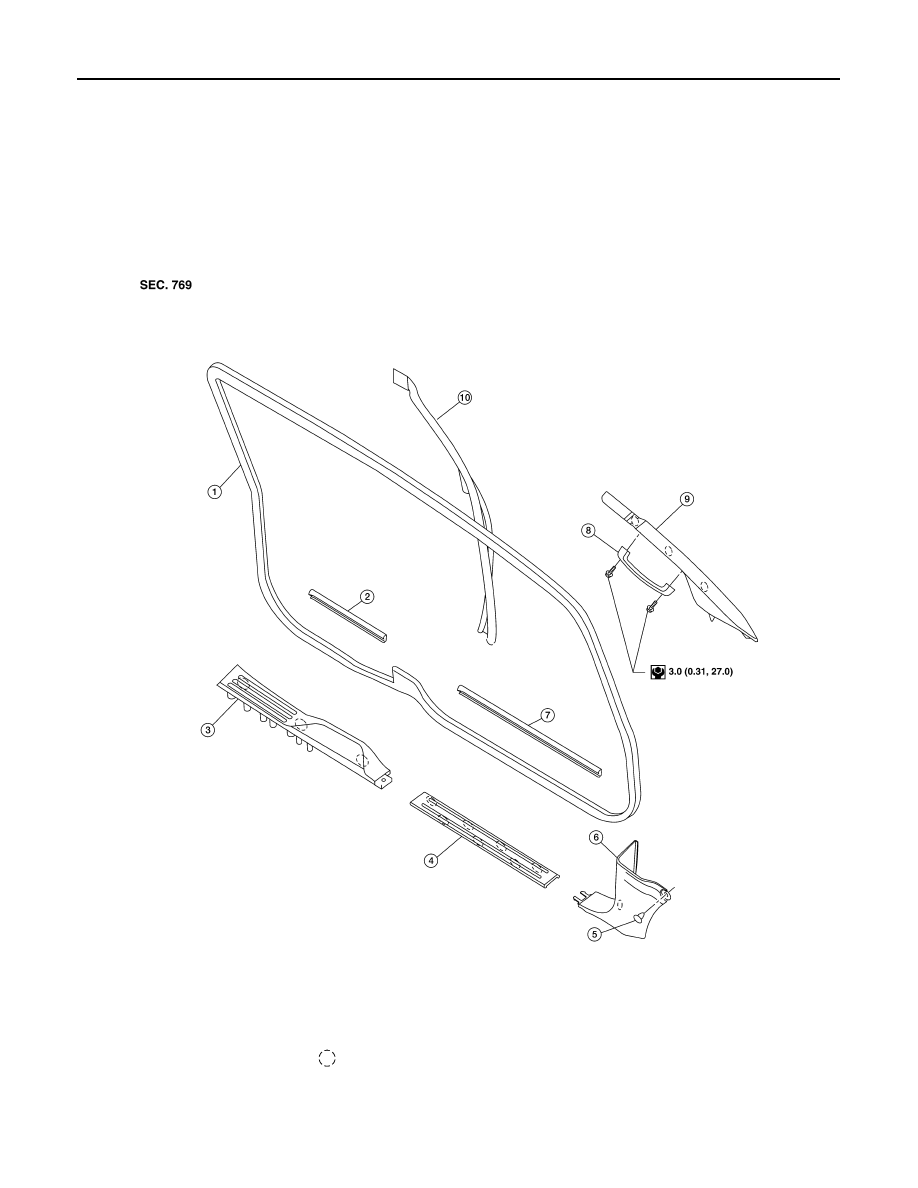

1.

Door welt

2.

Rear door parting seal

3.

Rear kicking plate

4.

Front kicking plate

5.

Plastic clip C103

6.

Lower dash side finisher

7.

Front door parting seal

8.

 Front pillar assist grip

9.

Front pillar finisher

10. Rear body side welt

Pawl

WIIA1001E
