Nissan Titan A60. Manual - part 540





FL-16

< UNIT REMOVAL AND INSTALLATION >

EVAP CANISTER

EVAP CANISTER

Component Inspection

INFOID:0000000006628773

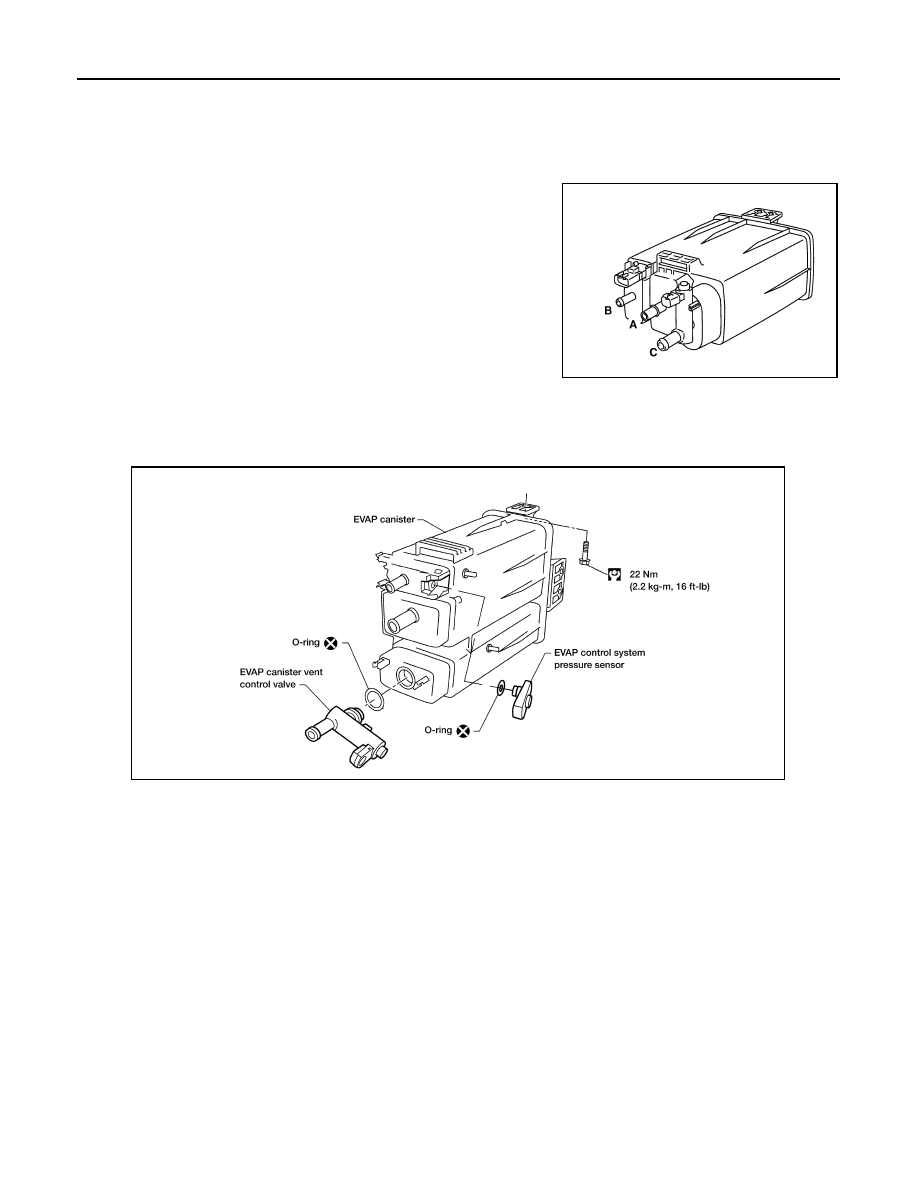

EVAP CANISTER

Check EVAP canister as follows:
1. Block port (B).
2. Blow air into port (A) and check that it flows freely out of port (C).
3. Release blocked port (B).
4. Apply vacuum pressure to port (B) and check that vacuum pres-

sure exists at the ports (A) and (C).

5. Block port (A) and (B).
6. Apply pressure to port (C) and check that there is no leakage.

Removal and Installation

INFOID:0000000006628774

EVAP CANISTER

Removal

1. Remove the left rear wheel and tire using power tool.
2. Disconnect the EVAP canister control pressure sensor hose.
3. Disconnect the EVAP canister control pressure sensor connector.
4. Remove the EVAP canister control pressure sensor and O-ring, if necessary.
5. Disconnect the fuel tank EVAP breather hose.
6. Remove the seat belt latch anchor.
7. Disconnect the EVAP canister vent control valve connector.
8. Disconnect the EVAP canister vent control valve hose.
9. Remove the EVAP canister retaining bolt.
10. Remove the EVAP canister.
11. Remove the EVAP canister vent control valve and O-ring, if necessary.

Installation

Installation is in the reverse order of removal.

CAUTION:

Always replace O-ring with a new one.

PBIB1212E

BBIA0349E

EVAP CANISTER

FL-17

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

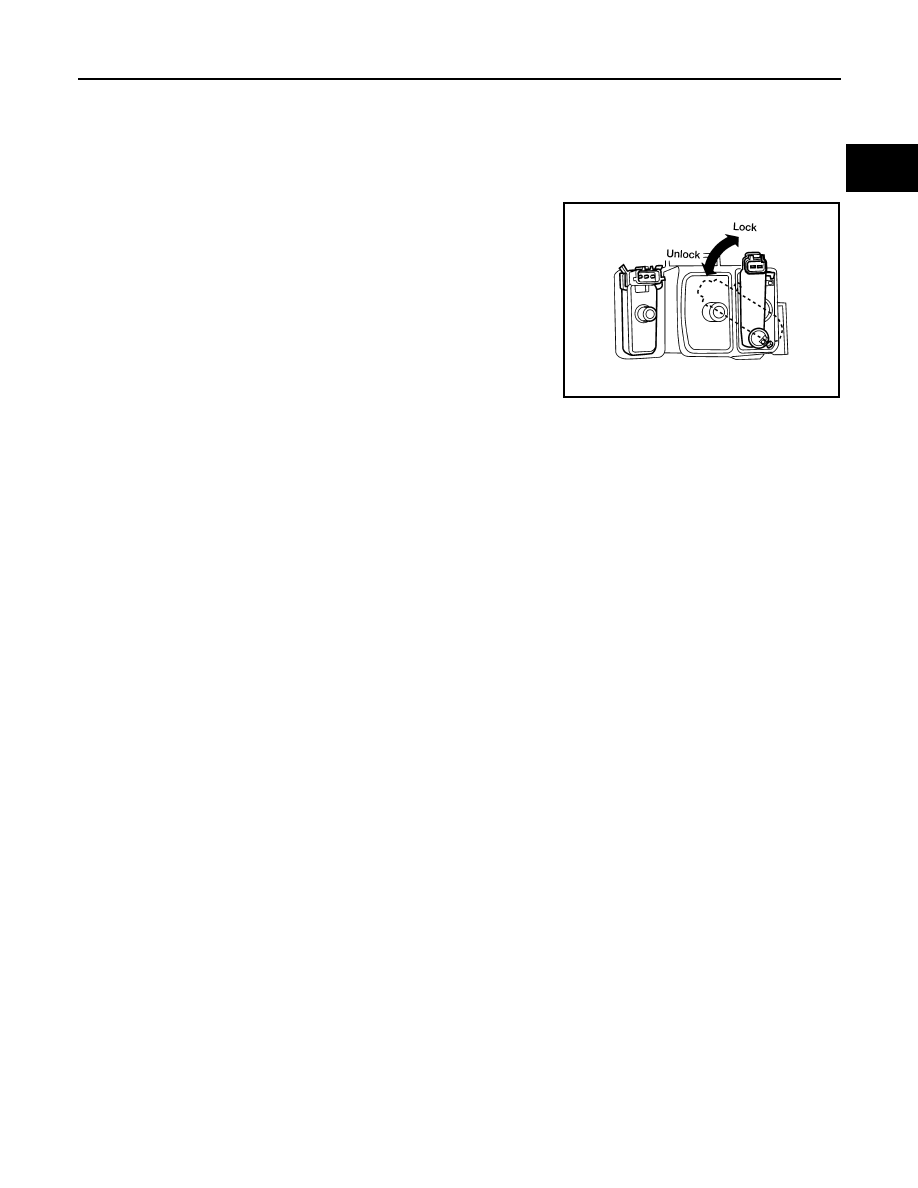

EVAP CANISTER VENT CONTROL VALVE

Removal

1. Remove the left rear wheel and tire using power tool.
2. Disconnect the EVAP canister vent control valve connector.
3. Disconnect the EVAP canister vent control valve hose.
4. Turn EVAP canister vent control valve counterclockwise.
5. Remove the EVAP canister vent control valve.

Installation

Installation is in the reverse order of removal.

CAUTION:

Always replace O-ring with a new one.

EVAP CANISTER CONTROL PRESSURE SENSOR

Removal

1. Remove the left rear wheel and tire using power tool.
2. Disconnect the fuel tank EVAP breather hose.
3. Disconnect the EVAP canister control pressure sensor connector.
4. Remove the EVAP canister control pressure sensor and O-ring.

Installation

Installation is in the reverse order of removal.

CAUTION:

Always replace O-ring with a new one.

BBIA0350E

FL-18

< UNIT DISASSEMBLY AND ASSEMBLY >

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

UNIT DISASSEMBLY AND ASSEMBLY

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

Disassembly and Assembly

INFOID:0000000006164624

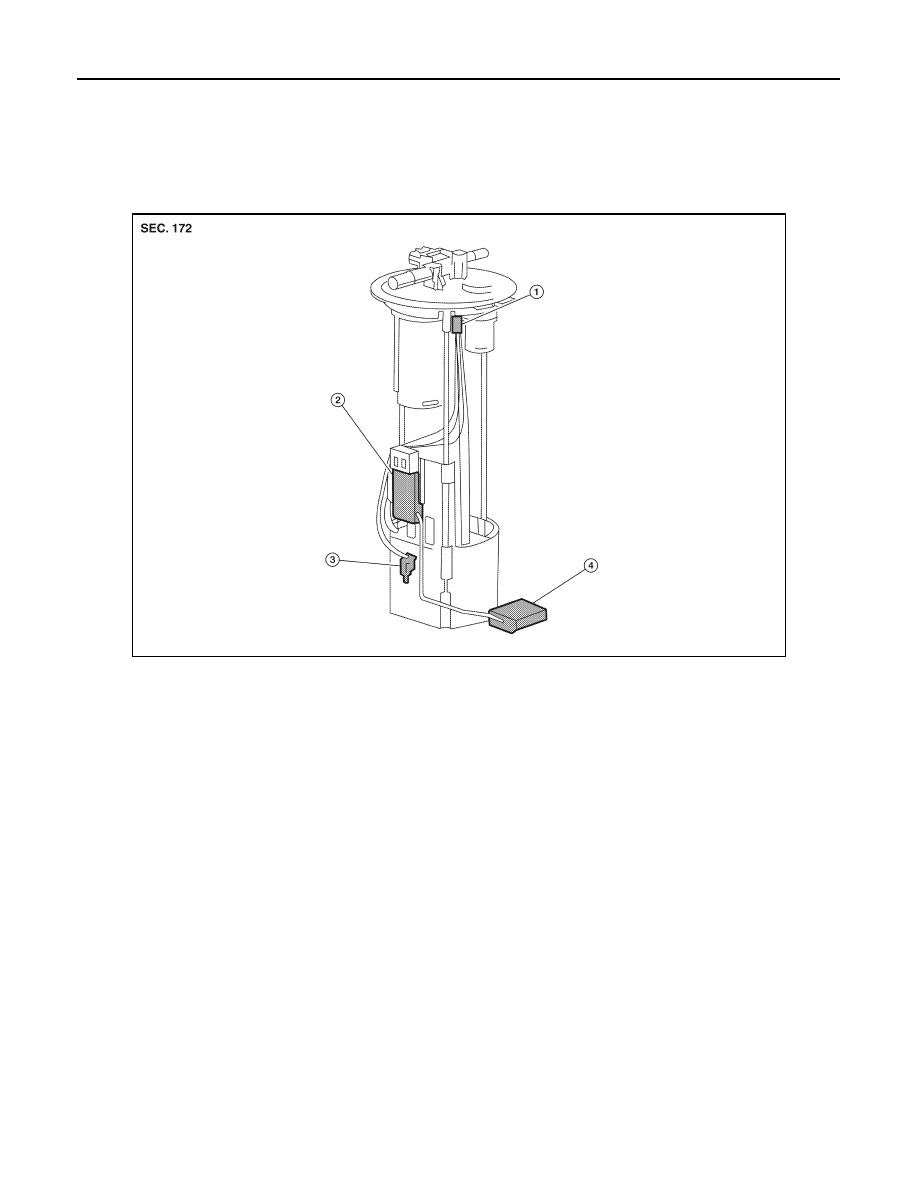

Fuel Level Sender Unit

Disassembly

1. Disconnect the harness connectors.
2. Remove the fuel sensor from the pump assembly.
3. Remove the sending unit module and floater arm assembly.

Assembly

Assembly is the reverse order of disassembly.

AWBIA0680ZZ

1.

Harness connector

2.

Sending unit module

3.

Fuel sensor

4.

Floater arm assembly



SERVICE DATA AND SPECIFICATIONS (SDS)

FL-19

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000006164625

Fuel tank capacity

105.8   (28 US gal, 23 1/4 Imp gal)
