EXT-26

< REMOVAL AND INSTALLATION >

MUDGUARD

MUDGUARD

Removal and Installation

INFOID:0000000006163342

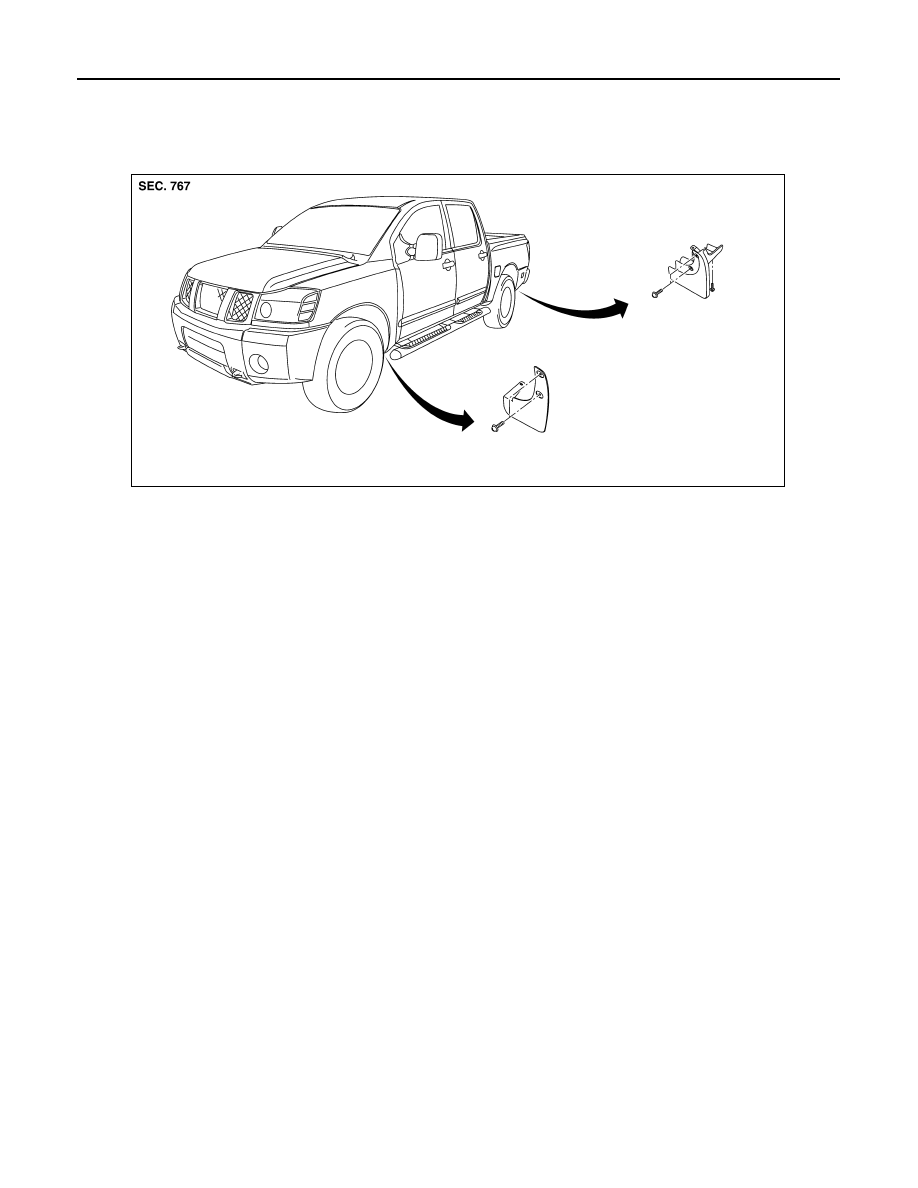

NOTE:

Crew Cab shown King Cab similar.

WIIA0995E

DOOR OUTSIDE MOLDING

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

DOOR OUTSIDE MOLDING

Removal and Installation

INFOID:0000000006163343

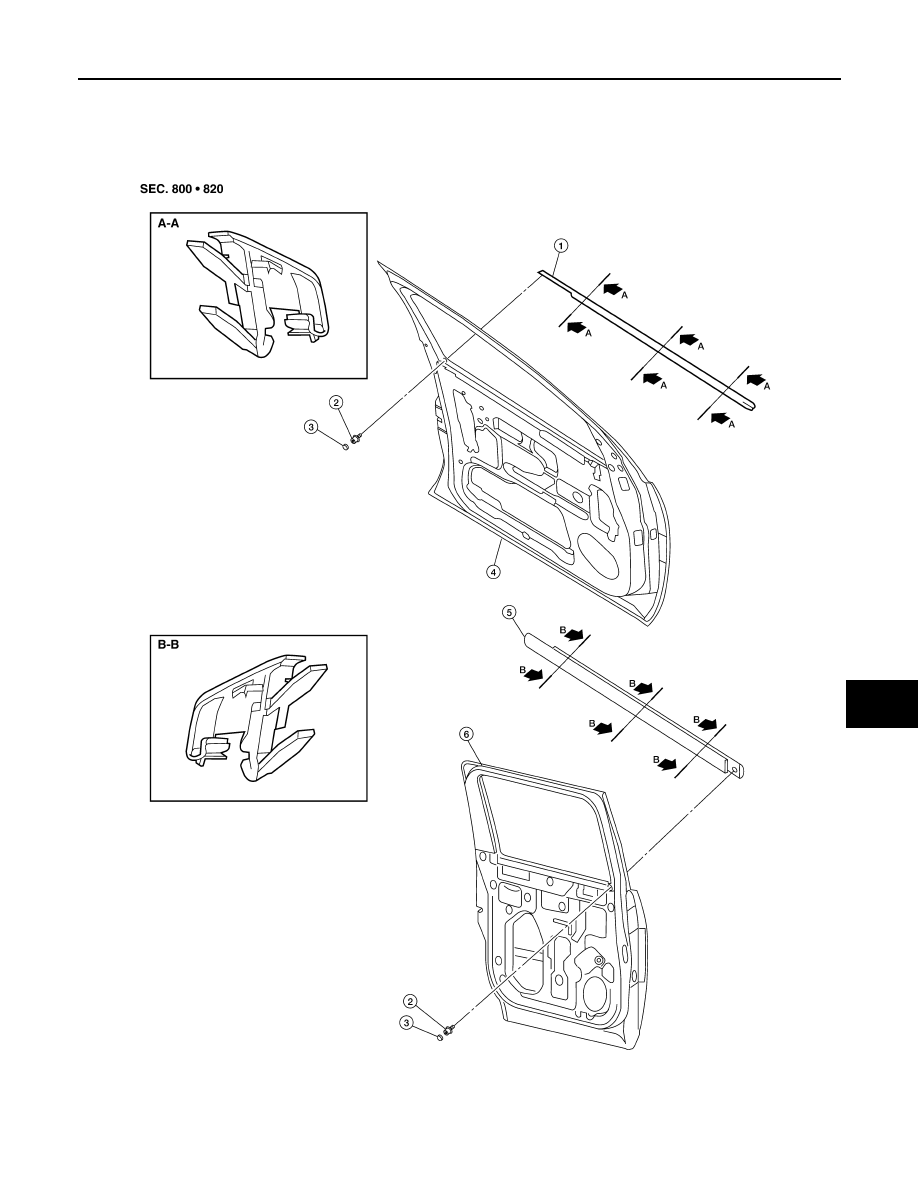

1.

Front door outside molding LH

2.

Screw

3.

Hole cover

4.

Front door LH

5.

Rear door outside molding LH

6.

Rear door-Crew cab

WIIA0996E

EXT-28

< REMOVAL AND INSTALLATION >

DOOR OUTSIDE MOLDING

FRONT DOOR OUTSIDE MOLDING

Removal

1. Open the window fully.
2. Remove the door mirror. Refer to

MIR-15, "Door Mirror Assembly"

.

3. Remove the molding

1. Remove the hole cover and screw.

2. Lift the molding from the rear side.

3. Disconnect the clips from flange.

Installation

Installation is in the reverse order of removal.

REAR DOOR OUTSIDE MOLDING

Removal

1. Open the window fully.
2. Remove the molding.

1. Remove the hole cover and screw.

2. Lift the molding from the rear side.

3. Disconnect the clips from flange.

Installation

Installation is in the reverse order of removal.

SIDE GUARD MOLDING

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

SIDE GUARD MOLDING

Removal and Installation

INFOID:0000000006163344

Removal

CAUTION:

Never apply tack-paper adhesive remover to body panel surface finished with lacquer-based paints.

• Original side guard molding is affixed to the body panel with double-faced adhesive tape.
1. Heat the molding to between 30

° and 40°C (86° to 104°F) with a heat gun.

2. Raise the end of the molding and cut away the tape to remove the molding. Remove all traces of tape.

Installation

• On the vehicles coated with Hard Clear Coat, use double-faced 3M adhesive tape Product No. 4210 or

equivalent, after priming with 3M primer Product No. N200, C-100 or equivalent.

• The repair parts are also affixed with double-faced adhesive tape.

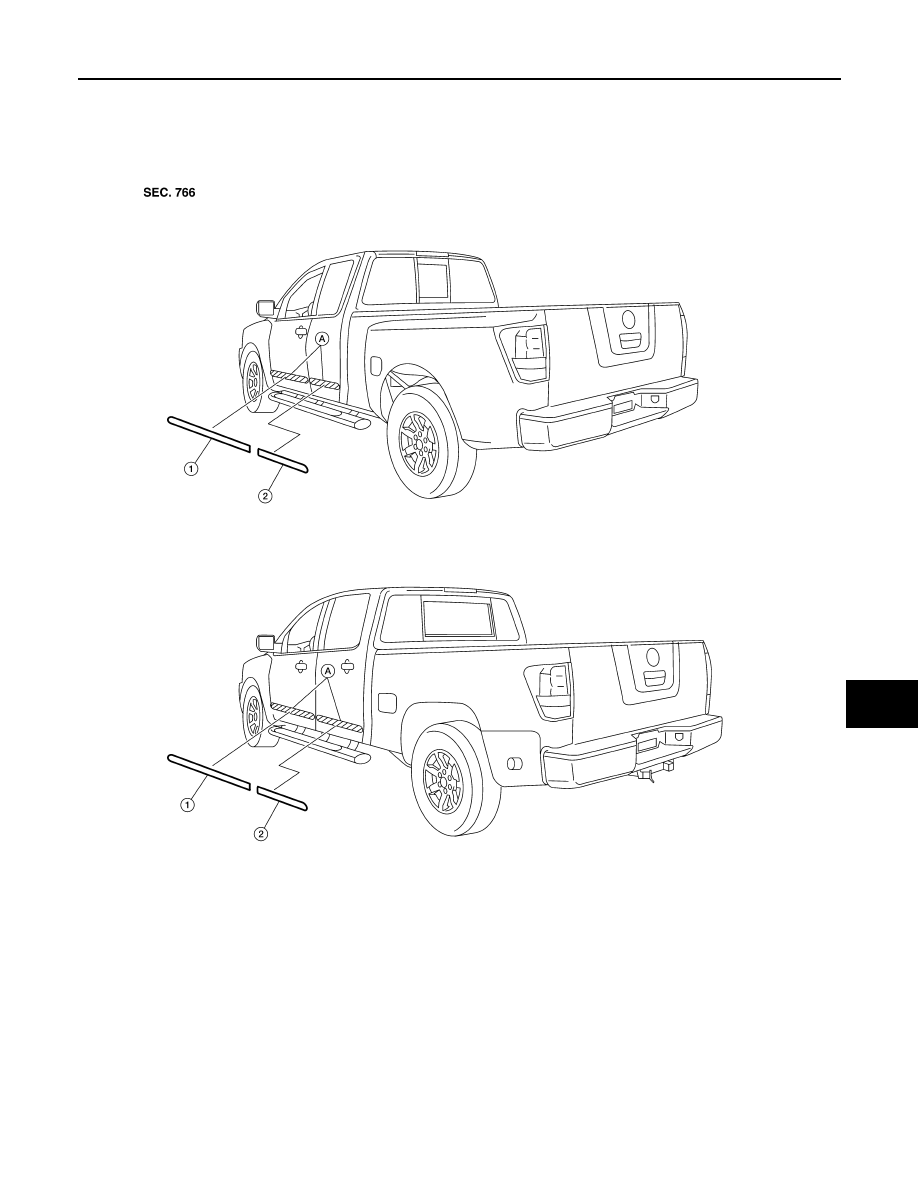

1.

Front door side guard molding 2.

Rear door side guard molding A. Double-faced adhesive tape application locations

BIIA0118E
