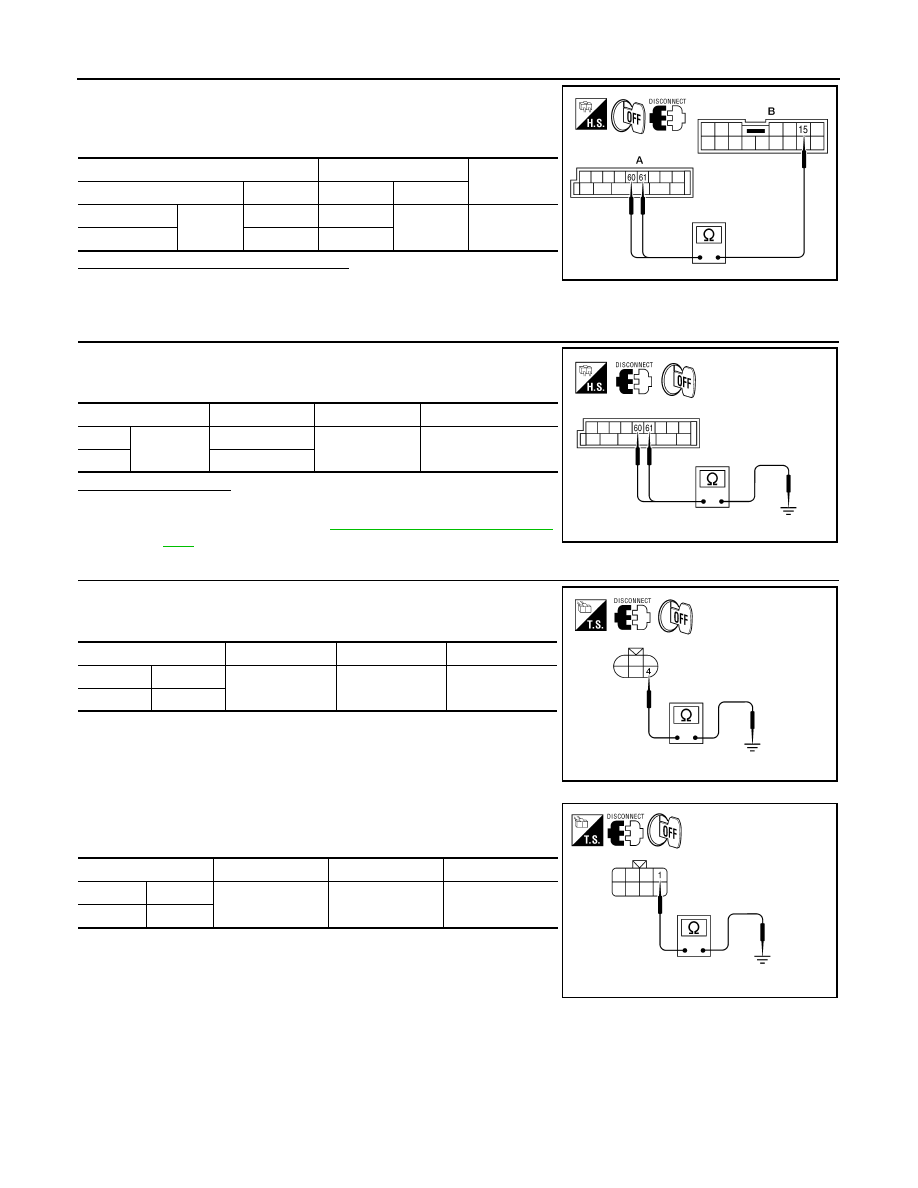

4. Check continuity between the BCM harness connector (A) and

the rear combination lamp connector (B).

5. Check continuity between the BCM harness connector (A) and

the door mirror connector (B) (if equipped with turn signals in the

mirrors).

Are continuity test results as specified?

YES

>> GO TO 4.

NO

>> Repair the harnesses or connectors.

4.

CHECK TURN SIGNAL LAMP SHORT CIRCUIT

Check continuity between the BCM harness connector M20 and

ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> Replace BCM. Refer to

BCS-53, "Removal and Installa-

tion"

.

5.

CHECK TURN SIGNAL LAMP GROUND CIRCUIT

1. Check continuity between the front combination lamp harness

connector and ground.

A

B

Continuity

Connector

Terminal

Connector

Terminal

Rear LH

M20

60

C13

8

Yes

Rear RH

61

C14

AWLIA1616ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

Door mirror LH

M20

60

D4

15

Yes

Door mirror RH

61

D107

WKIA4524E

Connector

Terminal

—

Continuity

LH

M20

60

Ground

No

RH

61

ALLIA0404GB

Connector

Terminal

—

Continuity

Front LH

E11

4

Ground

Yes

Front RH

E107

ALLIA0405GB

EXL-56

< DTC/CIRCUIT DIAGNOSIS >

TURN SIGNAL LAMP CIRCUIT

2. Check continuity between the rear combination lamp harness

connector and ground.

3. Check continuity between the door mirrors and ground (if

equipped with turn signals in the mirrors).

Are continuity test results as specified?

YES

>> Replace the malfunctioning lamp.

NO

>> Repair the harnesses or connectors.

Diagnosis Procedure - With Daytime Light System

INFOID:0000000006709933

Regarding Wiring Diagram information, refer to

EXL-100, "Wiring Diagram"

.

1.

CHECK TURN SIGNAL LAMP BULB

Check the applicable lamp bulb to be sure the proper bulb standard is in use and the bulb is not open.
Is the bulb OK?

YES

>> GO TO 2.

NO

>> Replace the bulb.

2.

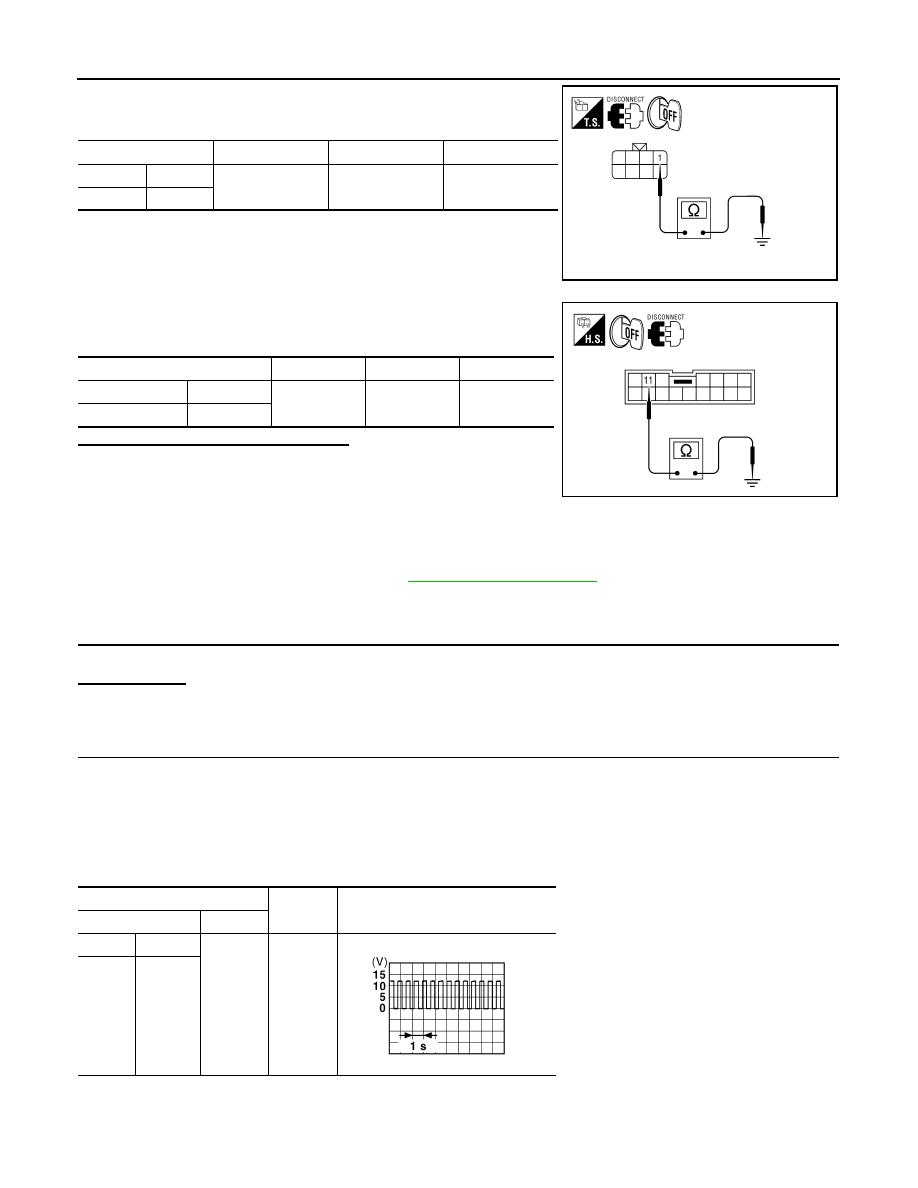

CHECK TURN SIGNAL LAMP OUTPUT VOLTAGE

1. Turn the ignition switch OFF.

2. Disconnect the front combination lamp connector, door mirror connector (if equipped with turn signals in

the mirrors) and the rear combination lamp connector.

3. Turn the ignition switch ON.

4. With turn signal switch operating, check the voltage between the front combination lamp harness connec-

tor and ground.

5. With turn signal switch operating, check the voltage between the rear combination lamp harness connec-

tor and ground.

Connector

Terminal

—

Continuity

Rear LH

C13

1

Ground

Yes

Rear RH

C14

AWLIA1615ZZ

Connector

Terminal

—

Continuity

Door mirror RH

D107

11

Ground

Yes

Door mirror LH

D4

WKIA4525E

(+)

(

−)

Voltage

Connector

Terminal

E6

LH

5

Ground

E108

RH

PKID0926E

TURN SIGNAL LAMP CIRCUIT

EXL-57

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

6. With turn signal switch operating, check the voltage between the door mirror (if equipped with turn signals

in the mirrors) harness connector and ground.

Is voltage reading as specified?

YES

>> GO TO 5.

NO

>> GO TO 3.

3.

CHECK TURN SIGNAL LAMP CIRCUIT FOR OPEN

1. Turn the ignition switch OFF.

2. Disconnect BCM connector M20.

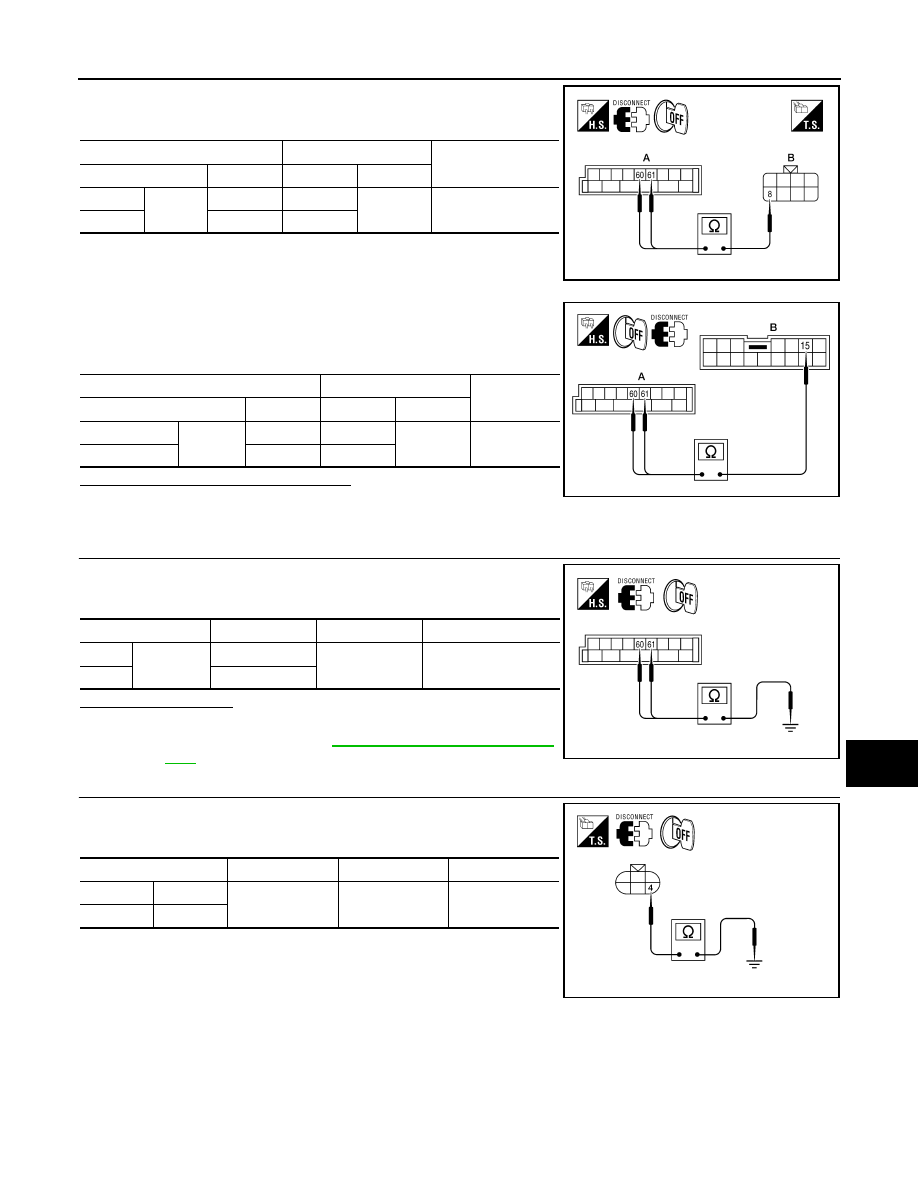

3. Check continuity between the BCM harness connector (A) and

the front combination lamp connector (B).

4. Check continuity between the BCM harness connector (A) and

the rear combination lamp connector (B).

(+)

(

−)

Voltage

Connector

Terminal

C13

LH

8

Ground

C14

RH

(+)

(

−)

Voltage

Connector

Terminal

D4

LH

15

Ground

D107

RH

PKID0926E

PKID0926E

A

B

Continuity

Connector

Terminal

Connector

Terminal

Front LH

M20

60

E6

5

Yes

Front RH

61

E108

ALLIA0403GB

A

B

Continuity

Connector

Terminal

Connector

Terminal

Rear LH

M20

60

C13

8

Yes

Rear RH

61

C14

AWLIA1616ZZ

EXL-58

< DTC/CIRCUIT DIAGNOSIS >

TURN SIGNAL LAMP CIRCUIT

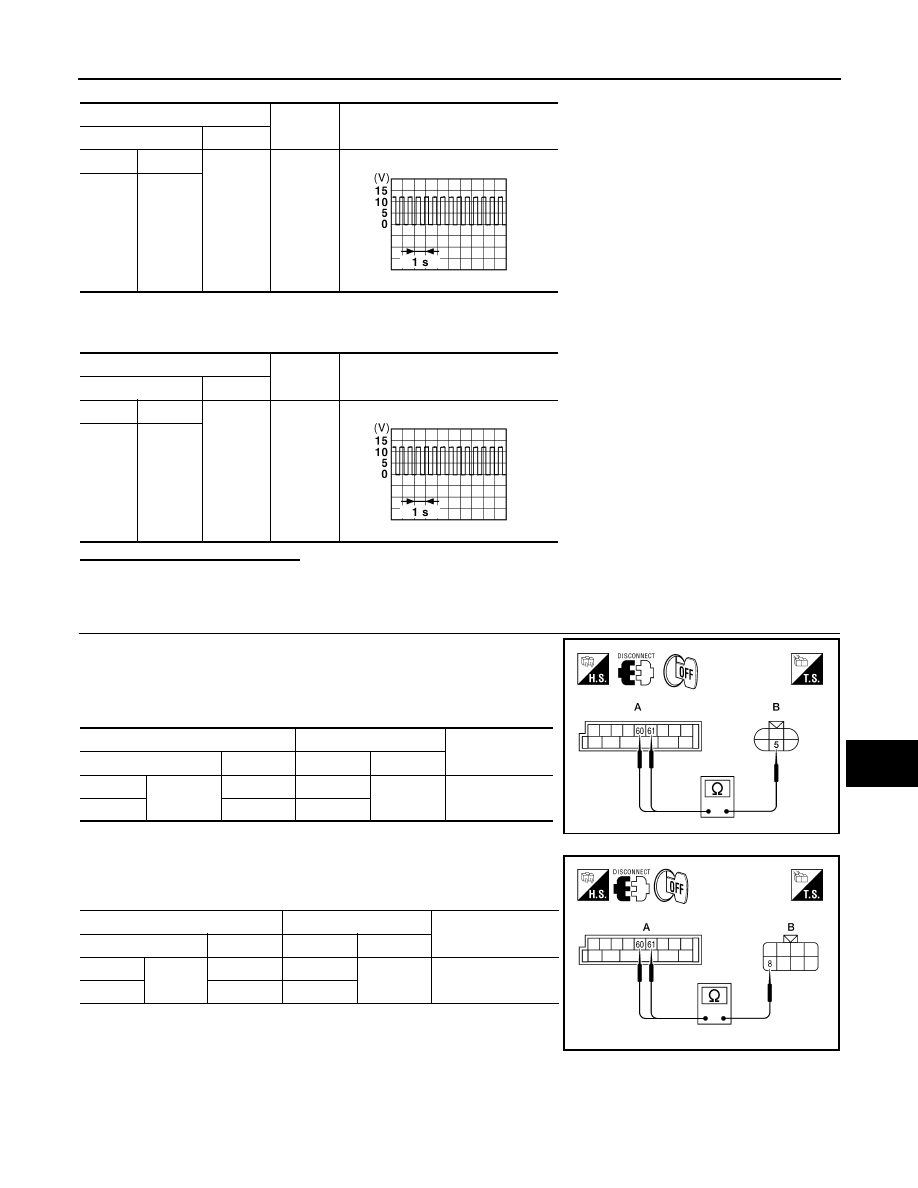

5. Check continuity between the BCM harness connector (A) and

the door mirror connector (B) (if equipped with turn signals in the

mirrors).

Are continuity test results as specified?

YES

>> GO TO 4.

NO

>> Repair the harnesses or connectors.

4.

CHECK TURN SIGNAL LAMP SHORT CIRCUIT

Check continuity between the BCM harness connector M20 and

ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> Replace BCM. Refer to

BCS-53, "Removal and Installa-

tion"

.

5.

CHECK TURN SIGNAL LAMP GROUND CIRCUIT

1. Check continuity between the front combination lamp harness

connector and ground.

2. Check continuity between the rear combination lamp harness

connector and ground.

A

B

Continuity

Connector

Terminal

Connector

Terminal

Door mirror LH

M20

60

D4

15

Yes

Door mirror RH

61

D107

WKIA4524E

Connector

Terminal

—

Continuity

LH

M20

60

Ground

No

RH

61

ALLIA0404GB

Connector

Terminal

—

Continuity

Front LH

E6

4

Ground

Yes

Front RH

E108

ALLIA0405GB

Connector

Terminal

—

Continuity

Rear LH

C13

1

Ground

Yes

Rear RH

C14

AWLIA1615ZZ
