PARKING LAMP CIRCUIT

EXL-47

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PARKING LAMP CIRCUIT

Description

INFOID:0000000006179033

The IPDM E/R (intelligent power distribution module engine room) controls the tail lamp relay based on inputs

from the BCM via the CAN communication lines. When the tail lamp relay is energized, power flows through

fuse 37, located in the IPDM E/R. Power then flows to the front and rear combination lamps.

Component Function Check

INFOID:0000000006179034

1.

CHECK PARKING LAMP OPERATION

WITHOUT CONSULT-III

1. Activate IPDM E/R auto active test. Refer to

PCS-11, "Diagnosis Description"

.

2. Check that the parking lamp is turned ON.

CONSULT-III

1. Select "EXTERNAL LAMPS" of IPDM E/R active test item.

2. While operating the test item, check that the parking lamp is turned ON.

Is the parking lamp turned ON?

YES

>> Parking lamp circuit is normal.

NO

>> Refer to

EXL-47, "Diagnosis Procedure - Without Daytime Light System"

,

EXL-50, "Diagnosis

Procedure - With Daytime Light System"

.

Diagnosis Procedure - Without Daytime Light System

INFOID:0000000006179035

Regarding Wiring Diagram information, refer to

EXL-107, "Wiring Diagram"

.

1.

CHECK PARKING LAMP FUSES

1. Turn the ignition switch OFF.

2. Check that the following fuses are not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2.

2.

CHECK TAIL LAMP RELAY OUTPUT (VOLTAGE)

1. Turn the ignition switch OFF.

2. Disconnect the front combination lamp connector, rear combination lamp connector and license plate

lamp connector.

3. Turn the ignition switch ON.

4. Turn the parking lamps ON.

TAIL

: Parking lamp ON

OFF

: Parking lamp OFF

Unit

Location

Fuse No.

Capacity

Parking lamps

IPDM E/R

37

10A

EXL-48

< DTC/CIRCUIT DIAGNOSIS >

PARKING LAMP CIRCUIT

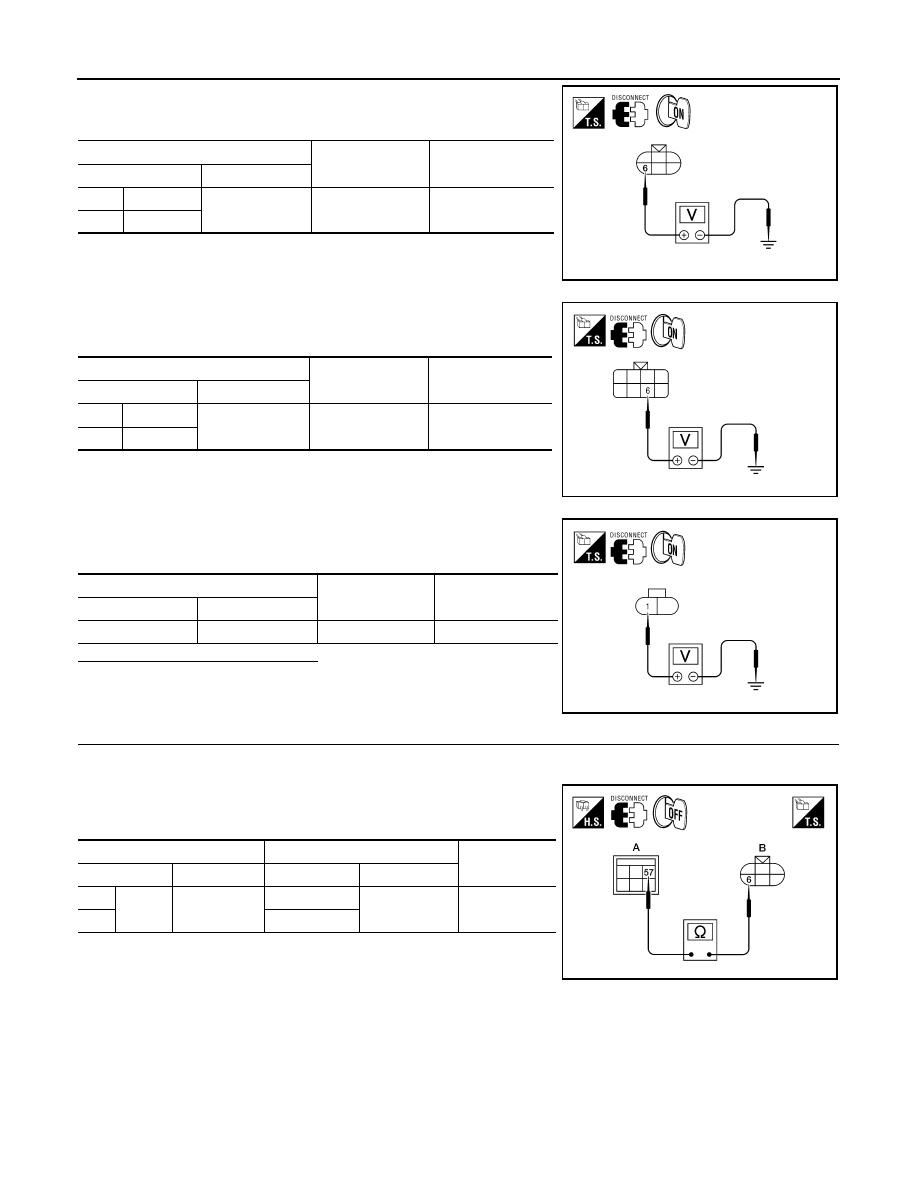

5. With the parking lamps ON, check voltage between the front

combination lamp connectors and ground.

6. With the parking lamps ON, check voltage between the rear

combination lamp connectors and ground.

7. With the parking lamps ON, check voltage between the license

plate lamp connector and ground

Are voltage readings as specified?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK PARKING, LICENSE PLATE AND TAIL LAMP CIRCUIT (OPEN)

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector E124.

3. Check continuity between the IPDM E/R harness connector (A)

and the front combination lamp harness connector (B).

(+)

(

−)

Voltage

Connector

Terminal

LH

E11

6

Ground

Battery voltage

RH

E107

ALLIA0393ZZ

(+)

(

−)

Voltage

Connector

Terminal

LH

C13

6

Ground

Battery voltage

RH

C14

AWLIA1613ZZ

(+)

(

−)

Voltage

Connector

Terminal

C12

1

Ground

Battery voltage

ALLIA0571ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

LH

E124

57

E11

6

Yes

RH

E107

ALLIA0396ZZ

PARKING LAMP CIRCUIT

EXL-49

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

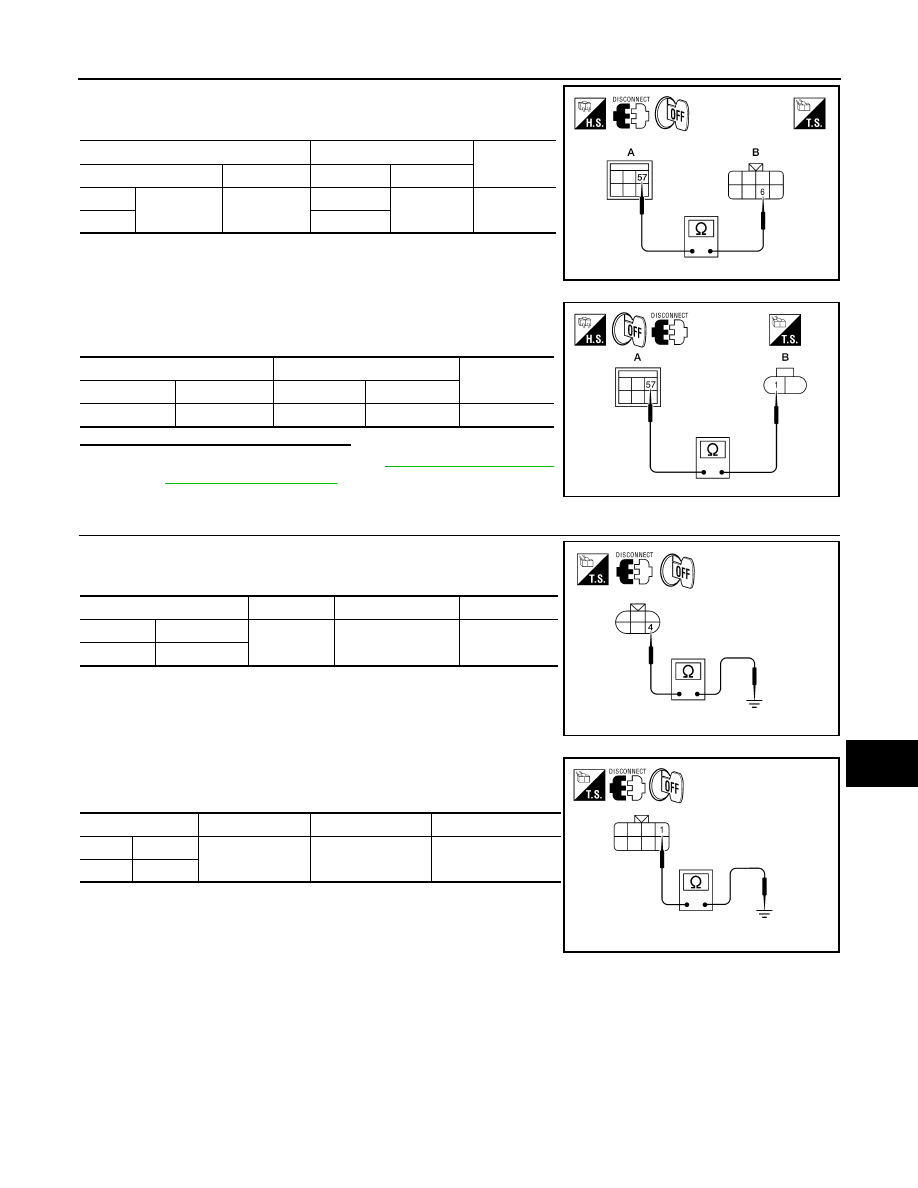

4. Check continuity between the IPDM E/R harness connector (A)

and the rear combination lamp harness connector (B).

5. Check continuity between the IPDM E/R harness connector (A)

and license plate lamp connector (B).

Are continuity test results as specified?

YES

>> Replace IPDM E/R. Refer to

PCS-28, "Removal and

Installation of IPDM E/R"

.

NO

>> Repair the harnesses or connectors.

4.

CHECK PARKING, LICENSE AND TAIL LAMP GROUND CIRCUITS

1. Check continuity between the front combination lamp harness

connectors E11 and E107 terminal 4 and ground.

2. Check continuity between the rear combination lamp harness

connectors and ground.

A

B

Continuity

Connector

Terminal

Connector

Terminal

LH

E124

57

C13

6

Yes

RH

C14

AWLIA1614ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

E124

57

C12

1

Yes

ALLIA0573ZZ

Connector

Terminal

—

Continuity

LH

E11

4

Ground

Yes

RH

E107

ALLIA0399ZZ

Connector

Terminal

—

Continuity

LH

C13

1

Ground

Yes

RH

C14

AWLIA1615ZZ

EXL-50

< DTC/CIRCUIT DIAGNOSIS >

PARKING LAMP CIRCUIT

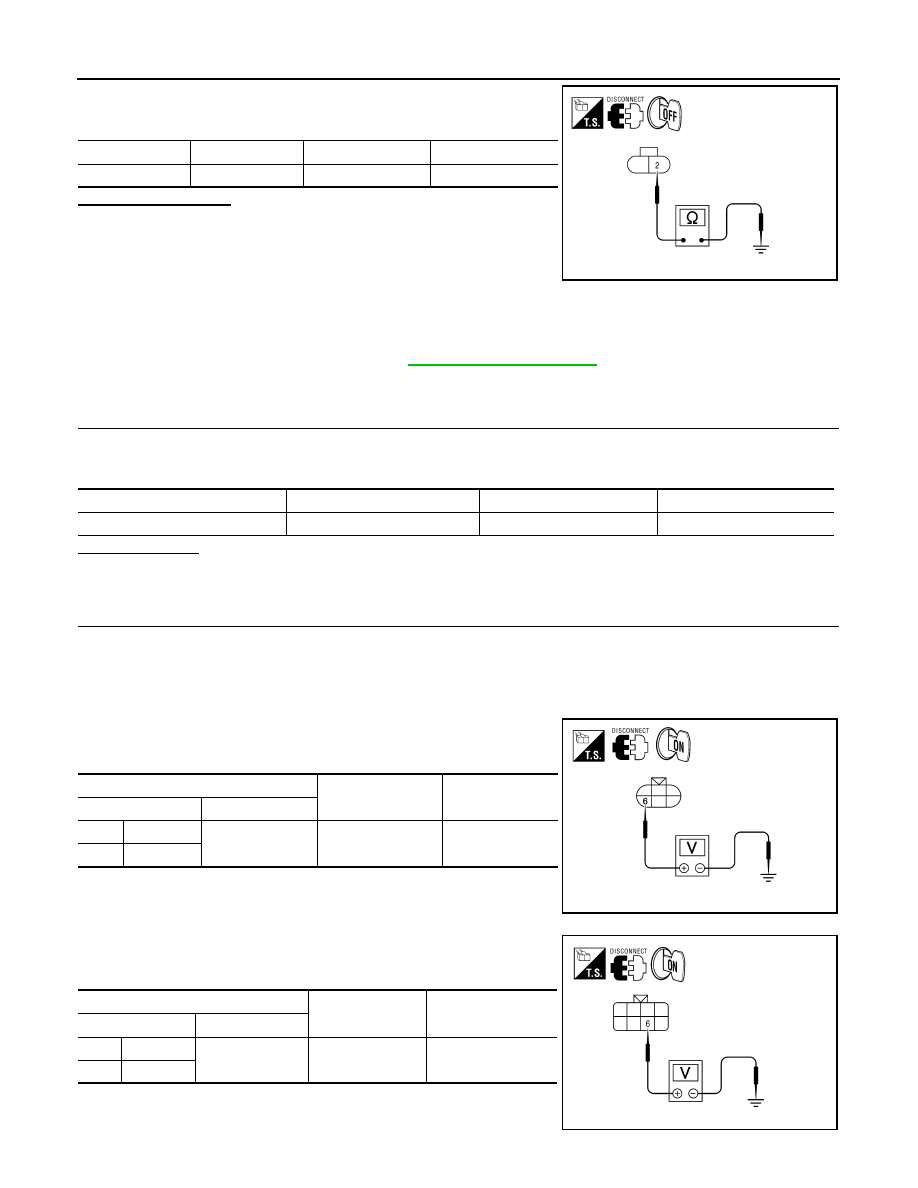

3. Check continuity between the license plate lamp harness con-

nector and ground.

Does continuity exist?

YES

>> Inspect the parking lamp bulb.

NO

>> Repair the harness.

Diagnosis Procedure - With Daytime Light System

INFOID:0000000006179036

Regarding Wiring Diagram information, refer to

EXL-107, "Wiring Diagram"

.

1.

CHECK PARKING LAMP FUSES

1. Turn the ignition switch OFF.

2. Check that the following fuses are not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2.

2.

CHECK TAIL LAMP RELAY OUTPUT (VOLTAGE)

1. Turn the ignition switch OFF.

2. Disconnect the front combination lamp connector, rear combination lamp connector and license plate

lamp connector.

3. Turn the ignition switch ON.

4. Turn the parking lamps ON.

5. With the parking lamps ON, check voltage between the front

combination lamp connectors and ground.

6. With the parking lamps ON, check voltage between the rear

combination lamp connectors and ground.

Connector

Terminal

—

Continuity

C12

2

Ground

Yes

ALLIA0575ZZ

Unit

Location

Fuse No.

Capacity

Parking lamps

IPDM E/R

37

10A

(+)

(

−)

Voltage

Connector

Terminal

LH

E6

6

Ground

Battery voltage

RH

E108

ALLIA0393ZZ

(+)

(

−)

Voltage

Connector

Terminal

LH

C13

6

Ground

Battery voltage

RH

C14

AWLIA1613ZZ
