INTAKE VALVE TIMING CONTROL

Intake Valve Timing Control Position Sensor (LH)

INFOID:0000000006158963

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-25, "Removal and Installation"

.

3. Disconnect intake valve timing control position sensor connector (LH).

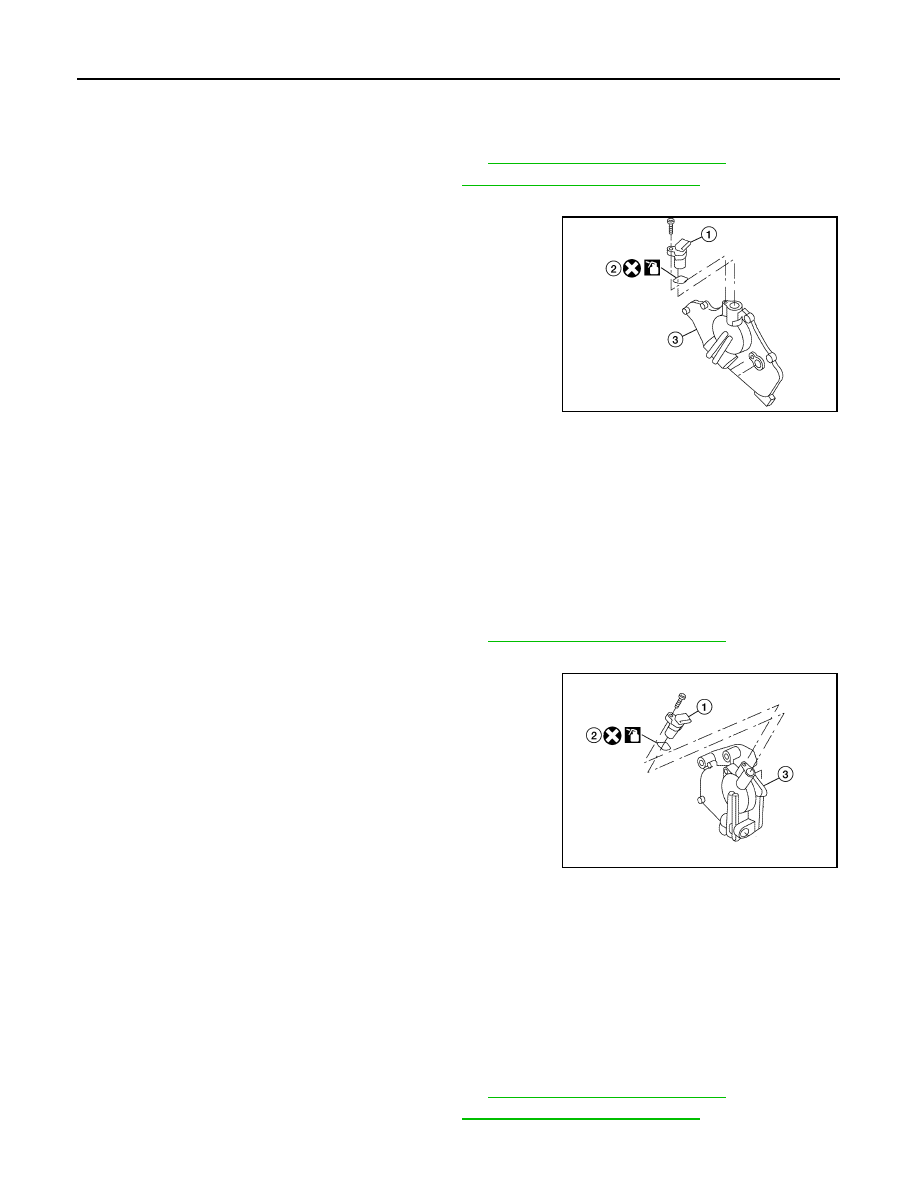

4. Remove intake valve timing control position sensor (LH) (1) from

Intake valve timing control solenoid valve cover (LH) (3).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring (2) of the intake valve timing control position sensor with a new one, then lubricate

O-ring with engine oil before installing.

Intake Valve Timing Control Position Sensor (RH)

INFOID:0000000006158964

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2. Disconnect intake valve timing control position sensor connector (RH).
3. Remove intake valve timing control position sensor (RH) (1)

from Intake valve timing control solenoid valve cover (RH) (3).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring (2) of the intake valve timing control position sensor with a new one, then lubricate

O-ring with engine oil before installing.

Camshaft Position Sensor (PHASE)

INFOID:0000000006158965

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-25, "Removal and Installation"

.

3. Disconnect camshaft position sensor connector.

AWBIA0141ZZ

Intake valve timing control position sensor bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

AWBIA0143ZZ

Intake valve timing control position sensor bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

INTAKE VALVE TIMING CONTROL

EC-479

< REMOVAL AND INSTALLATION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

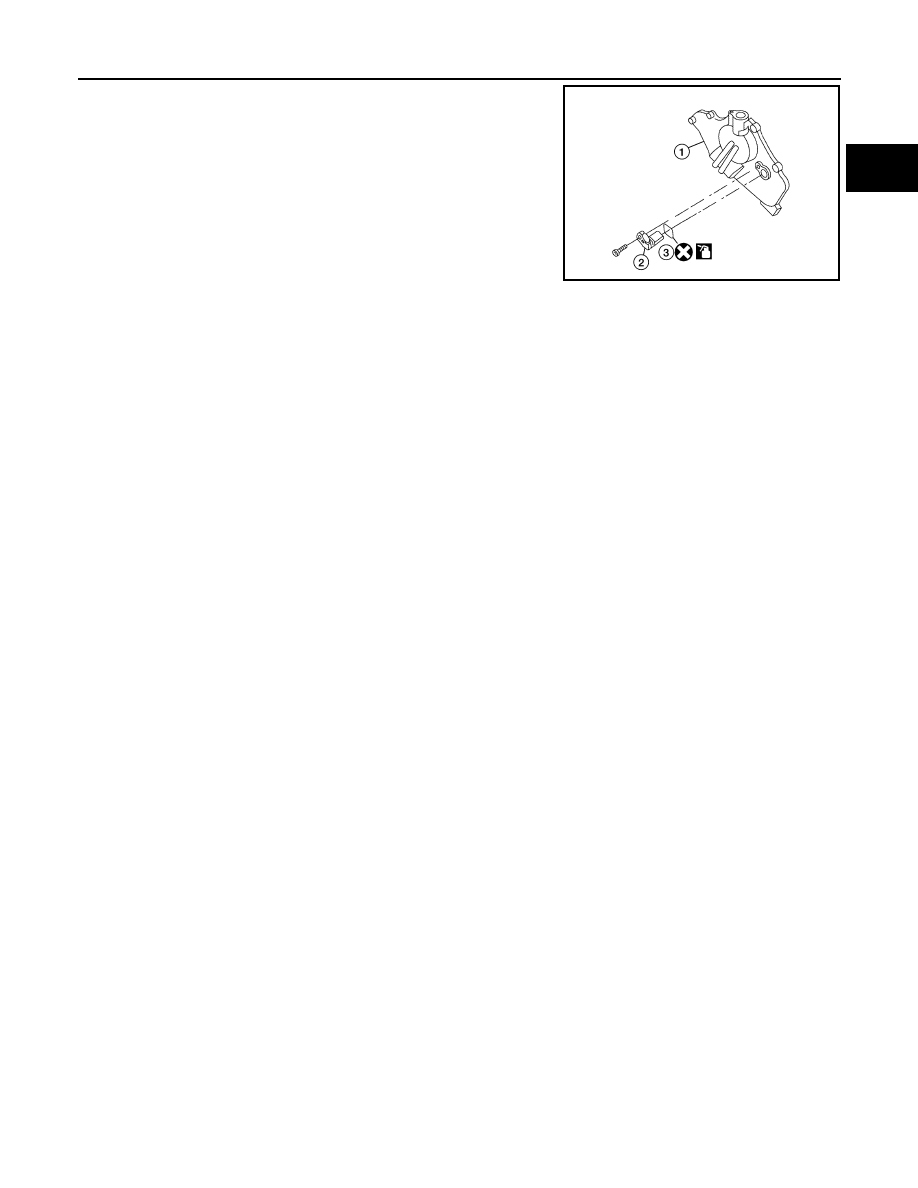

4. Remove camshaft position sensor (2) from Intake valve timing

control solenoid valve cover (LH) (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring (3) of the camshaft position sensor with a new one, then lubricate O-ring with

engine oil before installing.

AWBIA0142ZZ

Camshaft position sensor bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

EC-480

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Pressure

INFOID:0000000006158966

Idle Speed and Ignition Timing

INFOID:0000000006158967

*: Under the following conditions:
• Air conditioner switch: OFF
• Electric load: OFF (Lights and heater fan)
• Steering wheel: Kept in straight-ahead position

Calculated Load Value

INFOID:0000000006158968

Mass Air Flow Sensor

INFOID:0000000006158969

*: Engine is warmed up to normal operating temperature and running under no load.

Intake Air Temperature Sensor

INFOID:0000000006158970

Engine Coolant Temperature Sensor

INFOID:0000000006158971

A/F Sensor 1 Heater

INFOID:0000000006158972

Fuel pressure at idling kPa (kg/cm

2

, psi)

Approximately 350 (3.57, 51)

Target idle speed

No-load* (in P or N position)

650

±50 rpm

Air conditioner: ON

In P or N position

700 rpm or more

Ignition timing

In P or N position

15

° ± 5° BTDC

Condition

Calculated load value % (Using CONSULT-III or GST)

At idle

14.0 - 33.0

At 2,500 rpm

12.0 - 25.0

Supply voltage

Battery voltage (11 - 14V)

Output voltage at idle

1.0 - 1.3V*

Mass air flow (Using CONSULT-III or GST)

3.0 - 9.0 g/s at idle*

9.0 - 28.0 g/s at 2,500 rpm*

Temperature

°C (°F)

Resistance k

Ω

25 (77)

1.800 - 2.200

Temperature

°C (°F)

Resistance k

Ω

20 (68)

2.1 - 2.9

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

Resistance [at 25

°C (77°F)]

1.98 - 2.66

Ω

SERVICE DATA AND SPECIFICATIONS (SDS)

EC-481

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Heated Oxygen sensor 2 Heater

INFOID:0000000006158973

Crankshaft Position Sensor (POS)

INFOID:0000000006158974

Refer to

EC-259, "Component Inspection"

.

Camshaft Position Sensor (PHASE)

INFOID:0000000006158975

Refer to

EC-263, "Component Inspection"

.

Throttle Control Motor

INFOID:0000000006158976

Fuel Injector

INFOID:0000000006158977

Fuel Pump

INFOID:0000000006158978

Resistance [at 25

°C (77°F)]

8 - 10

Ω

Resistance [at 25

°C (77°F)]

Approximately 1 - 15

Ω

Resistance [at 10 - 60

°C (50 - 140°F)]

11.1 - 14.5

Ω

Resistance [at 25

°C (77°F)]

0.2 - 5.0

Ω
