FUEL PRESSURE

8. If result is unsatisfactory, go to next step.
9. Check the following.

• Fuel hoses and fuel tubes for clogging

• Fuel filter for clogging

• Fuel pump

• Fuel pressure regulator for clogging

If OK, replace fuel pressure regulator.

If NG, repair or replace.

10. Before disconnecting Fuel Pressure Gauge and Fuel Pressure Adapter J-44321-6, release fuel pressure

to zero. Refer to "FUEL PRESSURE RELEASE".

At idling: Approximately 350 kPa (3.57 kg/cm

2

, 51 psi)

EVAP LEAK CHECK

EC-475

< PERIODIC MAINTENANCE >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

EVAP LEAK CHECK

How to Detect Fuel Vapor Leakage

INFOID:0000000006158958

CAUTION:

• Never use compressed air or a high pressure pump.
• Do not exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure in EVAP system.

NOTE:

• Do not start engine.

• Improper installation of EVAP service port adapter to the EVAP service port may cause a leak.

 WITH CONSULT-III

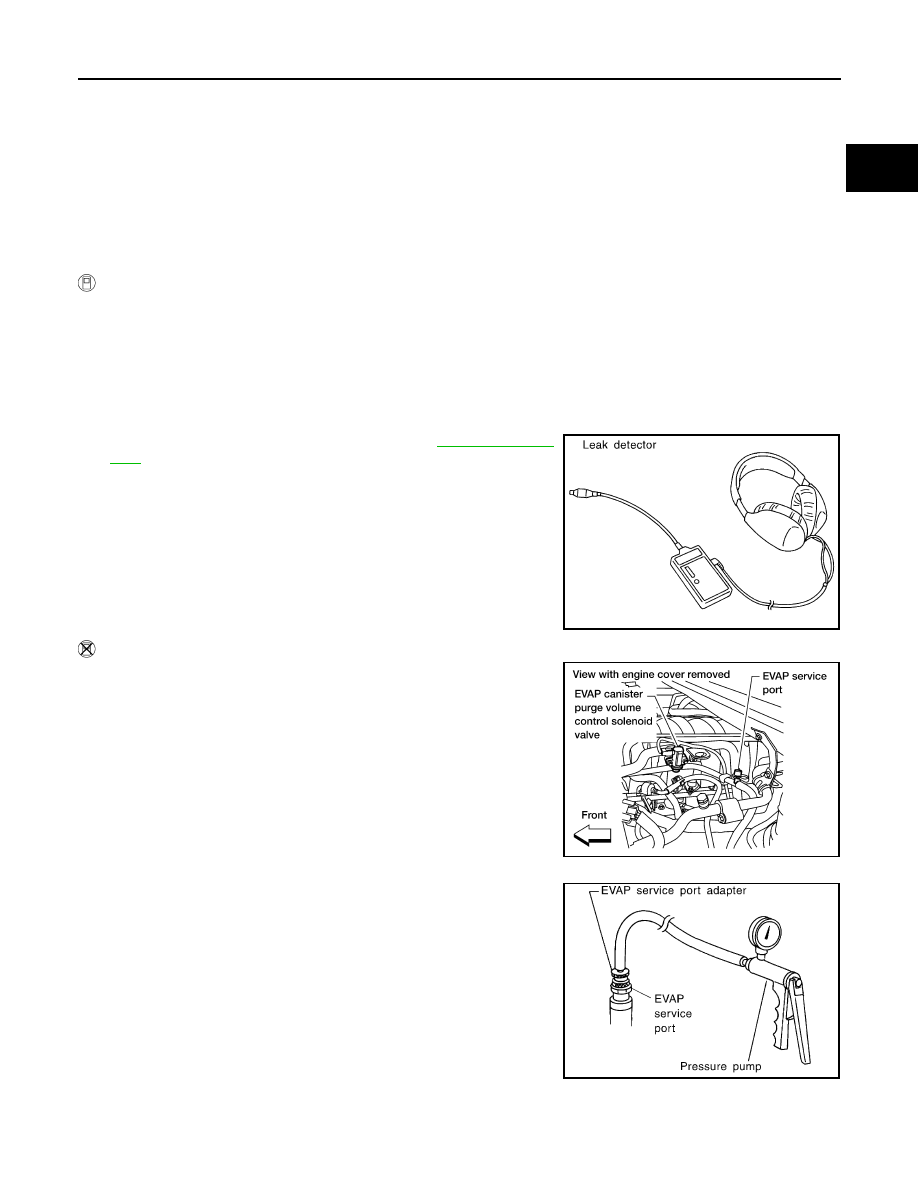

1. Attach the EVAP service port adapter securely to the EVAP service port.

2. Also attach the pressure pump and hose to the EVAP service port adapter.

3. Turn ignition switch ON.

4. Select the “EVAP SYSTEM CLOSE” of “WORK SUPPORT MODE” with CONSULT-III.

5. Touch “START”. A bar graph (Pressure indicating display) will appear on the screen.

6. Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar

graph.

7. Remove EVAP service port adapter and hose with pressure pump.

8. Locate the leak using a leak detector. Refer to

EC-31, "Descrip-

tion"

.

 WITHOUT CONSULT-III

1. Attach the EVAP service port adapter securely to the EVAP ser-

vice port.

2. Also attach the pressure pump with pressure gauge to the EVAP

service port adapter.

SEF200U

BBIA0366E

SEF462UA

EC-476

< PERIODIC MAINTENANCE >

[VK56DE]

EVAP LEAK CHECK

3. Apply battery voltage between the terminals of EVAP canister

vent control valve to make a closed EVAP system.

4. To locate the leak, deliver positive pressure to the EVAP system until pressure gauge points reach 1.38 to

2.76 kPa (0.014 to 0.028 kg/cm

2

, 0.2 to 0.4 psi).

5. Remove EVAP service port adapter and hose with pressure pump.

6. Locate the leak using a leak detector. Refer to

EC-31, "Description"

1

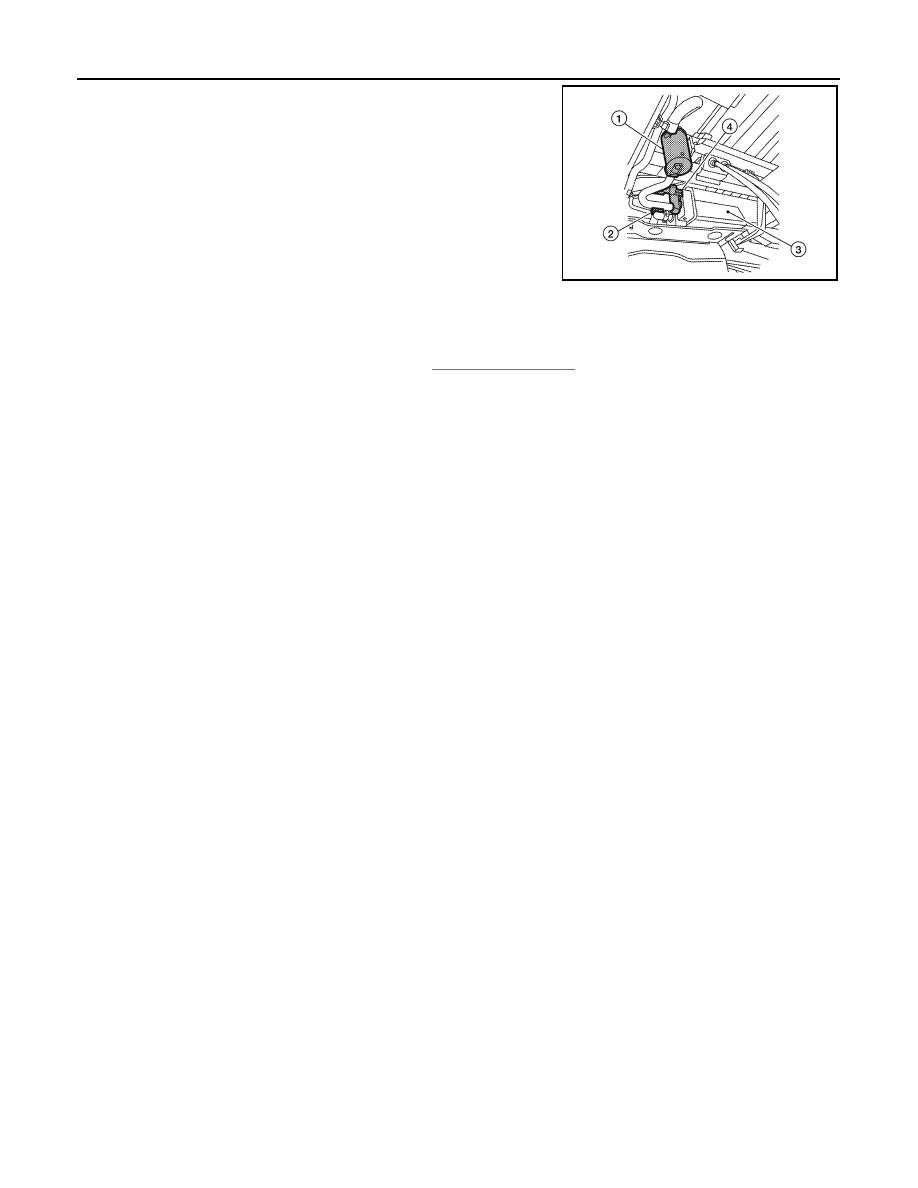

: Drain filter

2

: EVAP control system pressure sensor

3

:  EVAP  canister

4

: EVAP canister vent control value

ALBIA0401ZZ

INTAKE VALVE TIMING CONTROL

EC-477

< REMOVAL AND INSTALLATION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

REMOVAL AND INSTALLATION

INTAKE VALVE TIMING CONTROL

Intake Valve Timing Control Solenoid Valve (LH)

INFOID:0000000006158961

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-25, "Removal and Installation"

.

3. Remove drive belt. Refer to

EM-13, "Removal and Installation"

.

4. Disconnect Intake valve timing controlintake valve timing control solenoid valve connector (LH).

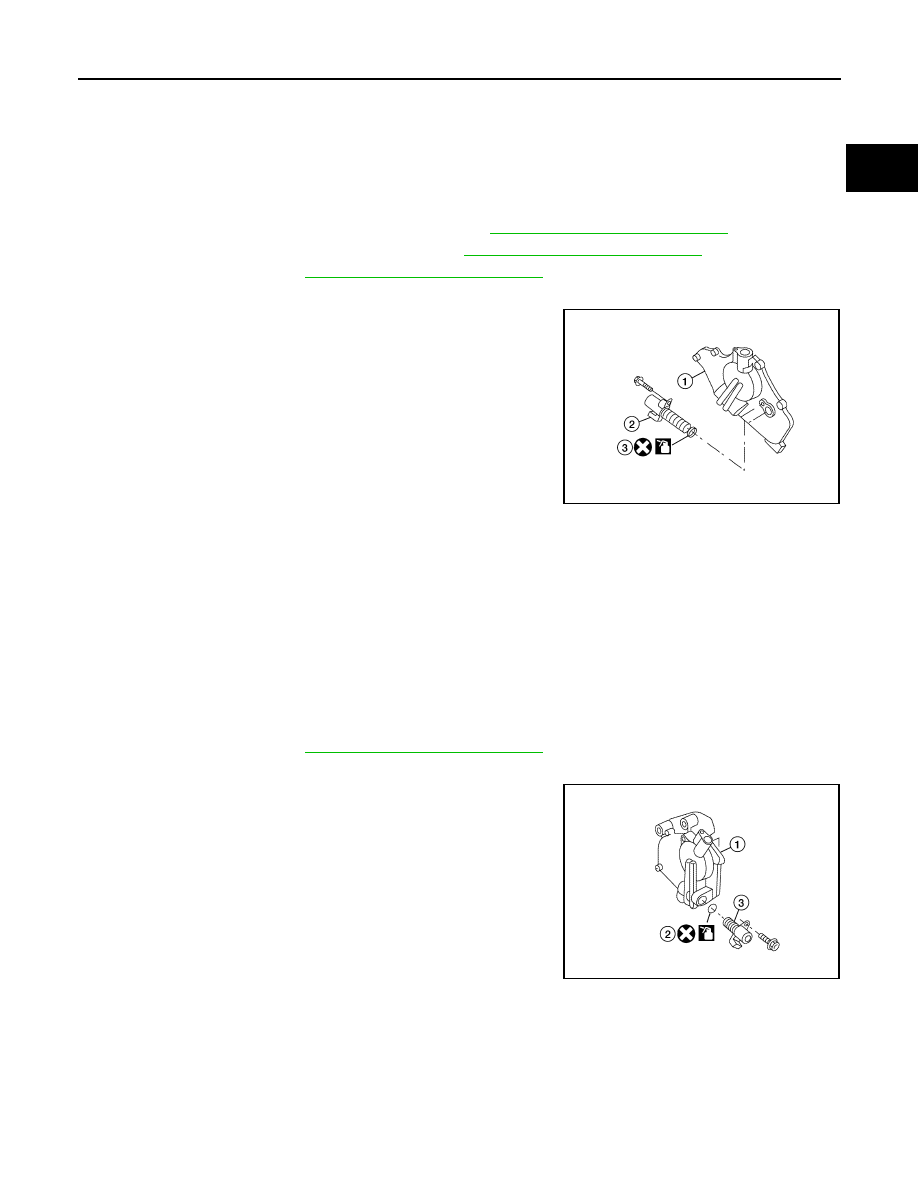

5. Remove Intake valve timing control solenoid valve (LH) (2) from

Intake valve timing control solenoid valve cover (LH) (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring (3) of the Intake valve timing control solenoid valve with a new one, then lubricate

O-ring with engine oil before installing.

Intake Valve Timing Control Solenoid Valve (RH)

INFOID:0000000006158962

REMOVAL

1. Remove drive belt. Refer to

EM-13, "Removal and Installation"

.

2. Disconnect Intake valve timing control solenoid valve connector (RH).
3. Remove Intake valve timing control solenoid valve (RH) (3) from

Intake valve timing control solenoid valve cover (RH) (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring (2) of the Intake valve timing control solenoid valve with a new one, then lubricate

O-ring with engine oil before installing.

AWBIA0145ZZ

Intake valve timing control sole-
noid valve bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

AWBIA0144ZZ

Intake valve timing control sole-
noid valve bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)
