FRONT DRIVE SHAFT

Disassembly and Assembly

INFOID:0000000006179510

DISASSEMBLY

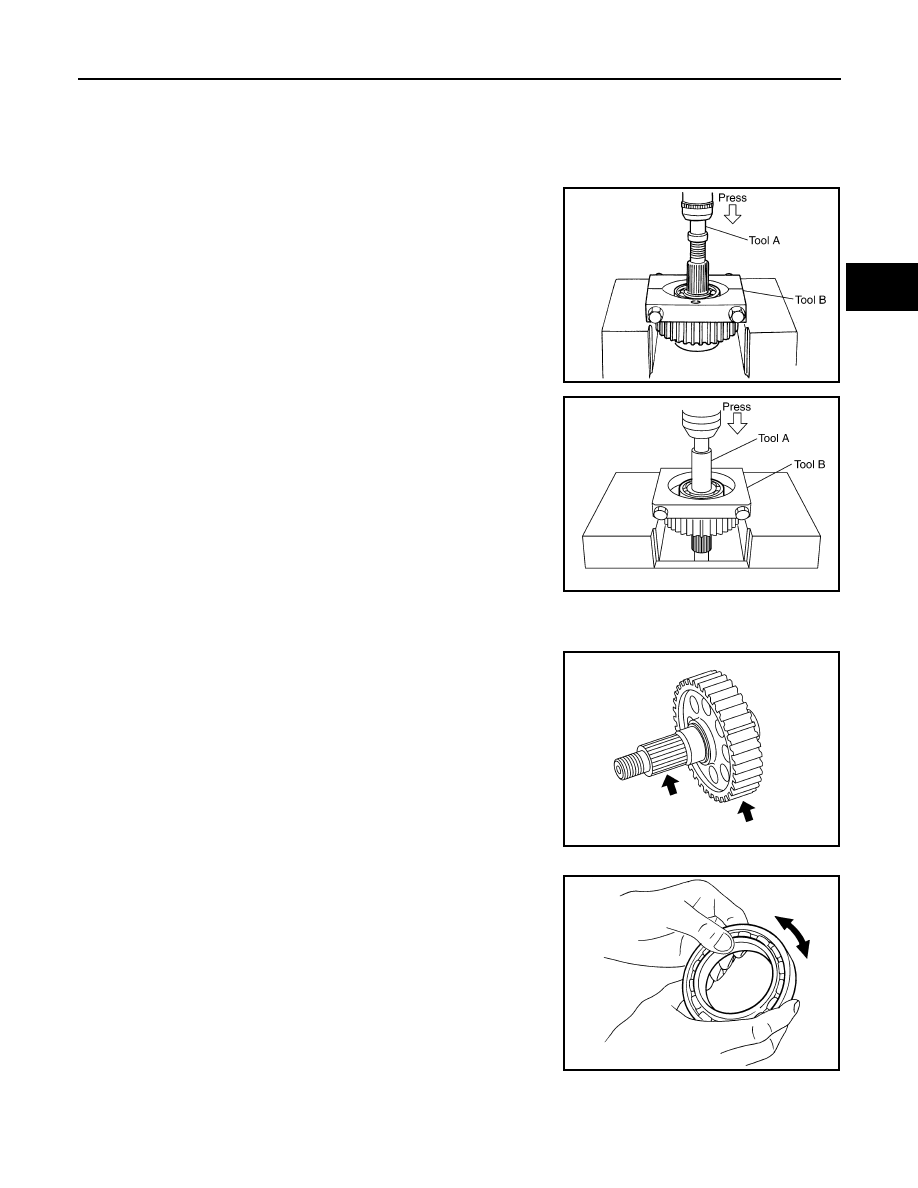

1. Remove the front bearing using Tools.

2. Remove the rear bearing using Tools.

INSPECTION AFTER DISASSEMBLY

Front Drive Shaft

Check the items below. If necessary, replace them with new ones.

• Damage, peeling, dent, uneven wear and bending of the shaft.

• Excessive wear, damage and peeling of the gear.

Bearing

Check the bearing for damage and rough rotation. If necessary,

replace the bearing with a new one.

ASSEMBLY

Tool number

A: ST35300000 ( — )
B: ST30021000 (J-22912-01)

SDIA2106E

Tool number

A: ST33710000 ( — )
B: ST30021000 (J-22912-01)

PDIA0153E

PDIA0154E

MTF0041D

DLN-124

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

FRONT DRIVE SHAFT

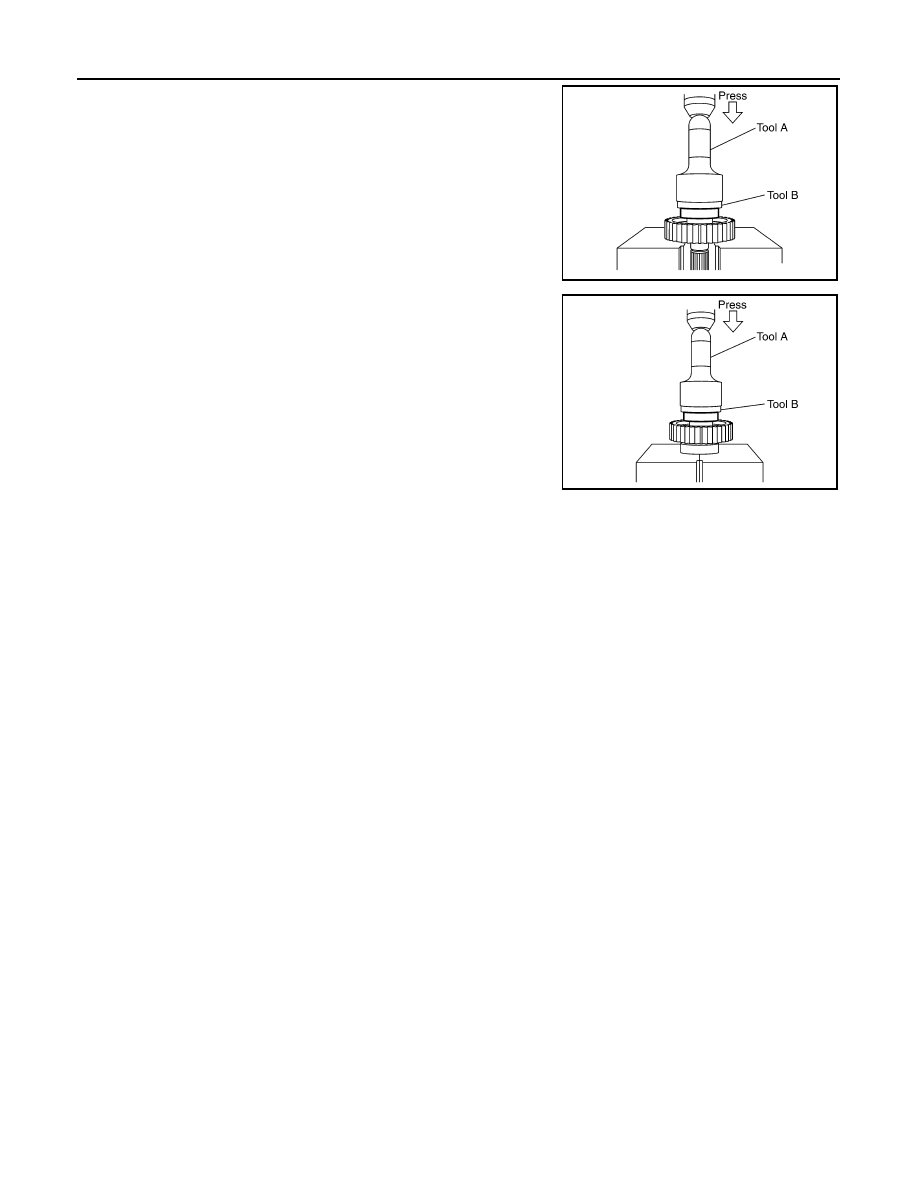

1. Install the rear bearing using Tools.

2. Install the front bearing using Tools.

Tool number

A: KV38100500 ( — )
B: ST30901000 (J-26010-01)

PDIA0155E

Tool number

A: KV38100500 ( — )
B: ST30901000 (J-26010-01)

PDIA0156E

SHIFT CONTROL

DLN-125

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SHIFT CONTROL

Disassembly and Assembly

INFOID:0000000006179511

DISASSEMBLY

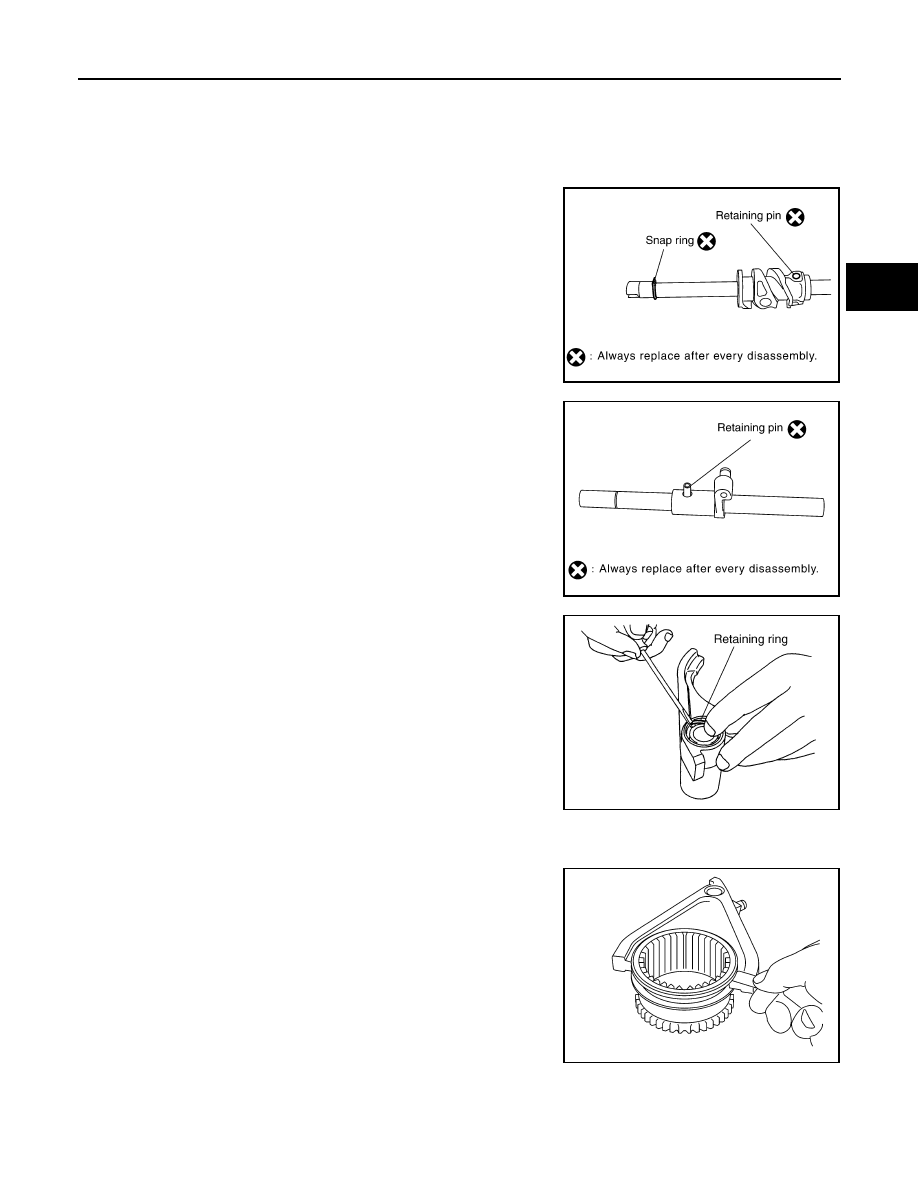

1. Remove the snap ring.
2. Remove the retaining pin.
3. Remove the drum cam from the control shift rod.

4. Remove the retaining pin from the L-H shift rod.
5. Remove the 2-4 shift bracket.

6. Remove the retaining ring from the 2-4 shift fork using suitable

tool.

7. Remove the fork guide collar and 2-4 shift fork spring from the 2-

4 shift fork.

INSPECTION AFTER DISASSEMBLY

Shift Fork

• Measure the clearance between the shift fork and sleeve. If it is out

of specification, replace it with a new one.

Shift Rod and Fork Components

PDIA0122E

PDIA0125E

WDIA0226E

Standard value
2-4

: Less than 0.46 mm (0.018 in)

L-H

: Less than 0.46 mm (0.018 in)

PDIA0134E

DLN-126

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

SHIFT CONTROL

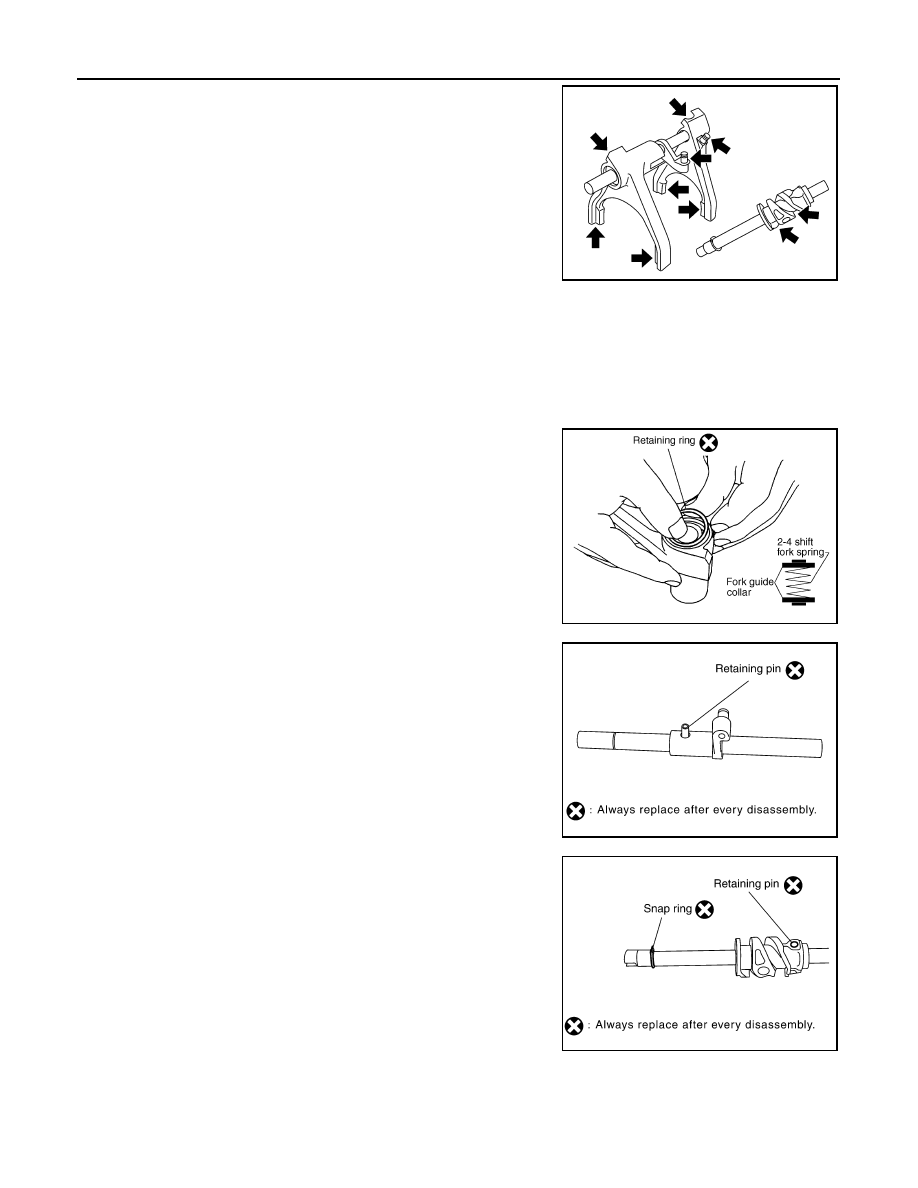

• Check the working face of the shift rod and fork for wear, partial

wear, abrasion, bending and other abnormality. If any is found,

replace with a new one.

ASSEMBLY

1. Install clevis pin and shift collar to L-H shift fork after assembling them.

CAUTION:

Use caution when installing L-H shift fork, clevis pin or shift collar.

2. Install clevis pin and shift collar to 2-4 shift bracket after assembling them.

CAUTION:

Use caution when installing 2-4 shift bracket.

3. Install guide fork collar and 2-4 shift fork spring to the 2-4 shift

fork, and then secure it with the new retaining ring.

CAUTION:

• Do not reuse retaining ring.

• Be careful with orientation.

4. Install the 2-4shift bracket to the L-H shift rod.
5. Install the new retaining pin evenly to the L-H shift rod.

CAUTION:

Do not reuse retaining pin.

6. Install the drum cam to the control shift rod, and then secure it

with the new retaining pin.

CAUTION:

Do not reuse retaining pin.

7. Install the new snap ring to the control shift rod.

CAUTION:

Do not reuse snap ring.

PDIA0135E

SDIA3391E

PDIA0125E

PDIA0122E
