Nissan Titan A60. Manual - part 265





DLK-134

< REMOVAL AND INSTALLATION >

TAIL GATE

TAIL GATE

Removal and Installation

INFOID:0000000006179274

GAS STAY

Removal

WARNING:

The gas stay is under high pressure. Remove the gas stay only with the tailgate fully closed. Injury

may result if the gas stay is removed when the tailgate is open.
1. Remove the RH rear combination lamp assembly. Refer to

EXL-148, "Removal and Installation"

.

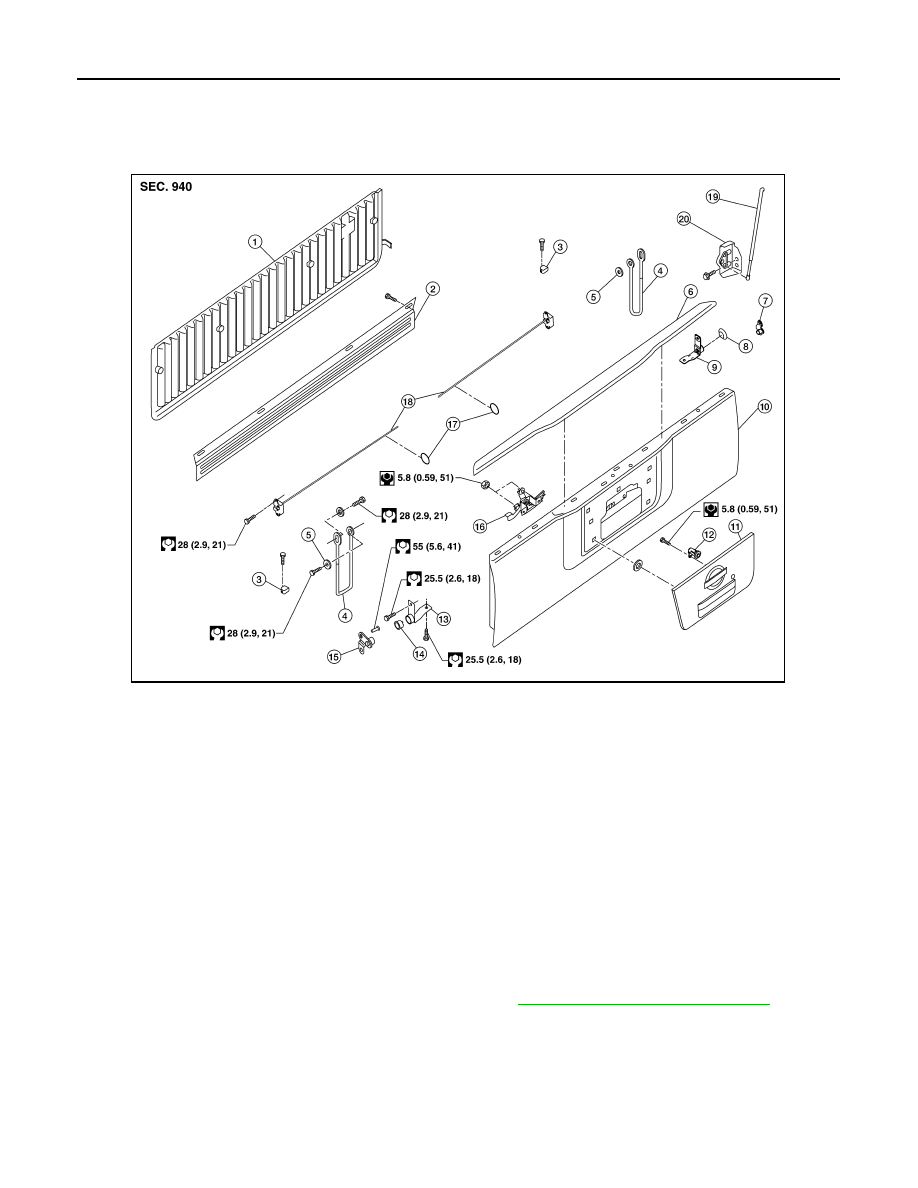

1.

Rear gate liner cover (if equipped)

2.

Rear gate inner panel

3.

Rear gate rubber bumper

4.

Rear gate stay assembly

5.

Washer

6.

Rear gate cover

7.

Rear gate hinge assembly (RH),
body side

8.

Rear gate ring (RH)

9.

Rear gate hinge assembly (RH),
gate side

10. Rear gate

11. Rear gate handle

12. Rear gate lock cylinder

13. Rear gate hinge assembly (LH), gate

side

14. Rear gate ring (LH)

15. Rear gate hinge assembly (LH),

body side

16. Rear gate control assembly

17. Rubber bumper

18. Rear gate latch assembly (RH & LH)

19. Gas stay

20. Gas stay bracket

AWKIA1564GB

TAIL GATE

DLK-135

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

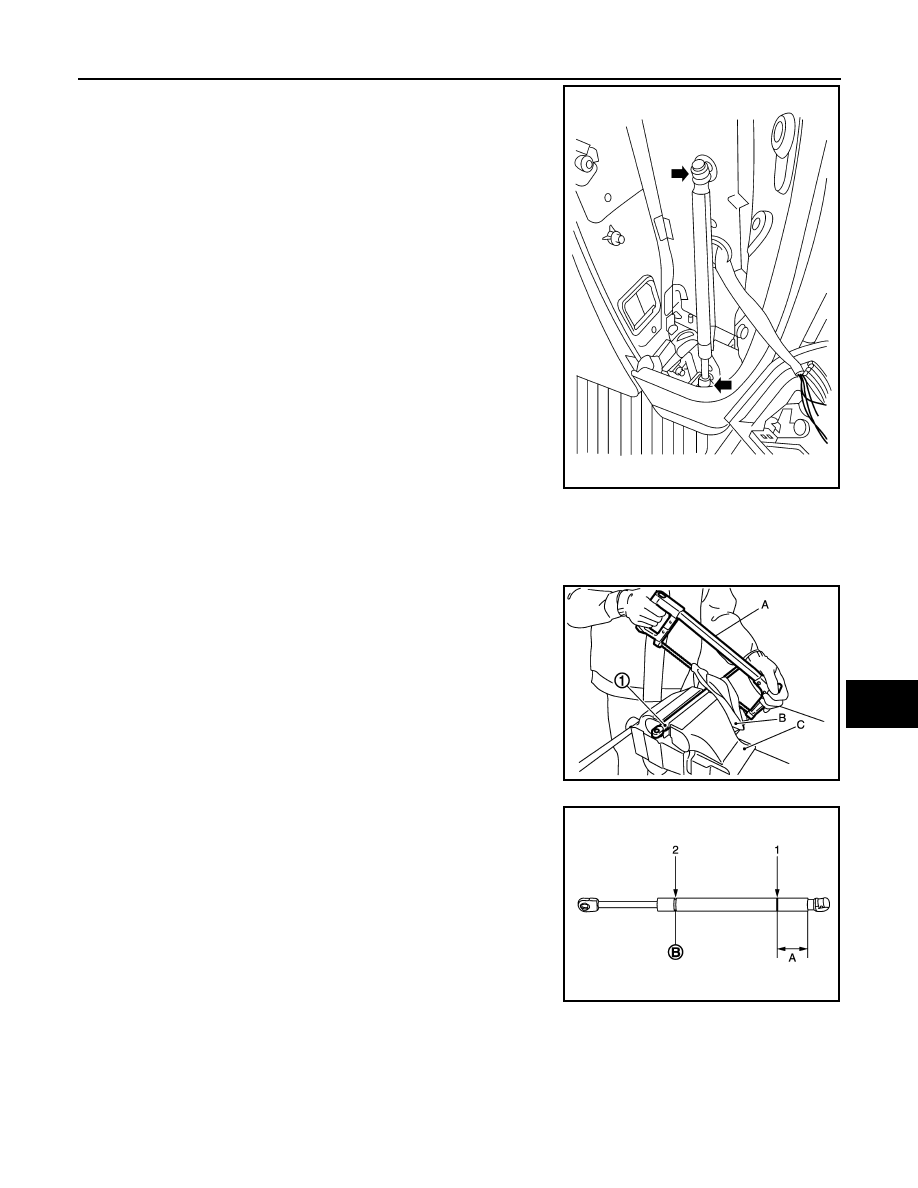

2. Remove the gas stay.

Installation

Installation is in the reverse order of removal.

Tail Gate Gas Stay Disposal

INFOID:0000000006179275

1. Fix tail gate gas stay (1) using a vise (C).
2. Using hacksaw (A) slowly make 2 holes in the tail gate gas stay,

in numerical order as shown in the figure.

CAUTION:

• When cutting a hole on tail gate gas stay, always cover a

hacksaw using a shop cloth (B) to avoid scattering metal

fragments or oil.

• Wear eye protection (safety glasses).

• Wear gloves.

LIIA1984E

JMKIA3336ZZ

A: 20 mm (0.787 in)
B: Cut at the groove.

JMKIA3609ZZ
