REAR DOOR LOCK

REAR DOOR LOCK

Component Structure

INFOID:0000000006179272

KING CAB

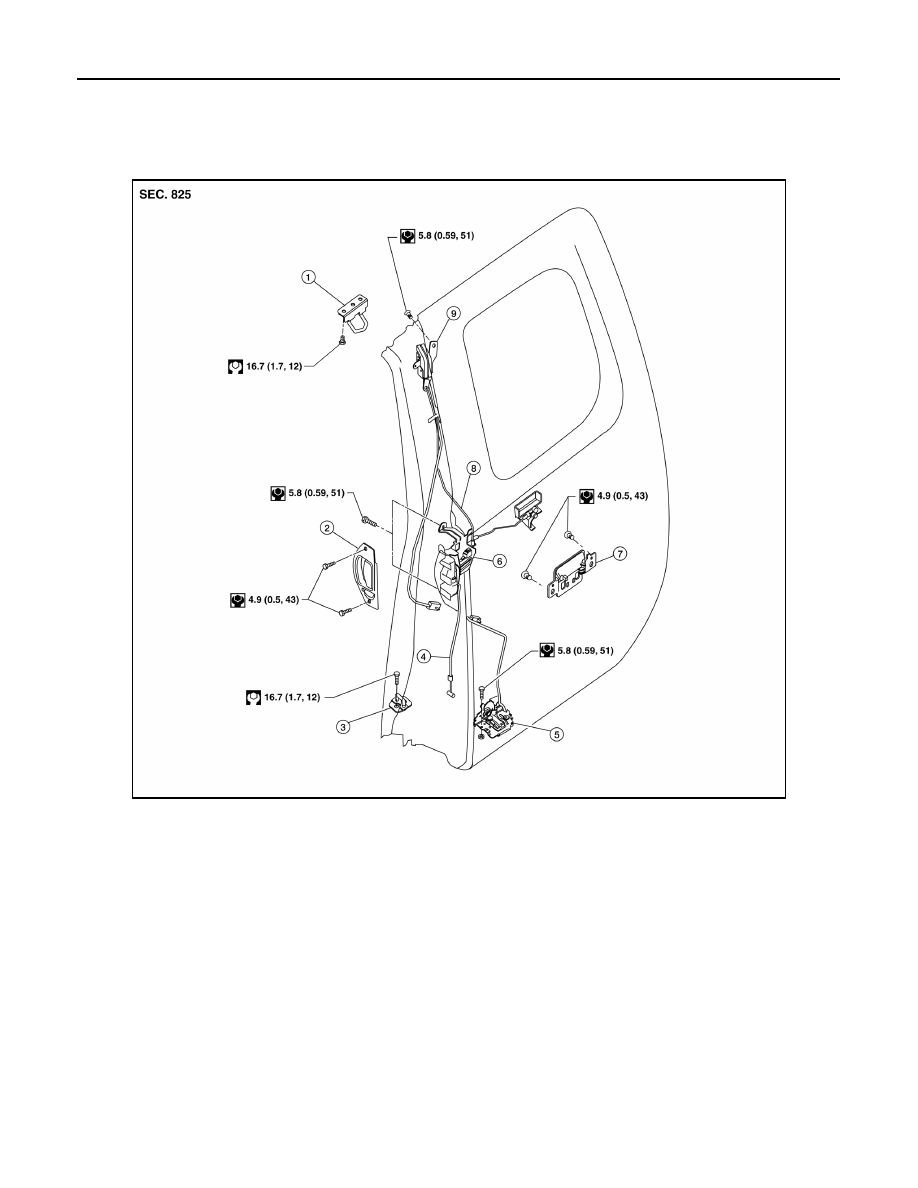

AWKIA1727GB

1.

Rear upper door lock striker

2.

Rear door handle

3.

Rear lower door lock striker

4.

Lower latch cable

5.

Rear lower door latch

6.

Rear door lock assembly

7.

Rear inside door handle

8.

Upper latch cable

9.

Rear upper door latch

REAR DOOR LOCK

DLK-131

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CREW CAB

Removal and Installation

INFOID:0000000006179273

REMOVAL

1. Remove the rear door finisher. Refer to

INT-10, "Removal and Installation"

.

2. Remove the vapor sheet.
3. Remove the door side grommet and the bolt (TORX T30) from

the grommet hole.

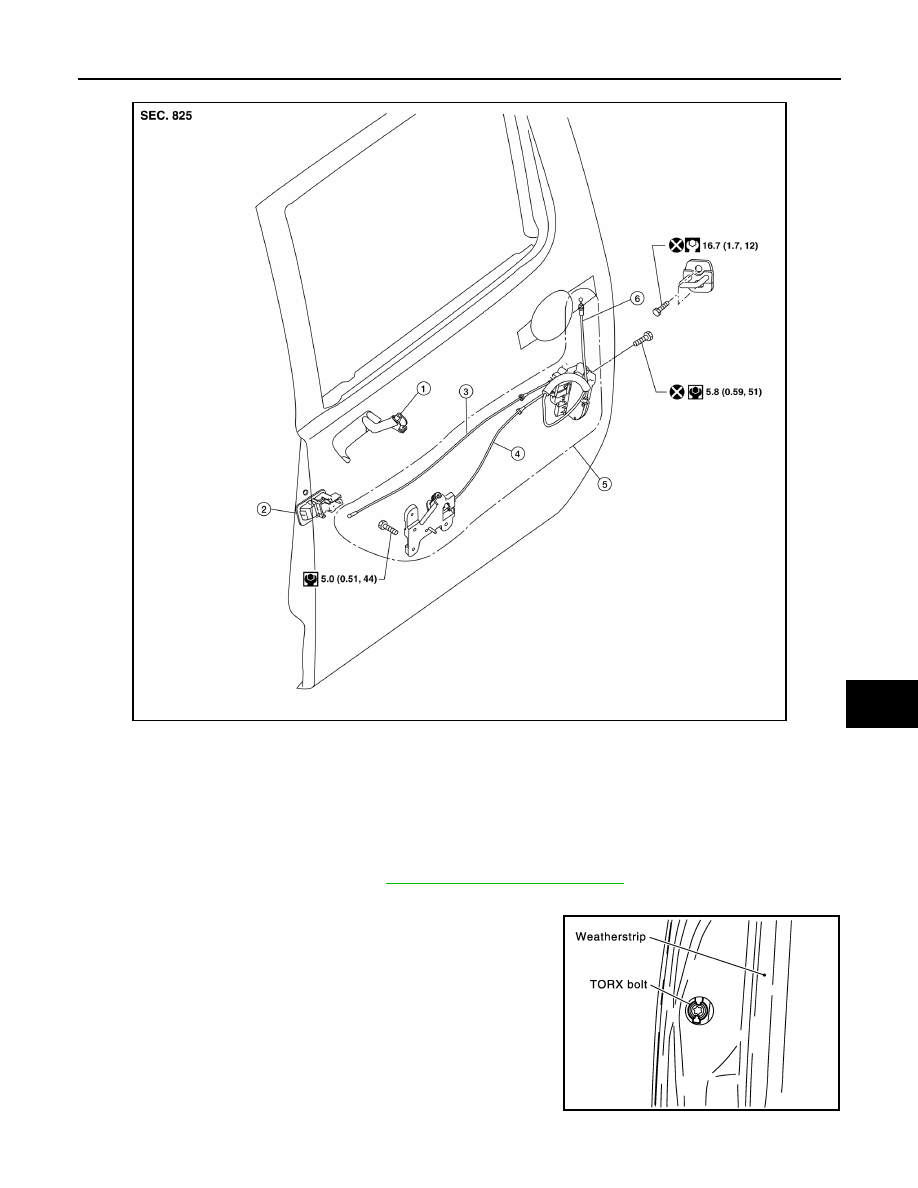

AWKIA1726GB

1.

Rear inside door handle

2.

Rear door lock knob

3.

Lock knob cable

4.

Inside handle cable

5.

Rear door lock/remote control as-
sembly

6.

Outside handle cable

PIIA3553E

DLK-132

< REMOVAL AND INSTALLATION >

REAR DOOR LOCK

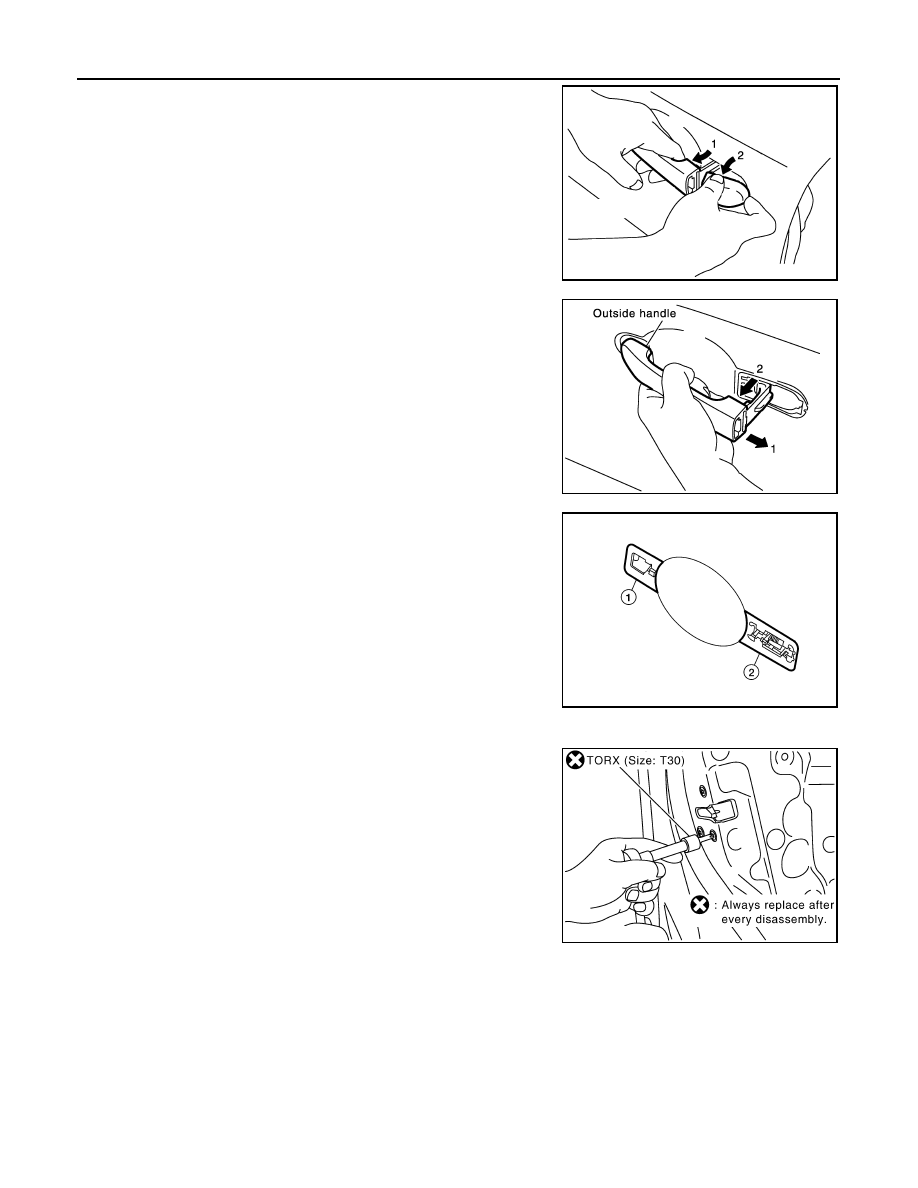

4. While pulling the outside handle, remove the door handle

escutcheon.

5. While pulling the outside handle, slide it toward the rear of vehi-

cle to remove.

6. Remove the front gasket (1) and rear gaskets (2).

7. Remove the inside handle screws.
8. Remove the TORX bolts (T30), remove the door lock assembly.

LIIA1971E

LIIA0532E

ALKIA0893ZZ

PIIA1090E

REAR DOOR LOCK

DLK-133

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

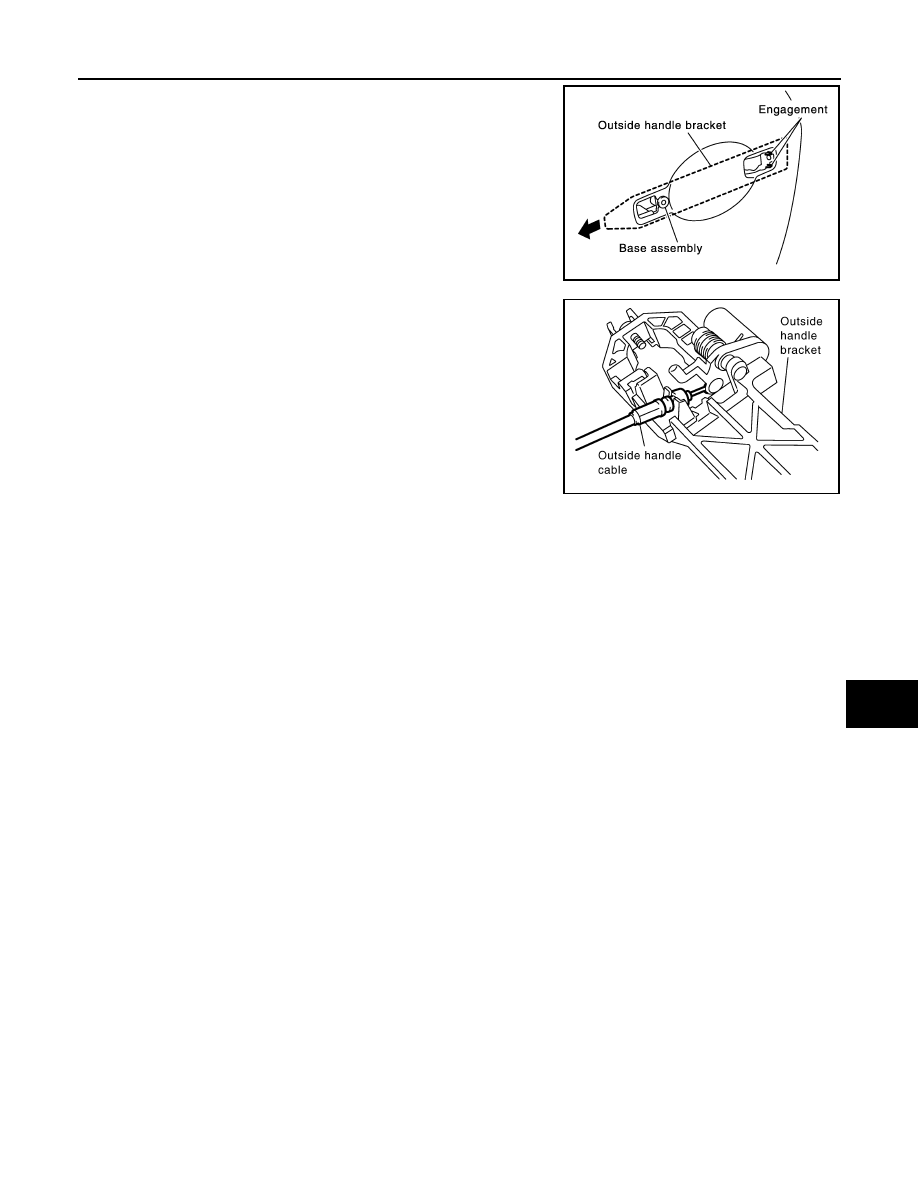

9. While pulling outside handle bracket, slide toward rear of vehicle

to remove outside handle bracket and door lock assembly.

10. Disconnect the outside handle cable.

INSTALLATION

Installation is in the reverse order of removal.

PIIA3558E

PIIA5059E
