Nissan Titan A60. Manual - part 263





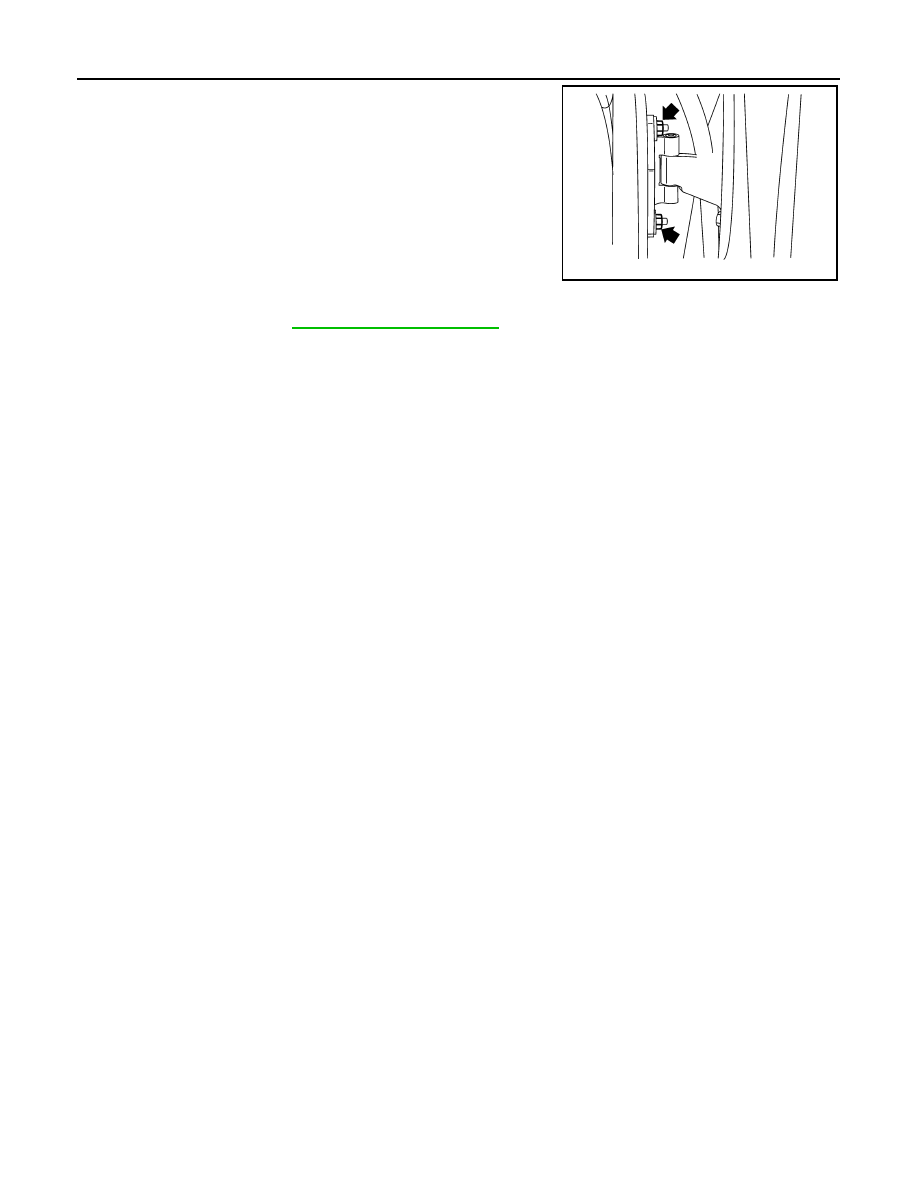

DLK-126

< REMOVAL AND INSTALLATION >

DOOR

5. Remove the door-side hinge nuts and bolts, and the door

assembly.

Installation is in the reverse order of removal.

• Align the front door. Refer to

DLK-122, "Fitting Adjustment"

.

LIIA1727E

FRONT DOOR LOCK

DLK-127

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

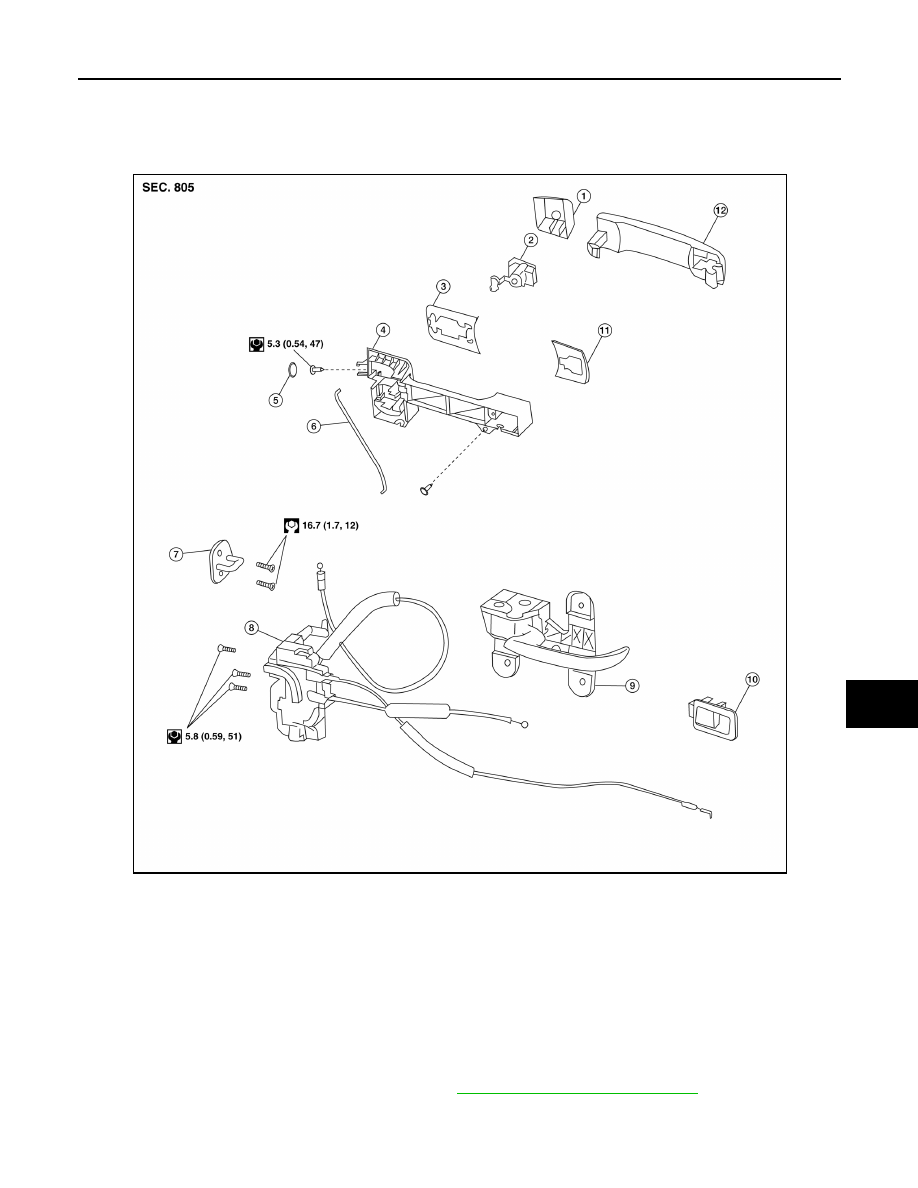

FRONT DOOR LOCK

Component Structure

INFOID:0000000006179269

Removal and Installation

INFOID:0000000006179270

REMOVAL

1. Remove the front door window regulator. Refer to

GW-18, "Removal and Installation"

.

2. Remove the front door window rear glass run.

1.

Door key cylinder assembly (Driver
side) Outside handle escutcheon
(Passenger side)

2.

Key cylinder assembly (Driver side
only)

3.

Rear gasket

4.

Outside handle bracket

5.

Grommet

6.

Key cylinder rod (Driver side only)

7.

Front door striker

8.

Door lock assembly

9.

Inside handle assembly

10. Inside door lock lever

11. Front gasket

12. Outside handle assembly

AWKIA1719GB

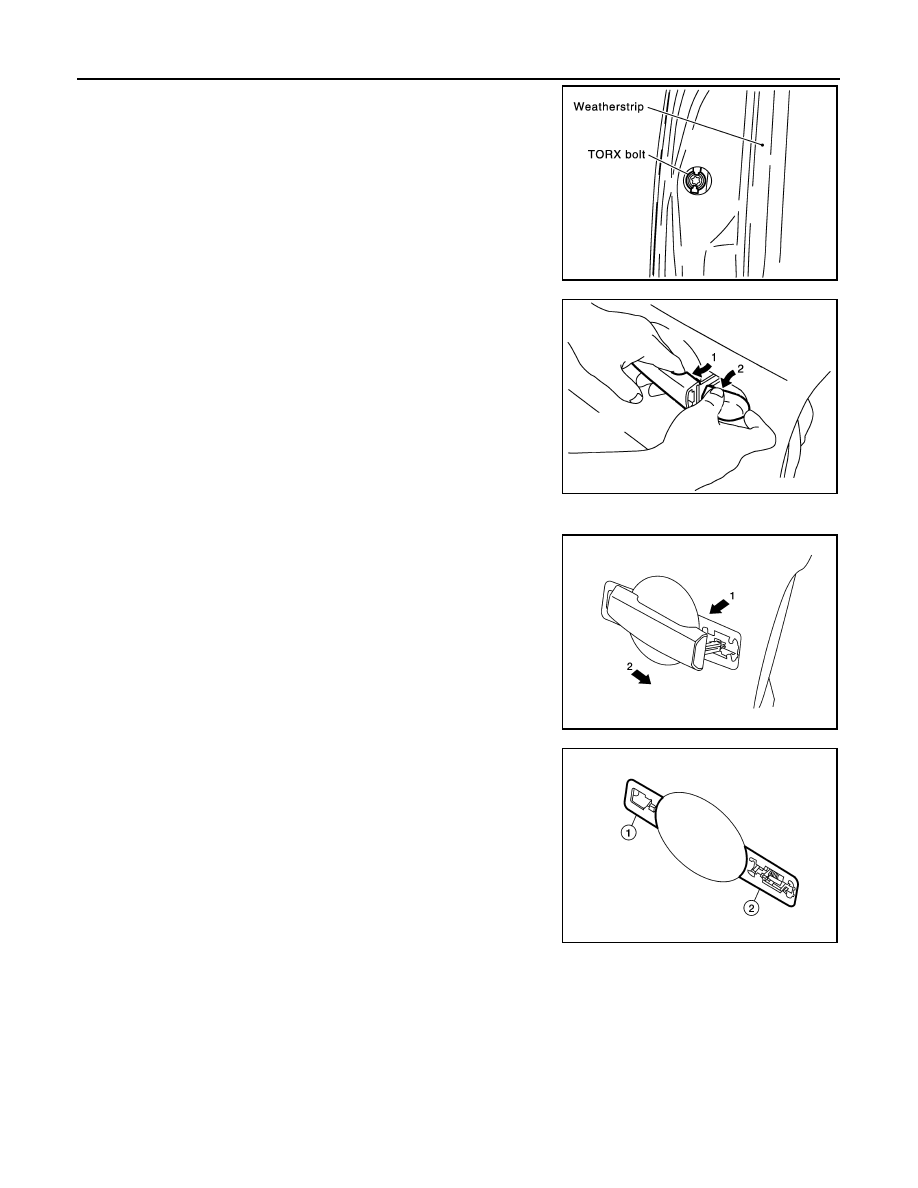

DLK-128

< REMOVAL AND INSTALLATION >

FRONT DOOR LOCK

3. Remove the door side grommet, and the bolt (TORX T30) from

the grommet hole.

4. While pulling the outside handle, remove the door key cylinder

assembly or outside handle escutcheon.

5. Separate the key cylinder rod from the door key cylinder assembly (if equipped).
6. While pulling the outside handle, slide it toward rear of vehicle to

remove.

7. Remove the front gasket (1) and rear gasket (2).

PIIA3553E

LIIA1971E

ALKIA0900ZZ

ALKIA0893ZZ

FRONT DOOR LOCK

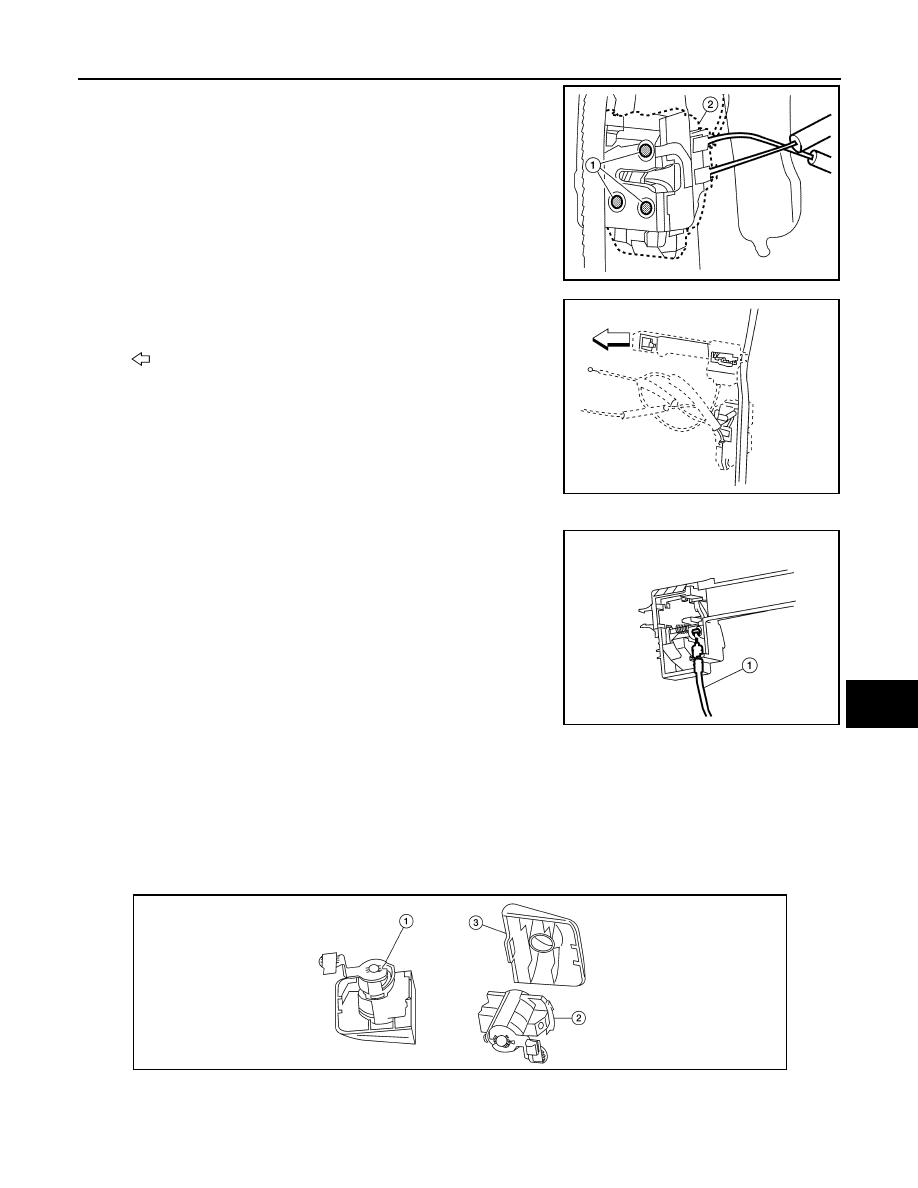

DLK-129

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

8. Remove the TORX bolts (T30) (1), and separate the door lock

assembly (2) from the door.

9. While pulling the outside handle bracket, slide it toward the front

of the vehicle to remove it and the door lock assembly as shown.

10. Disconnect the door lock actuator electrical connector.
11. Separate the outside handle cable connection (1) from the out-

side handle bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

To install the key cylinder rod, be sure to rotate the key cylinder rod holder until a click is felt.

Disassembly and Assembly

INFOID:0000000006179271

DOOR KEY CYLINDER ASSEMBLY

Release the door key cylinder escutcheon pawls to remove the door key cylinder.

ALKIA0894ZZ

: Front

ALKIA0895ZZ

ALKIA0896ZZ

1.

Door key cylinder assembly

2.

Key cylinder assembly

3.

Door key cylinder escutcheon

ALKIA0897ZZ
