BRAKE TUBE AND HOSE

BR-11

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE TUBE AND HOSE

Hydraulic Circuit

INFOID:0000000006163274

VDC/TCS/ABS - Four Channel Hydraulic System

CAUTION:

• All hoses and piping (tubes) must be free from excessive bending, twisting and pulling.

• Make sure there is no interference with other parts when turning the steering wheel both clockwise

and counterclockwise.

• The brake piping is an important safety part. If a brake fluid leak is detected, always disassemble the

parts. Replace applicable part with a new one, if necessary.

• Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is

splashed on painted areas, wash it away with water immediately.

• Do not bend or twist brake hose sharply, or strongly pull it.

• When removing components, cover connections so that no dirt, dust, or other foreign matter gets in.

• Refill with new specified brake fluid. Refer to

MA-21, "FOR NORTH AMERICA : Fluids and Lubri-

cants"

 (United States and Canada),

MA-22, "FOR MEXICO : Fluids and Lubricants"

 (Mexico).

• Do not reuse drained brake fluid.

FRONT BRAKE
FRONT BRAKE : Inspection

INFOID:0000000006163275

INSPECTION AFTER REMOVAL

CAUTION:

AWFIA0427ZZ

1.

Actuator

2.

Master cylinder

3.

Brake booster

4.

Connector

5.

Axle mounted connector
9.3 N·m (0.95 kg-m, 82 in-lb)

A.

Union bolt (front caliper)
18.2 N·m (1.9 kg-m, 13 ft-lb)

B.

Flare nut M12
18.2 N·m (1.9 kg-m, 13 ft-lb)

C.

Flare nut M10
13.0 N·m (1.3 kg-m, 10 ft-lb)

D.

Hose connection (rear caliper)
18.2 N·m (1.9 kg-m, 13 ft-lb)

E.

Flare nut to rear hose
16.2 N·m (1.7 kg-m, 12 ft-lb)

BR-12

< BASIC INSPECTION >

BRAKE TUBE AND HOSE

Brake tubes and hoses are important safety parts. Always disassemble the parts and retighten their fit-

tings, if a brake fluid leak is detected. Replace applicable part with a new one, if damaged part is

detected.
1. Check brake lines (tubes and hoses) and connections for fluid leaks, damage, twists, deformation, contact

with other parts, and loose connections. Replace any parts as necessary. Refer to

BR-21, "Hydraulic Cir-

cuit"

.

2. While depressing brake pedal under a force of 785 N (80 kg-f, 177 lb-f) with engine running for approxi-

mately 5 seconds, check each part for fluid leaks.

REAR BRAKE
REAR BRAKE : Inspection

INFOID:0000000006163276

INSPECTION AFTER REMOVAL

CAUTION:

Brake tubes and hoses are important safety parts. Always disassemble the parts and retighten their fit-

tings, if a brake fluid leak is detected. Replace applicable part with a new one, if damaged part is

detected.
1. Check brake lines (tubes and hoses) and connections for fluid leaks, damage, twists, deformation, contact

with other parts, and loose connections. Replace any parts as necessary. Refer to

BR-21, "Hydraulic Cir-

cuit"

.

2. While depressing brake pedal under a force of 785 N (80 kg-f, 177 lb-f) with engine running for approxi-

mately 5 seconds, check each part for fluid leaks.

BRAKE PEDAL

BR-13

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

PERIODIC MAINTENANCE

BRAKE PEDAL

Inspection and Adjustment - Standard Pedal

INFOID:0000000006163277

INSPECTION

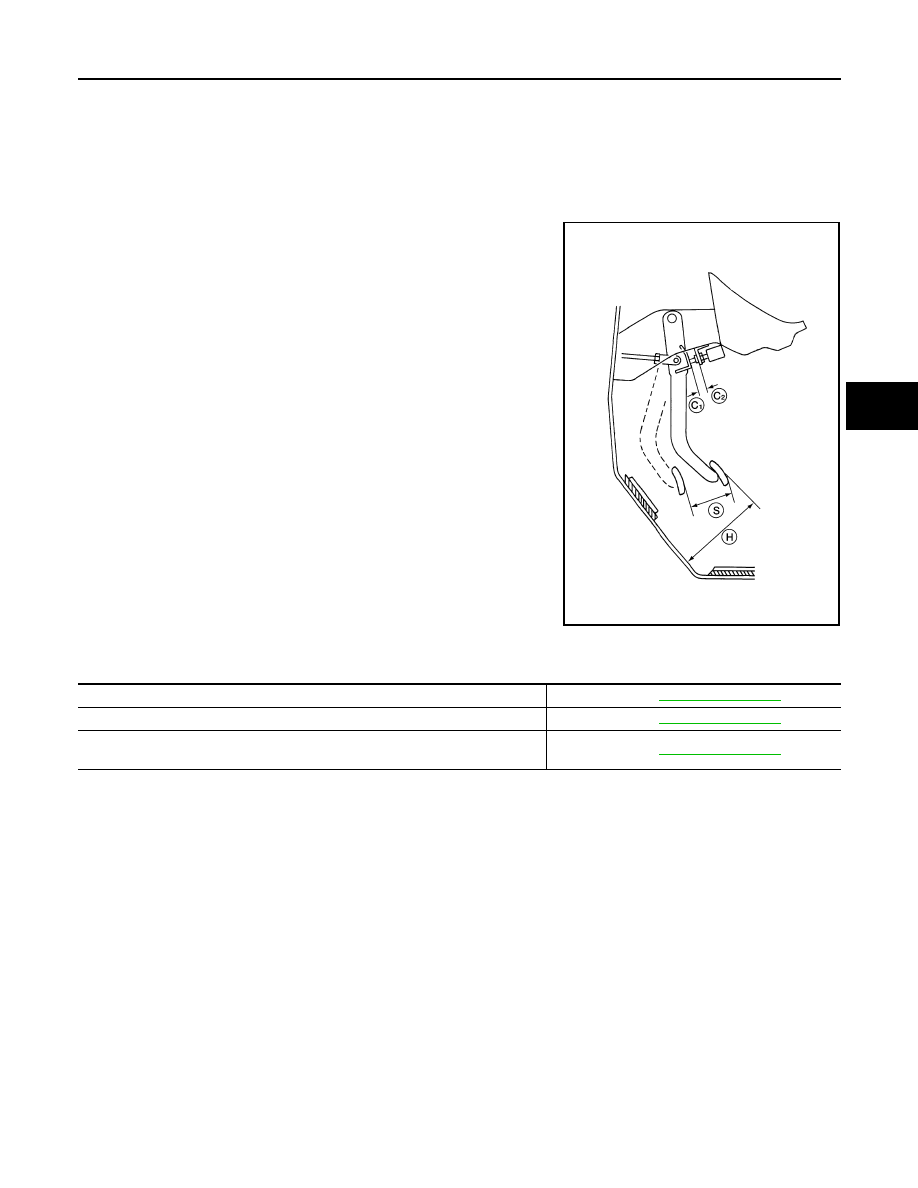

1. Inspect the brake pedal free height (H) from the floor using Tool

at a 90

° angle to the floor as shown.

2. Adjust the brake pedal height to specifications.

Brake Pedal Specifications

Unit: mm (in)

ADJUSTMENT

1. Loosen the stop lamp switch and ASCD cancel switch (if equipped) by turning 45

° counterclockwise.

Tool number :

—

(J-46532)

AWFIA0557ZZ

Free height (H)

Refer to

BR-47, "Brake Pedal"

Pedal full stroke (S)

Refer to

BR-47, "Brake Pedal"

Clearance between brake pedal bracket and threaded end of stop lamp switch
(C1) and ASCD cancel switch [if equipped] (C

2

)

Refer to

BR-47, "Brake Pedal"

BR-14

< PERIODIC MAINTENANCE >

BRAKE PEDAL

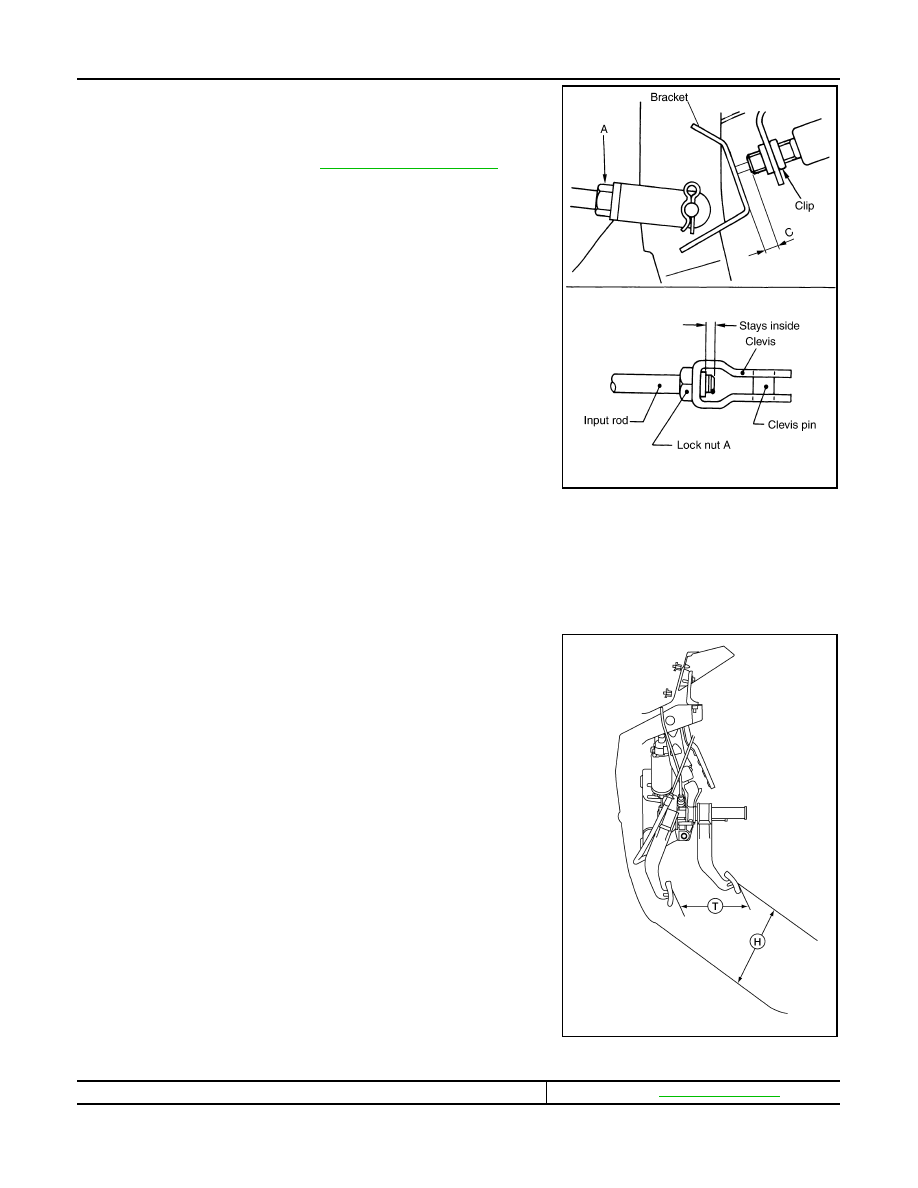

2. Loosen lock nut (A) on the input rod, then turn input rod to adjust

the brake pedal to specified height. When finished adjusting,

tighten lock nut (A) to specification.

CAUTION:

Make sure that the screw portion of the end of input rod is

located inside the clevis.

3. With the brake pedal pulled up and held by hand, press the stop

lamp switch and the ASCD cancel switch (if equipped) in until

threaded ends contact the brake pedal bracket.

4. With the threaded ends of the stop lamp switch and ASCD can-

cel switch (if equipped) contacting the pedal bracket, turn the

switches 45

° clockwise to lock in place. Check that the stop

lamp switch and ASCD cancel switch (if equipped) threaded end

to brake pedal bracket gap (C) is within specifications.

CAUTION:

Make sure that the gap (C) between the brake pedal bracket

and stop lamp switch and ASCD cancel switch (if equipped)

threaded ends are within specification.

5. Check the brake pedal for smooth operation.

CAUTION:

Make sure that the stop lamp goes off when the brake pedal

is released.

Inspection and Adjustment - Adjustable Pedal

INFOID:0000000006163278

INSPECTION

1. Inspect the brake pedal free height (H) from the floor using Tool at a 90

° angle to the floor as shown.

CAUTION:

When equipped with adjustable pedal, the pedal must be in

the forward most (closest to the floor) position for pedal

height measurement.

2. Adjust the height referring to the following specifications.

Brake Pedal Specifications

Unit: mm (in)

Lock nut (A)

:Refer to

BR-18, "Exploded View"

PFIA0436E

Tool number :

—

(J-46532)

ALFIA0149ZZ

Pedal free height (H) with pedal in forward most position

Refer to

BR-47, "Brake Pedal"
