REAR DISC BRAKE

BRAKE PAD
BRAKE PAD : Inspection

INFOID:0000000006163269

PAD WEAR

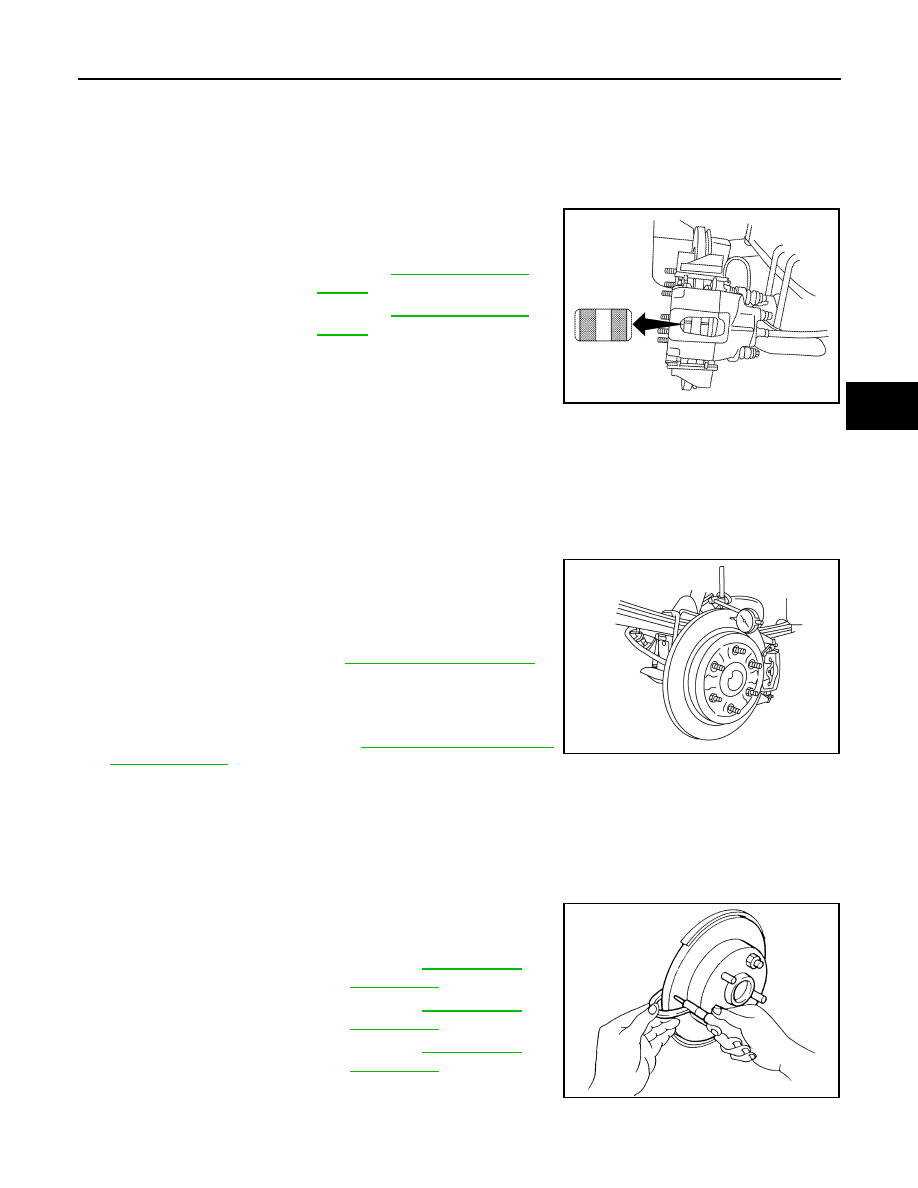

Check pad thickness from the inspection hole on cylinder body.

Check using a scale if necessary.

DISC ROTOR
DISC ROTOR : Inspection

INFOID:0000000006163270

VISUAL

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace as necessary.

RUNOUT

1. Attach disc rotor to wheel hub using wheel nuts (at two or more

positions).

2. Inspect runout using dial gauge placed at 10 mm (0.39 in) inside

disc edge.

NOTE:

Before measuring, make sure that wheel bearing axial end play

is within the specification. Refer to

FAX-5, "On-Vehicle Inspec-

tion and Service"

.

3. When runout exceeds limit value, displace mounting positions of disc rotor by one hole. And then find a

position of the minimum value for runout.

4. If runout is outside the specified value after performing the above operation, turn disc rotor using Tool.

THICKNESS

Check the thickness of the disc rotor using a micrometer. Replace

disc rotor if the thickness is under the wear limit.

Standard thickness

: Refer to

BR-49, "Rear Disc

Brake"

.

Repair limit thickness

: Refer to

BR-49, "Rear Disc

Brake"

.

ALFIA0150ZZ

Runout limit

: Refer to

BR-49, "Rear Disc Brake"

.

(with it attached to the vehicle)

Tool number

: 38-PFM90.5 ( — )

ALFIA0151ZZ

Standard thickness

: Refer to

BR-49, "Rear

Disc Brake"

.

Repair limit thickness

: Refer to

BR-49, "Rear

Disc Brake"

.

Maximum uneven wear
(Measured at 8 positions)

: Refer to

BR-49, "Rear

Disc Brake"

.

SFIA2284E

BR-8

< BASIC INSPECTION >

BRAKE BOOSTER

BRAKE BOOSTER

Inspection

INFOID:0000000006163271

OPERATION

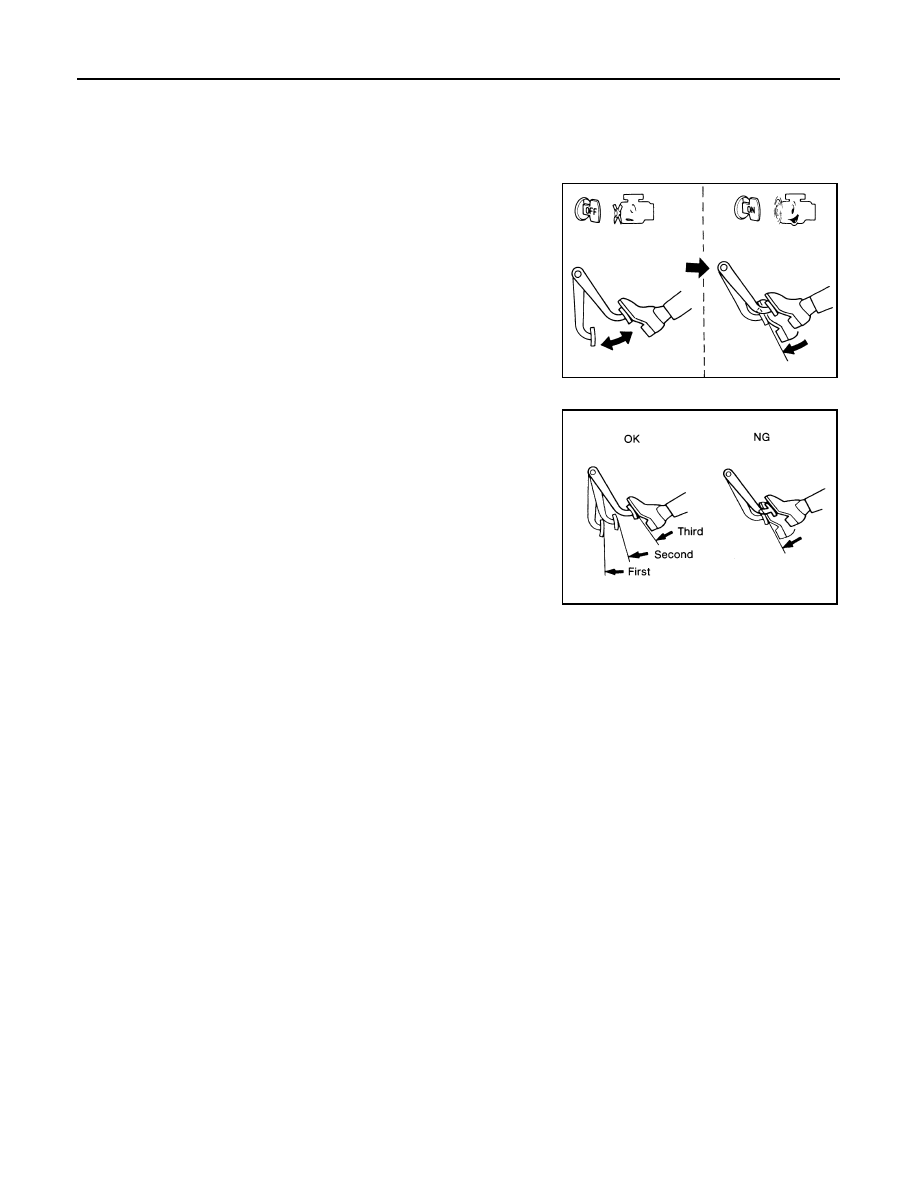

With engine stopped, change vacuum to atmospheric pressure by

depressing brake pedal several times. Then with brake pedal fully

depressed, start engine and when vacuum pressure reaches the

standard, make sure that clearance between brake pedal and floor

panel decreases.

AIR TIGHT

• Run engine at idle for approximately 1 minute, and stop it after

applying vacuum to booster. Depress brake pedal normally to

change vacuum to atmospheric pressure. Make sure that distance

at intervals of 5 seconds between brake pedal and floor panel

gradually increases.

• Depress brake pedal while engine is running, and stop engine with pedal depressed. The pedal stroke

should not change after holding pedal down for 30 seconds.

BRA0037D

SBR365AA

VACUUM LINES

BR-9

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

VACUUM LINES

Inspection

INFOID:0000000006163272

VISUAL INSPECTION

Check for improper assembly, damage and deterioration. Replace as necessary.

CHECK VALVE INSPECTION

Airtightness Inspection

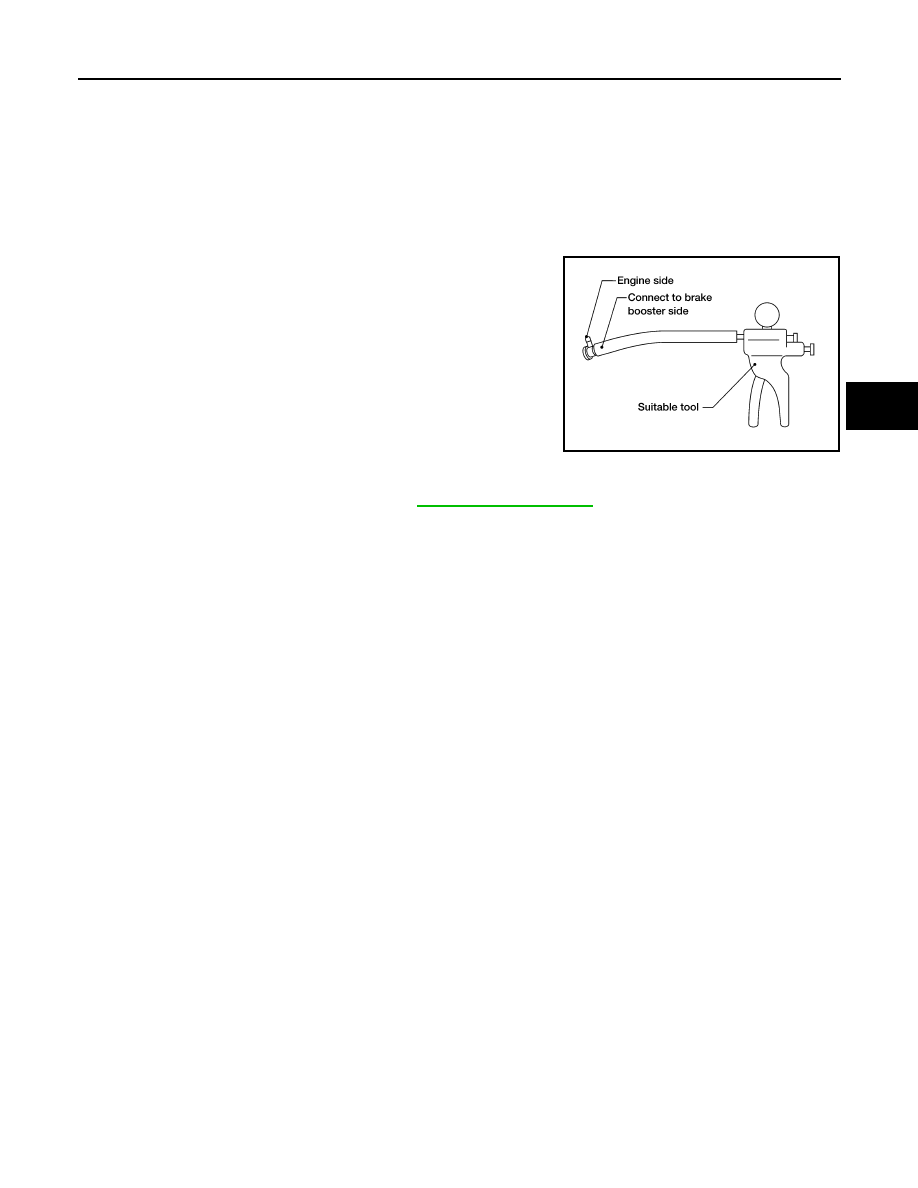

Use a suitable vacuum pump to check. Connect to brake booster

side of check valve.

LFIA0217E

Check valve specification

: Refer to

BR-48, "Brake Booster"

BR-10

< BASIC INSPECTION >

BRAKE MASTER CYLINDER

BRAKE MASTER CYLINDER

On Board Inspection

INFOID:0000000006163273

LEAK INSPECTION

Check for leaks at master cylinder to brake booster attachment point, reservoir tank, and brake tube connec-

tions.
