BCS-28

< DTC/CIRCUIT DIAGNOSIS >

[BCM]

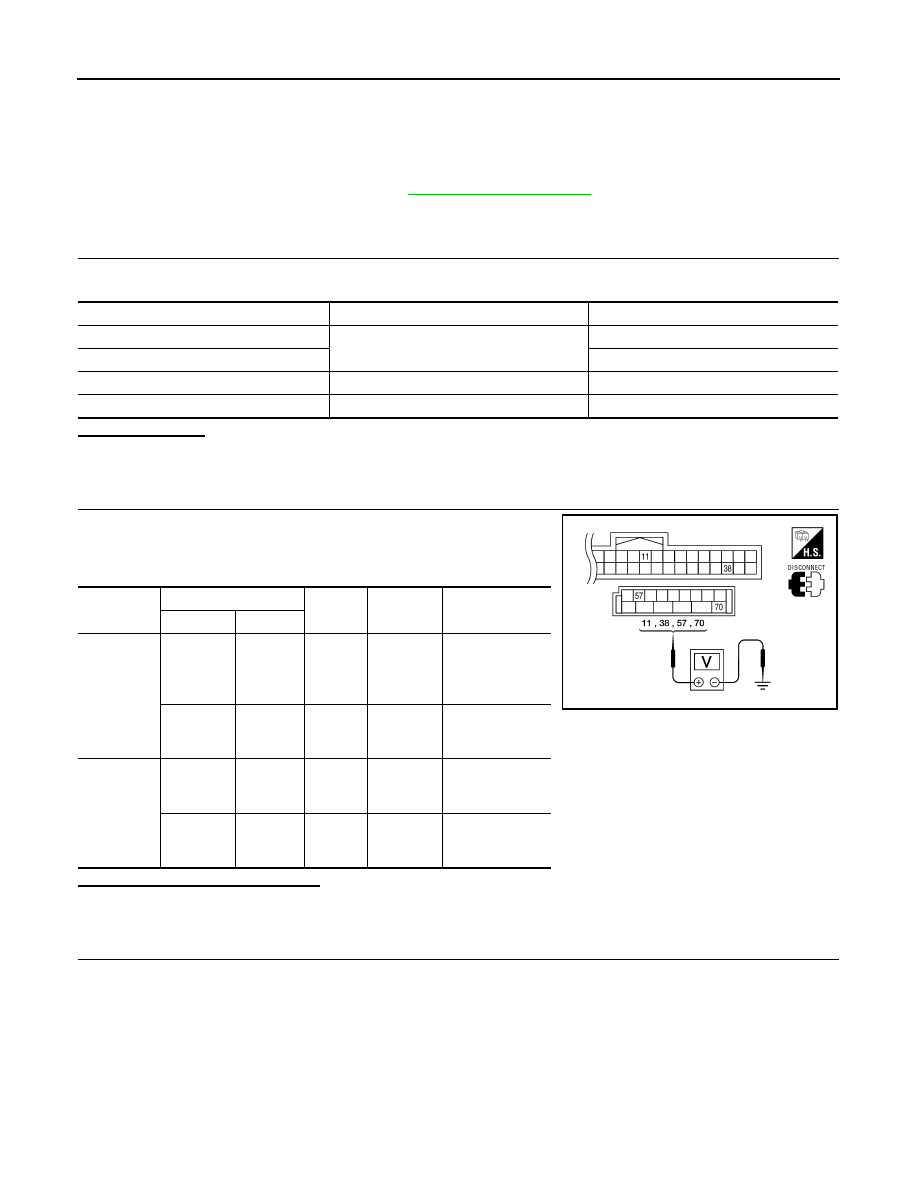

POWER SUPPLY AND GROUND CIRCUIT

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000006161343

Regarding Wiring Diagram information, refer to

BCS-46, "Wiring Diagram"

.

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following fuses and fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check voltage between BCM harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Terminal No.

Signal name

Fuses and fusible link No.

57

Battery power supply

22 (15A)

70

F (50A)

11

Ignition ACC or ON

4 (10A)

38

Ignition ON or START

59 (10A)

Connector

Terminals

Power

source

Condition

Voltage (V) (Ap-

prox.)

(+)

(-)

M18

11

Ground

ACC

power

supply

Ignition

switch

ACC or

ON

Battery voltage

38

Ground

Ignition

power

supply

Ignition

switch ON

or START

Battery voltage

M20

57

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

70

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

LIIA2415E

BCS

POWER SUPPLY AND GROUND CIRCUIT

BCS-29

< DTC/CIRCUIT DIAGNOSIS >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

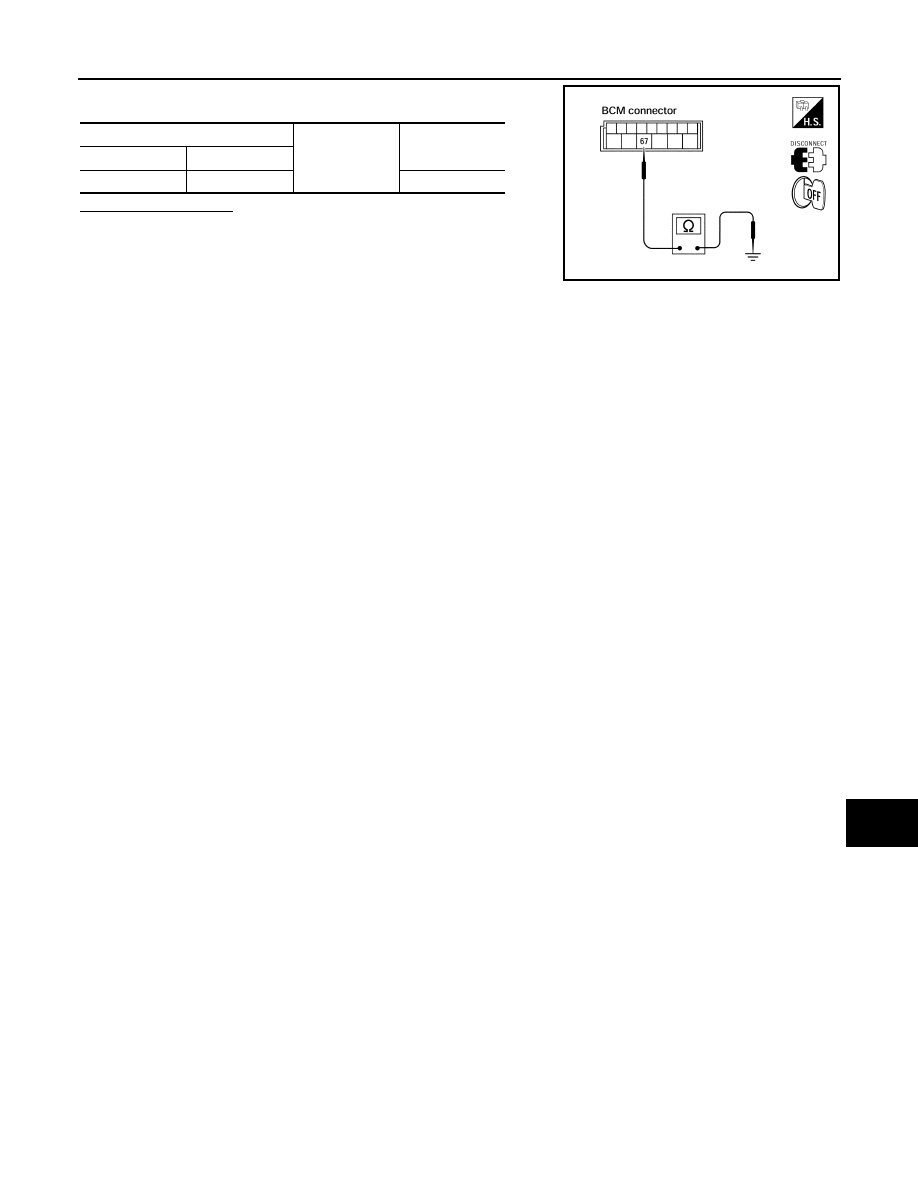

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

BCM

Ground

Continuity

Connector

Terminal

M20

67

Yes

LIIA0915E

BCS-30

< DTC/CIRCUIT DIAGNOSIS >

[BCM]

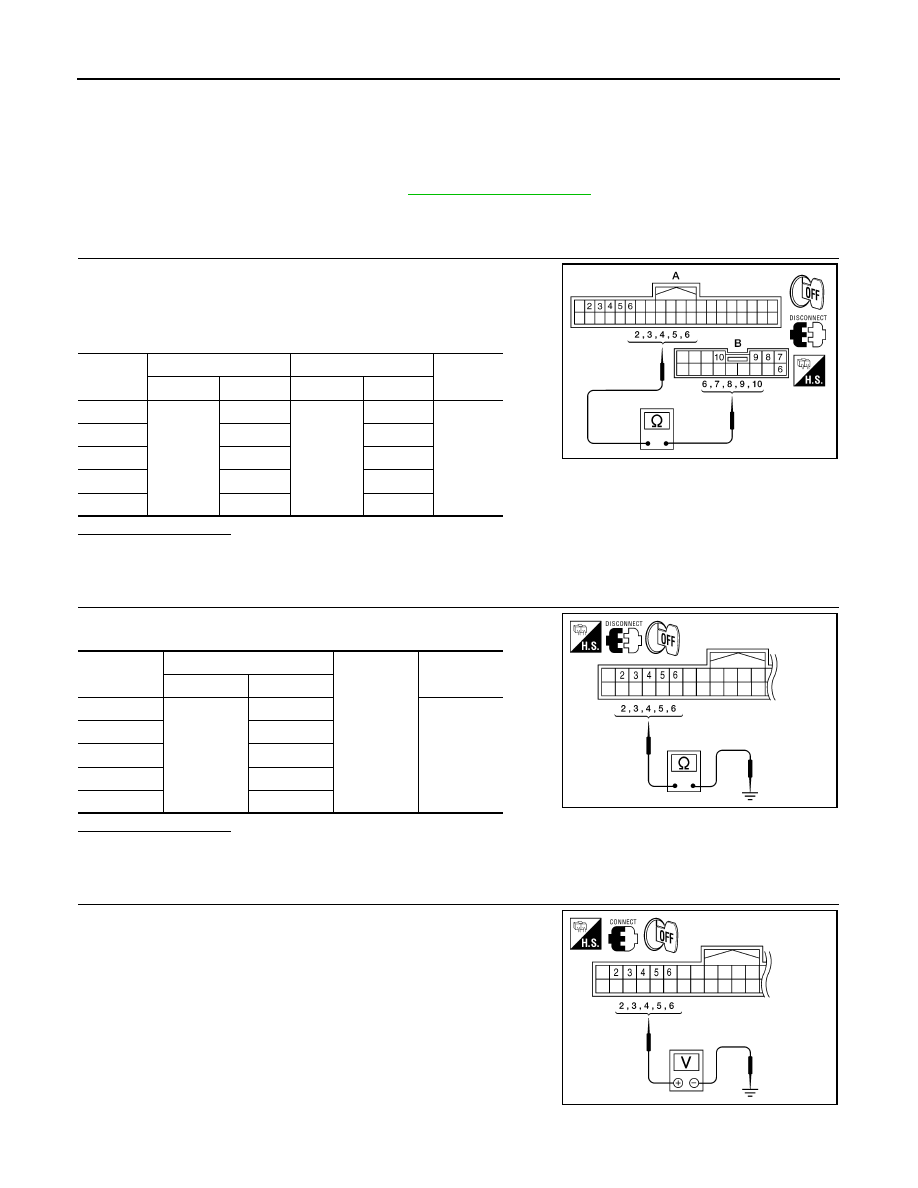

COMBINATION SWITCH INPUT CIRCUIT

COMBINATION SWITCH INPUT CIRCUIT

Diagnosis Procedure

INFOID:0000000006161344

Regarding Wiring Diagram information, refer to

BCS-46, "Wiring Diagram"

.

1.

 CHECK INPUT 1 - 5 SYSTEM CIRCUIT FOR OPEN

1. Turn ignition switch OFF.

2. Disconnect BCM and combination switch.

3. Check continuity between BCM harness connector and combi-

nation switch harness connector.

Does continuity exist?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK INPUT 1 - 5 SYSTEM CIRCUIT FOR SHORT

Check for continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Repair or replace harness.

NO

>> GO TO 3

3.

 CHECK BCM OUTPUT VOLTAGE

1. Connect BCM.

2. Turn ignition switch ON.

3. Check voltage between BCM harness connector and ground.

System

BCM

Combination switch

Continuity

Connector

Terminal

Connector

Terminal

INPUT 1

M18

(A)

6

M28

(B)

6

Yes

INPUT 2

5

7

INPUT 3

4

10

INPUT 4

3

9

INPUT 5

2

8

ALMIA0275ZZ

System

BCM

Ground

Continuity

Connector

Terminal

INPUT 1

M18

6

No

INPUT 2

5

INPUT 3

4

INPUT 4

3

INPUT 5

2

ALMIA0276ZZ

ALMIA0277ZZ

BCS

COMBINATION SWITCH INPUT CIRCUIT

BCS-31

< DTC/CIRCUIT DIAGNOSIS >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Is the measurement value normal?

YES

>> GO TO 4

NO

>> Replace BCM. Refer to

BCS-53, "Removal and Installation"

.

4.

 CHECK COMBINATION SWITCH

Check combination switch. Refer to

BCS-33, "Description"

.

Is the check result normal?

YES

>> Replace BCM. Refer to

BCS-53, "Removal and Installation"

.

NO

>> Replace the combination switch (applicable parts). Refer to

EXL-144, "Removal and Installation"

.

Special Repair Requirement

INFOID:0000000006161345

1.

 ADDITIONAL SERVICE WHEN REPLACING BCM

>> Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair

Requirement"

.

System

Terminals

Voltage

(Approx.)

(+)

(

−)

BCM

Ground

Connector

Terminal

INPUT 1

M18

6

Refer to

BCS-

35, "Refer-

ence Value"

.

INPUT 2

5

INPUT 3

4

INPUT 4

3

INPUT 5

2
