Nissan Titan A60. Manual - part 131





BCS-4

< BASIC INSPECTION >

[BCM]

INSPECTION AND ADJUSTMENT

• When replacing BCM, you must perform WRITE CONFIGURATION with CONSULT-III.

• Complete the procedure of WRITE CONFIGURATION in order.

• If you set incorrect WRITE CONFIGURATION, incidents will occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

CONFIGURATION : Special Repair Requirement

INFOID:0000000006161310

1.

 WRITING VEHICLE SPECIFICATION

Perform “WRITE CONFIGURATION” with CONSULT-III.

When writing saved data>>GO TO 2

When writing manually>>GO TO 3

2.

 PERFORM “WRITE CONFIGURATION - CONFIG FILE”

Perform “WRITE CONFIGURATION - Config file” with CONSULT-III.

>> WORK END

3.

 PERFORM “WRITE CONFIGURATION - MANUAL SELECTION”

For “WRITE CONFIGURATION - Manual selection”, using the following flow chart, identify the correct model

and configuration list.

Confirm and/or change setting value for each item according to the configuration list.

Depending on CONSULT-III software version being used, some or all of the write configuration items shown in

the following configuration lists may be displayed. If an item does not display on the CONSULT-III “WRITE

CONFIGURATION - Manual selection” screen, then it is an auto setting item and it cannot be manually set or

changed.

NOTE:

Confirm vehicle model. Refer to

GI-20, "Model Variation"

.

>> Work End.

MANUAL SETTING ITEM

Items

Setting value

KEYLESS ENTRY

WITH

⇔WITHOUT

AUTO LIGHT

WITH

⇔WITHOUT

DTRL

WITH

⇔WITHOUT

DISPLAY STYLE

MODE1

⇔MODE2⇔MODE3⇔MODE4

THEFT ALARM

WITH

⇔WITHOUT

BCS

BODY CONTROL SYSTEM

BCS-5

< SYSTEM DESCRIPTION >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM DESCRIPTION

BODY CONTROL SYSTEM

System Description

INFOID:0000000006161311

OUTLINE

• BCM (body control module) controls the various electrical components. It inputs the information required to

the control from CAN communication and the signal received from each switch and sensor.

• BCM has combination switch reading function for reading the operation status of combination switches (light,

turn signal, wiper and washer) in addition to a function for controlling the operation of various electrical com-

ponents. It also has the signal transmission function as the passed point of signal and the power consump-

tion control function that reduces the power consumption with the ignition switch OFF.

• BCM is equipped with the diagnosis function that performs the diagnosis with CONSULT-III and various set-

tings.

BCM control function list

System

Refer to

Combination switch reading system

BCS-7, "System Diagram"

Signal buffer system

BCS-12, "System Diagram"

Power consumption control system

BCS-13, "System Diagram"

Auto light system (if equipped)

EXL-9, "System Diagram"

Turn signal and hazard warning lamp system

EXL-14, "System Diagram"

Headlamp system

EXL-7, "System Diagram"

Front fog lamp system (if equipped)

EXL-13, "System Diagram"

Daytime running light system (Canada models)

EXL-11, "System Diagram"

Interior room lamp control system

INL-6, "System Diagram"

Step lamp system (if equipped)

INL-6, "System Diagram"

Interior room lamp battery saver system

INL-10, "System Diagram"

Front wiper and washer system

WW-4, "System Diagram"

Warning chime system

WCS-4, "WARNING CHIME SYSTEM : System Diagram"

Door lock system (if equipped)

DLK-12, "DOOR LOCK AND UNLOCK SWITCH : System Diagram"

(NATS) Nissan anti-theft system (if equipped)

SEC-8, "System Diagram"

Vehicle security system (if equipped)

SEC-11, "System Diagram"

Rear window defogger system (if equipped)

DEF-5, "System Diagram"

Remote keyless entry system (if equipped)

DLK-14, "REMOTE KEYLESS ENTRY : System Diagram"

Power window system (if equipped)

PWC-6, "System Diagram"

RAP (retained accessory power) system

BCS-24, "RETAINED PWR : CONSULT-III Function (BCM - RETAINED

PWR)"

TPMS (tire pressure monitoring system)

WT-8, "System Diagram"

BCS-6

< SYSTEM DESCRIPTION >

[BCM]

BODY CONTROL SYSTEM

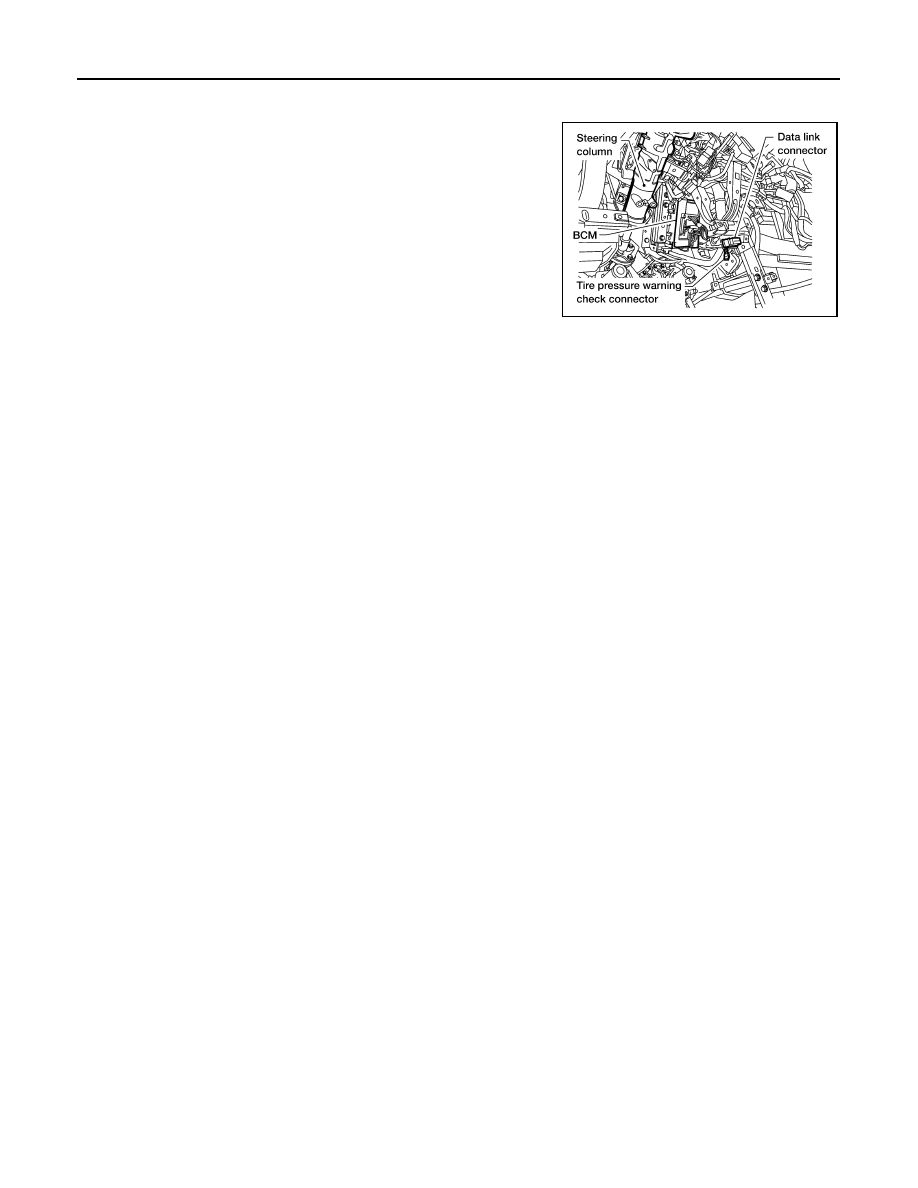

Component Parts Location

INFOID:0000000006161312

• BCM M18, M19, M20 (view with instrument panel removed)

LEIA0068E

BCS

COMBINATION SWITCH READING SYSTEM

BCS-7

< SYSTEM DESCRIPTION >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMBINATION SWITCH READING SYSTEM

System Diagram

INFOID:0000000006161313

System Description

INFOID:0000000006161314

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM is a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a

maximum of 20 switch status.

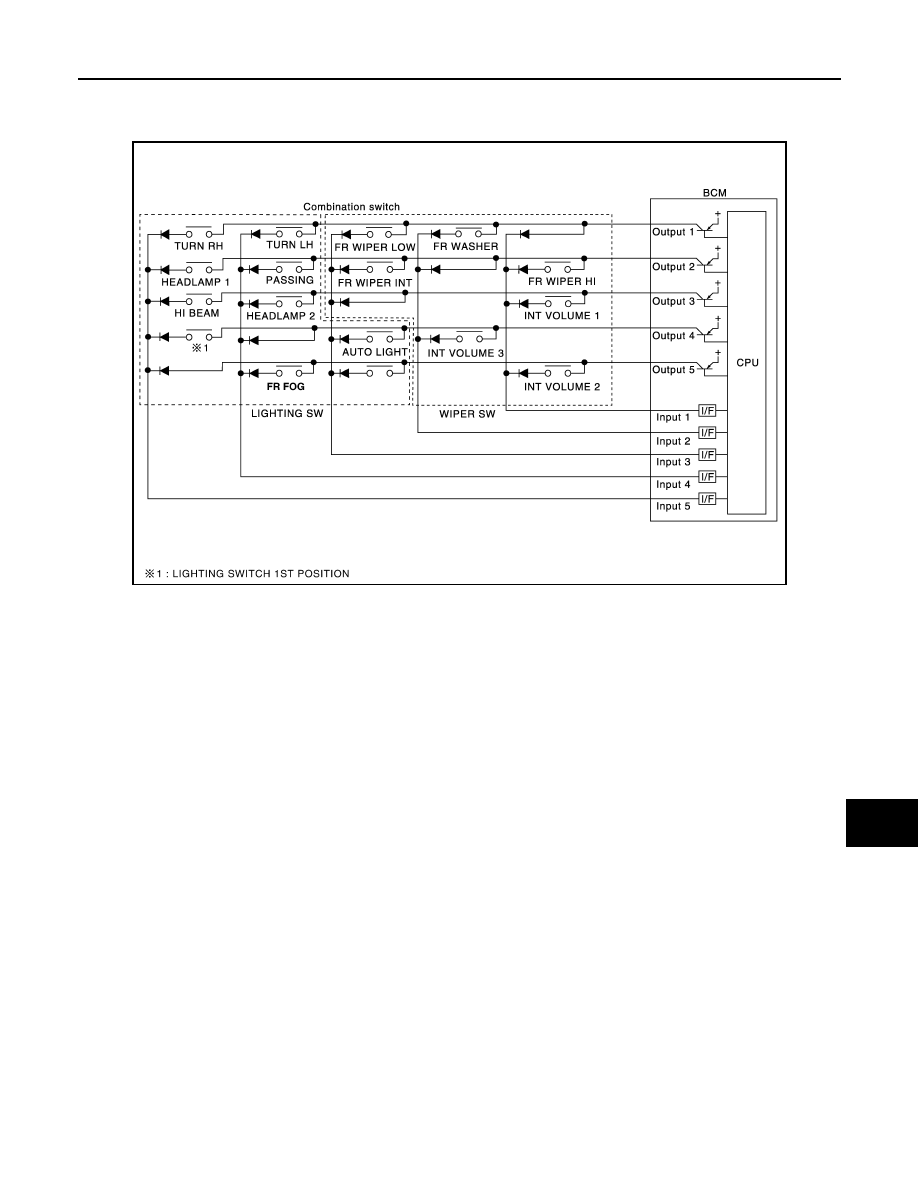

COMBINATION SWITCH MATRIX

LIIA1323E
