WIPER AND WASHER SYSTEM SYMPTOMS

WW-47

< SYMPTOM DIAGNOSIS >

SYMPTOM DIAGNOSIS

WIPER AND WASHER SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000006164551

CAUTION:

Perform the self-diagnosis with CONSULT-III before performing the diagnosis by symptom. Perform

the diagnosis by DTC if DTC is detected.

Symptom

Probable malfunction location

Inspection item

Front wiper does not
operate.

HI only

• Combination switch (wiper and washer swtich)
• Harness between combination switch (wiper

and washer swtich) and BCM

• BCM

Combination switch (wiper
and washer swtich)
Refer to

BCS-51, "Symptom

Table"

• IPDM E/R
• Harness between IPDM E/R and front wiper

motor

• Front wiper motor

Front wiper motor (HI) circuit
Refer to

WW-17, "Compo-

nent Function Check"

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R DATA MONITOR
"FR WIP REQ"

LO and INT

• Combination switch (wiper and washer swtich)
• Harness between combination switch (wiper

and washer swtich) and BCM

• BCM

Combination switch (wiper
and washer swtich)
Refer to

BCS-51, "Symptom

Table"

• IPDM E/R
• Harness between IPDM E/R and front wiper

motor

• Front wiper motor

Front wiper motor (LO) circuit
Refer to

WW-15, "Compo-

nent Function Check"

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R DATA MONITOR
"FR WIP REQ"

INT only

• Combination switch (wiper and washer swtich)
• Harness between combination switch (wiper

and washer swtich) and BCM

• BCM

Combination switch (wiper
and washer swtich)
Refer to

BCS-51, "Symptom

Table"

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R DATA MONITOR
"FR WIP REQ"

HI, LO, and INT

SYMPTOM DIAGNOSIS
“FRONT WIPER DOES NOT OPERATE”
Refer to

WW-50, "Diagnosis Procedure"

WW-48

< SYMPTOM DIAGNOSIS >

WIPER AND WASHER SYSTEM SYMPTOMS

Front wiper does not
stop.

HI only

• Combination switch (wiper and washer swtich)
• BCM

Combination switch (wiper
and washer swtich)
Refer to

BCS-51, "Symptom

Table"

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R DATA MONITOR
"FR WIP REQ"

IPDM E/R

—

LO only

• Combination switch (wiper and washer swtich)
• BCM

Combination switch (wiper
and washer swtich)
Refer to

BCS-51, "Symptom

Table"

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R DATA MONITOR
"FR WIP REQ"

IPDM E/R

—

INT only

• Combination switch (wiper and washer swtich)
• BCM

Combination switch (wiper
and washer swtich)
Refer to

BCS-51, "Symptom

Table"

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R DATA MONITOR
"FR WIP REQ"

Front wiper does not
operate normally.

Intermittent adjustment
cannot be performed.

• Combination switch (wiper and washer swtich)
• Harness between combination switch (wiper

and washer swtich) and BCM

• BCM

Combination switch (wiper
and washer swtich)
Refer to

BCS-51, "Symptom

Table"

BCM

—

Intermittent control
linked with vehicle
speed cannot be per-
formed.

Check the vehicle speed detection wiper setting.
Refer to

BCS-21, "WIPER : CONSULT-III Function (BCM - WIPER)"

Wiper is not linked to
the washer operation.

• Combination switch (wiper and washer swtich)
• Harness between combination switch (wiper

and washer swtich) and BCM

• BCM

Combination switch (wiper
and washer swtich)
Refer to

BCS-51, "Symptom

Table"

BCM

—

Does not return to stop
position (Repeatedly
operates for 10 sec-
onds and then stops
for 20 seconds. After
that, it stops the opera-
tion).

• IPDM E/R
• Harness between IPDM E/R and front wiper

motor

• Front wiper motor

Front wiper auto stop signal
circuit
Refer to

WW-19, "Compo-

nent Function Check"

Front washer does
not operate.

Combination switch (wiper and washer swtich)

Combination switch (wiper
and washer swtich)
Refer to

BCS-51, "Symptom

Table"

• Harness between combination switch (wiper

and washer swtich) and front washer motor

• Front washer motor

Washer switch
Refer to

WW-22, "Compo-

nent Inspection"

• Low washer fluid
• Obstructed or disconnected washer hose or

nozzle

—

Symptom

Probable malfunction location

Inspection item

NORMAL OPERATING CONDITION

WW-49

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

Description

INFOID:0000000006164552

FRONT WIPER MOTOR PROTECTION FUNCTION

• IPDM E/R may stop the front wiper to protect the front wiper motor if any obstruction (operation resistance)

such as a large amount of snow is detected during the front wiper operation.

• At that time turn OFF the front wiper and remove the foreign object. Then wait for approximately 20 seconds

or more and reactivate the front wiper. The wiper will operate normally.

WW-50

< SYMPTOM DIAGNOSIS >

FRONT WIPER DOES NOT OPERATE

FRONT WIPER DOES NOT OPERATE

Description

INFOID:0000000006164553

The front wiper does not operate under any operation conditions.

Diagnosis Procedure

INFOID:0000000006164554

Regarding Wiring Diagram information, refer to

WW-42, "Wiring Diagram"

CHECK WIPER RELAY OPERATION

IPDM E/R AUTO ACTIVE TEST

1. Start IPDM E/R auto active test. Refer to

PCS-11, "Diagnosis Description"

2. Check that the front wiper operates at the LO/HI operation.

CONSULT-III ACTIVE TEST

1. Select "FRONT WIPER" of IPDM E/R active test item.

2. While operating the test item, check front wiper operation.

Is front wiper operation normal?

YES

>> GO TO 5

>> GO TO 2

CHECK FRONT WIPER MOTOR FUSE

1. Turn the ignition switch OFF.

2. Check that the following fuse is not blown.

Is the fuse blown?

YES

>> Replace the fuse after repairing the affected circuit.

>> GO TO 3

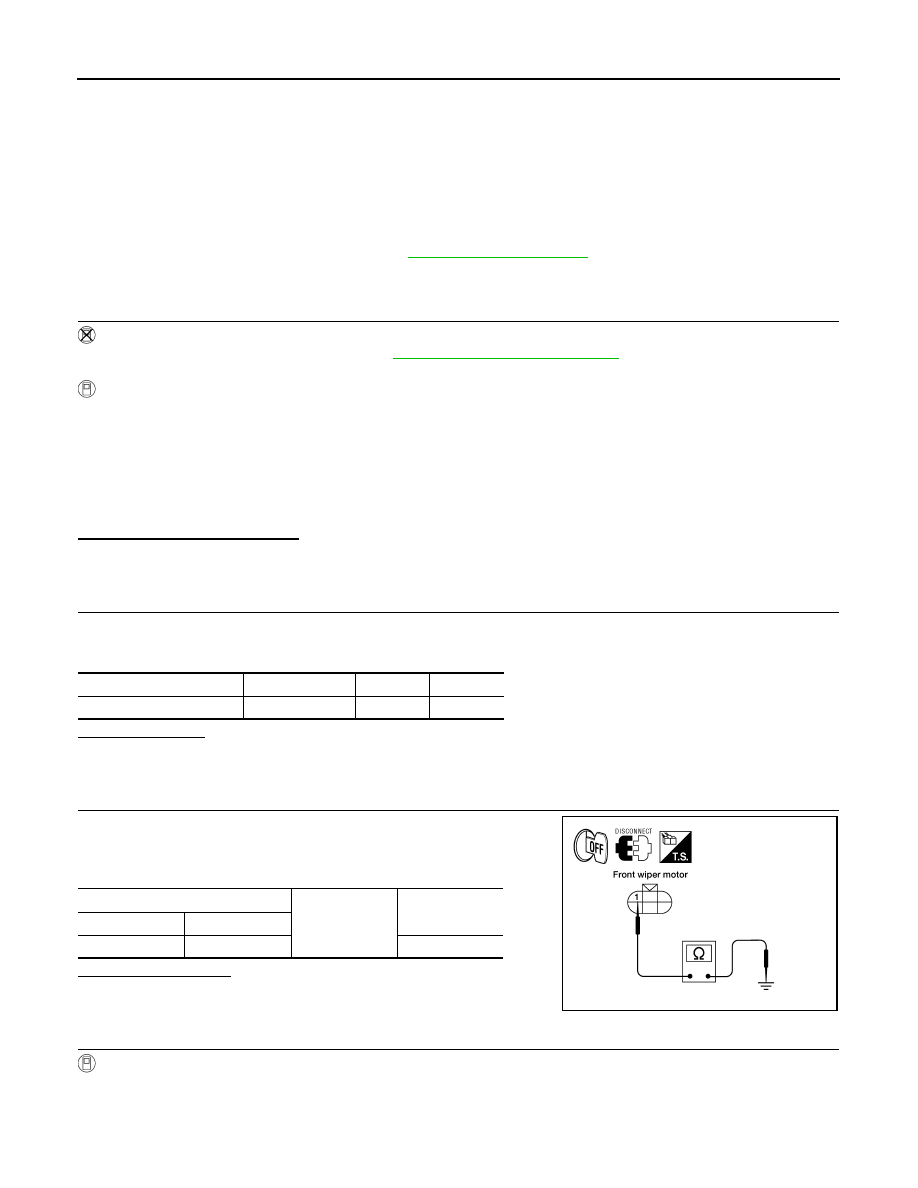

CHECK FRONT WIPER MOTOR GROUND OPEN CIRCUIT

1. Disconnect front wiper motor.

2. Check continuity between front wiper motor harness connector

and ground.

Does continuity exist?

YES

>> GO TO 4

>> Repair or replace harness.

CHECK FRONT WIPER MOTOR OUTPUT VOLTAGE

CONSULT-III ACTIVE TEST

: Front wiper LO operation

: Front wiper HI operation

OFF

: Stop the front wiper.

Unit

Location

Fuse No.

Capacity

Front wiper motor

IPDM E/R

30 A

Front wiper motor

Ground

Continuity

Connector

Terminal

E23

Yes

WKIA2828E
