FRONT WIPER DOES NOT OPERATE

WW-51

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

1. Turn the ignition switch ON.

2. Select "FRONT WIPER" of IPDM E/R active test item.

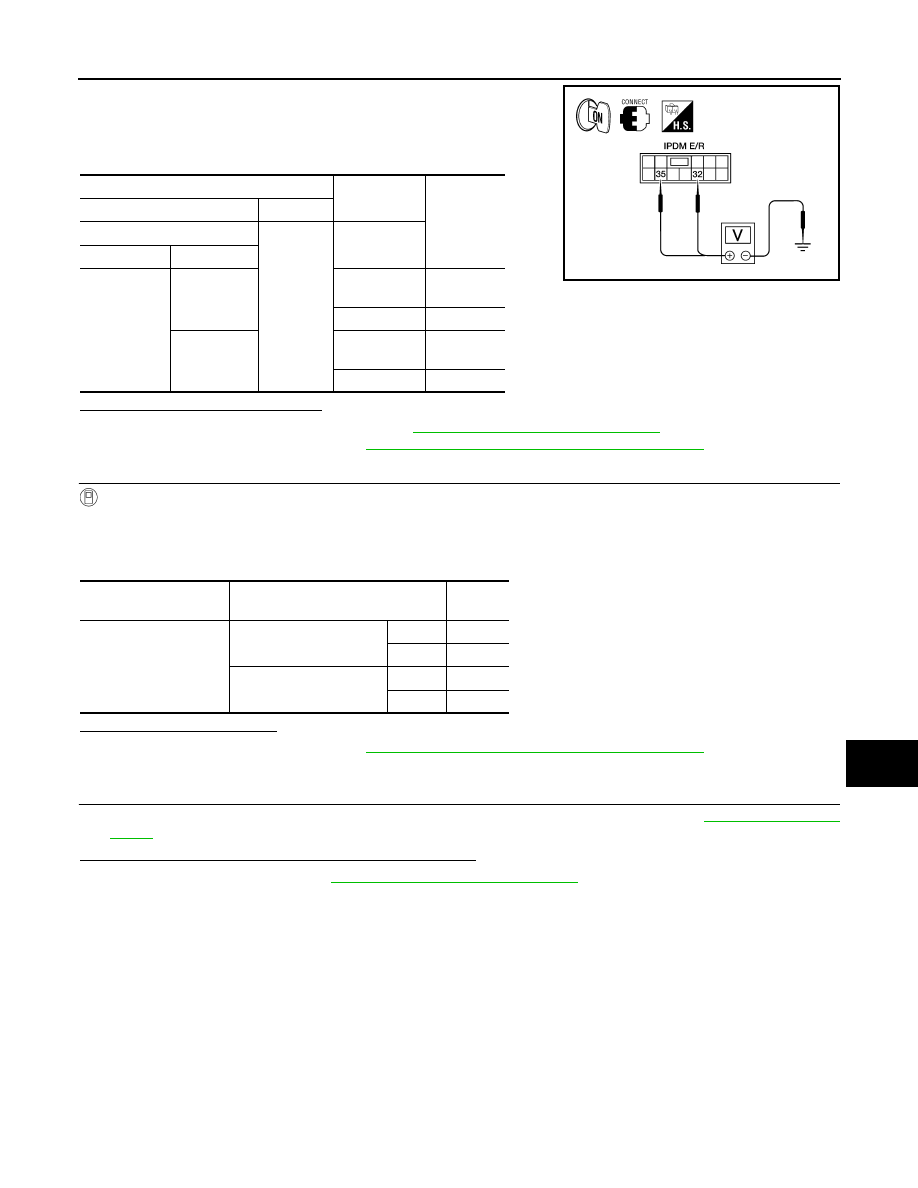

3. With operating the test item, check voltage between IPDM E/R

harness connector and ground.

Is the measurement value normal?

YES

>> Replace front wiper motor. Refer to

WW-54, "Wiper Motor and Linkage"

.

NO

>> Replace IPDM E/R. Refer to

PCS-28, "Removal and Installation of IPDM E/R"

.

5.

 CHECK FRONT WIPER REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1. Select "FR WIP REQ" of IPDM E/R data monitor item.

2. Switch the front wiper switch to HI and LO.

3. With operating the front wiper switch, check the status of "FR WIP REQ".

Is the status of item normal?

YES

>> Replace IPDM E/R. Refer to

PCS-28, "Removal and Installation of IPDM E/R"

.

NO

>> GO TO 6

6.

 CHECK COMBINATION SWITCH (WIPER AND WASHER SWITCH)

1. Perform the inspection of the combination switch (wiper and washer switch). Refer to

BCS-51, "Symptom

Table"

.

Is combination switch (wiper and washer switch) normal?

YES

>> Replace BCM. Refer to

BCS-53, "Removal and Installation"

.

NO

>> Repair or replace the applicable parts.

Terminals

Test item

Voltage

(Approx.)

(+)

(

−)

IPDM E/R

Ground

FRONT WIP-

ER

Connector

Terminal

E121

32

LO

Battery
voltage

OFF

0 V

35

HI

Battery
voltage

OFF

0 V

WKIA1427E

Monitor item

Condition

Monitor

status

FR WIP REQ

Front wiper switch HI

HI

ON

STOP

OFF

Front wiper switch LO

1LOW

ON

STOP

OFF

WW-52

< PRECAUTION >

PRECAUTION

PRECAUTION

PRECAUTION

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006164555

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

FRONT WIPER ARM

WW-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REMOVAL AND INSTALLATION

FRONT WIPER ARM

Front Wiper Arms

INFOID:0000000006164556

REMOVAL AND INSTALLATION

Removal

1. Remove wiper arm covers and wiper arm nuts.
2. Remove front RH wiper arm and front LH wiper arm.
3. Remove front RH blade assembly and front LH blade assembly.

Installation

1. Operate wiper motor one full cycle, then turn "OFF" (Auto Stop).
2. Clean up the pivot area as shown. This will reduce possibility of

wiper arm looseness.

3. Install front RH blade assembly and front LH blade assembly on wiper arms.
4. Install front RH wiper arm and front LH wiper arm.
5. Tighten wiper arm nuts to specified torque, and install wiper arm covers. Refer to

WW-54, "Wiper Motor

and Linkage"

.

6. Ensure that wiper blades stop within proper clearance. See Front Wiper Arm Adjustment.

FRONT WIPER ARM ADJUSTMENT

1. Operate windshield washer and wiper motor one full cycle, then turn "OFF" (Auto Stop).

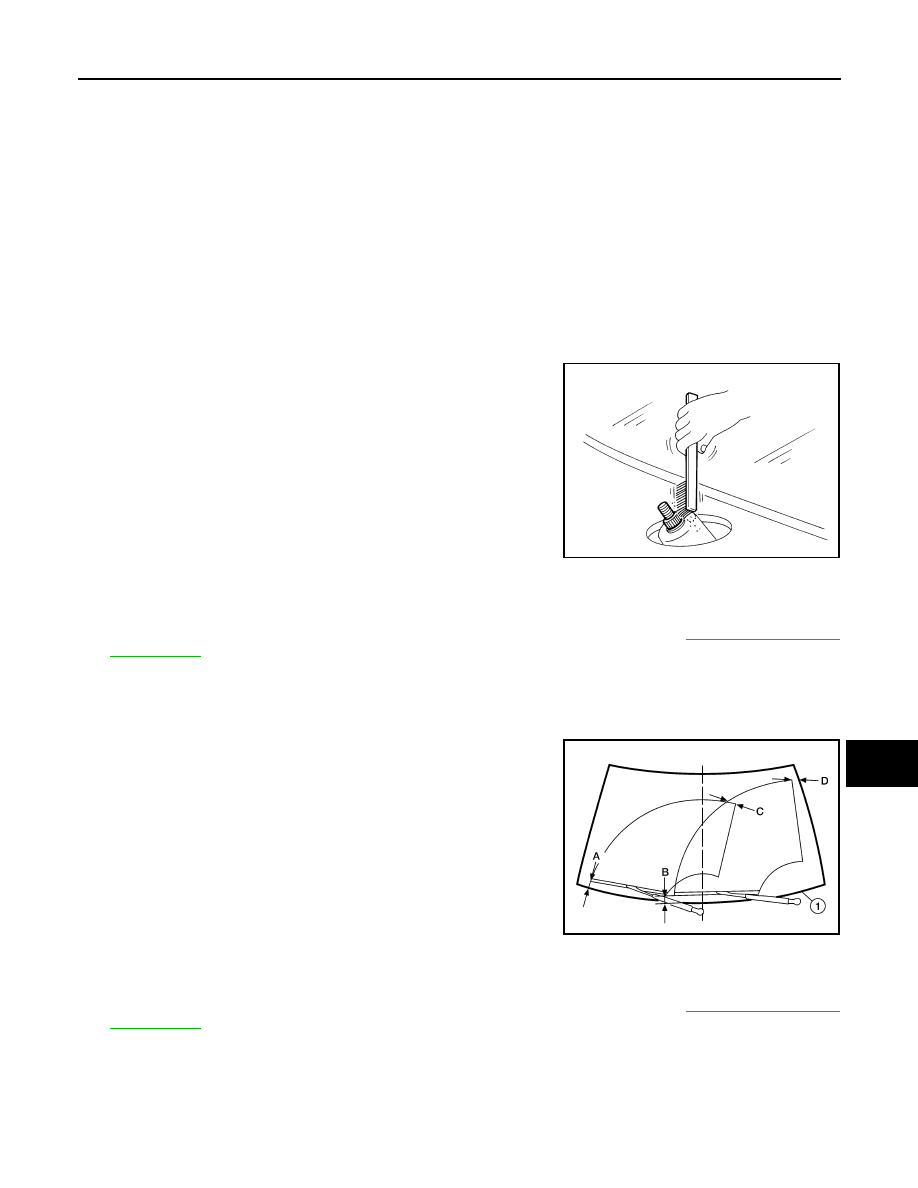

2. Lift the wiper blade up and then rest it onto glass surface, check

the blade clearance "L1" and "L2".

3. Remove wiper arm covers and wiper arm nuts.
4. Adjust front wiper arms on wiper motor pivot shafts to obtain above specified blade clearances.
5. Tighten wiper arm nuts to specified torque, and install wiper arm covers. Refer to

WW-54, "Wiper Motor

and Linkage"

.

SEL024J

Clearance (A)

: 41 mm (1.614 in)

Clearance (B)

: 41 mm (1.614 in)

Clearance (C)

: 25.5 mm (1.004 in)

Clearance (D)

: 50 mm (1.969 in)

BKIA0254E

WW-54

< REMOVAL AND INSTALLATION >

FRONT WIPER DRIVE ASSEMBLY

FRONT WIPER DRIVE ASSEMBLY

Wiper Motor and Linkage

INFOID:0000000006164557

REMOVAL AND INSTALLATION

Removal

1. Remove the cowl top. Refer to

EXT-20, "Removal and Installation"

.

2. Remove wiper frame bolts, and remove wiper frame assembly.
3. Remove wiper motor from wiper frame assembly.

Installation

CAUTION:

• Do not drop the wiper motor or cause it to contact other parts.

• Check the grease condition of the motor arm and wiper link joint(s). Apply grease if necessary.
1. Connect wiper motor to connector. Turn the wiper switch ON to operate wiper motor, then turn the wiper

switch OFF (auto stop).

2. Disconnect wiper motor connector.
3. Install wiper motor to wiper frame assembly, and install wiper frame assembly.
4. Install cowl top. Refer to

EXT-20, "Removal and Installation"

.

5. Ensure that wiper blades stop within proper clearance. Refer to front wiper arm adjustment

WW-53, "Front

Wiper Arms"

.

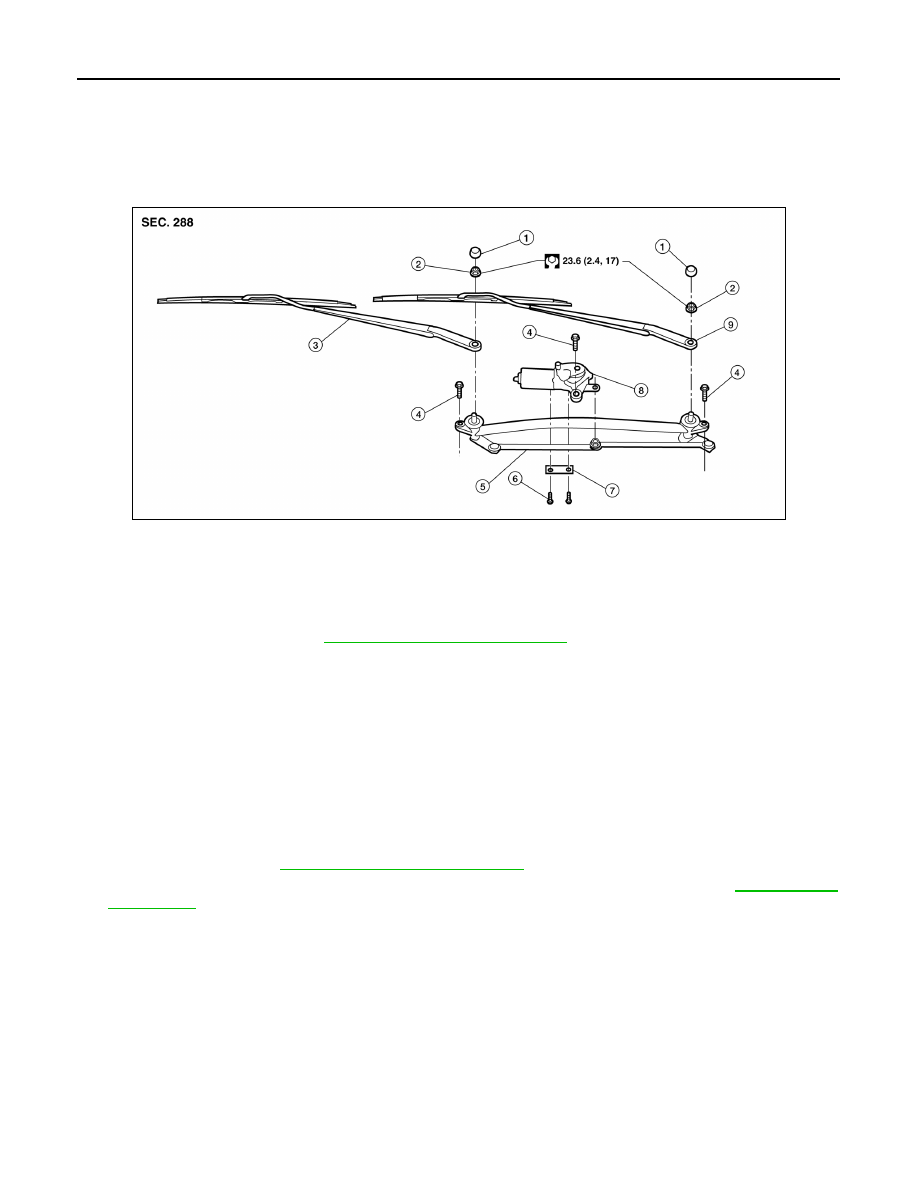

AWLIA1810GB

1.

Wiper arm covers

2.

Wiper arm nuts

3.

Front RH wiper arm and blade assembly

4.

Wiper frame bolts

5.

Wiper frame assembly

6.

Wiper motor to frame bolts

7.

Wiper motor spacer

8.

Wiper motor

9.

Front LH wiper arm and blade assembly
