Component Description

INFOID:0000000006166560

10. Rear audio remote control unit R204 11. Bluetooth ON indicator R105

12. Microphone R109

13. Front door speaker

LH D12
RH D112

14. Rear door tweeter

LH D208
RH D308

15. Rear door speaker

LH D207
RH D307

16. Subwoofer B72 (under driver’s seat) 17. Audio amp. M112, M113 (view behind

instrument panel above accelerator
pedal)

18. Satellite radio tuner M41, M129

19. NAVI control unit B151, B152, B160

(located under passenger front seat)

20. Bluetooth control unit B142, B143

Part name

Description

Audio unit

• Controls each operation of the navigation system
• Voice guidance signal is output to audio amp.

BOSE speaker amp.

Voice guidance signal is input from audio unit, and it is output to speakers.

Tweeter

Voice guidance signal from audio amp. is output.

Steering switches

• Each operation of navigation system can be performed
• Switch operating signal is output to audio unit

Microphone

Sends voice signals to audio unit

GPS antenna

GPS signal is received and is output to audio unit.

AV-202

< SYSTEM DESCRIPTION >

[PREMIUM WITH NAVIGATION]

DVD PLAYER

DVD PLAYER

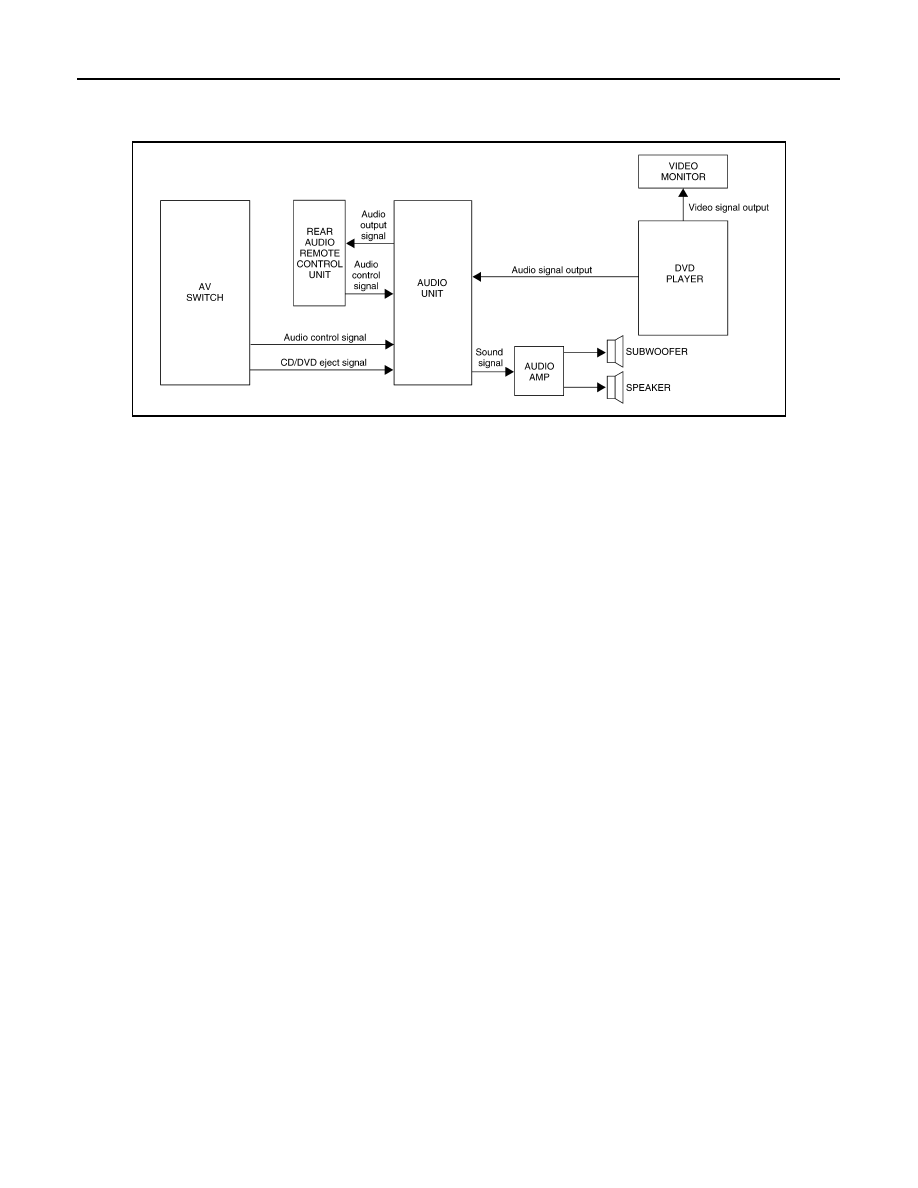

System Diagram

INFOID:0000000006166561

System Description

INFOID:0000000006166562

The DVD entertainment system consists of the following components

• Audio unit

• DVD player

• Video monitor

• AV switch

• Steering wheel audio control switches

• Rear audio remote control unit

• Audio amp.

• Front tweeters

• Front door speakers

• Center speaker

• Rear door tweeters

• Rear door speakers

• Subwoofer

When the DVD entertainment system is on, video signals are sent from the DVD player to the video monitor.

Audio signals are sent to the Audio unit. Audio signals can be directed through the wireless infrared head-

phones or through the audio amp. to the vehicle speakers. Refer to the Owner’s Manual for complete DVD

entertainment system operating instructions.

AWNIA1618GB

AV

DVD PLAYER

AV-203

< SYSTEM DESCRIPTION >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

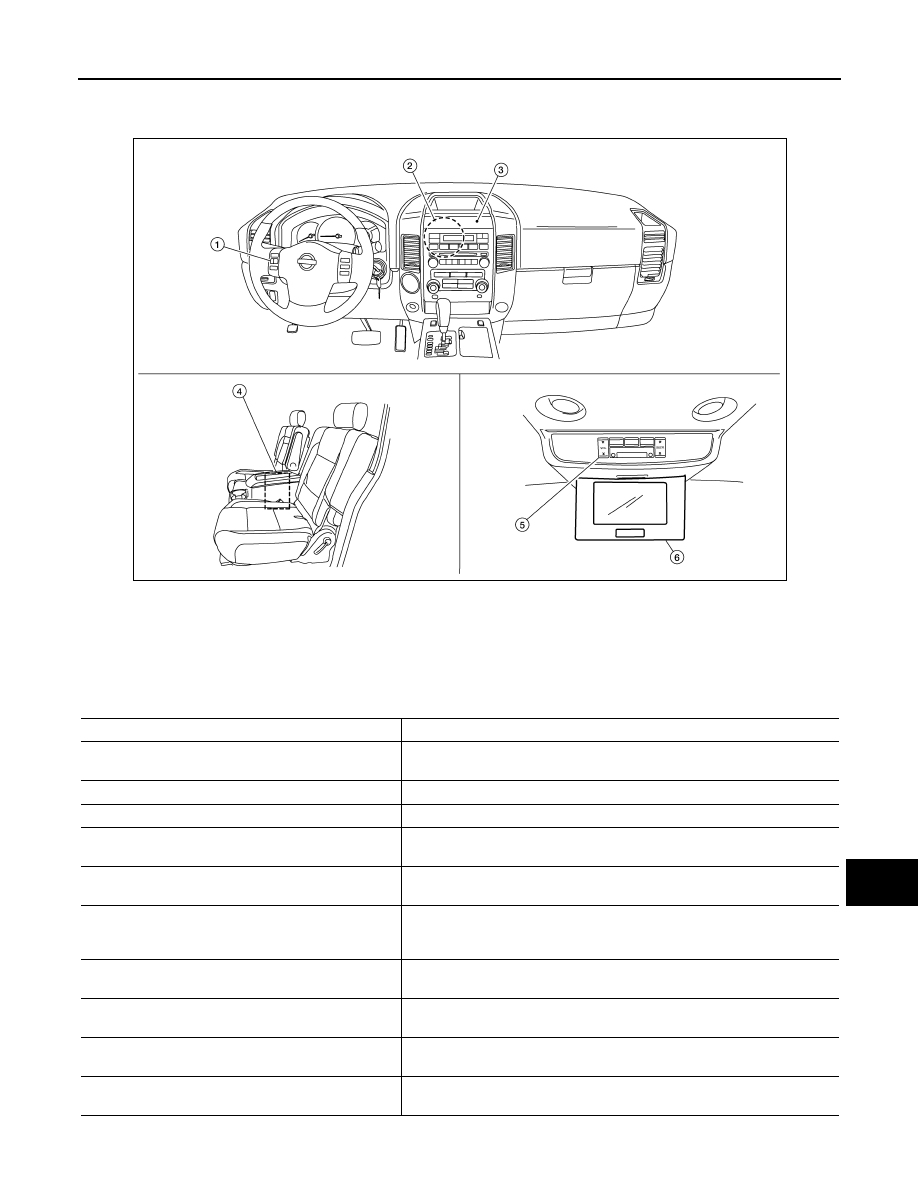

Component Parts Location

INFOID:0000000006166563

Component Description

INFOID:0000000006166564

1.

Steering wheel audio control switches 2.

Audio unit M42, M43, M44, M45, M46 3.

AV switch M98

4.

DVD player M205, M206 (located in
center console)

5.

Rear audio remote control unit R204

6.

Video monitor R202

AWNIA1562GB

Part name

Description

DVD player

• Outputs DVD video to video monitor
• Outputs DVD audio to the audio unit

Video monitor

• Receives and displays the DVD video signal

Audio unit

• Controls audio system and DVD entertainment system functions

Audio amp.

• Receives audio signals from the audio unit
• Outputs amplified audio signals to the speakers

AV switch

• All audio operations can be operated
• Switch signal is output to the audio unit

Rear audio remote control unit

• Audio and DVD functions can be operated
• Switch signal is output to the audio unit
• Receives audio signal from audio unit for headphones

Steering wheel audio control switches

• Audio operation can be operated
• Steering switch signal (operation signal) is output to audio unit

Front door speakers

• Outputs audio signal from audio amp.
• Outputs high, mid and low range sounds

Front tweeters

• Outputs audio signal from audio amp.
• Outputs high range sounds

Center speaker

• Outputs audio signal from audio amp.
• Outputs high, mid and low range sounds

AV-204

< SYSTEM DESCRIPTION >

[PREMIUM WITH NAVIGATION]

DVD PLAYER

Rear door tweeters

• Outputs audio signal from audio amp.
• Outputs high range sounds

Rear door speakers

• Outputs audio signal from audio amp.
• Outputs high, mid and low range sounds

Subwoofer

• Outputs audio signal from audio amp.
• Outputs low range sounds

Part name

Description
