AP-2

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Repair Work Flow

INFOID:0000000006163392

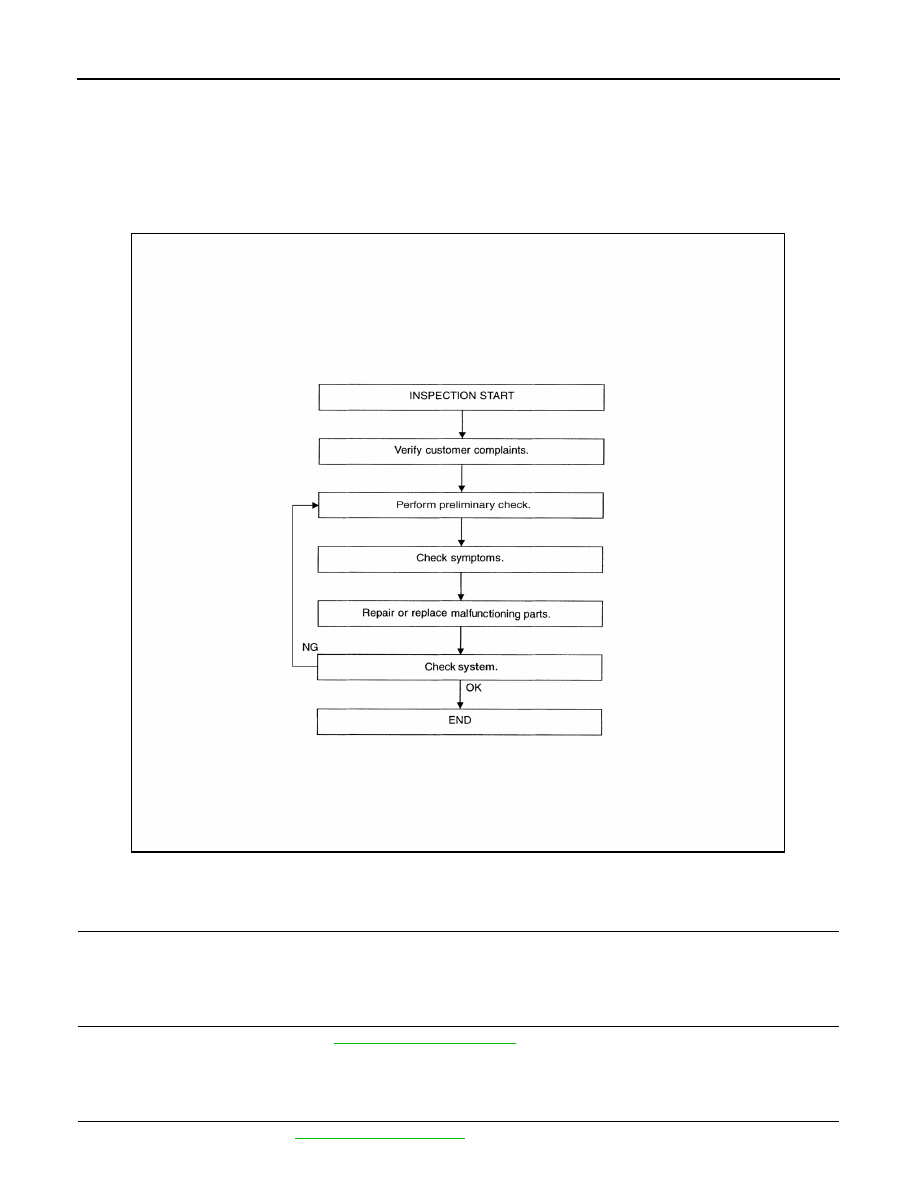

WORK FLOW

DETAILED FLOW

1.

 CUSTOMER INFORMATION

Talk to the customer to obtain detailed information about the symptom.

>> GO TO 2

2.

 PRELIMINARY CHECK

Perform preliminary check.  Refer to

AP-4, "Preliminary Check"

.

>> GO TO 3

3.

 SYMPTOM

Check for symptoms.  Refer to

AP-11, "Symptom Table"

.

ABJIA0524GB

DIAGNOSIS AND REPAIR WORKFLOW

AP-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

K

L

M

A

B

AP

N

O

P

>> GO TO 4

4.

 MALFUNCTIONING PARTS

Repair or replace the applicable parts.

>> GO TO 5

5.

 SYSTEM CHECK

Operate the pedal adjusting switch to ensure that the pedals move completely forward and backward.
Does the system operate normally?

YES

>> Inspection End.

NO

>> Refer to

GI-39, "Intermittent Incident"

.

AP-4

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

Preliminary Check

INFOID:0000000006163393

1.

 FOREIGN OBJECTS

Check the following:

• objects on or behind the pedals that could cause binding
Are there any foreign objects that could be causing interference with the pedals?

YES

>> Remove objects.

NO

>> GO TO 2

2.

 WIRING CONNECTIONS

1. Disconnect pedal adjusting motor.

2. Check terminals for damage or loose connections.

3. Reconnect harness connector.
Are any connectors damaged or loose?

YES

>> Repair or replace damaged parts.

NO

>> GO TO 3

3.

 POWER AND GROUND

Check power supply and ground circuits for pedal adjusting switch.  Refer to

AP-6, "Pedal Adjusting Switch

Power Supply and Ground Circuit Inspection"

.

Is the inspection result normal?

YES

>> Refer to

AP-11, "Symptom Table"

.

NO

>> Repair or replace as necessary.

ADJUSTABLE PEDAL SYSTEM

AP-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

AP

N

O

P

SYSTEM DESCRIPTION

ADJUSTABLE PEDAL SYSTEM

Automatic Drive Positioner Interlocking Adjustable Pedal

INFOID:0000000006163394

Automatic drive positioner interlocking adjustable pedal. Refer to

ADP-11, "AUTOMATIC DRIVE POSI-

TIONER SYSTEM : System Description"

.

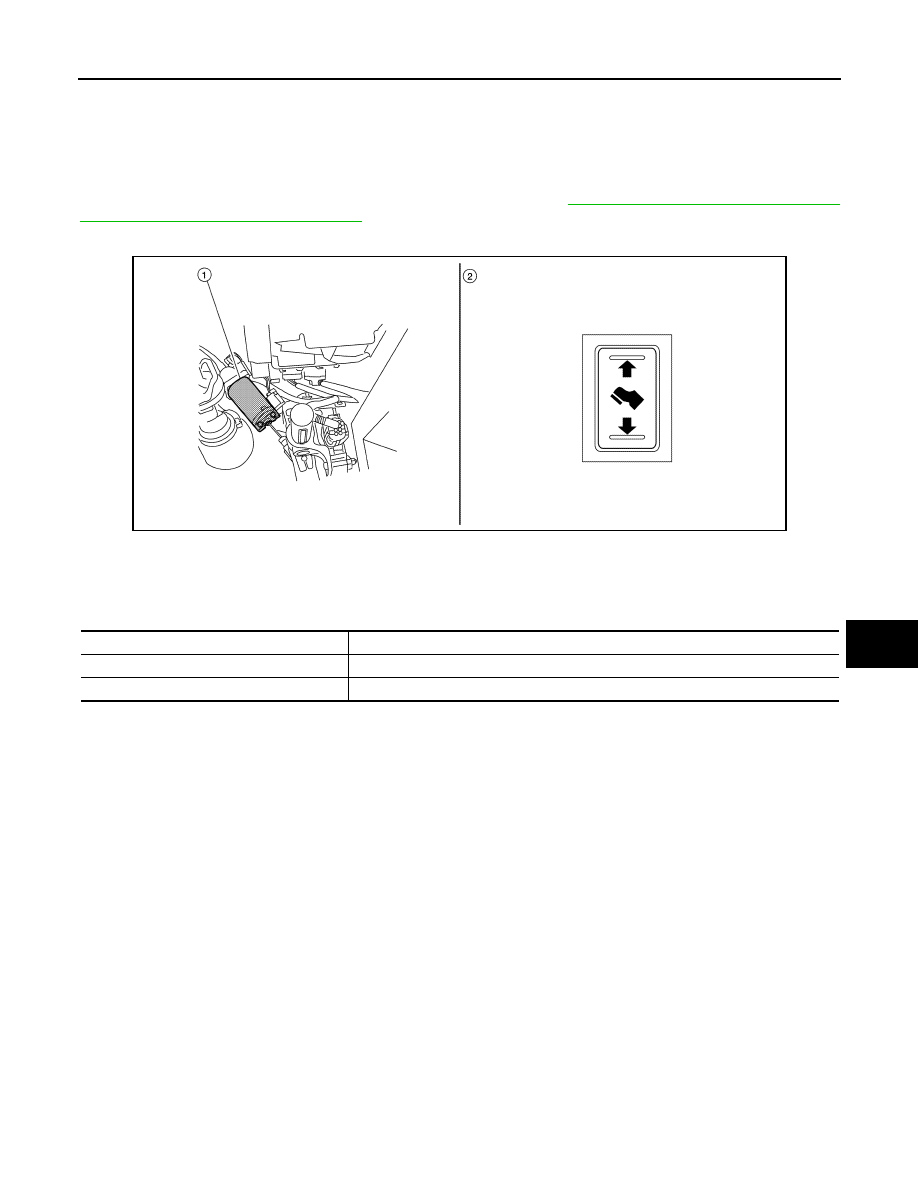

Component Parts Location

INFOID:0000000006163395

Component Description

INFOID:0000000006163396

ALJIA0325ZZ

1.

Pedal adjusting motor E167

2.

Pedal adjusting switch M83

Component

Function

Pedal adjusting switch

Provide move forward/backward signals to pedal adjusting motor

Pedal adjusting motor

Move pedal assembly forward and backward
