ADP-150

< UNIT REMOVAL AND INSTALLATION >

SEAT MEMORY SWITCH

SEAT MEMORY SWITCH

Removal and Installation

INFOID:0000000006163597

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

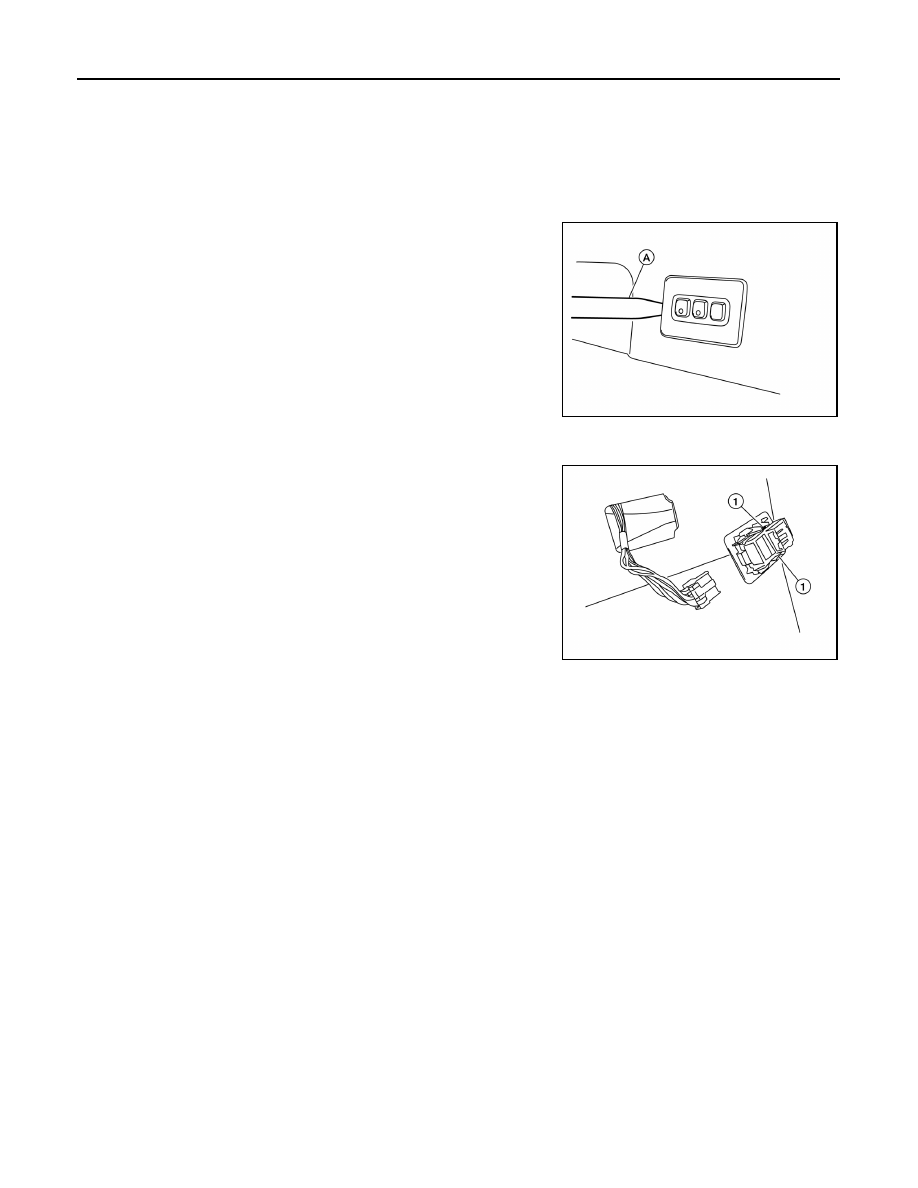

1. Remove the seat memory switch from the front door finisher by

using Tool.

2. Disconnect the electrical connector from the seat memory switch.

3. Release the clips (1) and remove the seat memory switch from

the finish panel.

INSTALLATION

Install in the reverse order of removal.

Tool Number

:  —  (J-46534)

ALJIA0569ZZ

ALJIA0570ZZ

DOOR MIRROR REMOTE CONTROL SWITCH

ADP-151

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

DOOR MIRROR REMOTE CONTROL SWITCH

Removal and Installation

INFOID:0000000006163598

REMOVAL

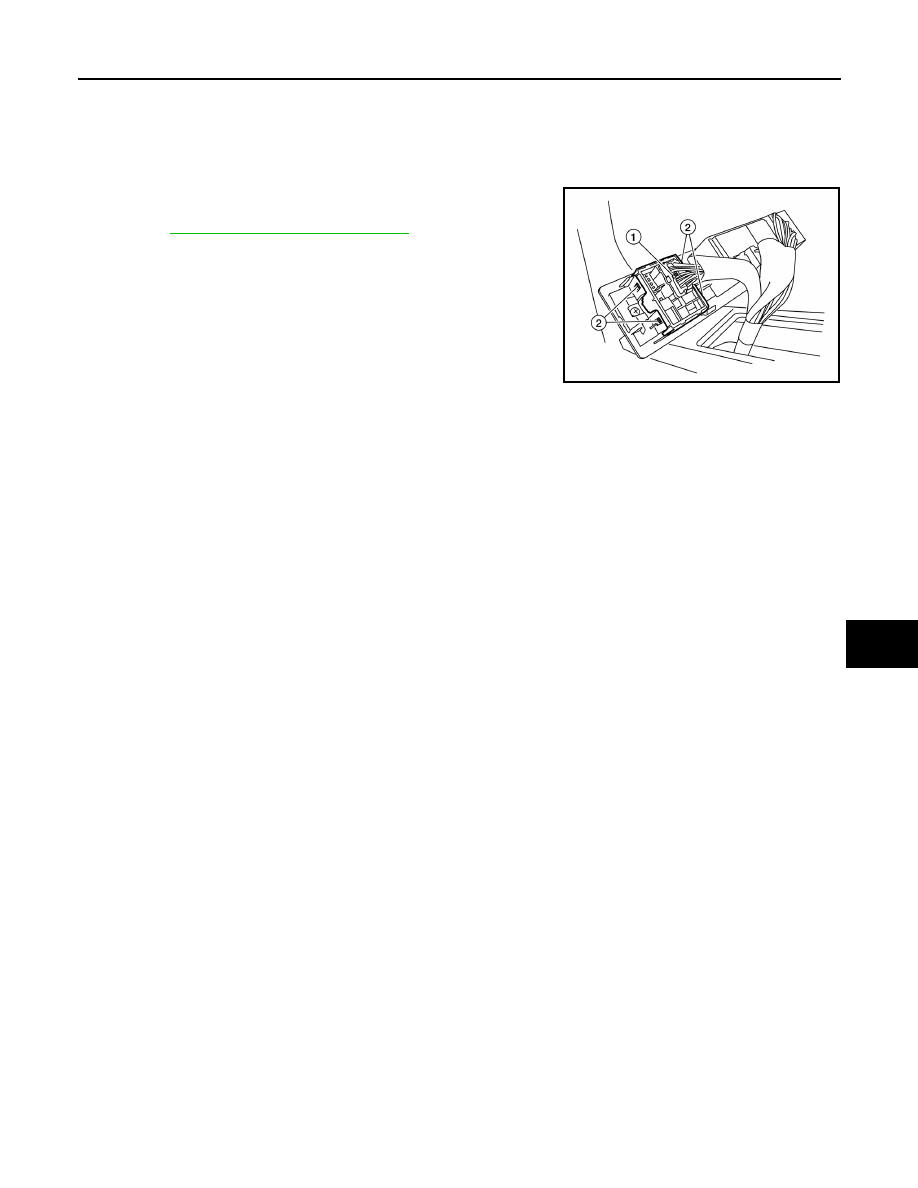

1. Remove the main power window, door lock/unlock and door mir-

ror remote control switch finisher from the front door finisher LH.

Refer to

INT-10, "Removal and Installation"

.

2. Disconnect the electrical connector (1), release the retaining

tabs (2) and remove the door mirror remote control switch from

the finisher panel.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA0572ZZ

ADP-152

< UNIT REMOVAL AND INSTALLATION >

PEDAL ADJUSTING MOTOR

PEDAL ADJUSTING MOTOR

Removal and Installation

INFOID:0000000006163599

The pedal adjusting motor is serviced as a part of the accelerator pedal. Refer to

ACC-3, "Removal and Instal-

lation"

 for accelerator pedal and

BR-19, "Removal and Installation"

 for brake pedal when removing pedal

adjusting motors.

AP-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

AP

A

B

AP

N

O

P

CONTENTS

ADJUSTABLE PEDAL

BASIC INSPECTION  ....................................

2

DIAGNOSIS AND REPAIR WORKFLOW  ..........

2

Repair Work Flow ......................................................

2

INSPECTION AND ADJUSTMENT .....................

4

Preliminary Check  .....................................................

4

SYSTEM DESCRIPTION  ..............................

5

ADJUSTABLE PEDAL SYSTEM ........................

5

Automatic Drive Positioner Interlocking Adjustable
Pedal .........................................................................

5

Component Parts Location ........................................

5

Component Description .............................................

5

DTC/CIRCUIT DIAGNOSIS  ..........................

6

ADJUSTABLE PEDAL SYSTEM ........................

6

Pedal Adjusting Switch Power Supply and Ground
Circuit Inspection .......................................................

6

Pedal Adjusting Motor Circuit Inspection  ..................

6

WIRING DIAGRAM .......................................

8

ADJUSTABLE PEDAL SYSTEM .......................

8

Wiring Diagram .........................................................

8

SYMPTOM DIAGNOSIS  ..............................

11

ADJUSTABLE PEDAL SYSTEM ......................

11

Symptom Table  .......................................................

11

PRECAUTION ..............................................

12

PRECAUTIONS .................................................

12

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

12

Precaution for Work .................................................

12

REMOVAL AND INSTALLATION ...............

13

ADJUSTABLE PEDAL SYSTEM ......................

13

Removal and Installation  .........................................

13
