LIFTING SENSOR (REAR)

1. Disconnect driver seat control unit and lifting motor (rear).

2. Check the continuity between driver seat control unit harness

connector and lifting motor (rear) harness connector.

3. Check the continuity between driver seat control unit harness

connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK SEAT OPERATION

1. Connect driver seat control unit and lifting motor (rear) connector.

2. Check the seat operation [except lifting (rear) operation] with memory function.
Is the operation normal?

YES

>> Replace lifting motor (rear). (Built in power seat frame assembly). Refer to

SE-44, "Disassembly

and Assembly"

.

NO

>> Replace driver seat control unit. Refer to

ADP-148, "Removal and Installation"

.

4.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace driver seat control unit. Refer to

ADP-148, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Driver seat control

unit connector

Terminal

Lifting motor (rear)

connector

Terminal

Continuity

B202 (A)

10

B207 (B)

4

Yes

16

3

31

2

Driver seat control unit

 connector

Terminal

Ground

Continuity

B202 (A)

10

No

16

31

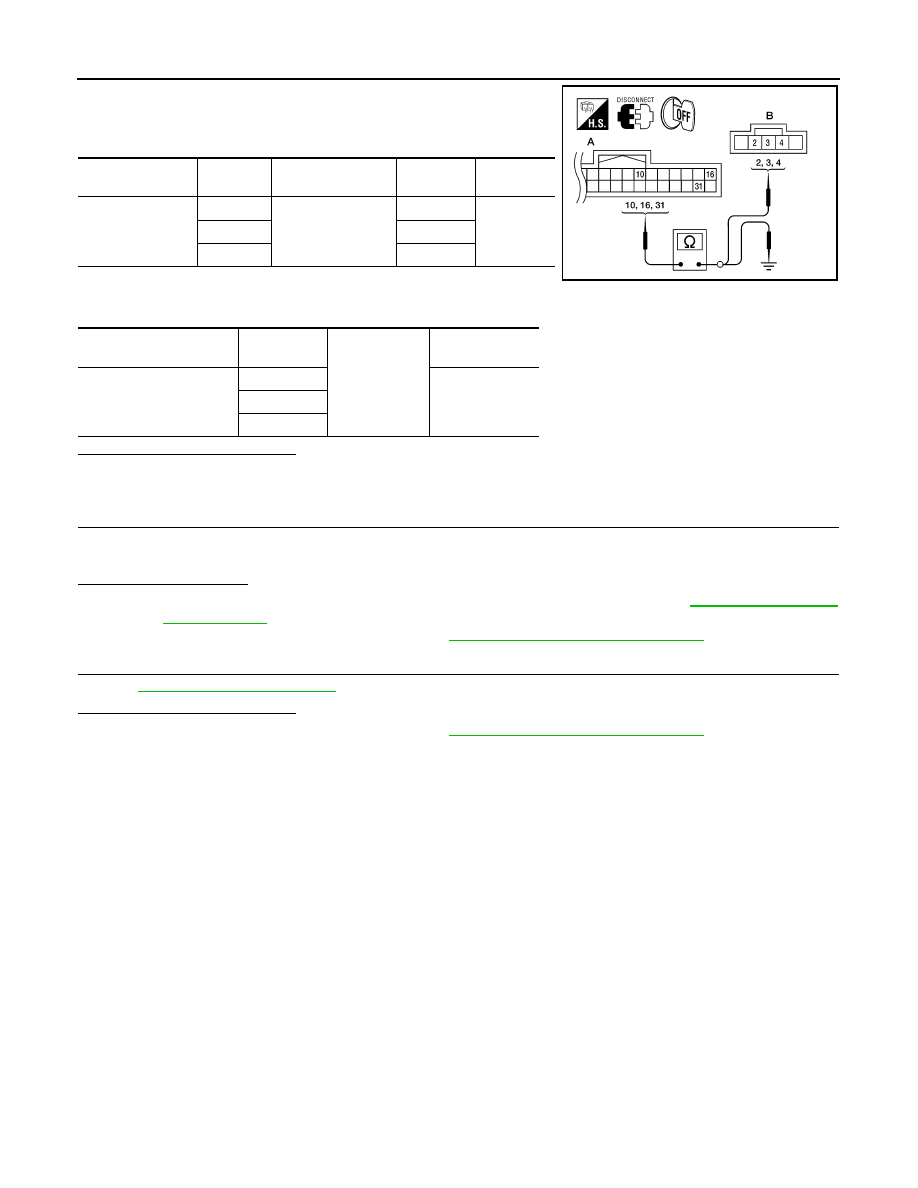

ALJIA0320ZZ

PEDAL ADJUSTING SENSOR

ADP-87

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

PEDAL ADJUSTING SENSOR

Description

INFOID:0000000006163544

• The pedal adjusting sensor is installed to the pedal adjusting motor assembly.

• The resistance of pedal adjusting sensor is changed according to the forward/backward position of pedal

assembly.

• The terminal voltage of automatic drive positioner control unit will be changed according to a change of

pedal adjusting sensor resistance. Automatic drive positioner control unit calculates the pedal assembly

position from the voltage.

Component Function Check

INFOID:0000000006163545

1.

 CHECK FUNCTION

1. Select “PEDAL SEN” in “Data monitor” mode with CONSULT-III.

2. Check the pedal sensor signal under the following condition.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-87, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006163546

Regarding Wiring Diagram information, refer to

ADP-128, "Wiring Diagram"

.

1.

 CHECK PEDAL ADJUSTING SENSOR SIGNAL

1. Turn ignition switch OFF.

2. Check voltage between automatic drive positioner control unit

harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 2

2.

 CHECK PEDAL ADJUSTING SENSOR CIRCUIT

Monitor item

Condition

Value

PEDAL SEN

Pedal position

Forward

0.5V

Backward

4.5V

Terminal

Condition

Voltage (V)

(Approx.)

(+)

(-)

Automatic

drive position-

er control unit

Terminal

M33

8

Ground

Pedal as-
sembly
position

Forward

0.5

Backward

4.5

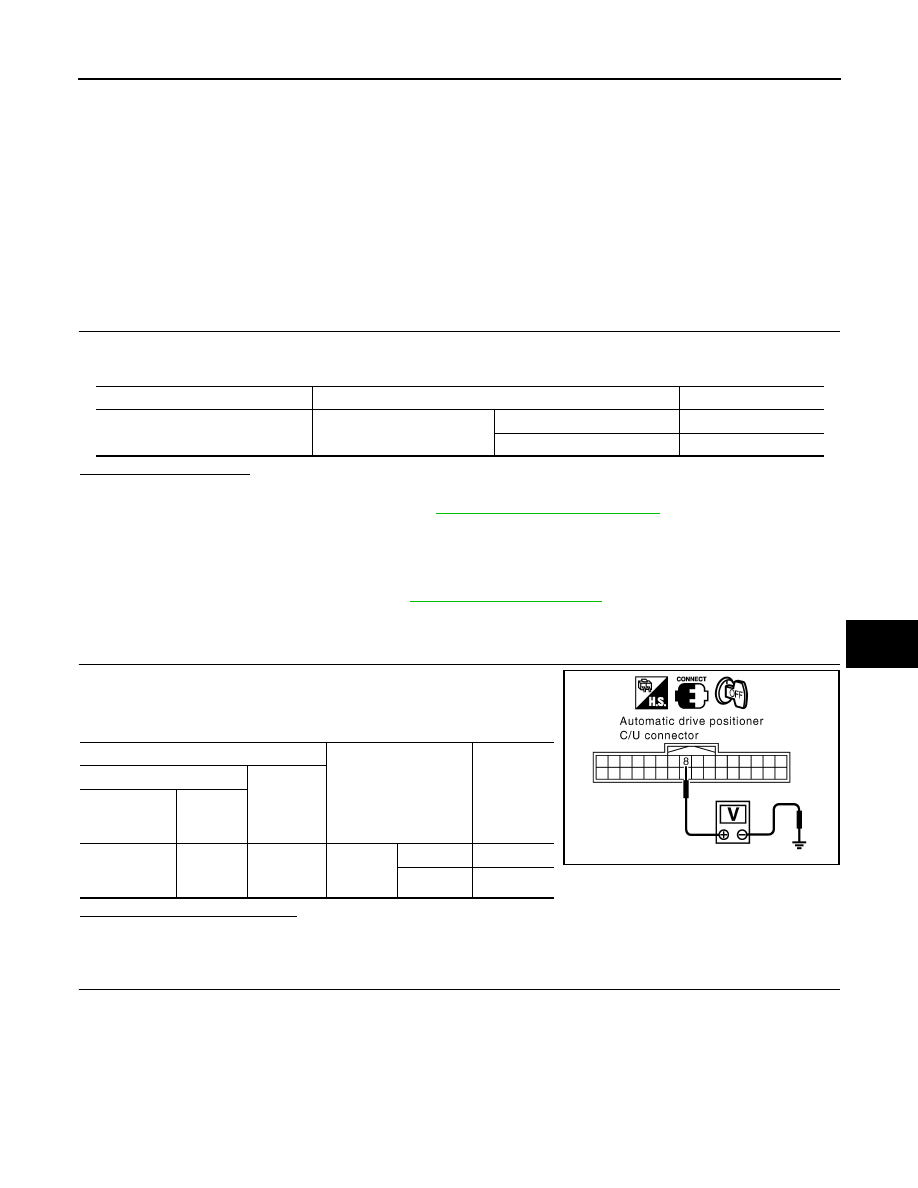

PIIA4569E

ADP-88

< DTC/CIRCUIT DIAGNOSIS >

PEDAL ADJUSTING SENSOR

1. Disconnect automatic drive positioner control unit and pedal

adjusting motor assembly.

2. Check continuity between automatic drive positioner control unit

harness connector and pedal adjusting motor assembly harness

connector.

3. Check continuity between automatic drive positioner control unit

harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK DOOR MIRROR OPERATION

1. Connect automatic drive positioner control unit and pedal adjusting motor assembly.

2. Turn ignition switch ON.

3. Check door mirror operation with memory function.
Is the operation normal?

YES

>> Replace pedal adjusting motor assembly. Refer to

ADP-152, "Removal and Installation"

.

NO

>> Replace automatic drive positioner control unit. Refer to

ADP-149, "Removal and Installation"

.

4.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit. Refer to

ADP-149, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Automatic drive posi-

tioner

control unit connector

Terminal

Pedal adjusting

motor assembly

connector

Terminal

Continuity

M33 (A)

8

E110 (B)

4

Yes

M34 (C)

33

3

41

5

Automatic drive positioner

control unit connector

Terminal

Ground

Continuity

M33 (A)

8

No

M34 (C)

33

41

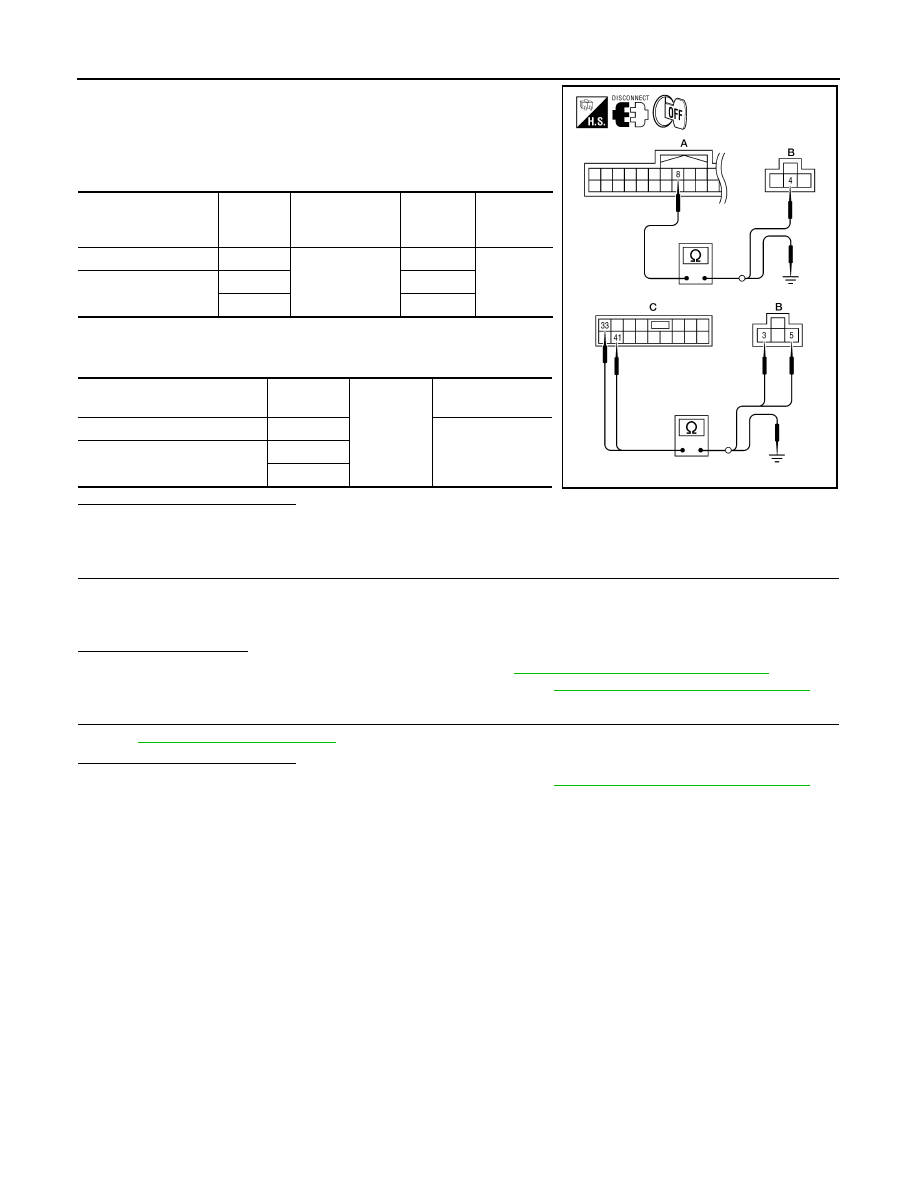

ALJIA0327ZZ

MIRROR SENSOR

ADP-89

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

MIRROR SENSOR

DRIVER SIDE
DRIVER SIDE : Description

INFOID:0000000006163547

• The mirror sensor LH is installed to the door mirror LH.

• The resistance of 2 sensors (horizontal and vertical) is changed when the door mirror LH is operated.

• Automatic drive positioner control unit calculates the door mirror position according to the change of the volt-

age of 2 sensor input terminals.

DRIVER SIDE : Component Function Check

INFOID:0000000006163548

1.

 CHECK FUNCTION

1. Select “MIR/SEN LH U-D”, “MIR/SEN LH R-L” in “Data monitor” with CONSULT-III.

2. Check mirror sensor (driver side) signal under the following condition.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-89, "DRIVER SIDE : Diagnosis Procedure"

.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000006163549

Regarding Wiring Diagram information, refer to

ADP-128, "Wiring Diagram"

.

1.

 CHECK DOOR MIRROR LH SENSOR SIGNAL

1. Turn ignition switch to ACC.

2. Check voltage between door mirror LH harness connector and

ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 2.

2.

 CHECK DOOR MIRROR LH SENSOR CIRCUIT 1

Monitor item

Condition

Value

MIR/SEN LH U-D

Door mirror LH

Close to peak

3.4V

Close to valley

0.6V

MIR/SEN LH R-L

Close to right edge

3.4V

Close to left edge

0.6V

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

Door mirror

LH connector

Terminal

D4

7

Ground

Door
mirror
LH

Close to peak

3.4

Close to valley

0.6

8

Close to right edge

3.4

Close to left edge

0.6

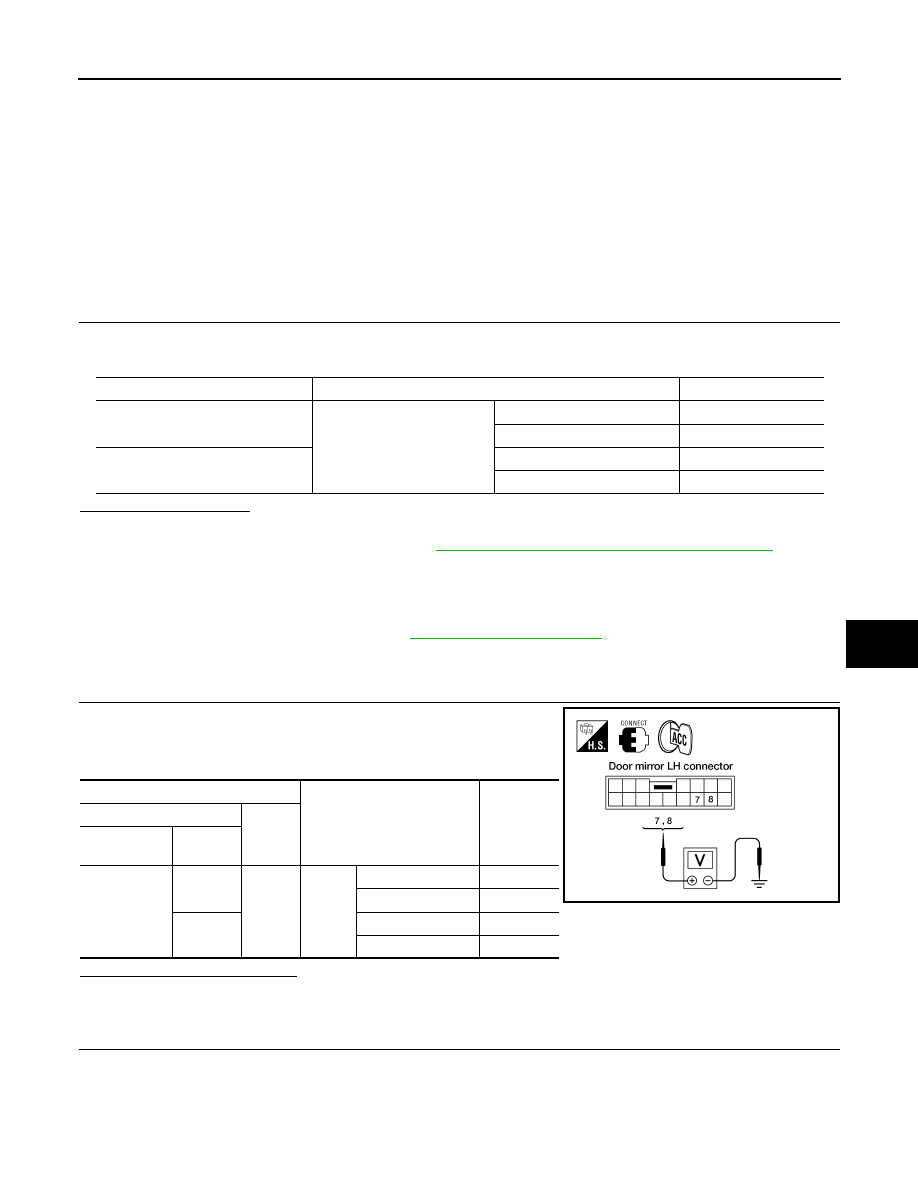

LIIA1482E
