Nissan Titan A60. Manual - part 15

ADP-50

< DTC/CIRCUIT DIAGNOSIS >

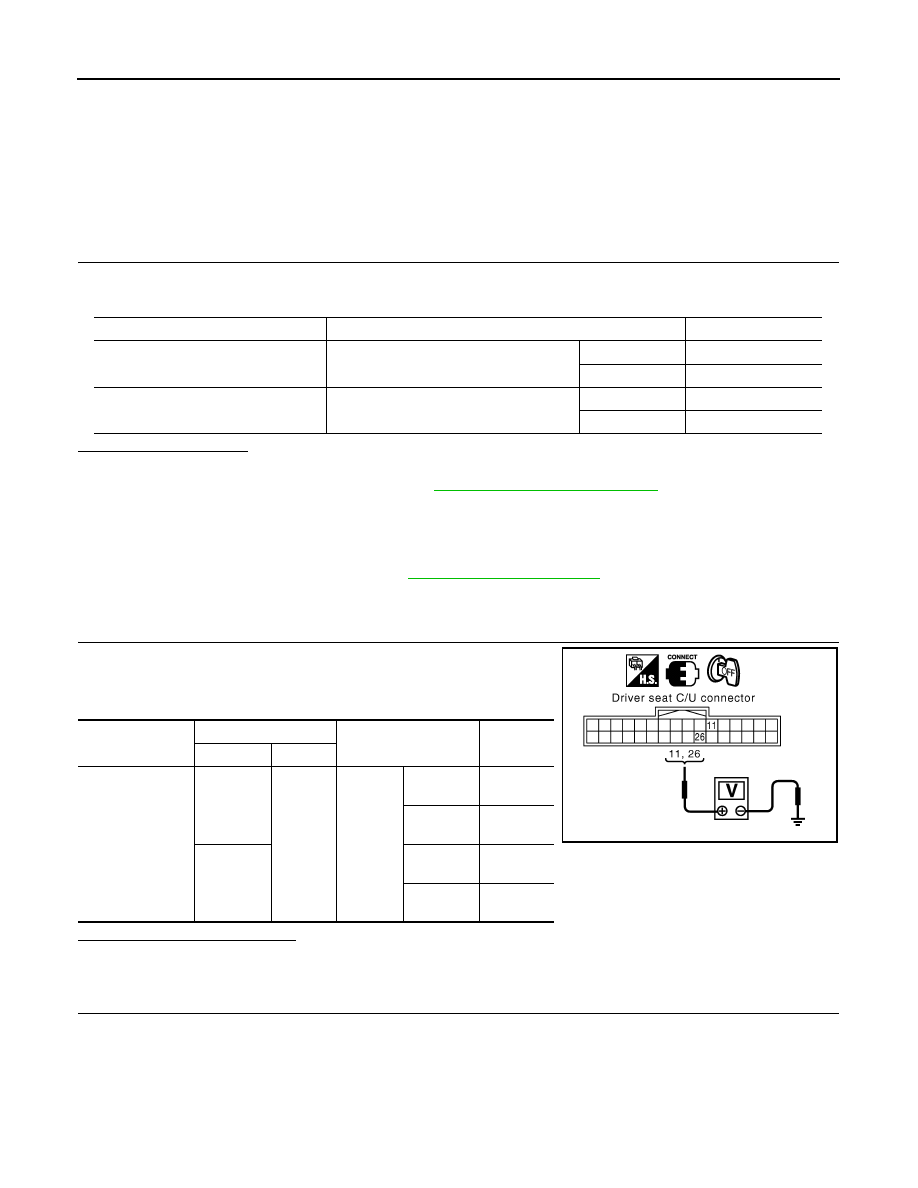

SLIDING SWITCH

SLIDING SWITCH

Description

INFOID:0000000006163491

Sliding switch is equipped to the power seat switch LH on the seat cushion trim cover. The operation signal is

input to the driver seat control unit when the sliding switch is operated.

Component Function Check

INFOID:0000000006163492

1.

 CHECK FUNCTION

1. Select “SLIDE SW-FR”, “SLIDE SW-RR” in “Data monitor” mode with CONSULT-III.

2. Check sliding switch signal under the following conditions.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-50, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006163493

Regarding Wiring Diagram information, refer to

ADP-128, "Wiring Diagram"

.

1.

 CHECK SLIDING SWITCH SIGNAL

1. Turn ignition switch OFF.

2. Check voltage between driver seat control unit harness connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> GO TO 2

2.

 CHECK SLIDING SWITCH CIRCUIT

Monitor item

Condition

Status

SLIDE SW-FR

Sliding switch (forward)

Operate

ON

Release

OFF

SLIDE SW-RR

Sliding switch (backward)

Operate

ON

Release

OFF

Driver seat control

unit connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

B202

11

Ground

Sliding

switch

Operate

(backward)

0

Release

Battery
voltage

26

Operate

(forward)

0

Release

Battery
voltage

PIIA4577E

SLIDING SWITCH

ADP-51

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

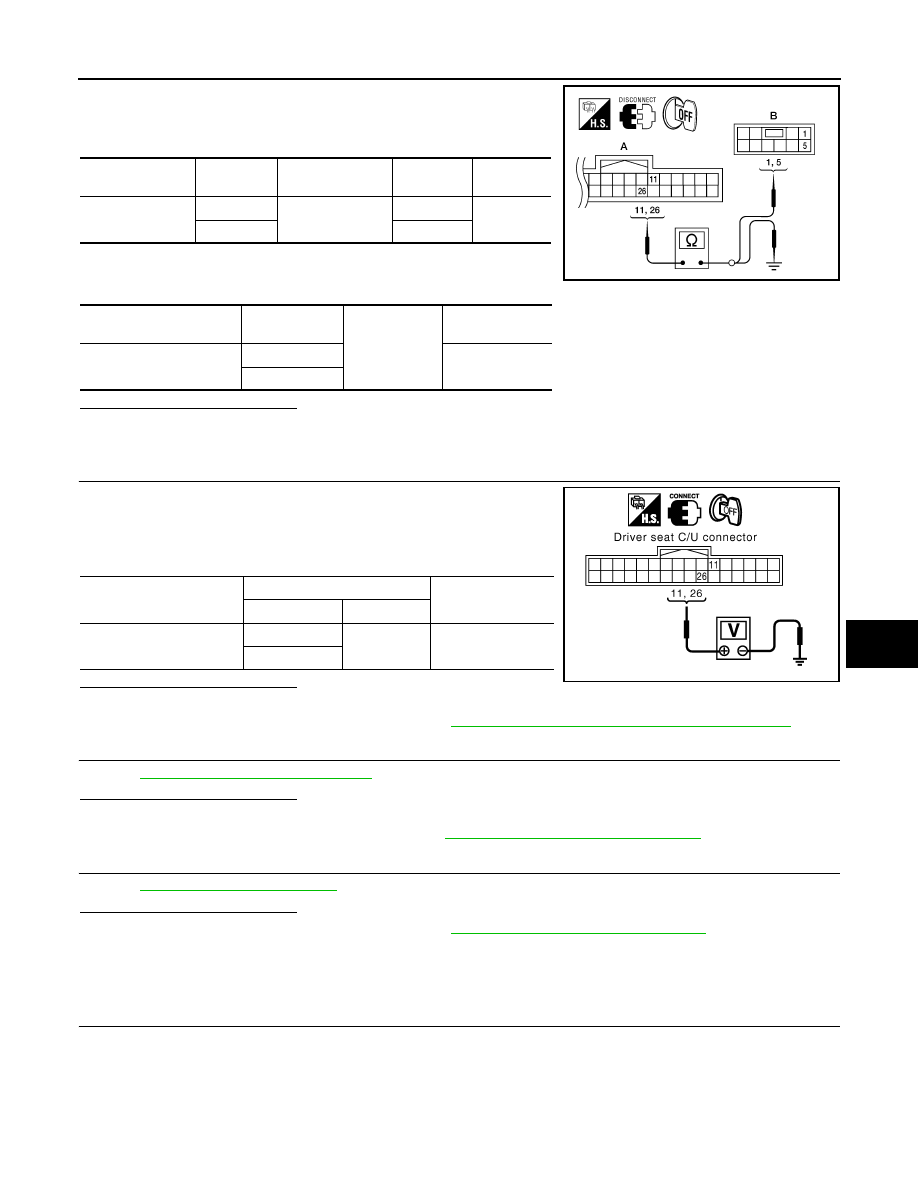

1. Disconnect driver seat control unit and power seat switch LH.

2. Check continuity between driver seat control unit harness con-

nector and power seat switch LH harness connector.

3. Check continuity between driver seat control unit harness con-

nector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK DRIVER SEAT CONTROL UNIT OUTPUT

1. Connect the driver seat control unit.

2. Turn ignition switch ON.

3. Check voltage between driver seat control unit harness connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace driver seat control unit. Refer to

SE-30, "Removal and Installation For Front Seat"

.

4.

 CHECK SLIDING SWITCH

Refer to

ADP-51, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace power seat switch LH. Refer to

SE-44, "Disassembly and Assembly"

.

5.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace driver seat control unit. Refer to

ADP-148, "Removal and Installation"

.

NO

>> Repair or replace malfunctioning part.

Component Inspection

INFOID:0000000006163494

1.

 CHECK SLIDING SWITCH

Driver seat control

unit connector

Terminal

Power seat switch

LH connector

Terminal

Continuity

B202 (A)

11

B208 (B)

1

Yes

26

5

Driver seat control unit

connector

Terminal

Ground

Continuity

B202 (A)

11

No

26

ALJIA0308ZZ

Driver seat control unit

connector

Terminals

Voltage (V)

(Approx.)

(+)

(–)

B202

11

Ground

Battery voltage

26

PIIA4577E

ADP-52

< DTC/CIRCUIT DIAGNOSIS >

SLIDING SWITCH

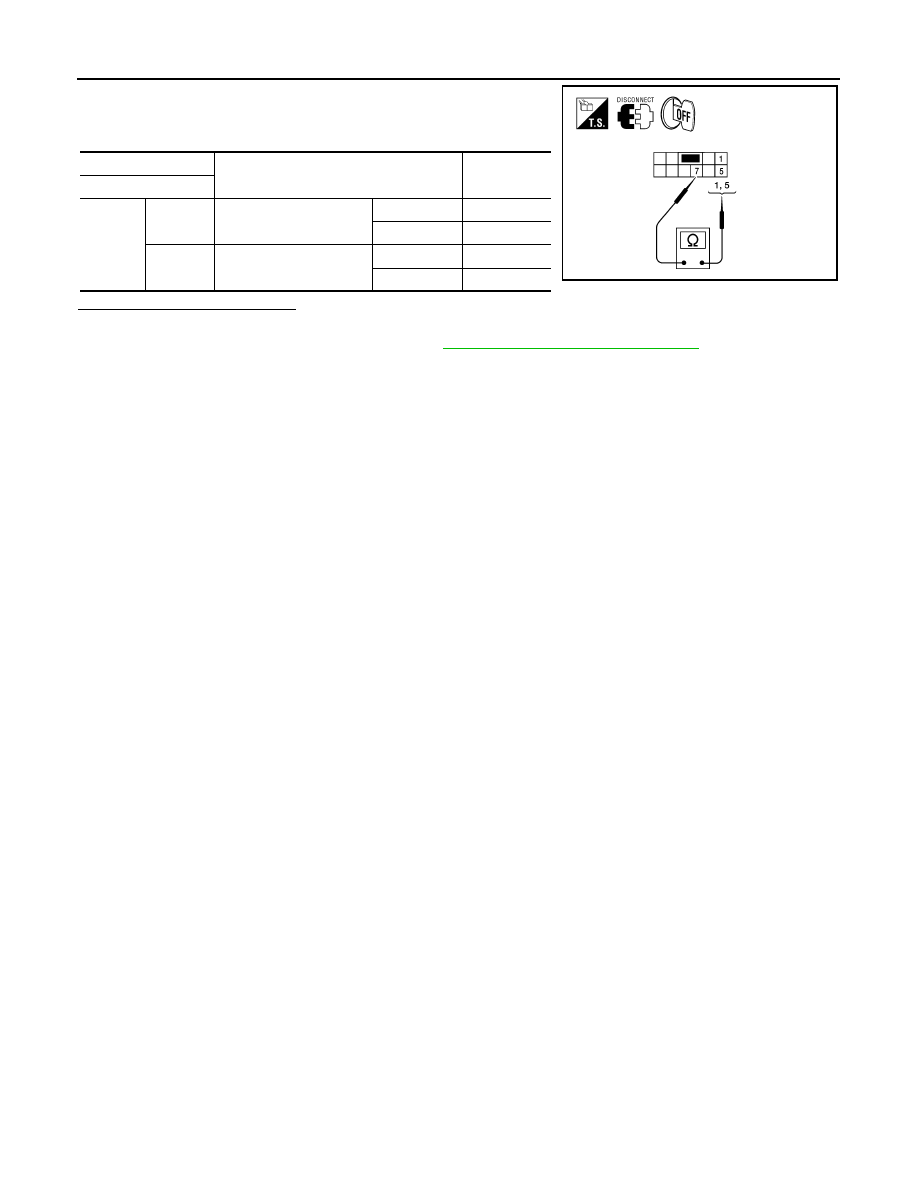

1. Turn ignition switch OFF.

2. Disconnect power seat switch LH.

3. Check continuity between power seat switch LH terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace power seat switch LH. Refer to

SE-44, "Disassembly and Assembly"

.

Terminal

Condition

Continuity

Power seat switch LH

7

1

Sliding switch (backward)

Operate

Yes

Release

No

5

Sliding switch (forward)

Operate

Yes

Release

No

ALJIA0309ZZ

RECLINING SWITCH

ADP-53

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

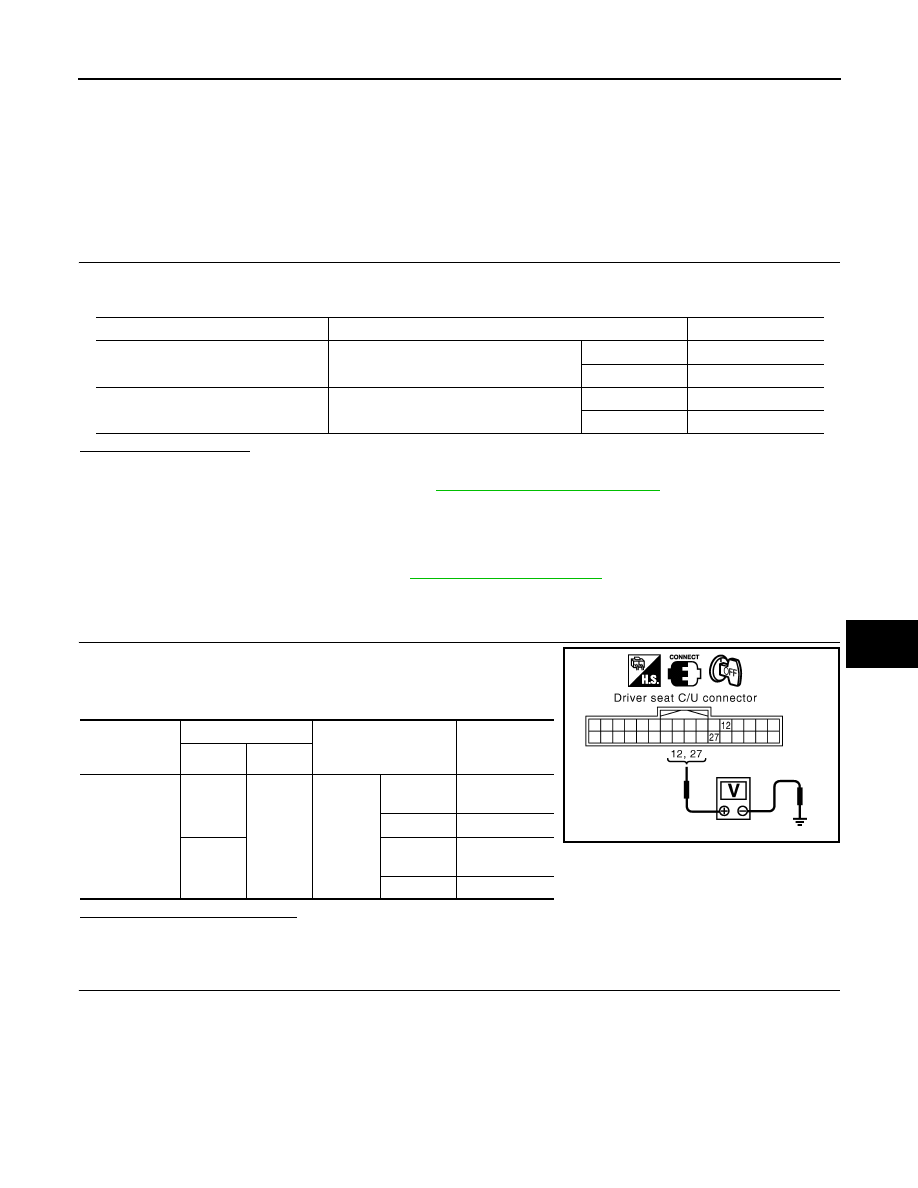

RECLINING SWITCH

Description

INFOID:0000000006163495

Reclining switch is equipped to the power seat switch LH on the seat cushion trim cover. The operation signal

is input to the driver seat control unit when the reclining switch is operated.

Component Function Check

INFOID:0000000006163496

1.

 CHECK FUNCTION

1. Select “RECLN SW-FR”, “RECLN SW-RR” in “Data monitor” mode with CONSULT-III.

2. Check reclining switch signal under the following conditions.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-53, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006163497

Regarding Wiring Diagram information, refer to

ADP-128, "Wiring Diagram"

.

1.

 CHECK RECLINING SWITCH SIGNAL

1. Turn ignition switch OFF.

2. Check voltage between driver seat control unit harness connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> GO TO 2

2.

 CHECK RECLINING SWITCH CIRCUIT

Monitor item

Condition

Status

RECLN SW-FR

Reclining switch (forward)

Operate

ON

Release

OFF

RECLN SW-RR

Reclining switch (backward)

Operate

ON

Release

OFF

Driver seat
control unit

connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

B202

12

Ground

Reclining

switch

Operate

(backward)

0

Release

Battery voltage

27

Operate

(forward)

0

Release

Battery voltage

PIIA4580E
