Nissan Titan A60. Manual - part 7

ADP-18

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

DETAIL FLOW

Item

Request status

Ignition position

ON

Switch inputs
• Power seat switch
• Pedal adjusting switch
• Door mirror control switch
• Set switch
• Seat memory switch

OFF

(Not operated)

A/T selector lever

P position

Order

Input

Output

Control unit condition

1

Memory switch

—

The memory switch signal is inputted to the automatic drive positioner
control unit when memory switch 1 or 2 is operated.
Memory switch signal is input to driver seat control unit via UART
communication.

2

—

Motors
(seat, pedal adjusting,
door mirror)

Driver seat control unit operates each motor of seat when it recogniz-
es the memory switch pressed for 0.5 second or more and requests
each motor operation to automatic drive positioner control unit via
UART communication. The automatic drive positioner control unit op-
erates each motor.

Memory switch Indica-
tor

Driver seat control unit requests the flashing of memory indicator to
automatic drive positioner control unit via UART communication while
either of the motors is operating. The automatic drive positioner con-
trol unit illuminates the memory indicator.

3

Sensors
(seat, pedal adjust-
ing, door mirror)

—

Driver seat control unit judges the operating seat position with each
seat sensor input. The positions of the adjustable pedals and outside
mirror are monitored with each sensor signal that is input from auto
drive positioner control unit via UART communication. Driver seat
control unit stops the operation of each motor when each part reach-
es the recorded address.

4

—

Memory switch Indica-
tor

Driver seat control unit requests the illumination of memory indicator
to auto drive positioner control unit via UART communication after all
motors stop. The auto driving positioner control unit illuminates the
memory indicator for 5 seconds.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

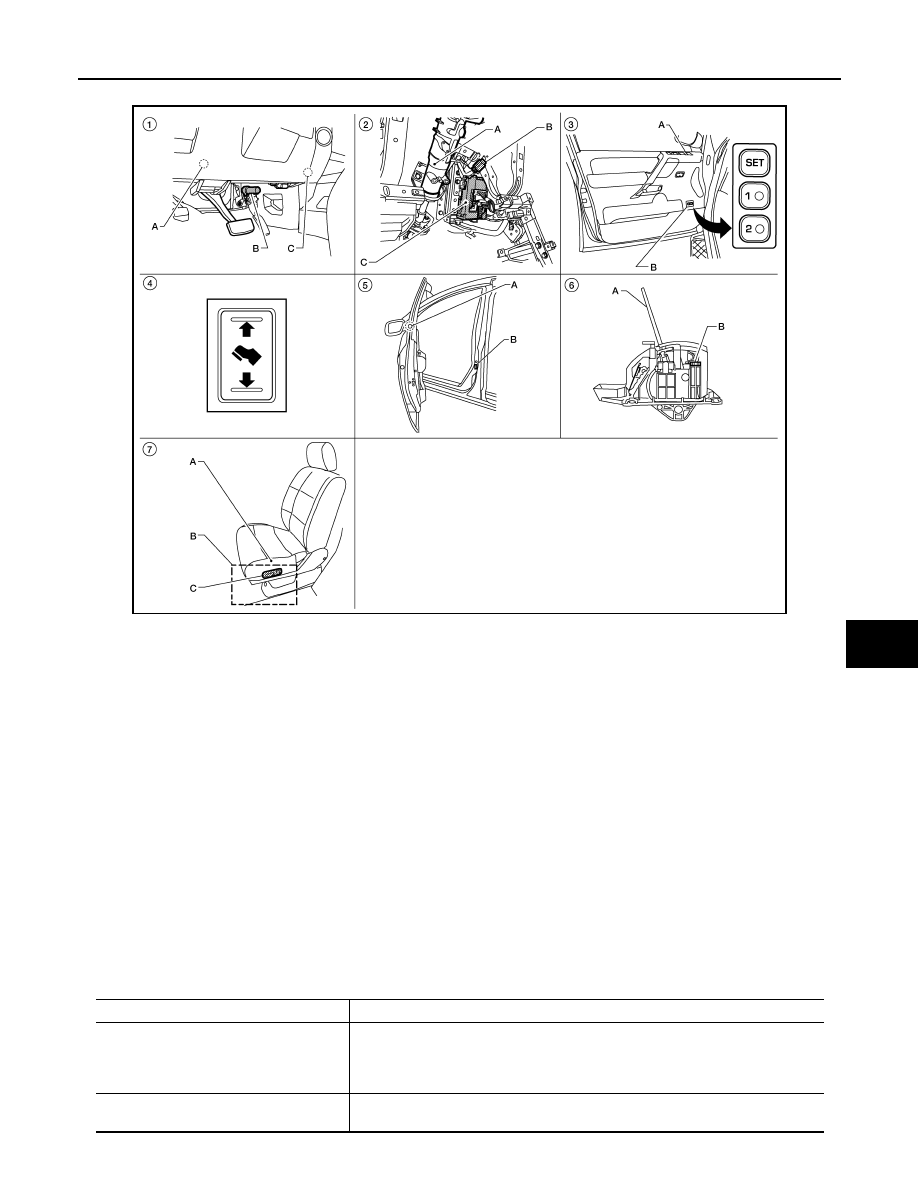

MEMORY FUNCTION : Component Parts Location

INFOID:0000000006163446

MEMORY FUNCTION : Component Description

INFOID:0000000006163447

CONTROL UNITS

ALJIA0514ZZ

1.

A. Automatic drive positioner control
unit M33, M34
B. Pedal adjusting motor assembly
E109, E110
C. A/T shift selector (column shift)
M68

2.

A. Steering column
B. Key switch and key lock solenoid
M27
C. BCM M18, M19, M20 (view with
instrument panel removed)

3.

A. Door mirror remote control switch
D10
B. Seat memory switch D5

4.

Pedal adjusting switch M96

5.

A. Door mirror LH D4, RH D107
B. Front door switch LH B8

6.

A. A/T selector lever (floor shift)
B. A/T shift selector (park position
switch) M203 (King Cab), M204
(Crew Cab)

7.

A. Sliding motor LH B204 (driver seat
view), reclining motor LH B205, lift-
ing motor (front) B206, lifting motor
(rear) B207
B. Driver seat control unit B202,
B203
C. Power seat switch LH B208

Item

Function

Driver seat control unit

• The address of each part is recorded.
• Operates each motor of seat to the registered position.
• Requests the operations of pedal assembly and door mirror to automatic drive po-

sitioner control unit.

Automatic drive positioner control unit

Operates the pedal adjusting motor and door mirror with the instructions from the
driver seat control.

ADP-20

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

INPUT PARTS

Switches

Sensors

OUTPUT PARTS

EXIT ASSIST FUNCTION

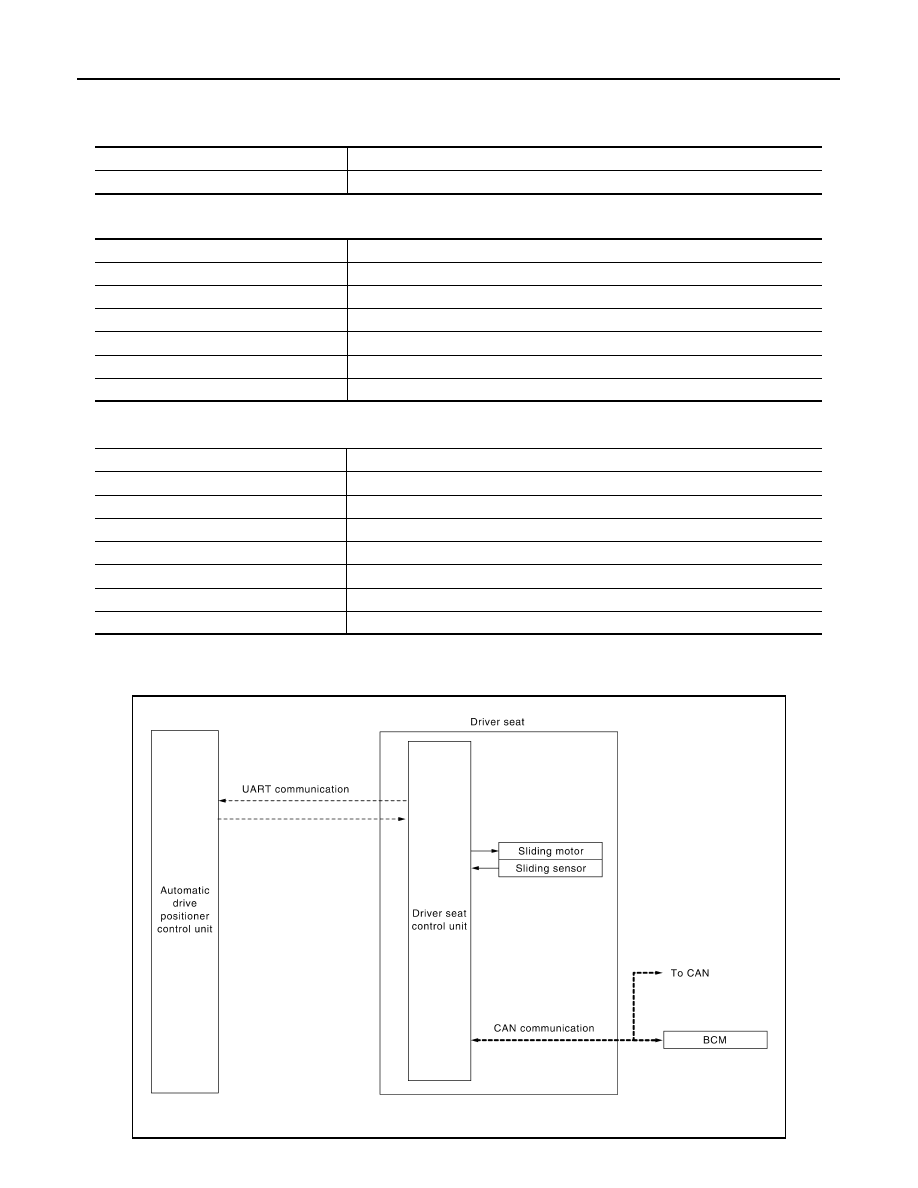

EXIT ASSIST FUNCTION : System Diagram

INFOID:0000000006163448

Item

Function

Memory switch 1/2

The registration and memory function can be performed with its operation.

Item

Function

Door mirror sensor (LH/RH)

Detect the up/down and left/right position of outside mirror face.

Pedal adjusting sensor

Detect the forward/backward position of pedal assembly.

Lifting sensor (front)

Detect the up/down position of seat lifting (front).

Lifting sensor (rear)

Detect the up/down position of seat lifting (rear).

Reclining sensor

Detect the tilt of seatback.

Sliding sensor

Detect the front/rear position of seat.

Item

Function

Door mirror motor (LH/RH)

Move the outside mirror face upward/downward and left/right.

Pedal adjusting motor

Move the pedal assembly forward/backward.

Lifting motor (front)

Move the seat lifter (front) upward/downward.

Lifting motor (rear)

Move the seat lifter (rear) upward/downward.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat forward/backward.

Memory indicator

Illuminates or blinks according to the registration/operation status.

ALJIA0188GB

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

EXIT ASSIST FUNCTION : System Description

INFOID:0000000006163449

OUTLINE

When exiting, if the conditions are satisfied, the seat is moved backward from normal sitting position.

The seat slide amount at entry/exit operation can be changed.

NOTE:

• This function is set to OFF before delivery (initial setting).

• Further information for the system setting procedure. Refer to Owner’s Manual.

OPERATION PROCEDURE

1. Open the driver door with ignition switch in OFF position.

2. Front seat LH will move to the exiting position.

OPERATION CONDITION

Satisfy all of the following items. The exit assist function is not performed if these items are not satisfied.

DETAIL FLOW

Item

Request status

Ignition switch

OFF

System setting [Entry/exit assist function]

ON

Initialization

Done

Switch inputs
• Power seat switch
• Pedal adjusting switch
• Door mirror remote control switch
• Set switch
• Seat memory switch

OFF

(Not operated)

A/T selector lever

P position

Order

Input

Output

Control unit condition

1

Front door switch LH

—

Driver seat control unit receives front door switch LH signal (open)
from BCM via CAN communication.

2

—

Motor (seat sliding)

Driver seat control unit operates the seat sliding motor, which recog-
nizes that the front door LH is opened with ignition switch OFF.
