ADP-10

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

SYSTEM DESCRIPTION

AUTOMATIC DRIVE POSITIONER SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM

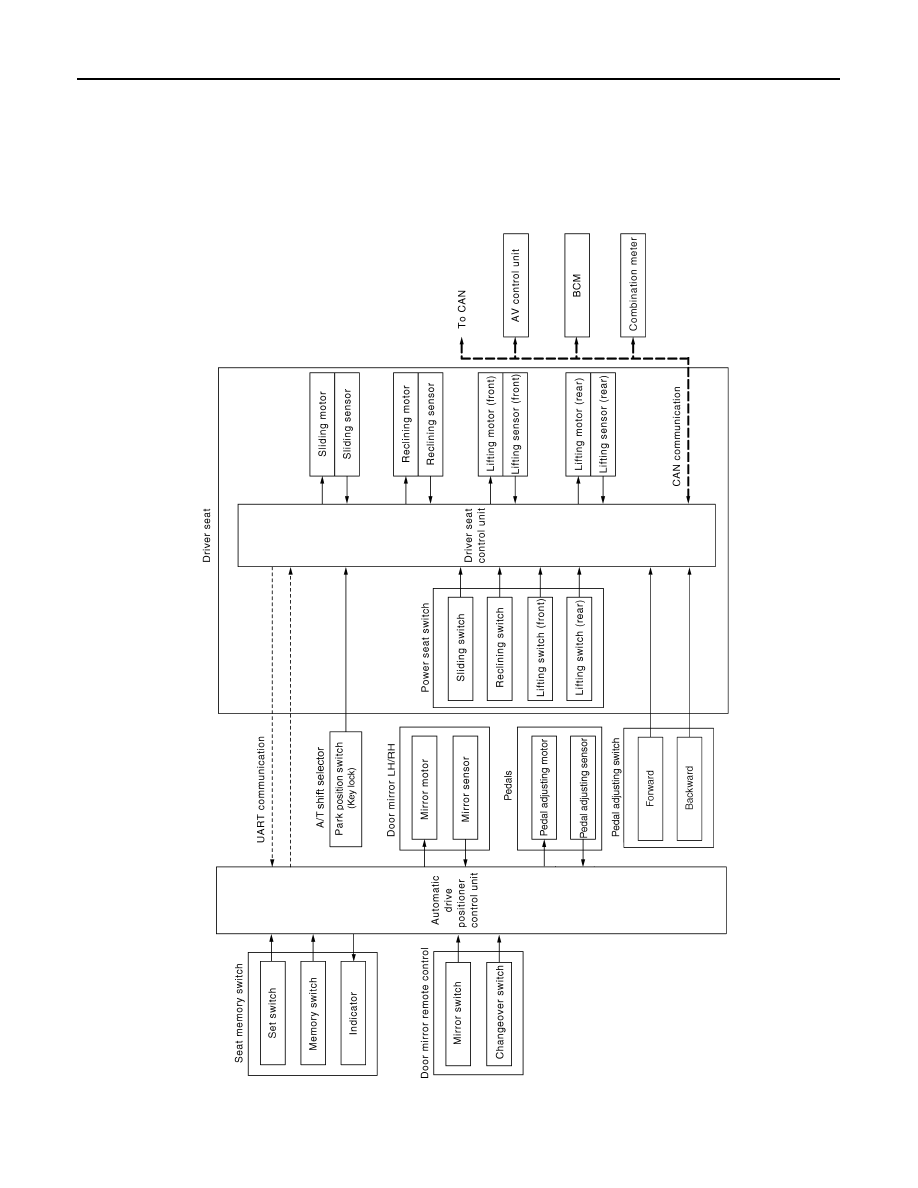

AUTOMATIC DRIVE POSITIONER SYSTEM : System Diagram

INFOID:0000000006163436

ALJIA0496GB

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

AUTOMATIC DRIVE POSITIONER SYSTEM : System Description

INFOID:0000000006163437

OUTLINE

The system automatically moves the driver seat, pedal assembly and door mirror position by the driver seat

control unit and the automatic drive positioner control unit. The driver seat control unit corresponds with the

automatic drive positioner control unit by UART communication.

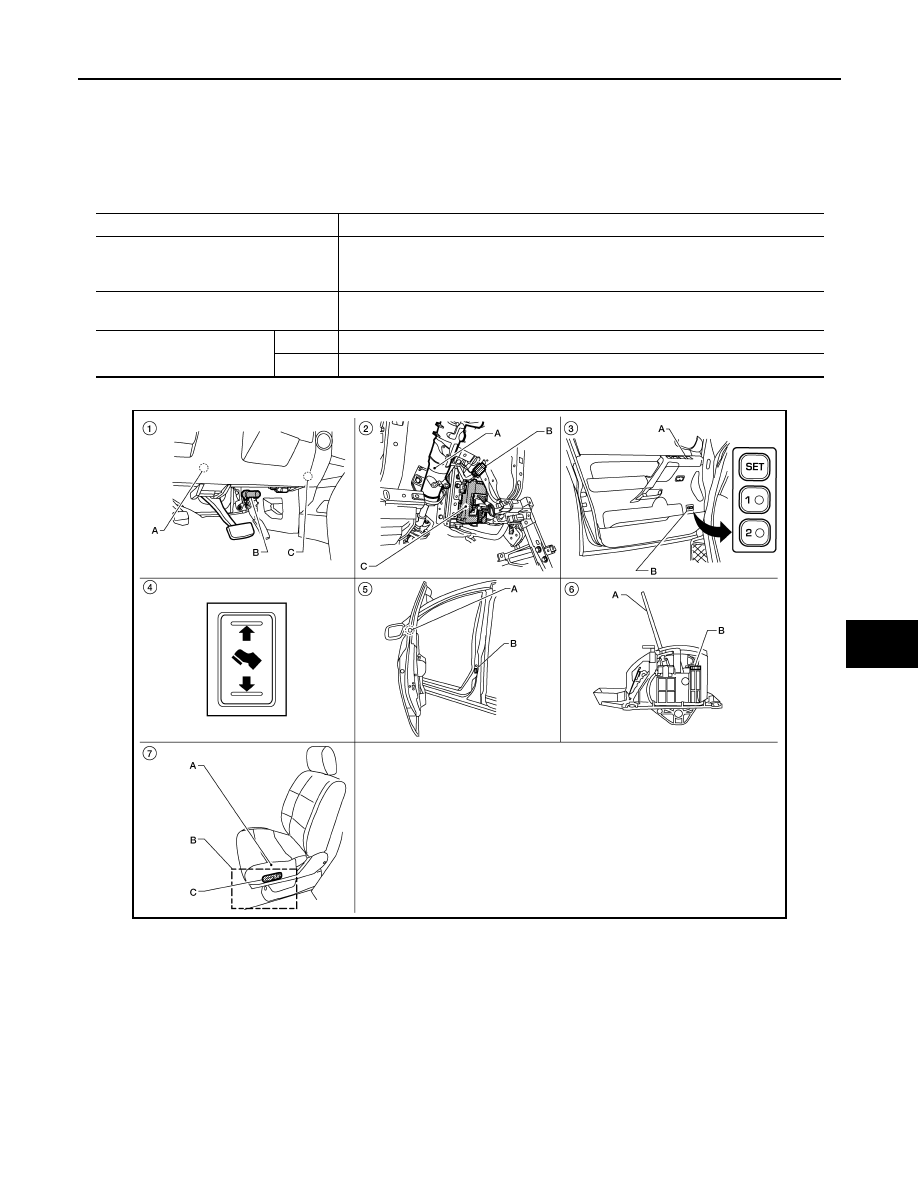

AUTOMATIC DRIVE POSITIONER SYSTEM : Component Parts Location

INFOID:0000000006163438

Function Description

Manual function

The driving position (seat, pedal assembly and door mirror position) can be adjusted
by using the power seat switch, pedal adjusting switch or door mirror remote control
switch.

Memory function

The seat, pedal assembly and outside mirror move to the stored driving position by
pressing seat memory switch (1 or 2).

Entry/Exit assist function

Exit

On exit, the seat moves backward.

Entry

On entry, the seat returns from exiting position to the previous driving position.

ALJIA0514ZZ

1.

A. Automatic drive positioner control
unit M33, M34
B. Pedal adjusting motor assembly
E109, E110
C. A/T shift selector (column shift)
M68

2.

A. Steering column
B. Key switch and key lock solenoid
M27
C. BCM M18, M19, M20 (view with
instrument panel removed)

3.

A. Door mirror remote control switch
D10
B. Seat memory switch D5

ADP-12

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM : Component Description

INFOID:0000000006163439

CONTROL UNITS

INPUT PARTS

Switches

4.

Pedal adjusting switch M96

5.

A. Door mirror LH D4, RH D107
B. Front door switch LH B8

6.

A. A/T selector lever (floor shift)
B. A/T shift selector (park position
switch) M203 (King Cab), M204
(Crew Cab)

7.

A. Sliding motor LH B204 (driver seat
view), reclining motor LH B205, lift-
ing motor (front) B206, lifting motor
(rear) B207
B. Driver seat control unit B202,
B203
C. Power seat switch LH B208

Item

Function

Driver seat control unit

• Main unit of automatic drive positioner system
• It is connected to the CAN.
• It communicates with the automatic drive positioner control unit via UART com-

munication.

Automatic drive positioner control unit

• It communicates with the driver seat control unit via UART communication.
• Perform various controls with the instructions of driver seat control unit.
• Perform the controls of the pedal adjusting, door mirror and the seat memory

switch.

BCM

Transmit the following status to the driver seat control unit via CAN communication.
• Front door LH: OPEN/CLOSE
• Ignition switch position: ACC/ON
• Door lock: UNLOCK (remote keyless entry request switch operation)
• Key  ID
• Key switch: Insert/Pull out ignition key
• Starter: CRANKING/OTHER

Combination meter

Transmit the vehicle speed signal to the driver seat control unit via CAN communi-
cation.

AV control unit

The setting change of auto drive positioner system can be performed on the display.

A/T shift selector (park position switch)

Transmit the shift position signal (P range) to the driver seat control unit.

Item

Function

Key switch and key lock solenoid

The key switch is installed to detect the key inserted/removed status.

Front door switch LH

Detect front door (driver side) open/close status.

A/T shift selector (park position switch)

Detect the P range position of A/T selector lever.

Set switch

The registration and system setting can be performed with its operation.

Seat memory switch 1/2

The registration and operation can be performed with its operation.

Power seat switch

The following switch is installed.
• Reclining switch
• Lifting switch (front)
• Lifting switch (rear)
• Sliding switch
The specific parts can be operated with the operation of each switch.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Sensors

OUTPUT PARTS

MANUAL FUNCTION

Pedal adjusting switch

The following switch is installed.
• Pedal forward
• Pedal backward
The specific parts can be operated with the operation of each switch.

Door mirror remote control switch

The following switch is installed.
• Mirror switch
• Changeover switch
The specific parts can be operated with the operation of each switch.

Item

Function

Item

Function

Door mirror sensor (LH/RH)

Detect the up/down and left/right position of outside mirror face.

Pedal adjusting sensor

Detect the forward/backward position of pedal assembly.

Lifting sensor (front)

Detect the up/down position of seat lifting (front).

Lifting sensor (rear)

Detect the up/down position of seat lifting (rear).

Reclining sensor

Detect the tilt of seatback.

Sliding sensor

Detect the front/rear position of seat.

Item

Function

Door mirror motor (LH/RH)

Move the outside mirror face upward/downward and left/right.

Pedal adjusting motor

Move the pedal assembly forward/backward.

Lifting motor (front)

Move the seat lifting (front) upward/downward.

Lifting motor (rear)

Move the seat lifting (rear) upward/downward.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat forward/backward.

Seat memory indicator

Illuminates or flashes according to the registration/operation status.
