PWC-104

< DTC/CIRCUIT DIAGNOSIS >

[DRIVER SIDE WINDOW ANTI-PINCH]

POWER WINDOW MOTOR

PASSENGER SIDE : Component Function Check

INFOID:0000000009653380

1.

 CHECK FUNCTION

Check front power window motor (passenger side) operation with power window main switch or front power
window switch (passenger side).

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Refer to

PWC-104, "PASSENGER SIDE : Diagnosis Procedure"

.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000009653381

1.

CHECK FRONT POWER WINDOW MOTOR (PASSENGER SIDE) INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect front power window motor (passenger side) connector.

3.

Turn ignition switch ON.

4.

Check voltage between front power window motor (passenger side) harness connector and ground.

Is the inspection result normal?

YES

>> Replace front power window motor (passenger side).

NO

>> GO TO 2.

2.

CHECK FRONT POWER WINDOW MOTOR (PASSENGER SIDE) CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect front power window switch (passenger side) connector.

3.

Check continuity between front power window motor (passenger side) harness connector and front power
window switch (passenger side) harness connector.

4.

Check continuity between front power window motor (passenger side) harness connector and ground.

Is the inspection result normal?

YES

>> Replace front power window switch (passenger side). Refer to

PWC-123, "Removal and Installa-

tion"

.

NO

>> Repair or replace harness.

SLIDING DOOR LH

(+)

(-)

Condition

Voltage (V)

Front power window motor (passenger side)

Connector

Terminal

D46

1

Ground

Front power window
switch
(passenger side)

NEUTRAL

0 – 1

DOWN

9 – 16

 2

NEUTRAL

0 – 1

UP

9 – 16

Front power window motor (passenger side)

Front power window switch (passenger side)

Continuity

Connector

Terminal

Connector

Terminal

D46

1

D56

6

Existed

2

7

Front power window motor (passenger side)

Ground

Continuity

Connector

Terminal

D46

1

Not existed

2

POWER WINDOW MOTOR

PWC-105

< DTC/CIRCUIT DIAGNOSIS >

[DRIVER SIDE WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

SLIDING DOOR LH : Component Function Check

INFOID:0000000009653382

1.

CHECK FUNCTION

Check sliding door power window motor LH operation with power window main switch or sliding door power
window switch LH.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Refer to

PWC-105, "SLIDING DOOR LH : Diagnosis Procedure"

.

SLIDING DOOR LH : Diagnosis Procedure

INFOID:0000000009653383

1.

CHECK SLIDING DOOR POWER WINDOW MOTOR LH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect sliding door power window motor LH connector.

3.

Turn ignition switch ON.

4.

Check voltage between sliding door power window motor LH harness connector and ground.

Is the inspection result normal?

YES

>> Replace sliding door power window motor LH.

NO

>> GO TO 2.

2.

CHECK SLIDING DOOR POWER WINDOW MOTOR LH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect sliding door power window switch LH connector.

3.

Check continuity between sliding door power window motor LH harness connector and sliding door power
window switch LH harness connector.

4.

Check continuity between sliding door power window motor LH harness connector and ground.

Is the inspection result normal?

YES

>> Replace sliding door power window switch LH. Refer to

PWC-124, "Removal and Installation"

.

NO

>> Repair or replace harness.

SLIDING DOOR RH

SLIDING DOOR RH : Component Function Check

INFOID:0000000009653384

1.

 CHECK FUNCTION

(+)

(-)

Condition

Voltage (V)

Sliding door power window motor LH

Connector

Terminal

D82

1

Ground

Sliding door power
window switch LH

NEUTRAL

0 – 1

UP

9 – 16

3

NEUTRAL

0 – 1

DOWN

9 – 16

Sliding door power window motor LH

Sliding door power window switch LH

Continuity

Connector

Terminal

Connector

Terminal

D82

1

D88

5

Existed

3

4

Sliding door power window motor LH

Ground

Continuity

Connector

Terminal

D82

1

Not existed

3

PWC-106

< DTC/CIRCUIT DIAGNOSIS >

[DRIVER SIDE WINDOW ANTI-PINCH]

POWER WINDOW MOTOR

Check sliding door power window motor RH operation with power window main switch or sliding door power
window switch RH.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Refer to

PWC-106, "SLIDING DOOR RH : Diagnosis Procedure"

.

SLIDING DOOR RH : Diagnosis Procedure

INFOID:0000000009653385

1.

CHECK SLIDING DOOR POWER WINDOW MOTOR RH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect sliding door power window motor RH connector.

3.

Turn ignition switch ON.

4.

Check voltage between sliding door power window motor RH harness connector and ground.

Is the inspection result normal?

YES

>> Replace sliding door power window motor RH.

NO

>> GO TO 2.

2.

CHECK SLIDING DOOR POWER WINDOW MOTOR RH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect sliding door power window switch RH connector.

3.

Check continuity between sliding door power window motor RH harness connector and sliding door power
window switch RH harness connector.

4.

Check continuity between sliding door power window motor RH harness connector and ground.

Is the inspection result normal?

YES

>> Replace sliding door power window switch RH. Refer to

PWC-124, "Removal and Installation"

.

NO

>> Repair or replace harness.

(+)

(-)

Condition

Voltage (V)

Sliding door power window motor RH

Connector

Terminal

D102

1

Ground

Sliding door power
window switch RH

NEUTRAL

0 – 1

UP

9 – 16

3

NEUTRAL

0 – 1

DOWN

9 – 16

Sliding door power window motor RH

Sliding door power window switch RH

Continuity

Connector

Terminal

Connector

Terminal

D102

1

D108

5

Existed

3

4

Sliding door power window motor RH

Ground

Continuity

Connector

Terminal

D102

1

Not existed

3

ENCODER CIRCUIT

PWC-107

< DTC/CIRCUIT DIAGNOSIS >

[DRIVER SIDE WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ENCODER CIRCUIT

Component Function Check

INFOID:0000000009653386

1.

CHECK FUNCTION

Check that front driver side door glass perform AUTO UP/DOWN operation normally when power window
main switch is operated.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Refer to

PWC-107, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009653387

1.

CHECK ENCODER PULSE SIGNAL

1.

Turn ignition switch ON.

2.

Check signal between power window main switch harness connector and ground using an oscilloscope.

Is the inspection result normal?

YES

>> Replace power window main switch. Refer to

PWC-123, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK ENCODER SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect power window main switch connector and front power window motor (driver side) connector.

3.

Check continuity between power window main switch harness connector and front power window motor
(driver side) harness connector.

4.

Check continuity between power window main switch harness connector and ground.

Is the inspection result normal?

(+)

(-)

Signal

(Reference value)

 Power window main switch

Connector

Terminal

D5

9

Ground

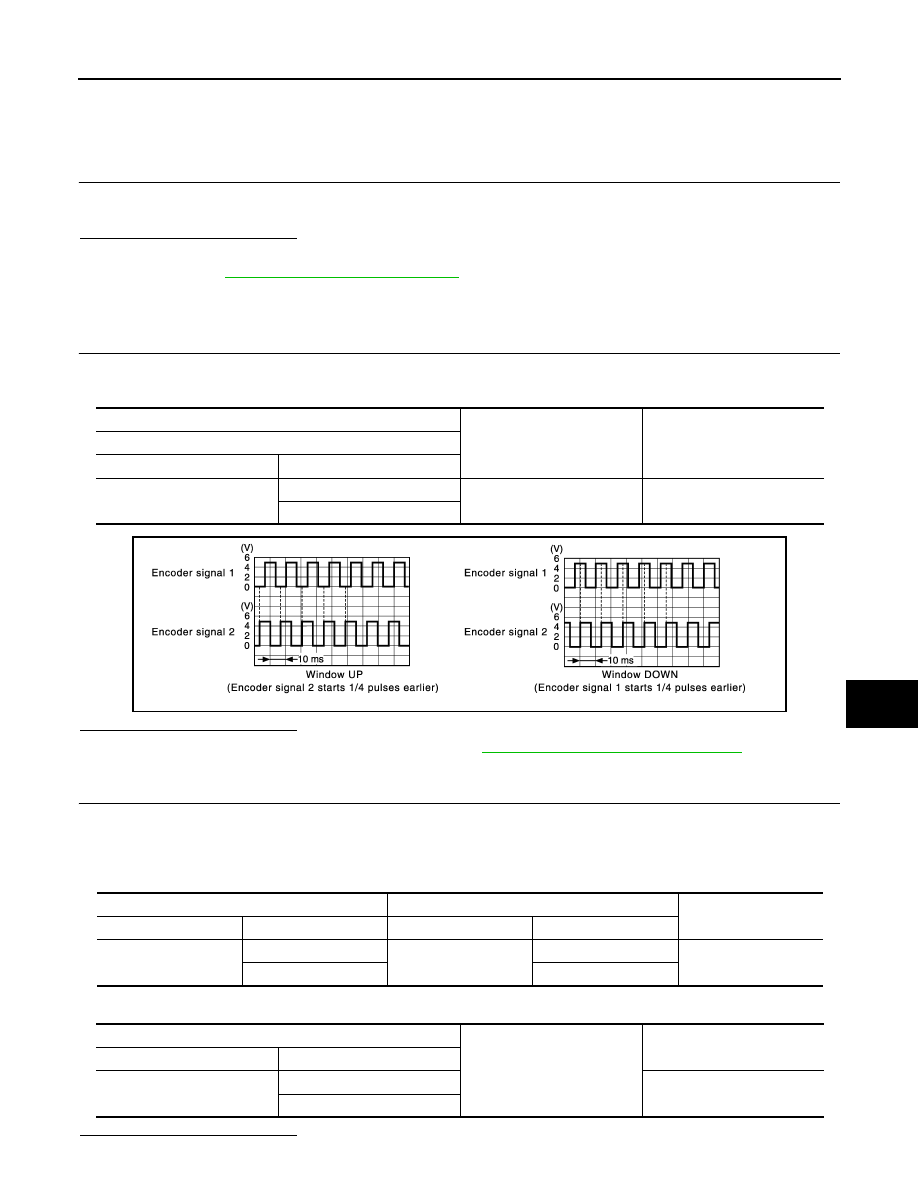

Refer to the following signal

13

JMKIA5210GB

Power window main switch

Front power window motor (driver side)

Continuity

Connector

Terminal

Connector

Terminal

D5

9

D7

3

Existed

13

5

Power window main switch

Ground

Continuity

Connector

Terminal

D5

9

Not existed

13
