CAN COMMUNICATION SYSTEM

CAN COMMUNICATION SYSTEM : System Description

INFOID:0000000009653536

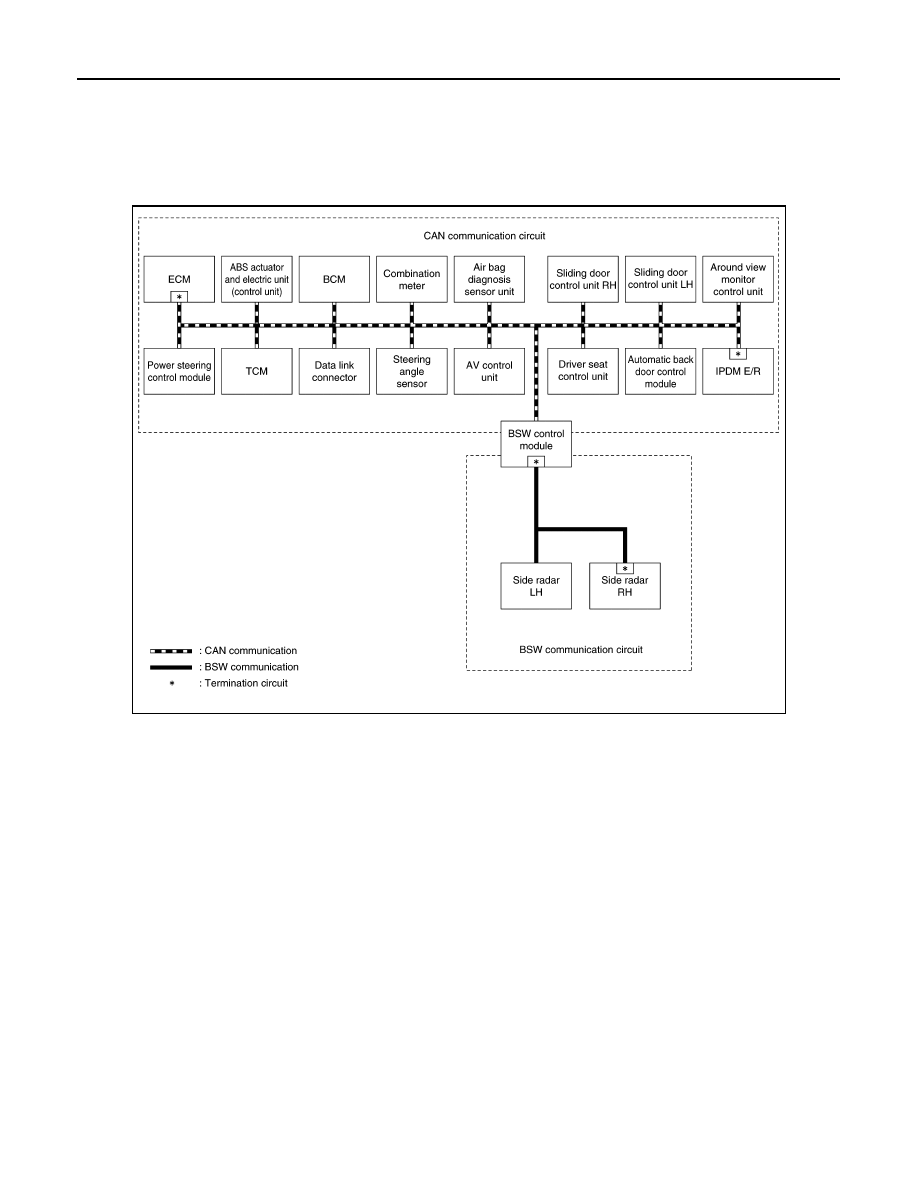

SYSTEM DIAGRAM

DESCRIPTION

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

CAN COMMUNICATION SIGNAL GENERATION

JSMIA1183GB

LAN

SYSTEM

LAN-27

< SYSTEM DESCRIPTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

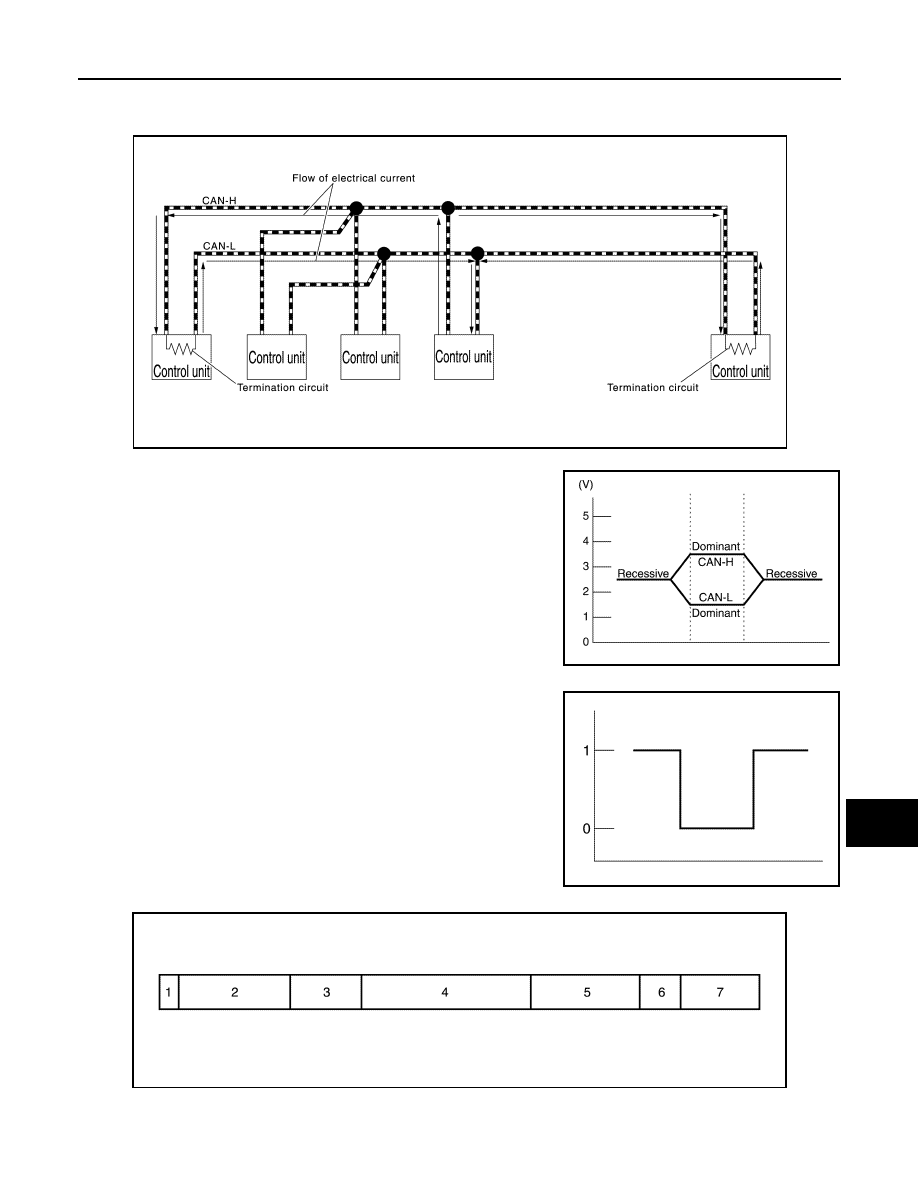

• Termination circuits (resistors) are connected across the CAN communication system. When transmitting a

CAN communication signal, each control unit passes a current to the CAN-H line and the current returns to
the CAN-L line.

• The current flows separately into the termination circuits connected

across the CAN communication system and the termination cir-
cuits drop voltage to generate a potential difference between the
CAN-H line and the CAN-L line.
NOTE:
A signal with no current passage is called “Recessive” and one
with current passage is called “Dominant”.

• The system produces digital signals for signal communications, by

using the potential difference.

THE CONSTRUCTION OF CAN COMMUNICATION SIGNAL (MESSAGE)

JSMIA0450GB

JSMIA0543GB

JSMIA0544ZZ

JSMIA0545ZZ

LAN-28

< SYSTEM DESCRIPTION >

[CAN]

SYSTEM

CAN Communication Line

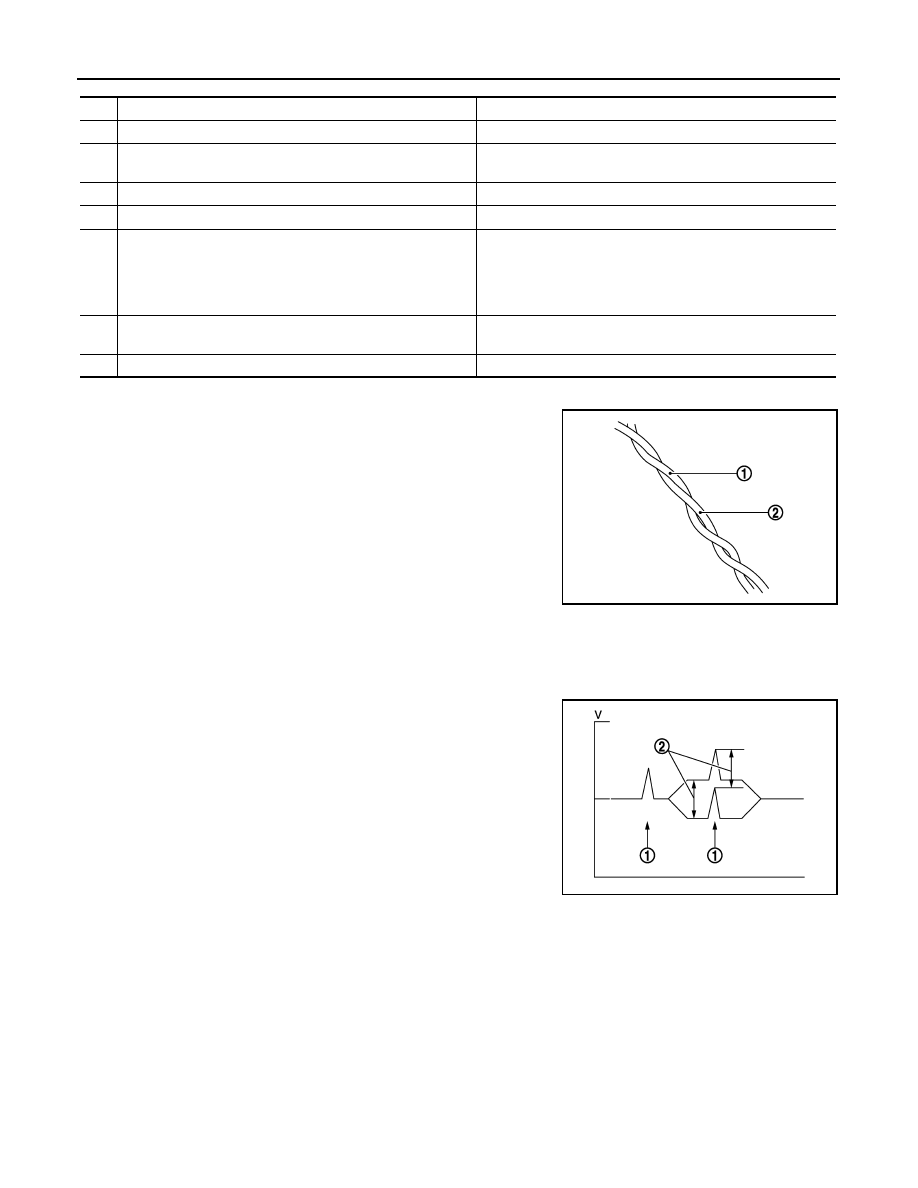

The CAN communication line is a twisted pair wire consisting of
strands of CAN-H (1) and CAN-L (2) and has noise immunity.

NOTE:
The CAN communication system has the characteristics of noise-resistant because this system produces dig-
ital signals by using the potential difference between the CAN-H line and the CAN-L line and has the twisted
pair wire structure.
Since the CAN-H line and the CAN-L line are always adjacent to
each other, the same degree of noise occurs, respectively, when a
noise (1) occurs. Although the noise changes the voltage, the poten-
tial difference (2) between the CAN-H line and the CAN-L line is
insensitive to noise. Therefore, noise-resistant signals can be
obtained.

CAN Signal Communications

Each control unit of the CAN communication system transmits signals through the CAN communication con-
trol circuit included in the control unit and receives only necessary signals from each control unit to perform
various kinds of control.

No.

Message name

Description

1

Start of frame (1 bit)

Start of message.

2

Arbitration of field (11 bit)

Priorities of message-sending are shown when there is a pos-
sibility that multiple messages are sent at the same time.

3

Control field (6 bit)

Signal quantity in data field is shown.

4

Data field (0-64 bit)

Actual signal is shown.

5

CRC field (16 bit)

• The transmitting control unit calculates sending data in ad-

vance and writes the calculated value in a message.

• The receiving control unit calculates received data and judg-

es that the data reception is normal when the calculated val-
ue is the same as the value written in the sent data.

6

ACK field (2 bit)

The completion of normal reception is sent to the transmitting
unit.

7

End of frame (7 bit)

End of message.

JSMIA0382ZZ

JSMIA0383ZZ

LAN

SYSTEM

LAN-29

< SYSTEM DESCRIPTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

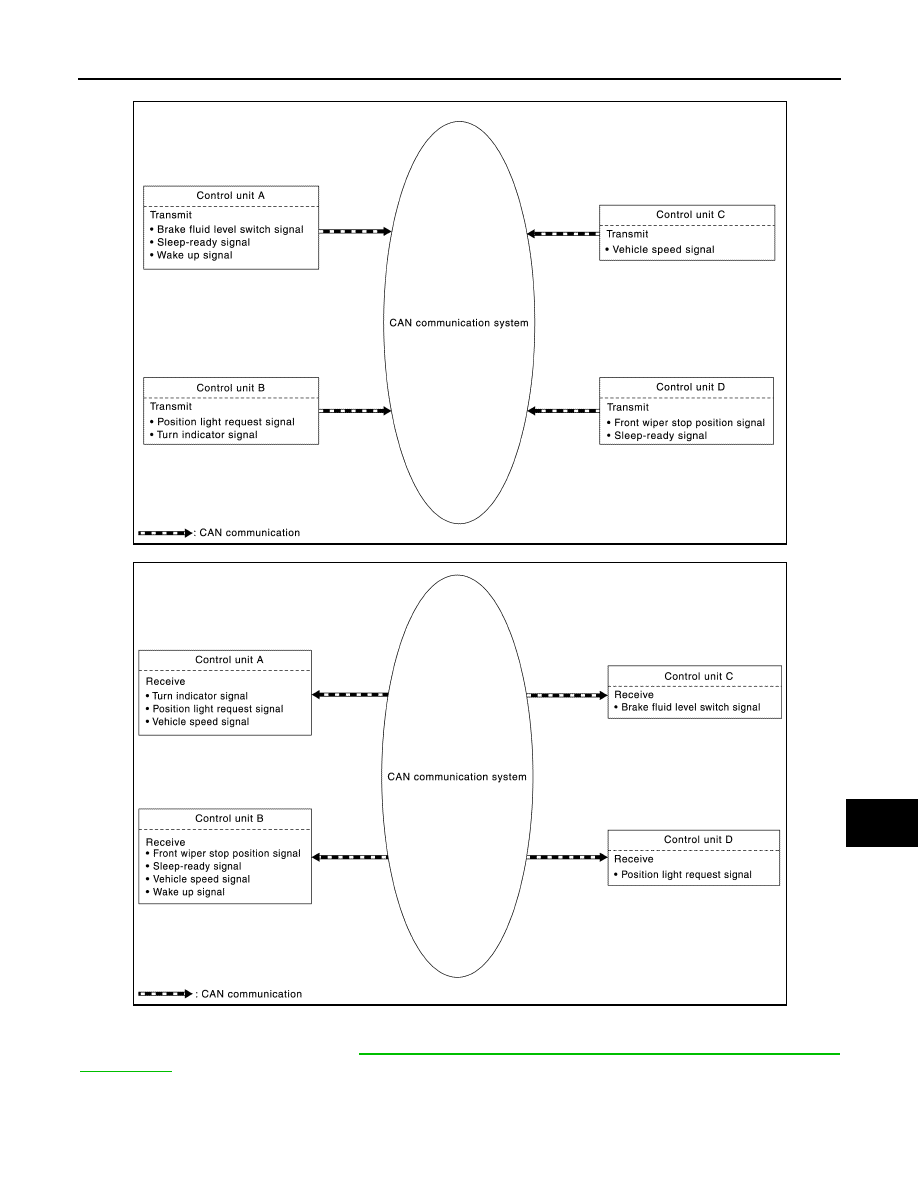

• Example: Transmitted signals

• Example: Received signals

NOTE:
The above signal names and signal communications are provided for reference purposes. For CAN communi-
cations signals of this vehicle, refer to

LAN-32, "CAN COMMUNICATION SYSTEM : CAN Communication

Signal Chart"

.

JSMIA0576GB

JSMIA0577GB
