LAN-22

< HOW TO USE THIS MANUAL >

[CAN]

HOW TO USE THIS SECTION

HOW TO USE THIS MANUAL

HOW TO USE THIS SECTION

Information

INFOID:0000000009653530

• “CAN” of LAN Section describes information peculiar to a vehicle and inspection procedures.
• For trouble diagnosis procedure, refer to

LAN-17, "Trouble Diagnosis Flow Chart"

 of “CAN FUNDAMEN-

TAL”.

Abbreviation List

INFOID:0000000009653531

Control unit name abbreviations in CONSULT CAN diagnosis and in this section are as per the following list.

Abbreviation

Unit name

A-BAG

Air bag diagnosis sensor unit

ABS

ABS actuator and electric unit (control unit)

ADP

Driver seat control unit

ASD-L

Sliding door control unit LH

ASD-R

Sliding door control unit RH

AV

AV control unit

AVM

Around view monitor control unit

BCM

BCM

BSW

BSW control module

DLC

Data link connector

ECM

ECM

EPS

Power steering control module

IPDM-E

IPDM E/R

M&A

Combination meter

PWBD

Automatic back door control module

RDR-L

Side radar LH

RDR-R

Side radar RH

STRG

Steering angle sensor

TCM

TCM

LAN

PRECAUTIONS

LAN-23

< PRECAUTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009979858

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000009979859

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

Precautions for Trouble Diagnosis

INFOID:0000000009653533

CAUTION:

Follow the instructions listed below. Failure to do this may cause damage to parts:
• Never apply 7.0 V or more to the measurement terminal.
• Use a tester with open terminal voltage of 7.0 V or less.

SEF289H

LAN-24

< PRECAUTION >

[CAN]

PRECAUTIONS

• Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when

checking the harness.

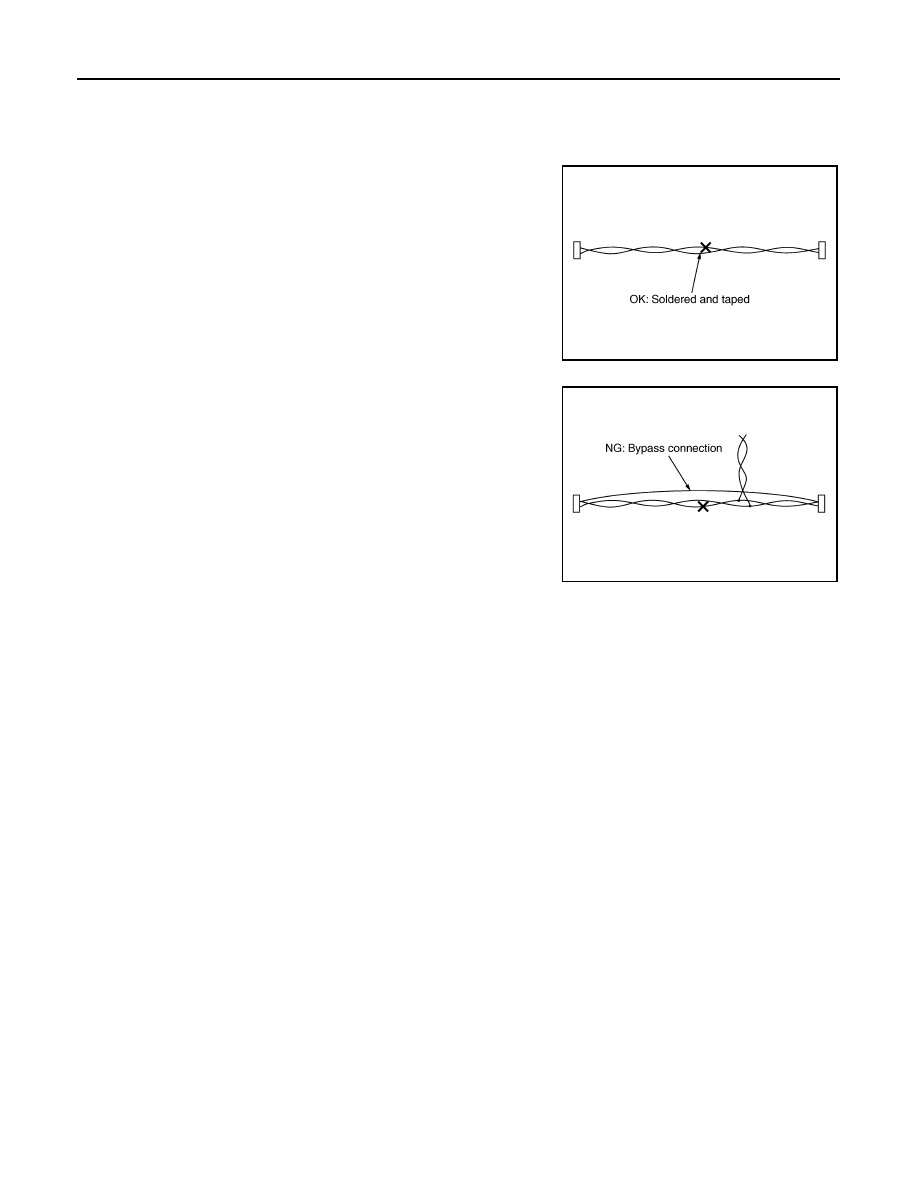

Precautions for Harness Repair

INFOID:0000000009653534

• Solder the repaired area and wrap tape around the soldered area.

NOTE:
A fray of twisted lines must be within 110 mm (4.33 in).

• Bypass connection is never allowed at the repaired area.

NOTE:
Bypass connection may cause CAN communication error. The
spliced wire becomes separated and the characteristics of twisted
line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8766E

SKIB8767E

LAN

COMPONENT PARTS

LAN-25

< SYSTEM DESCRIPTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM DESCRIPTION

COMPONENT PARTS

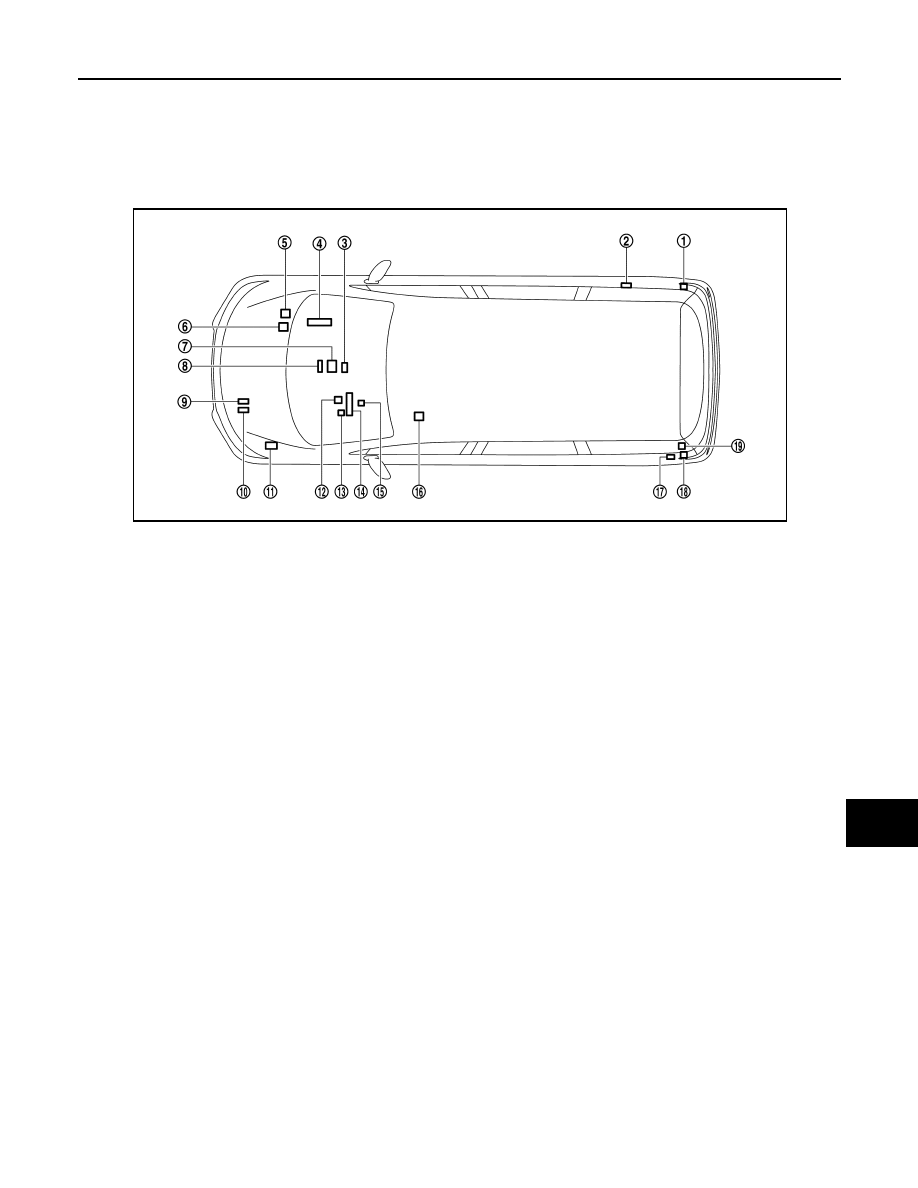

Component Parts Location

INFOID:0000000009653535

1.

Side radar RH

2.

Sliding door control unit RH

3.

Air bag diagnosis sensor unit

4.

Around view monitor control unit

5.

Power steering control module

6.

ABS actuator and electric unit (con-
trol unit)

7.

AV control unit

8.

BSW control module

9.

TCM

10. ECM

11.

IPDM E/R

12. BCM

13. Data link connector

14. Combination meter

15. Steering angle sensor

16. Driver seat control unit

17. Sliding door control unit LH

18. Side radar LH

19. Automatic back door control module
