Nissan Quest E52. Manual - part 797





INL-68

< REMOVAL AND INSTALLATION >

MAP LAMP

• Never touch the glass surface of the bulb with bare hands because the surface is very hot just after

the lamp is turned OFF to prevent a burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (causing dirty or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

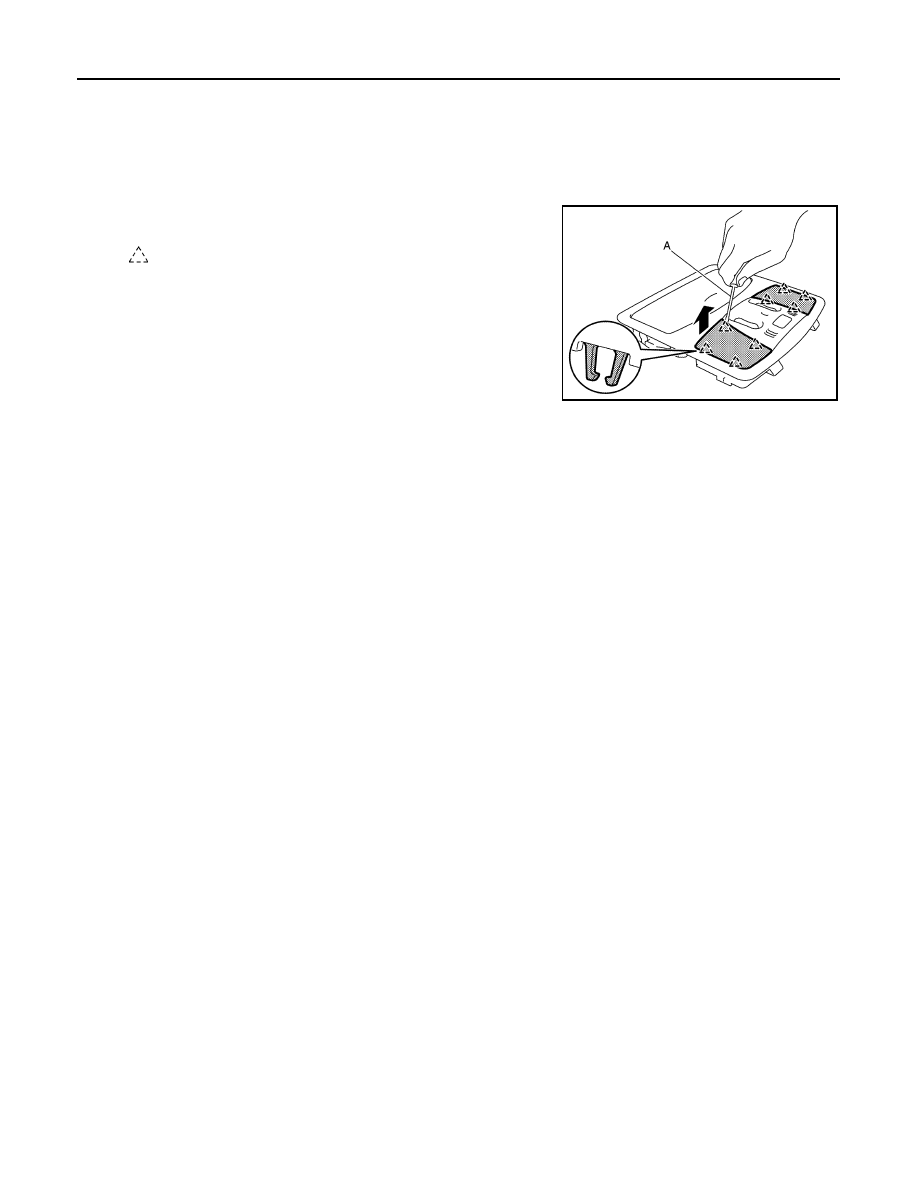

MAP LAMP BULB

1.

Disengage lens fixing pawls with a remover tool (A).

2.

Remove bulb.

: Pawl

JMLIA1526ZZ

VANITY MIRROR LAMP

INL-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

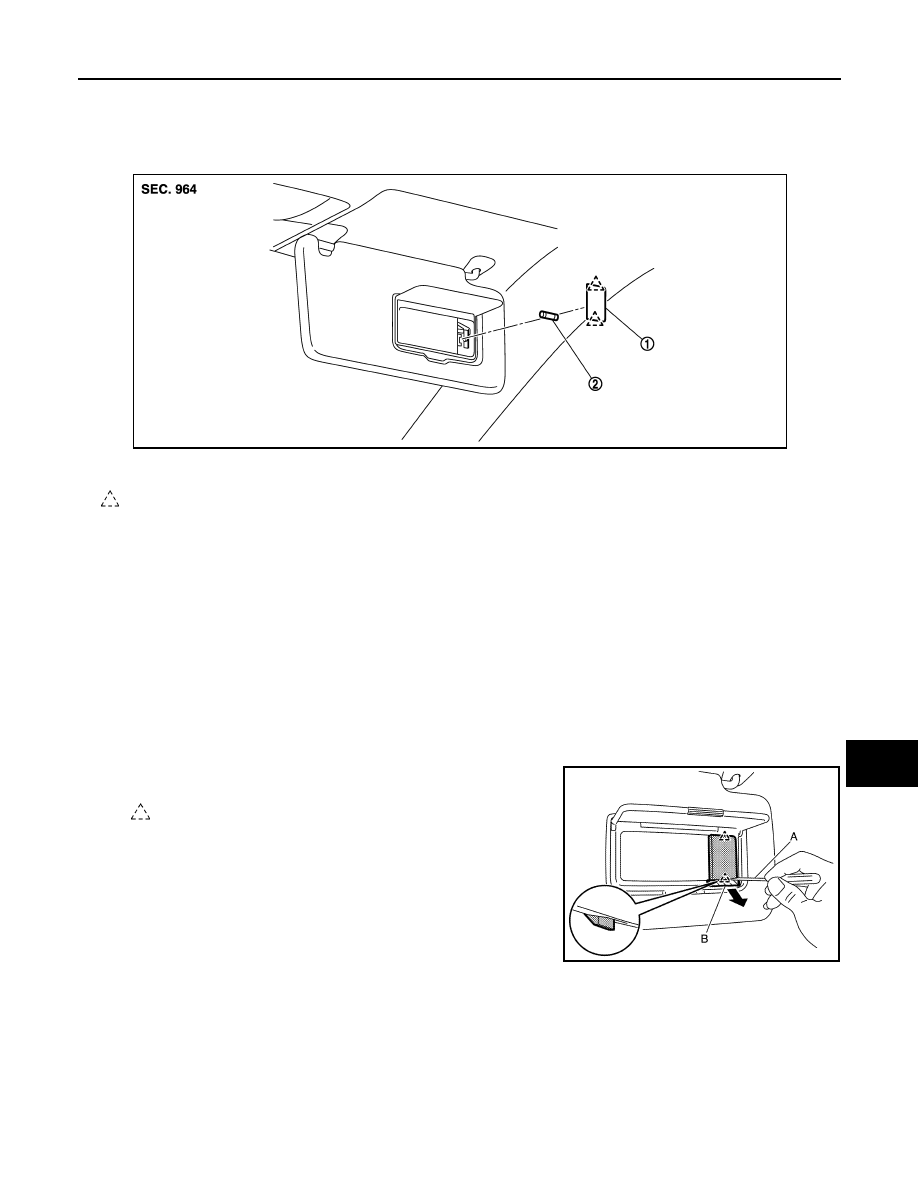

VANITY MIRROR LAMP

Exploded View

INFOID:0000000009653495

Replacement

INFOID:0000000009653496

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse while performing the opera-

tion to electric leakage.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Never touch the glass surface of the bulb with bare hands because the surface is very hot just after

the lamp is turned OFF to prevent a burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (causing dirty or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

VANITY MIRROR LAMP

1.

Disengage lens fixing pawls with a remover tool (A).

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

2.

Remove bulb.

1.

Lens

2.

Bulb

: Pawl

JMLIA1419ZZ

: Pawl

JMLIA1527ZZ

INL-70

< REMOVAL AND INSTALLATION >

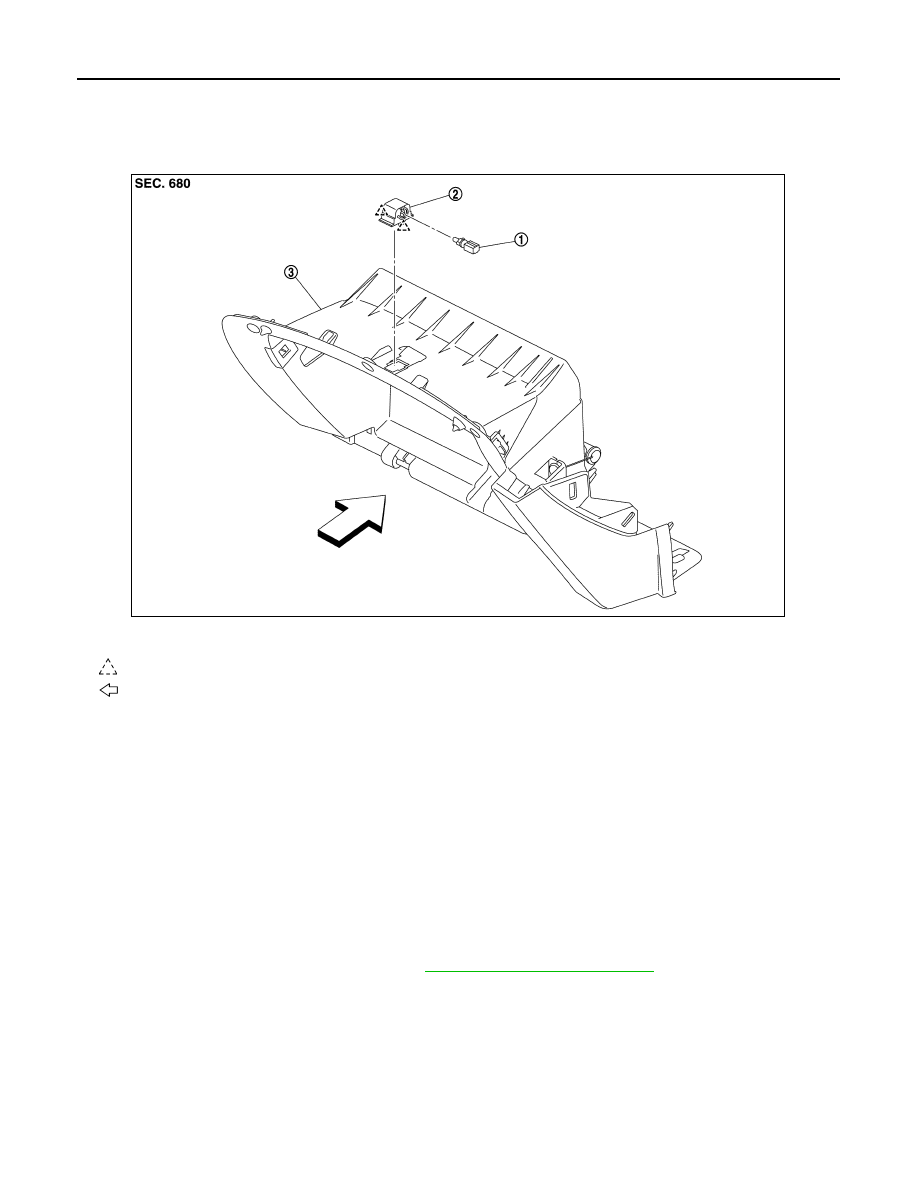

GLOVE BOX LAMP

GLOVE BOX LAMP

Exploded View

INFOID:0000000009653497

Replacement

INFOID:0000000009653498

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse while performing the opera-

tion to electric leakage.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Never touch the glass surface of the bulb with bare hands because the surface is very hot just after

the lamp is turned OFF to prevent a burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (causing dirty or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

GLOVE BOX LAMP BULB

1.

Remove Instrument lower panel RH. Refer to

IP-14, "Removal and Installation"

.

1.

Bulb & socket assembly

2.

Lamp housing

3.

Instrument lower panel RH

: Pawl

: Vehicle front

JMLIA2177ZZ

GLOVE BOX LAMP

INL-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

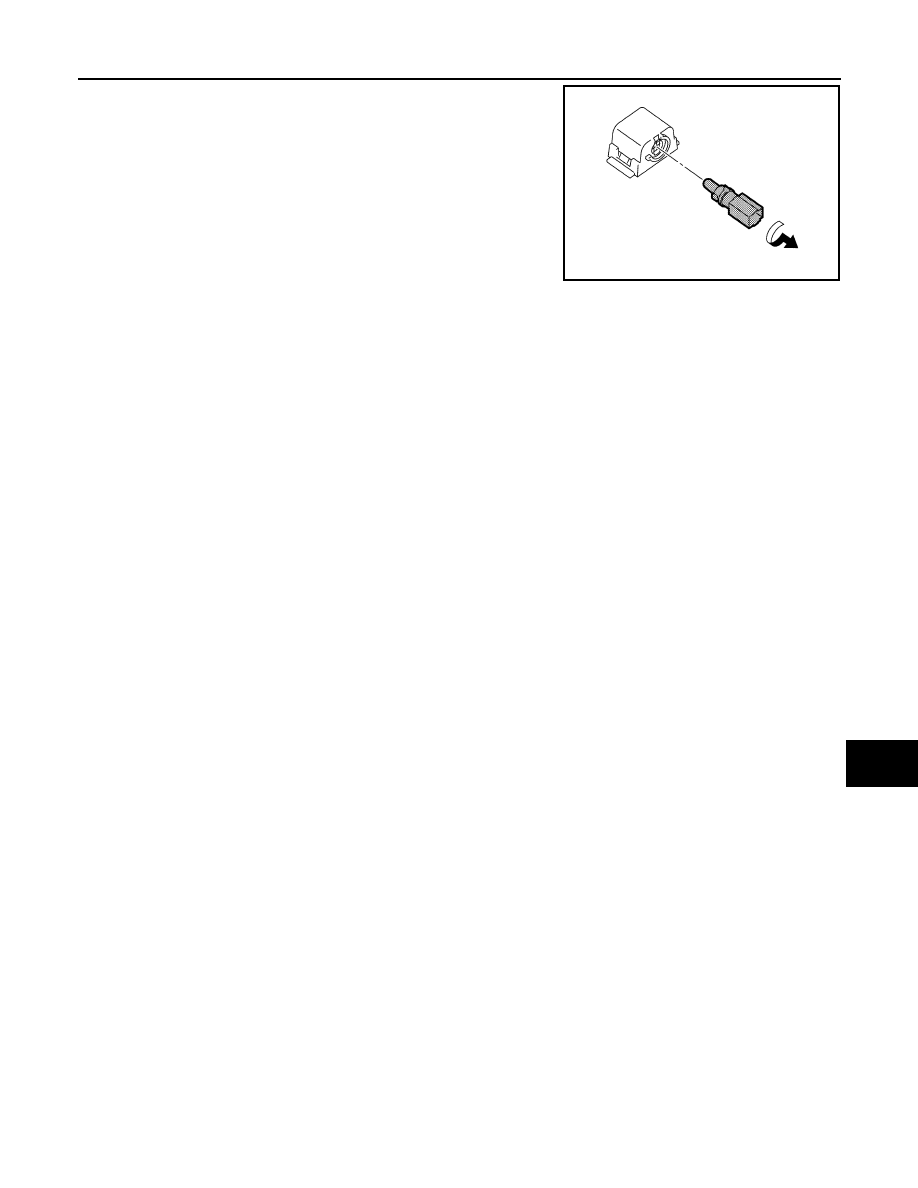

2.

Rotate the bulb & socket assembly counterclockwise and unlock
it and then remove bulb & socket assembly.

JMLIA1528ZZ
