FOOT LAMP

FOOT LAMP

DRIVER SIDE

DRIVER SIDE : Exploded View

INFOID:0000000009653499

DRIVER SIDE : Replacement

INFOID:0000000009653500

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse while performing the opera-

tion to electric leakage.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Never touch the glass surface of the bulb with bare hands because the surface is very hot just after

the lamp is turned OFF to prevent a burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (causing dirty or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

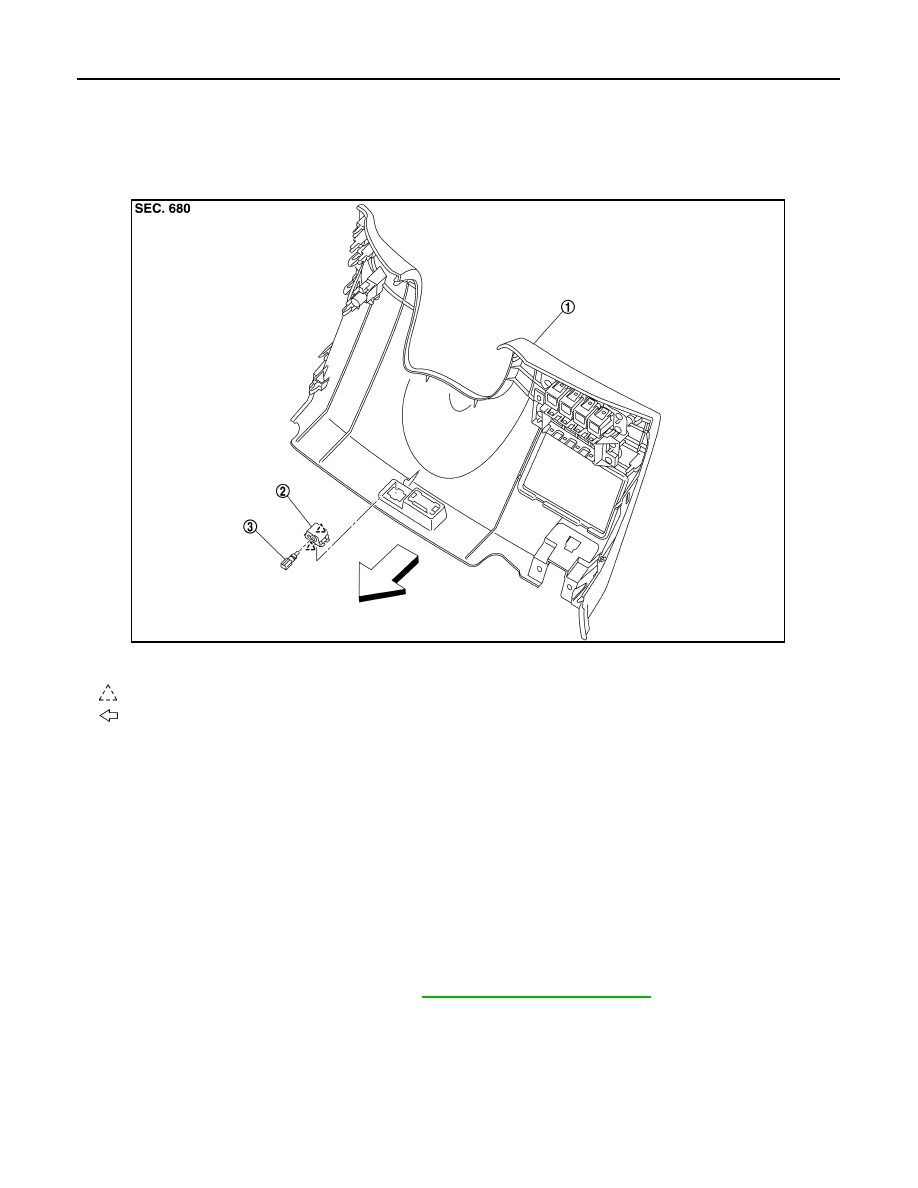

FOOT LAMP BULB (DRIVER SIDE)

1.

Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

1.

Instrument lower panel LH

2.

Lamp housing

3.

Bulb & socket assembly

: Pawl

: Vehicle front

JMLIA2178ZZ

FOOT LAMP

INL-73

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

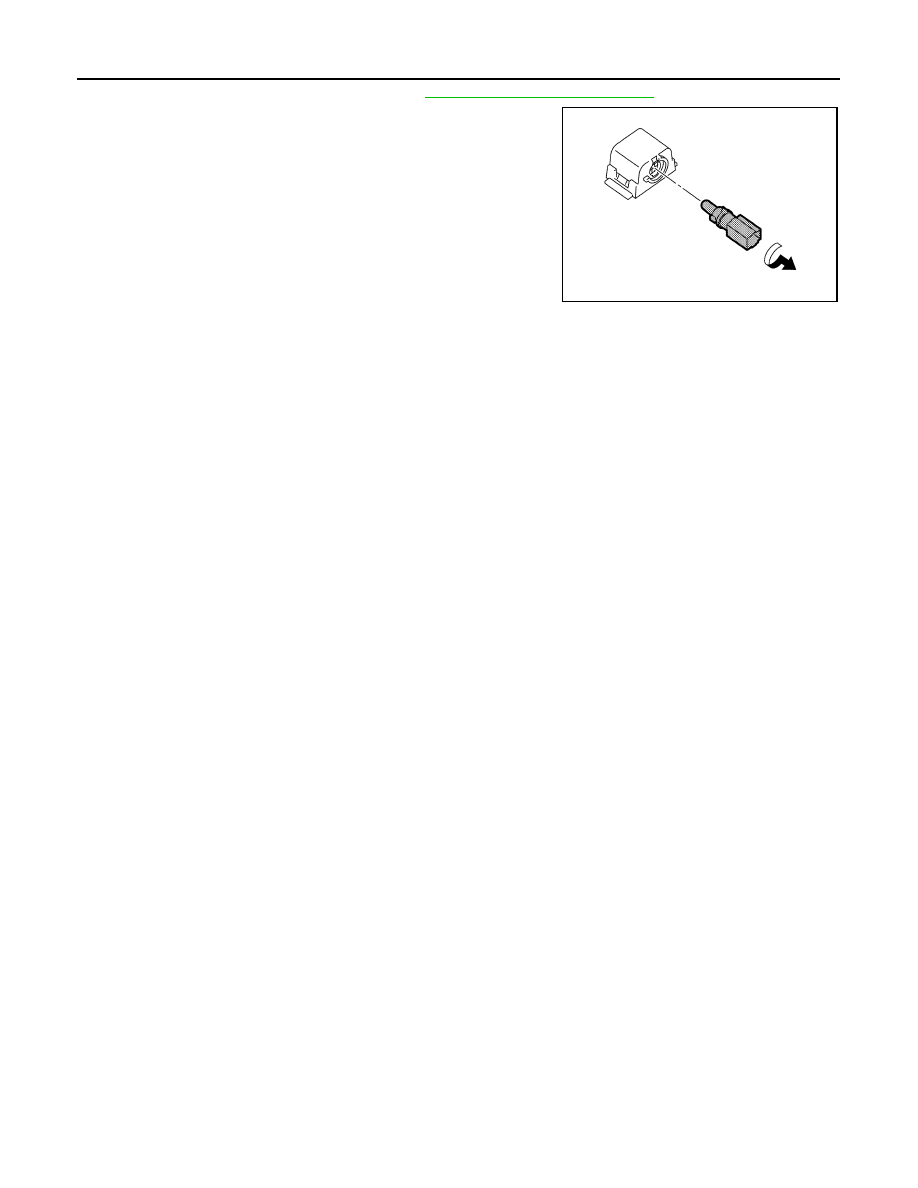

2.

Rotate the bulb & socket assembly counterclockwise and unlock
it and then remove bulb & socket assembly.

PASSENGER SIDE

PASSENGER SIDE : Exploded View

INFOID:0000000009653501

PASSENGER SIDE : Replacement

INFOID:0000000009653502

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse while performing the opera-

tion to electric leakage.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Never touch the glass surface of the bulb with bare hands because the surface is very hot just after

the lamp is turned OFF to prevent a burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (causing dirty or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

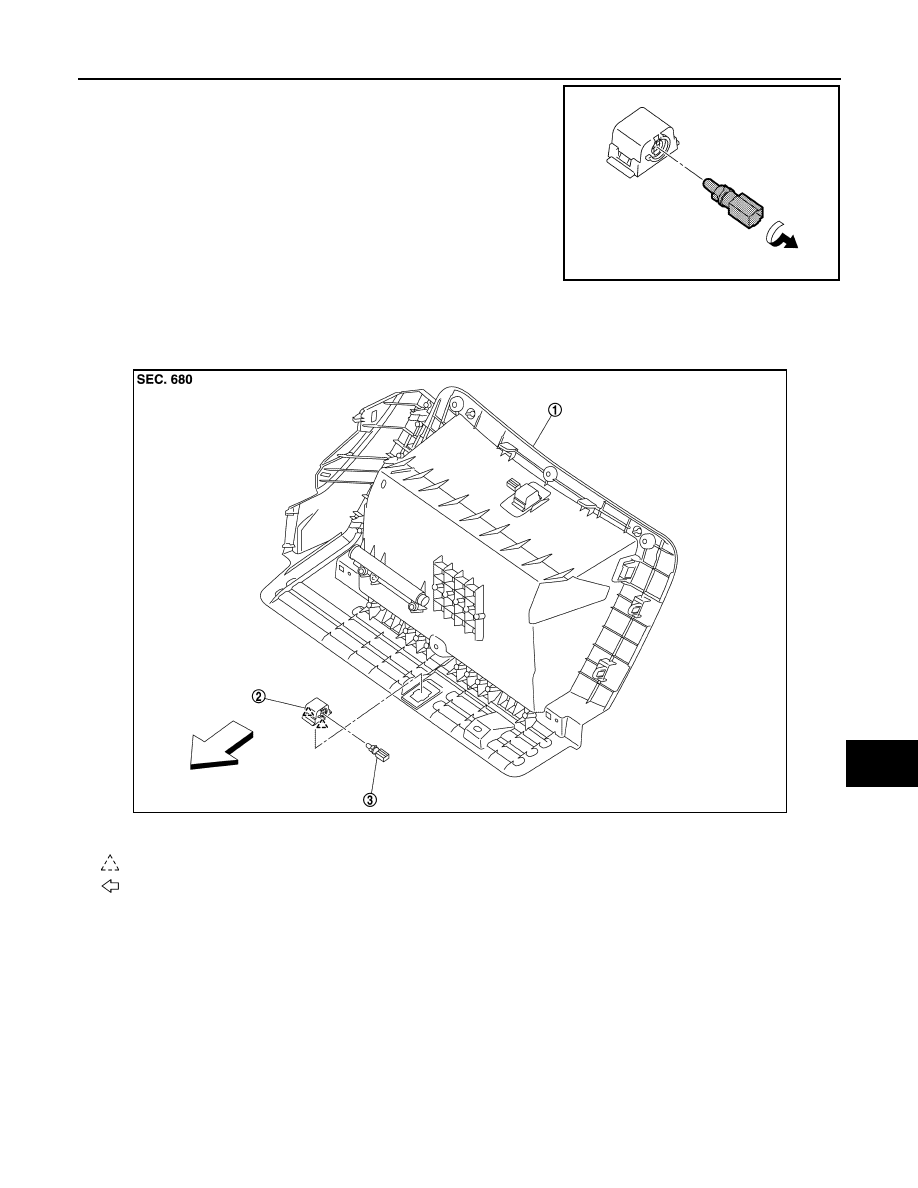

FOOT LAMP BULB (PASSENGER SIDE)

JMLIA1528ZZ

1.

Instrument lower panel RH

2.

Lamp housing

3.

Bulb& socket assembly

: Pawl

: Vehicle front

JMLIA2179ZZ

INL-74

< REMOVAL AND INSTALLATION >

FOOT LAMP

1.

Remove instrument lower panel RH. Refer to

IP-14, "Removal and Installation"

.

2.

Rotate the bulb & socket assembly counterclockwise and unlock
it and then remove bulb & socket assembly.

JMLIA1528ZZ

STEP LAMP

INL-75

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

STEP LAMP

Exploded View

INFOID:0000000009653503

Removal and Installation

INFOID:0000000009653504

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse while performing the operation
to electric leakage.

REMOVAL

1.

Disengage step lamp assembly fixing pawls with a remover tool
(A).

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

2.

Disconnect harness connector, and then remove step lamp
assembly.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000009653505

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse while performing the opera-

tion to electric leakage.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Never touch the glass surface of the bulb with bare hands because the surface is very hot just after

the lamp is turned OFF to prevent a burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (causing dirty or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

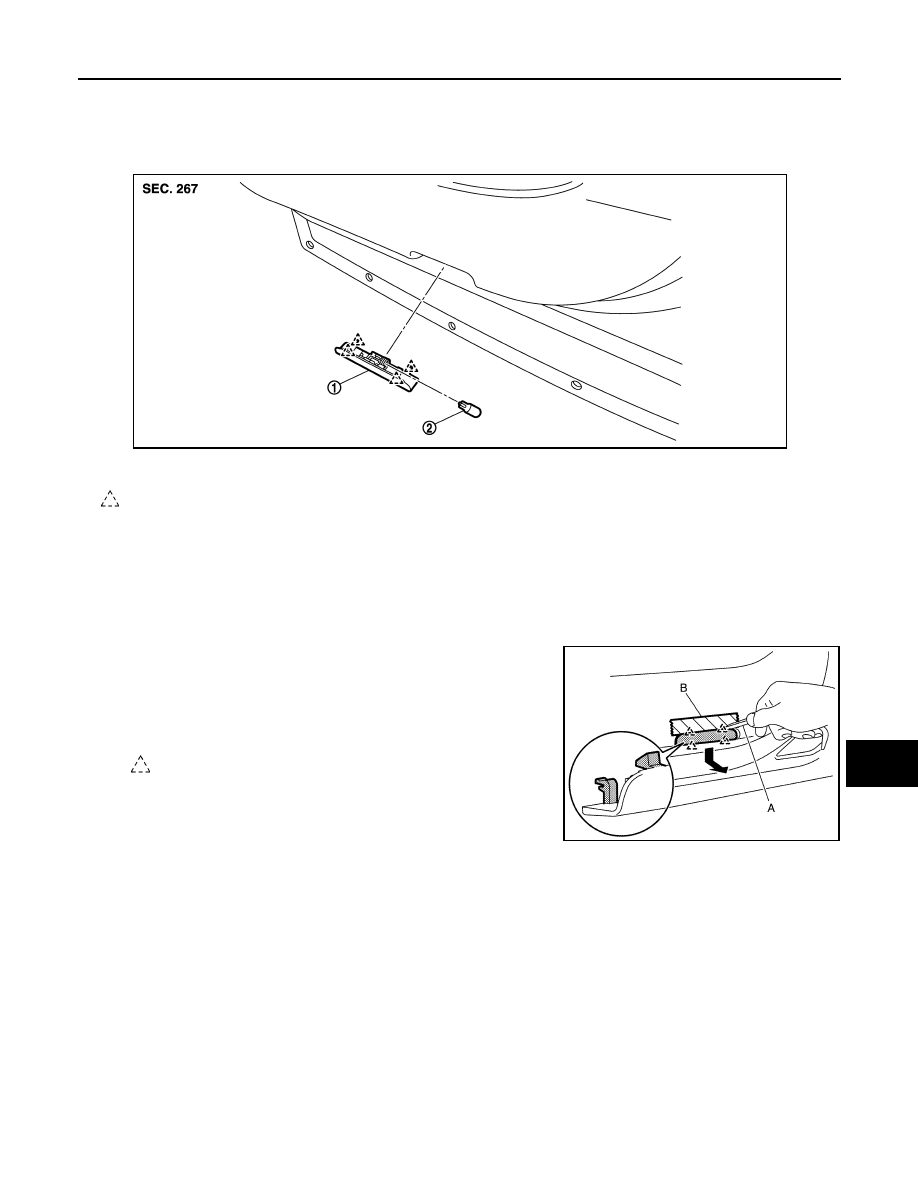

STEP LAMP BULB

1.

Step lamp assembly

2.

Bulb

: Pawl

JMLIA1423ZZ

: Pawl

JMLIA1529ZZ
