SLIDE DOOR RAIL COVER

EXT-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

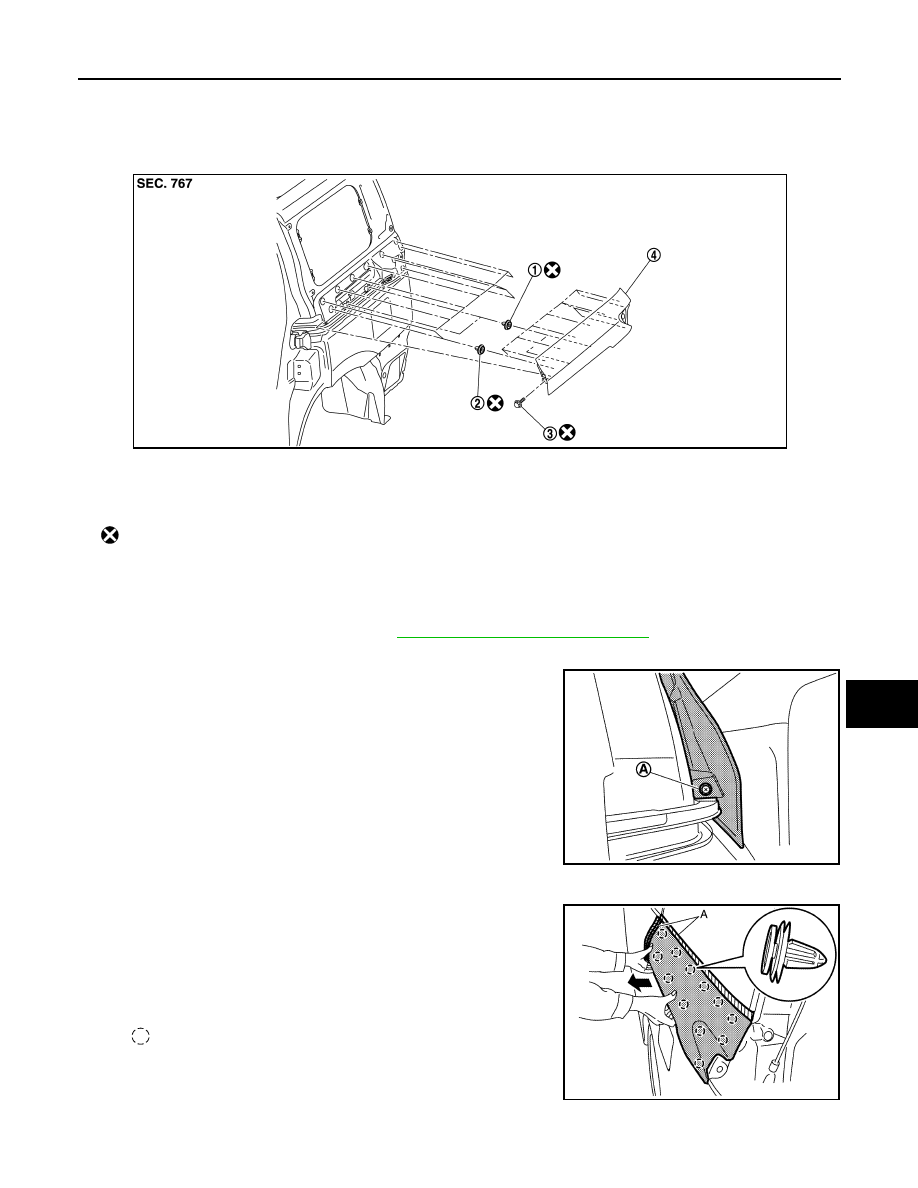

SLIDE DOOR RAIL COVER

Exploded View

INFOID:0000000009650519

Removal and Installation

INFOID:0000000009650520

REMOVAL

1.

Remove rear combination lamp. Refer to

EXL-113, "Removal and Installation"

.

2.

Fully open slide door.

3.

Remove slide door rail cover mounting bolt (A).

4.

Fully close slide door.

5.

Pull lower portion of slide door rail cover toward vehicle outer,
disengage mounting clips of slide door cover, and then remove
slide door rail cover.

CAUTION:

Apply protective tape (A) on the part to protect it from dam-
age.

INSTALLATION

1.

Clip

2.

Watertight clip
(With sponge washer)

3.

Bolt

4.

Slide door rail cover

: Always replace after every disassembly.

JMKIA6123ZZ

JMKIA6244ZZ

: Clip

JMKIA6245ZZ

EXT-44

< REMOVAL AND INSTALLATION >

SLIDE DOOR RAIL COVER

Note the following item, and then install in the reverse order of removal.

CAUTION:

Never reuse clip and bolt once they are removed

REAR SPOILER

EXT-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

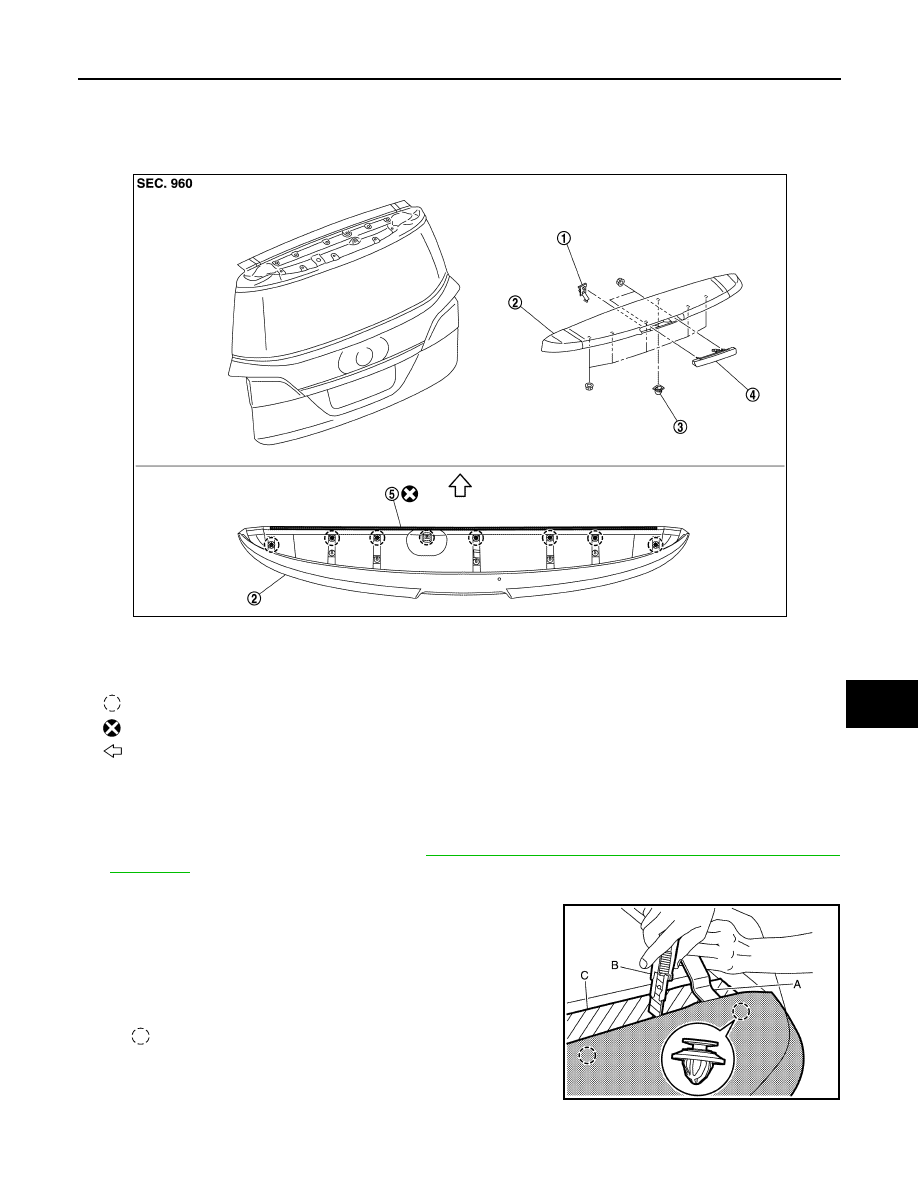

REAR SPOILER

Exploded View

INFOID:0000000009650521

Removal and Installation

INFOID:0000000009650522

REMOVAL

1.

Remove back door upper finisher. Refer to

INT-49, "BACK DOOR UPPER FINISHER : Removal and

Installation"

.

2.

Remove rear spoiler assembly mounting nuts.

3.

Insert a remover tool (A) between rear spoiler and back door
panel, and then cut double-sided tape using a cutter (B) while
lifting up rear spoiler.

CAUTION:

Apply protective tape (C) on the part to protect it from dam-
age.

4.

Disengage mounting clips of rear spoiler using a remover tool.

1.

Washer nozzle

2.

Rear spoiler assembly

3.

Grommet

4.

High-mounted stop lamp

5.

Double-sided tape
[t: 2.0 mm (0.079 in)]

: Clip

: Always replace after every disassembly.

: Vehicle front

JMKIA8275ZZ

: Clip

JMKIA6253ZZ

EXT-46

< REMOVAL AND INSTALLATION >

REAR SPOILER

5.

Disconnect harness connector of high-mounted stop lamp and rear washer tube.

6.

Remove rear spoiler assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Be careful not to wind up the lips of back door upper molding.
• Degrease mounting surface of rear spoiler.
• Never wash the vehicle with in 24 hours so as to keep adhesive.
