Nissan Quest E52. Manual - part 664

ROOF SIDE MOLDING

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

• Use double-sided tape after hardening for roof side molding clips.
• Securely insert molding rear end cap onto roof rear end cutout (installation standard).
• When installing roof side molding of windshield glass portion, check that body side molding fas-

tener is securely inserted and then press in.

• Never wash the vehicle within 24 hours so as to keep adhesive.

EXT-32

< REMOVAL AND INSTALLATION >

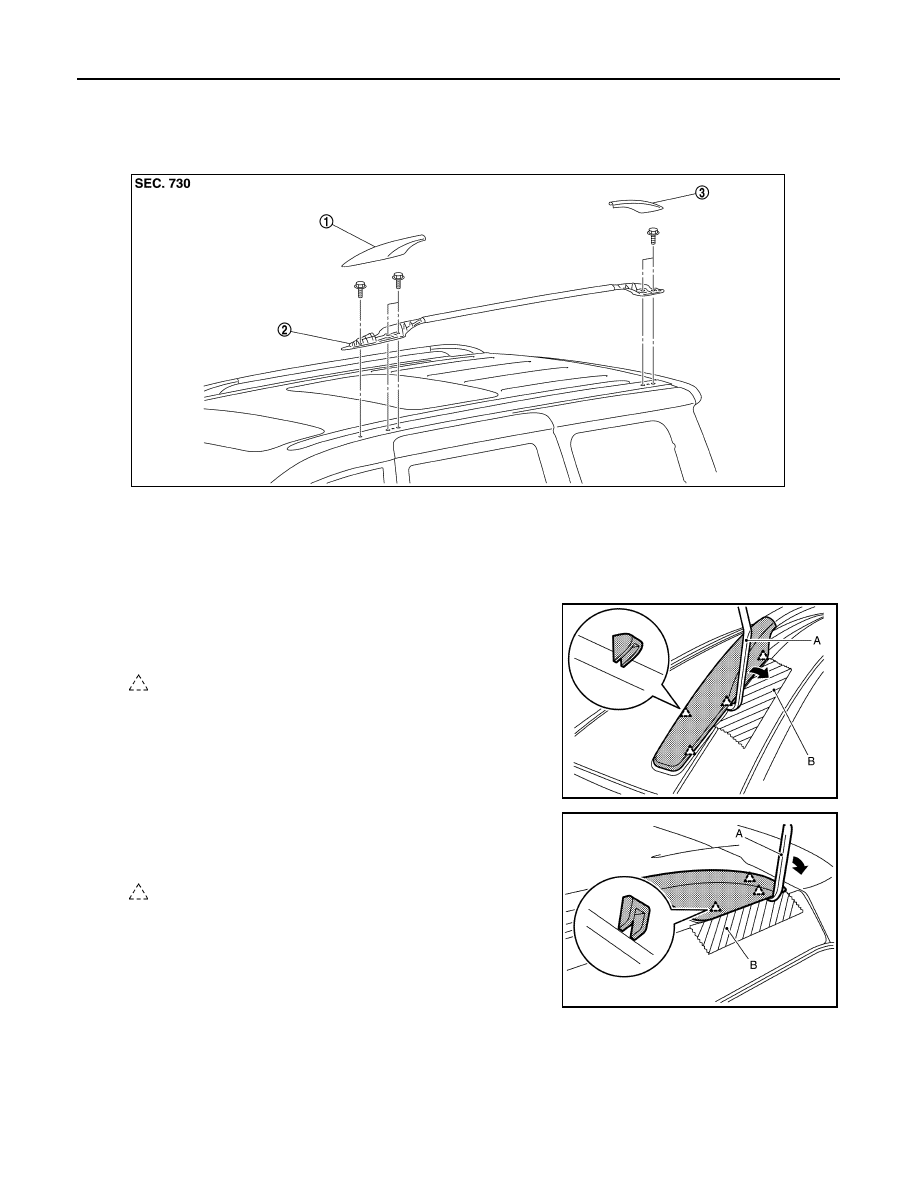

ROOF RAIL

ROOF RAIL

Exploded View

INFOID:0000000009650507

Removal and Installation

INFOID:0000000009650508

REMOVAL

1.

Remove front roof rail cover with remover tool (A).

CAUTION:

Apply protective tape (B) around the roof rail.

2.

Remove rear roof rail cover with remover tool (A).

CAUTION:

Apply protective tape (B) around the roof rail.

3.

Remove roof rail mounting bolts, and then remove roof rail assembly.

INSTALLATION

Install in the reverse order of removal.

1.

Front roof rail cover

2.

Roof rail assembly

3.

Rear roof rail cover

JMKIA8230ZZ

: Pawl

JMKIA8231ZZ

: Pawl

JMKIA8232ZZ

DOOR OUTSIDE MOLDING

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

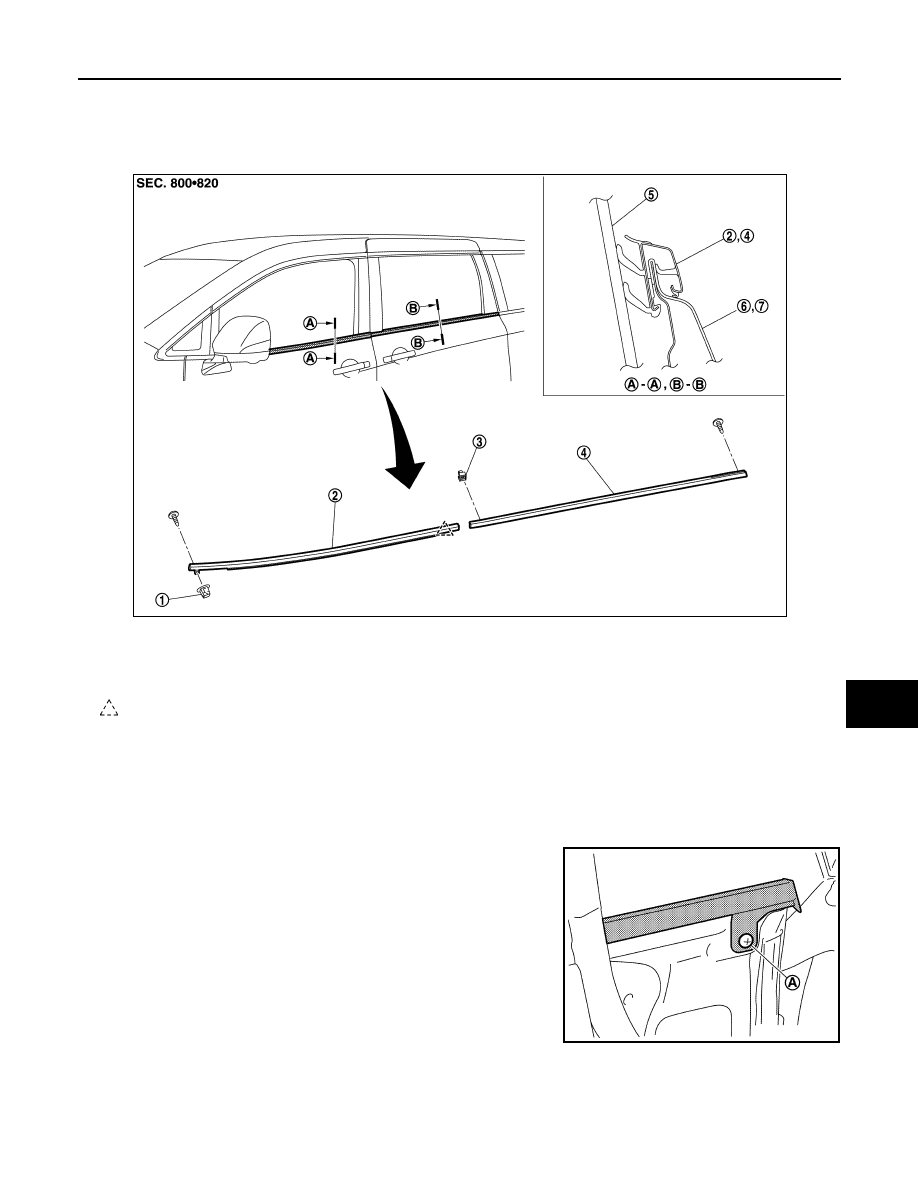

DOOR OUTSIDE MOLDING

Exploded View

INFOID:0000000009650509

Removal and Installation

INFOID:0000000009650510

FRONT DOOR OUTSIDE MOLDING

Removal

1.

Fully open front door glass.

2.

Remove front door outside molding fixing screw (A).

1.

Screw grommet

2.

Front door outside molding

3.

Clip

4.

Slide door outside molding

5.

Door grass

6.

Front door panel

7.

Slide door panel

: Pawl

JMKIA6188GB

JMKIA6268ZZ

EXT-34

< REMOVAL AND INSTALLATION >

DOOR OUTSIDE MOLDING

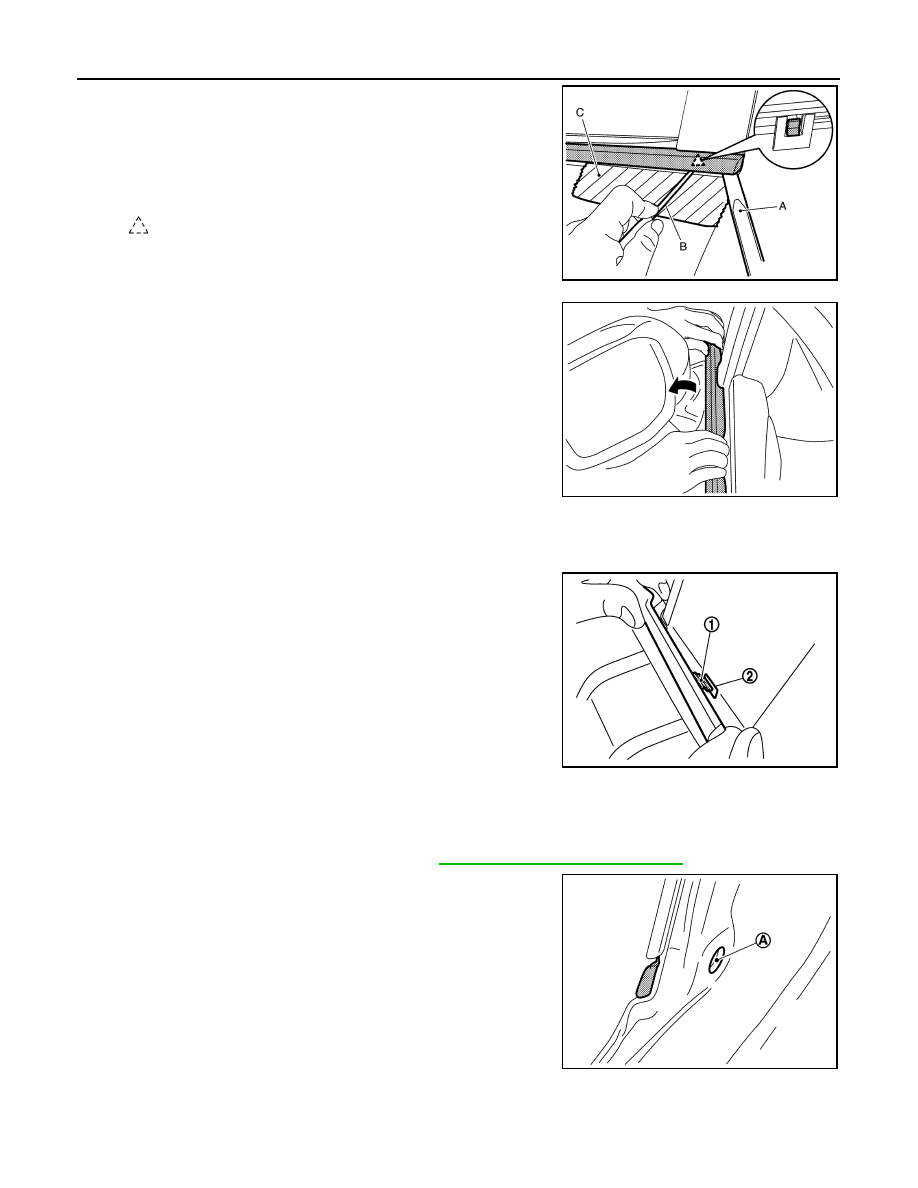

3.

Insert a remover tool (A) into lower space.

4.

Disengage pawls of fixing front door outside molding with flated-
blade screwdriver (B).

CAUTION:

Apply protection tape (C) around outer circumference of
front door.

5.

Twist door outside molding toward the outside of the vehicle,
and then lift up and remove it while disengaging the pawls.

Installation

Note the following item, and then install in the reverse order of removal.

CAUTION:

When installing front door outside molding, check that pawl (1)
is accurately aligned with mounting hole (2), then press in.

SLIDE DOOR OUTSIDE MOLDING

Removal

1.

Fully open slide door glass.

2.

Remove slide door corner outer cover. Refer to

EXT-36, "Removal and Installation"

.

3.

Remove slide door outside molding fixing screw (A).

4.

Lift up slide door outside molding toward vehicle upper to remove.

: Pawl

JMKIA6270ZZ

JMKIA6269ZZ

JMKIA5669ZZ

JMKIA6271ZZ
