EXL-224

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

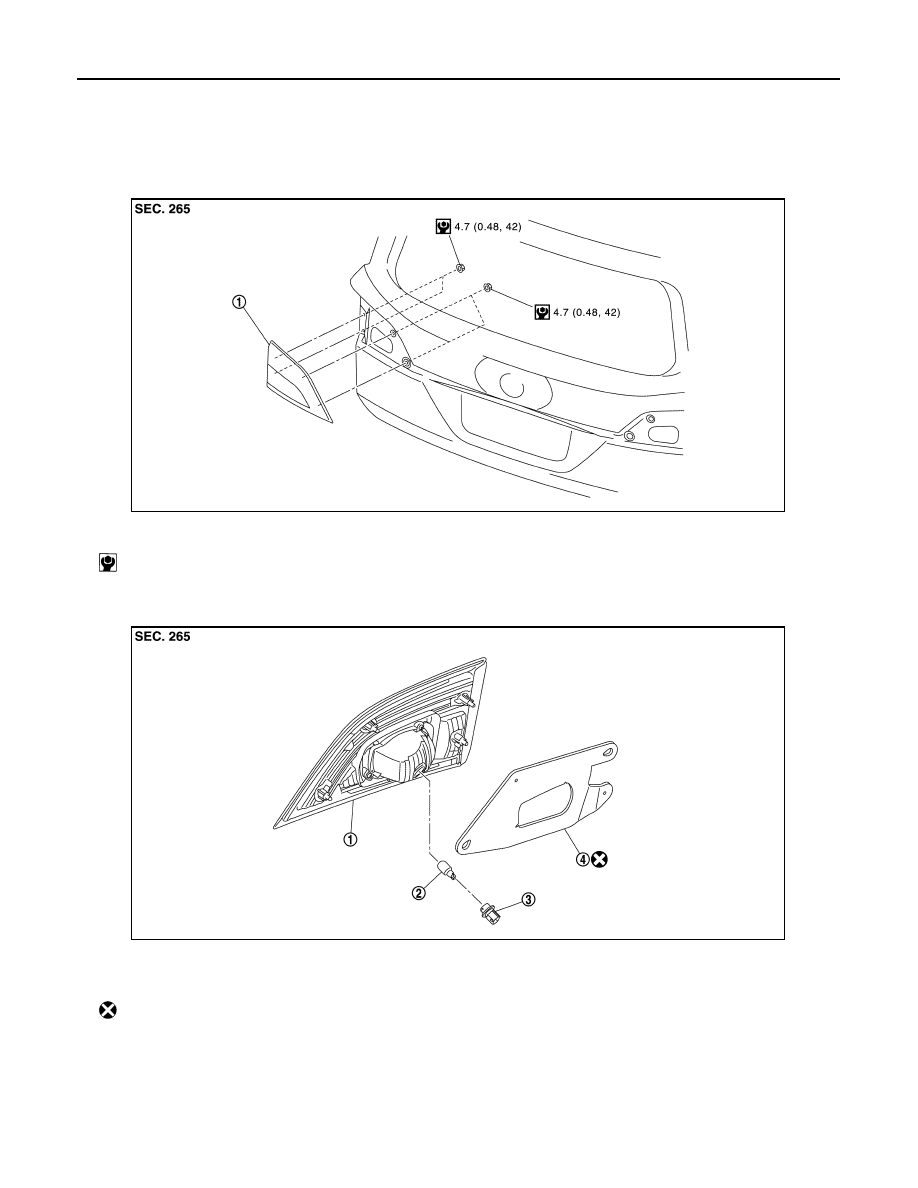

BACK-UP LAMP

BACK-UP LAMP

Exploded View

INFOID:0000000009653207

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009653208

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Back-up lamp assembly

N·m (kg-m, in-lb)

JMLIA2204GB

1.

Back-up lamp housing assembly

2.

Back-up lamp bulb

3.

Back-up lamp bulb socket

4.

Seal packing

: Always replace after every disassembly.

JMLIA2173ZZ

BACK-UP LAMP

EXL-225

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

1.

Remove touch sensor.(with automatic back door) Refer to

DLK-477, "TOUCH SENSOR : Removal and

Installation"

.

2.

Remove back door lower finisher. Refer to

INT-48, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

3.

Disconnect back-up lamp connector.

4.

Remove back-up lamp mounting nuts, and then remove back-up lamp.

5.

Remove seal packing

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

Replacement

INFOID:0000000009653209

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

BACK-UP LAMP BULB

1.

Remove back door lower finisher. Refer to

INT-48, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

2.

Rotate back-up lamp bulb socket counterclockwise, and then remove back-up lamp bulb socket.

3.

Remove back-up lamp bulb from back-up lamp bulb socket.

EXL-226

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

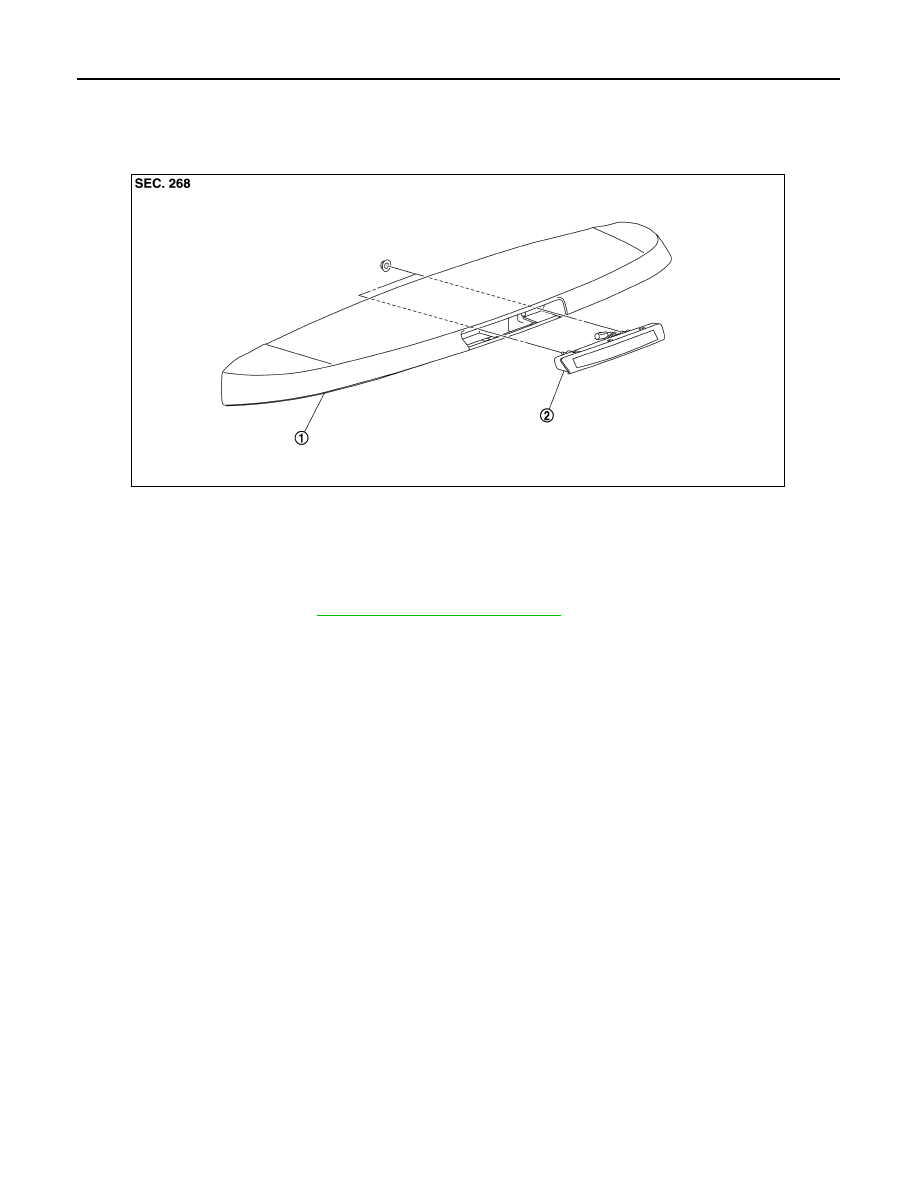

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000009653210

Removal and Installation

INFOID:0000000009653211

REMOVAL

1.

Remove rear spoiler. Refer to

EXT-45, "Removal and Installation"

.

2.

Remove high-mounted stop lamp mounting nuts.

3.

Remove high-mounted stop lamp from rear spoiler.

INSTALLATION

Install in the reverse order of removal.

1.

Rear spoiler

2.

High-mounted stop lamp

JMLIA1564ZZ

LICENSE PLATE LAMP

EXL-227

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

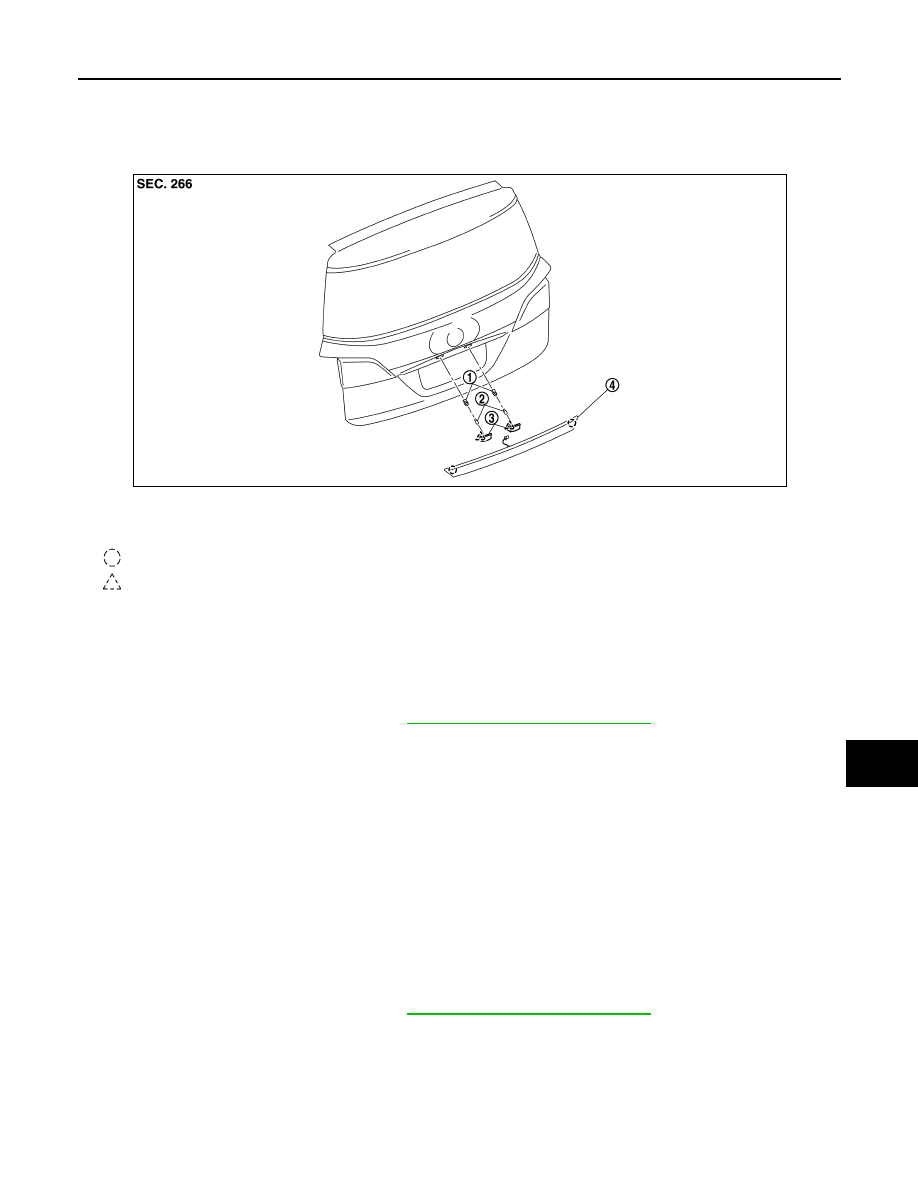

LICENSE PLATE LAMP

Exploded View

INFOID:0000000009653212

Removal and Installation

INFOID:0000000009653213

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove back door lower finisher. Refer to

EXT-47, "Removal and Installation"

.

2.

Disconnect license plate lamp connector.

3.

Remove license plate lamp while pushing a resin clip, and then remove license plate lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000009653214

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove back door lower finisher. Refer to

EXT-47, "Removal and Installation"

.

2.

Disconnect license plate lamp connector.

3.

Rotate license plate lamp bulb socket counterclockwise and unlock it.

4.

Remove license plate lamp bulb from license plate lamp bulb socket.

1.

License plate lamp bulb socket

2.

License plate lamp bulb

3.

License plate lamp housing

4.

Back door finisher

: Clip

: Pawl

JMLIA2205ZZ
