Nissan Quest E52. Manual - part 656





EXL-228

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

REFLEX REFLECTOR

REFLEX REFLECTOR

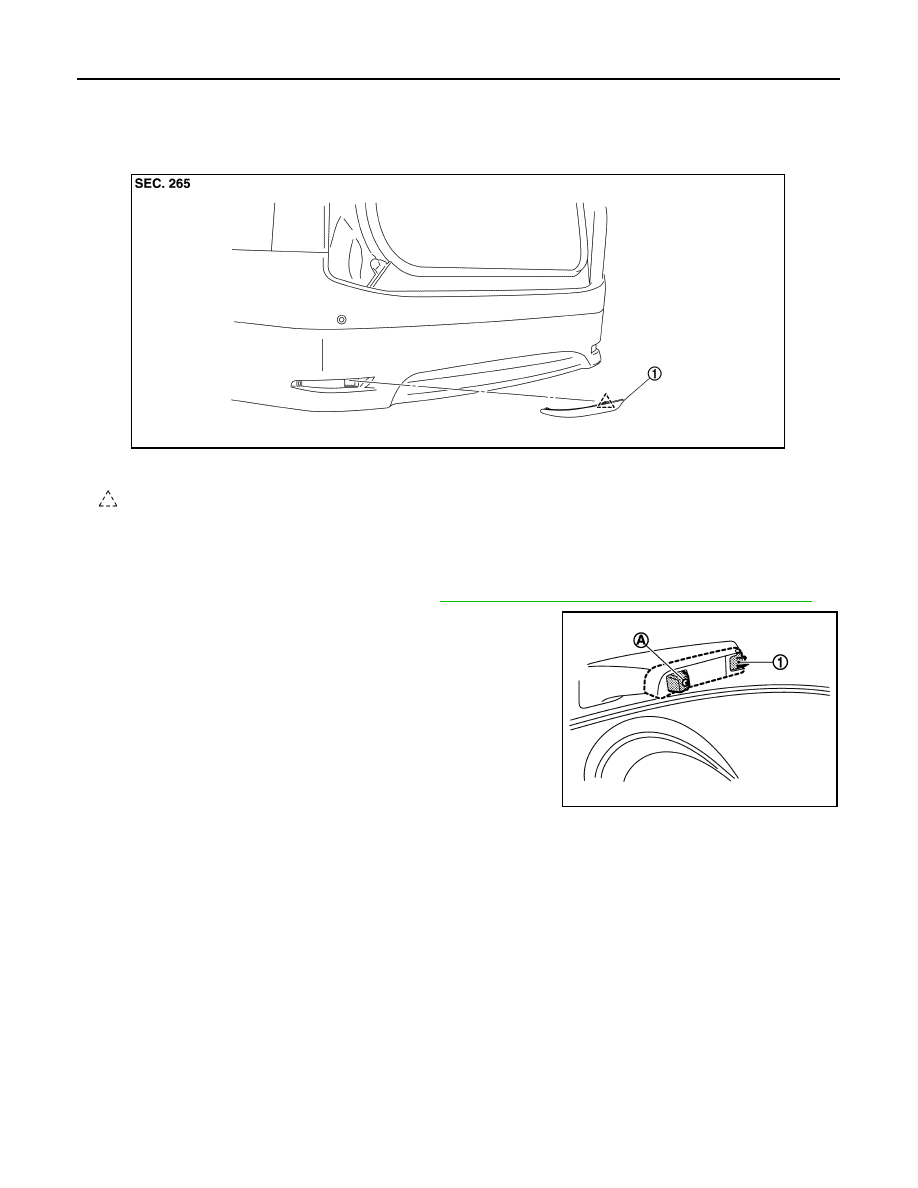

Exploded View

INFOID:0000000009653215

Removal and Installation

INFOID:0000000009653216

REMOVAL

1.

Remove rear bumper fascia assembly. Refer to

EXT-16, "REAR BUMPER : Removal and Installation"

.

2.

Remove reflex reflector (1) fixing screws (A) (LH and RH), and
then remove reflex reflector (LH and RH).

INSTALLATION

Install in the reverse order of removal.

1.

Reflex reflector

: Pawl

JMLIA1567ZZ

JMKIA1974ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-229

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000009653217

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI)

HB3 (Halogen)

60

Headlamp (LO)

H11 (Halogen)

55

Front turn signal lamp/
Parking lamp

S25

27/8

Front side marker lamp.

W5W

5

Front fog lamp

H8

35

Side turn signal lamp (integrated into the door mirror)

LED

Rear combination lamp

Stop lamp/
Tail lamp (side marker lamp)

W21/5W

21/5

Rear turn signal lamp

WY21W (Amber)

21

Back-up lamp

W16W

16

License plate lamp

W5W

5

High-mounted stop lamp

LED
