Nissan Quest E52. Manual - part 652

EXL-212

< PERIODIC MAINTENANCE >

[HALOGEN TYPE]

FRONT FOG LAMP AIMING ADJUSTMENT

Front fog lamp light distribution on the screen

JPLIA0008ZZ

A

: Cutoff line

B

: High illuminance area

H

: Horizontal center line of front fog lamp

V

: Vertical center line of front fog lamp

X

: Cutoff line height

FRONT COMBINATION LAMP

EXL-213

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REMOVAL AND INSTALLATION

FRONT COMBINATION LAMP

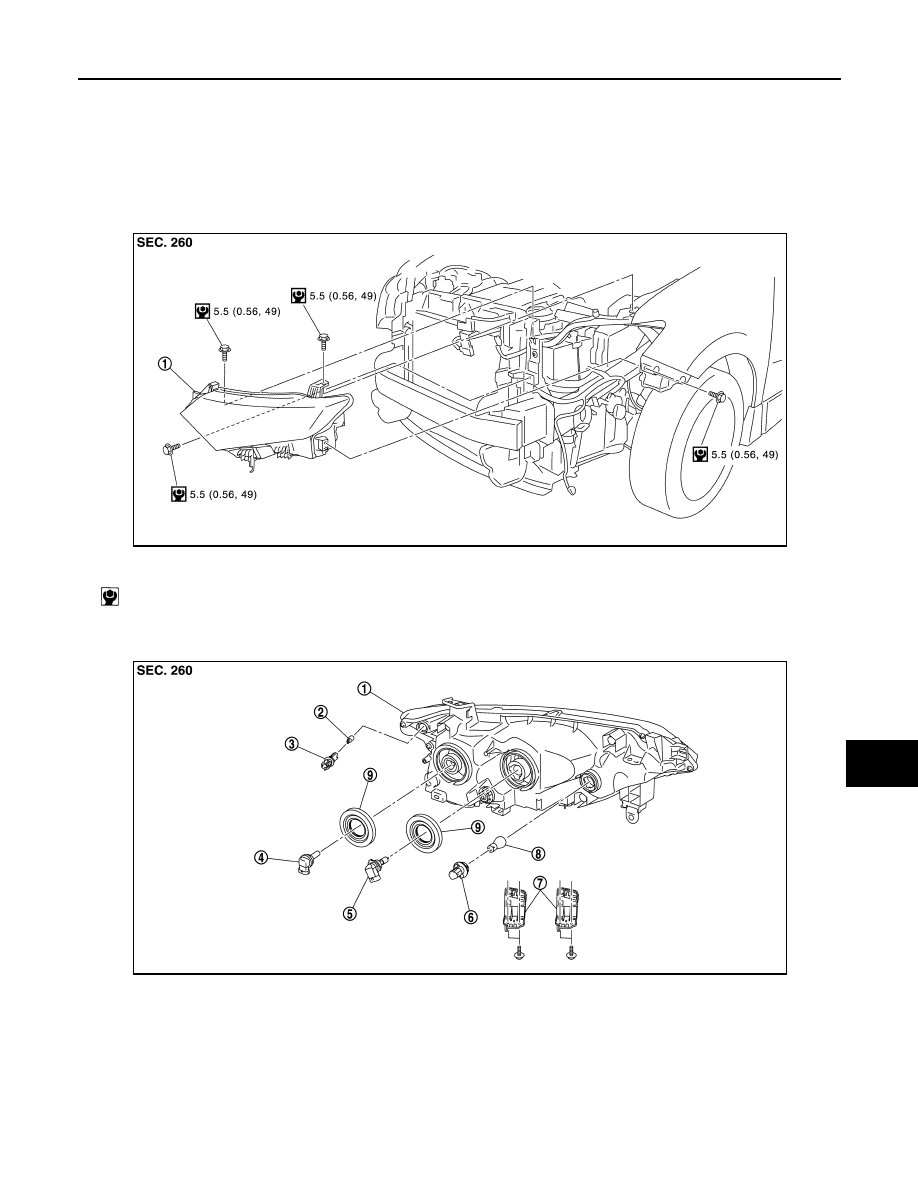

Exploded View

INFOID:0000000009653191

REMOVAL

DISASSEMBLY

1.

Front combination lamp

: N·m (kg-m, in-lb)

JMLIA2167GB

1. Front combination lamp housing

assembly

2. Front side marker lamp bulb

3. Front side marker lamp bulb socket

4. Halogen bulb (LO)

5. Halogen bulb (HI)

6. Front turn signal lamp/parking lamp

bulb socket

7. Bumper bracket

8. Front turn signal lamp/parking lamp

bulb

9. Back cover

JMLIA2169ZZ

EXL-214

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

FRONT COMBINATION LAMP

Removal and Installation

INFOID:0000000009653192

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove front bumper fascia. Refer to

EXT-12, "Removal and Installation"

.

2.

Remove front combination lamp mounting bolts.

3.

Pull out the front combination lamp forward the vehicle, and then disconnect the connector.

4.

Remove front combination lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, perform aiming adjustment. Refer to

EXL-209, "Description"

.

Replacement

INFOID:0000000009653193

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HEADLAMP BULB (HI)

1.

Disconnect the halogen bulb connector.

2.

Rotate the halogen bulb socket counterclockwise and unlock it.

3.

Remove halogen bulb socket from the front combination lamp housing assembly.

HEADLAMP BULB (LO)

1.

Disconnect the halogen bulb connector.

2.

Rotate the halogen bulb socket counterclockwise and unlock it.

3.

Remove halogen bulb socket from the front combination lamp housing assembly.

FRONT TURN SIGNAL LAMP/PARKING LAMP BULB

1.

Rotate the bulb socket counterclockwise and unlock it.

2.

Remove the bulb from the bulb socket.

FRONT SIDE MARKER LAMP BULB

1.

Rotate the bulb socket counterclockwise and unlock it.

2.

Remove the bulb from the bulb socket.

Disassembly and Assembly

INFOID:0000000009653194

DISASSEMBLY

1.

Rotate the halogen bulb (LO) socket counterclockwise and unlock it.

2.

Remove halogen bulb (LO) socket from the front combination lamp assembly.

3.

Rotate the halogen bulb (HI) socket counterclockwise and unlock it.

4.

Remove halogen bulb (HI) socket from the front combination lamp assembly.

5.

Rotate the front turn signal lamp/parking lamp bulb socket counterclockwise and unlock it.

6.

Remove front turn signal lamp/parking lamp bulb.

7.

Rotate the front side marker lamp bulb socket counterclockwise and unlock it.

8.

Remove the bulb from the front side marker lamp bulb socket.

ASSEMBLY

Note the following item, and then assemble in the reverse order of disassembly.

FRONT COMBINATION LAMP

EXL-215

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

CAUTION:

After installing the bulb, install the back cover and the bulb socket securely for watertightness.
