HEADLAMP SYSTEM

HEADLAMP SYSTEM : System Description

INFOID:0000000009653122

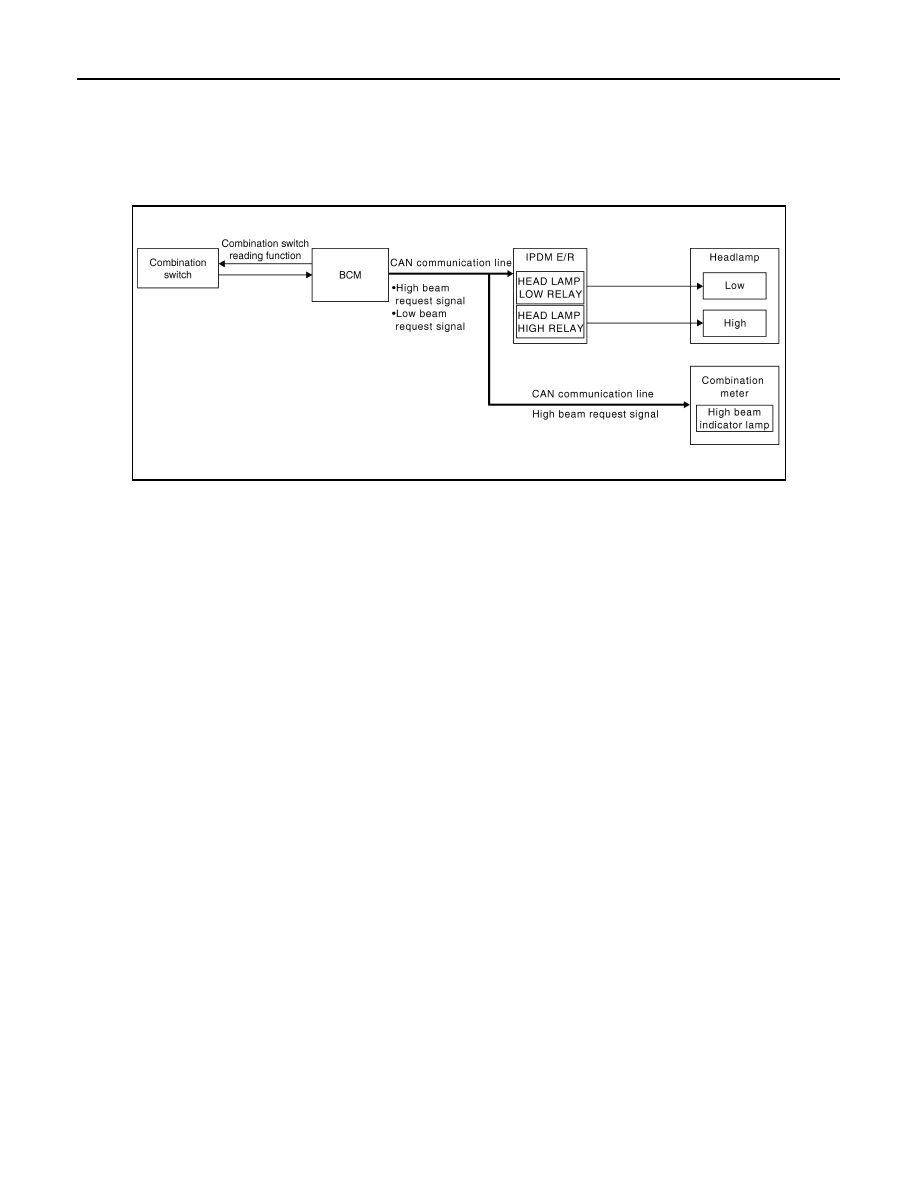

SYSTEM DIAGRAM

OUTLINE

Headlamp is controlled by combination switch reading function and headlamp control function of BCM, and
relay control function of IPDM E/R.

HEADLAMP (LO) OPERATION

• BCM detects the combination switch condition with the combination switch reading function.
• BCM transmits the low beam request signal to IPDM E/R with CAN communication according to the head-

lamp (LO) ON condition.

Headlamp (LO) ON condition

- Lighting switch 2ND
- Lighting switch AUTO (auto light function ON judgment)
- Lighting switch PASS
• IPDM E/R turns the integrated headlamp low relay ON, and turns the headlamp ON according to the low

beam request signal.

HEADLAMP (HI) OPERATION

• BCM transmits the high beam request signal to IPDM E/R and the combination meter with CAN communica-

tion according to the headlamp (HI) ON condition.

Headlamp (HI) ON condition

- Lighting switch HI with the lighting switch 2ND or AUTO (auto light function ON judgment)
- Lighting switch PASS
• Combination meter turns the high beam indicator lamp ON according to the high beam request signal.
• IPDM E/R turns the integrated headlamp high relay ON, and turns the headlamp ON according to the high

beam request signal.

JPLIA0167GB

SYSTEM

EXL-125

< SYSTEM DESCRIPTION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

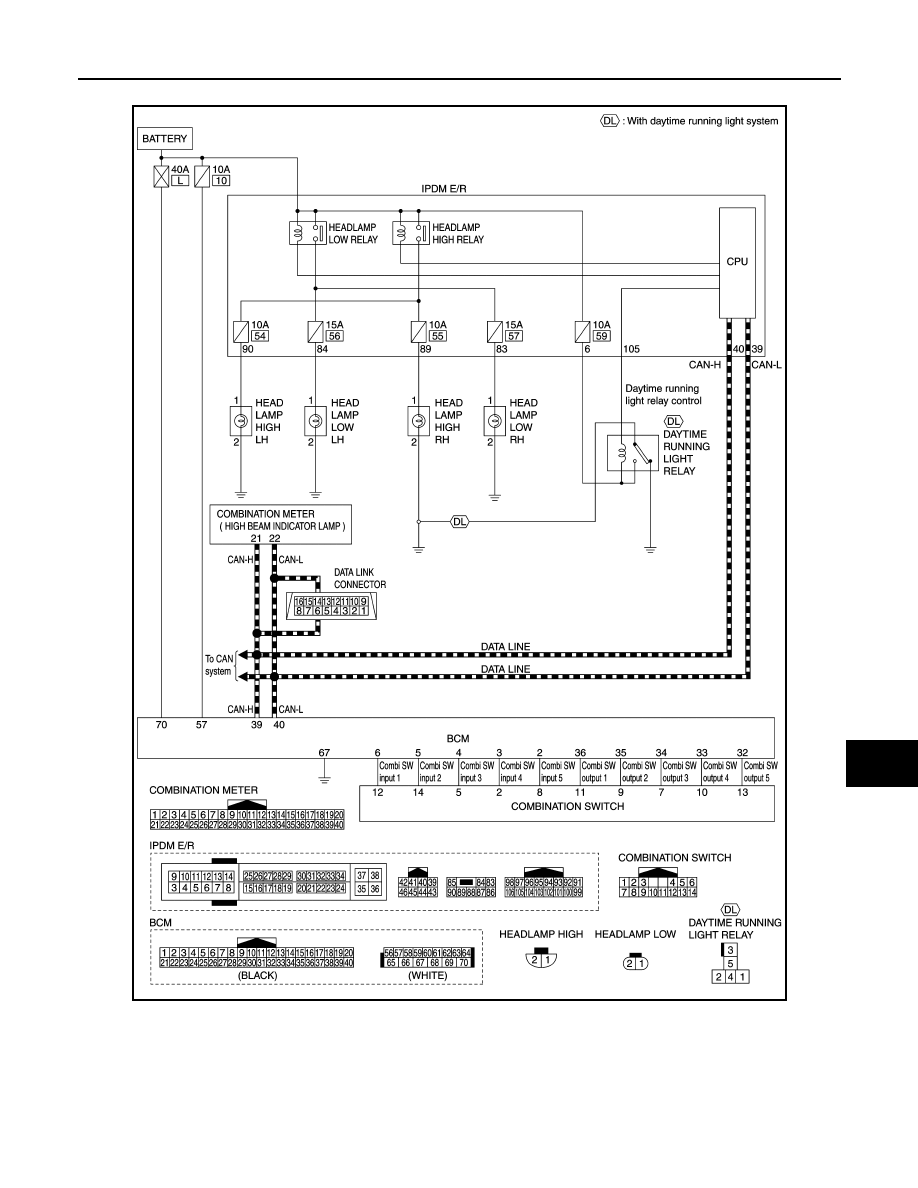

HEADLAMP SYSTEM : Circuit Diagram

INFOID:0000000009653123

HEADLAMP SYSTEM : Fail-safe

INFOID:0000000009653124

CAN COMMUNICATION CONTROL

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With BCM

JMLIA2074GB

EXL-126

< SYSTEM DESCRIPTION >

[HALOGEN TYPE]

SYSTEM

AUTO LIGHT SYSTEM (EXCEPT FOR CANADA)

AUTO LIGHT SYSTEM (EXCEPT FOR CANADA) : System Description

INFOID:0000000009653125

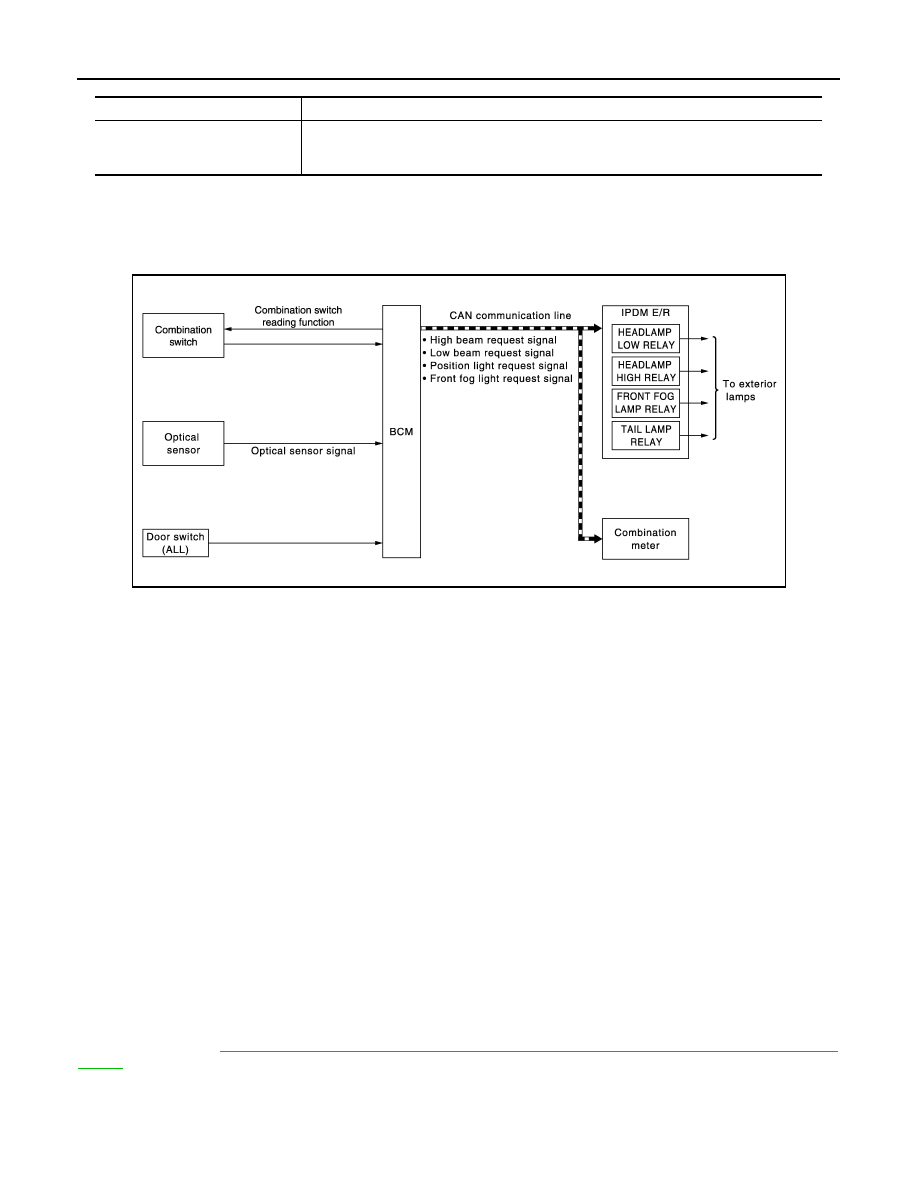

SYSTEM DIAGRAM

OUTLINE

•  Auto light system is controlled by each function of BCM and IPDM E/R.

Control by BCM

- Combination switch reading function
- Headlamp control function
- Auto light function
- Delay timer function
- Wiper linked auto lighting function
- Auto light adjustment system

Control by IPDM E/R

- Relay control function
• Auto light system has the auto light function (with twilight lighting function), wiper linked auto lighting function

and delay timer function.

- Auto light function automatically turns ON/OFF the exterior lamps* and each illumination automatically,

depending on the outside brightness.

- Wiper linked auto lighting function automatically turns ON/OFF the exterior lamps* and each illumination

when the light switch is in the AUTO position, according to a front wiper operation.

- When auto light system turns the exterior lamps ON with the ignition switch OFF, delay timer function turns

the exterior lamps OFF, depending on the vehicle condition with the auto light function after a certain period
of time.

*: Headlamp (LO/HI), parking lamp, side marker lamp, tail lamp and front fog lamp (Headlamp HI and front fog
lamp depend on the combination switch condition.)
NOTE:
The settings of the twilight lighting function and the wiper linked auto lighting function can be changed with
CONSULT. Refer to

EXL-144, "HEADLAMP : CONSULT Function (BCM - HEADLAMP) (Halogen Type Head-

lamp)"

.

AUTO LIGHT FUNCTION (WITH TWILIGHT LIGHTING FUNCTION)

Description

• BCM detects the combination switch condition with the combination switch reading function.

Control part

Fail-safe operation

Headlamp

• Turns ON the headlamp low relay when the ignition switch is turned ON
• Turns OFF the headlamp low relay when the ignition switch is turned OFF
• Headlamp high relay OFF

JMLIA1254GB

SYSTEM

EXL-127

< SYSTEM DESCRIPTION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

• BCM supplies voltage to the optical sensor when the ignition switch is turned ON or ACC.
• Optical sensor converts outside brightness (lux) to voltage and transmits the optical sensor signal to BCM.
• When ignition switch is turned ON, BCM detects outside brightness from the optical sensor signal and

judges ON/OFF condition of the exterior lamp and each illumination, depending on the outside brightness
condition (standard or twilight).

• BCM transmits each request signal to IPDM E/R and combination meter via CAN communication, according

to ON/OFF condition by the auto light function.

NOTE:
As to ON/OFF timing, the sensitivity depends on settings. The settings can be changed with CONSULT. Refer
to

EXL-144, "HEADLAMP : CONSULT Function (BCM - HEADLAMP) (Halogen Type Headlamp)"

.

WIPER LINKED AUTO LIGHTING FUNCTION

BCM turns the exterior lamp ON when detecting 4 operations of the front wiper work the light switch in AUTO
position.
NOTE:
BCM turns OFF the headlamps 3 seconds after the front wiper switch is turned from HI

⇒

OFF.

AUTO LIGHT ADJUSTMENT SYSTEM

The auto light adjustment system automatically, dims/brightens the display and combination meter, according
to brightness outside the vehicle, when lighting switch 1ST, lighting switch 2ND or lighting switch AUTO is
operated. Refer to

INL-17, "AUTO LIGHT ADJUSTMENT SYSTEM : System Description"

.

DELAY TIMER FUNCTION

BCM turns the exterior lamp OFF depending on the vehicle condition with the auto light function when the igni-
tion switch is turned OFF.
• Turns the exterior lamp OFF 5 minutes after detecting that any door opens. (Door switch ON).
• Turns the exterior lamp OFF a certain period of time* after closing all doors. (Door switch ON

→

OFF).

• Turns the exterior lamp OFF with the ignition switch ACC or the light switch OFF.
*: The preset time is 45 seconds. The timer operating time can be set by CONSULT. Refer to

EXL-144,

"HEADLAMP : CONSULT Function (BCM - HEADLAMP) (Halogen Type Headlamp)"

.

NOTE:
When any position other than the light switch AUTO is set, the auto light system function switches to the exte-
rior lamp battery saver function.
