EXL-116

< REMOVAL AND INSTALLATION >

[XENON TYPE]

BACK-UP LAMP

1.

Remove touch sensor.(with automatic back door) Refer to

DLK-477, "TOUCH SENSOR : Removal and

Installation"

.

2.

Remove back door lower finisher. Refer to

INT-48, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

3.

Disconnect back-up lamp connector.

4.

Remove back-up lamp mounting nuts, and then remove back-up lamp.

5.

Remove seal packing

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

Replacement

INFOID:0000000009653107

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

BACK-UP LAMP BULB

1.

Remove back door lower finisher. Refer to

INT-48, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

2.

Rotate back-up lamp bulb socket counterclockwise, and then remove back-up lamp bulb socket.

3.

Remove back-up lamp bulb from back-up lamp bulb socket.

HIGH-MOUNTED STOP LAMP

EXL-117

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

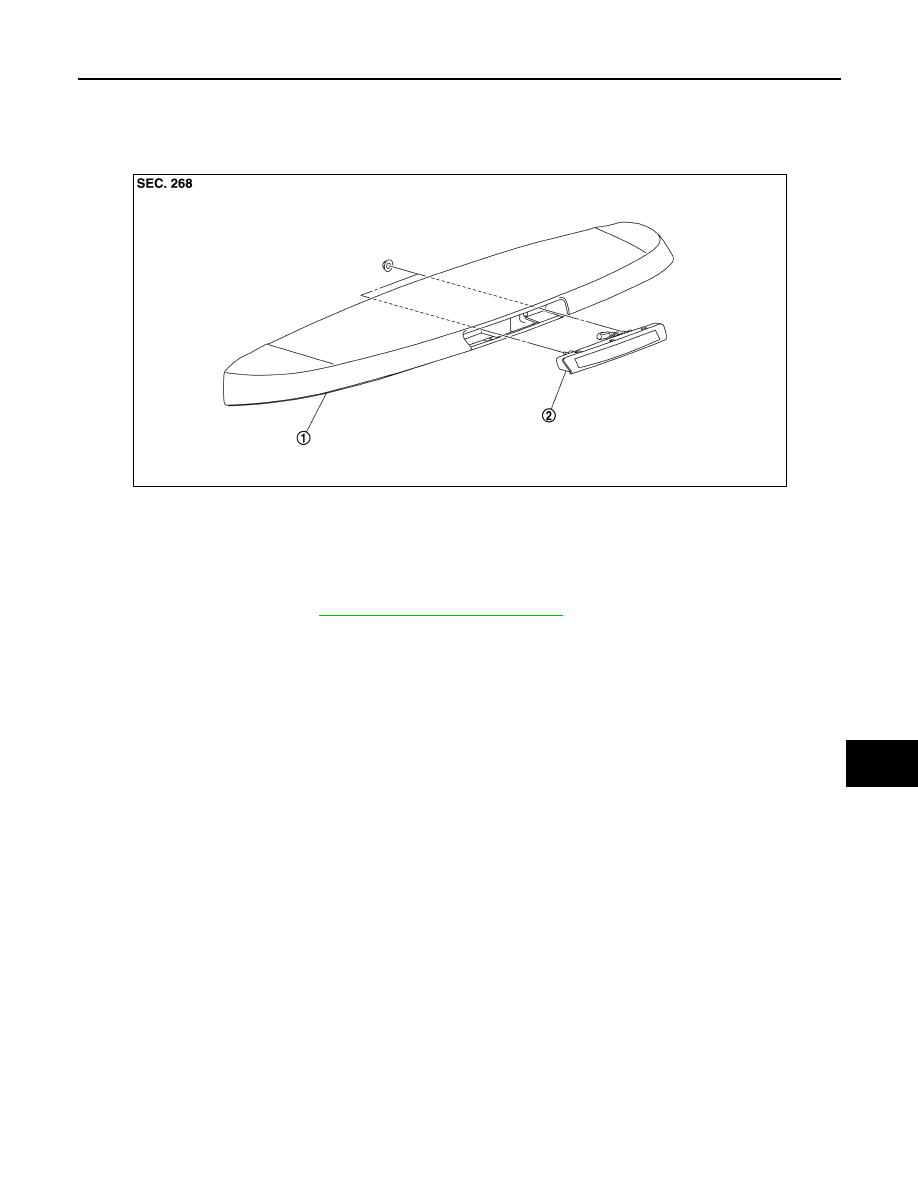

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000009653108

Removal and Installation

INFOID:0000000009653109

REMOVAL

1.

Remove rear spoiler. Refer to

EXT-45, "Removal and Installation"

.

2.

Remove high-mounted stop lamp mounting nuts.

3.

Remove high-mounted stop lamp from rear spoiler.

INSTALLATION

Install in the reverse order of removal.

1.

Rear spoiler

2.

High-mounted stop lamp

JMLIA1564ZZ

EXL-118

< REMOVAL AND INSTALLATION >

[XENON TYPE]

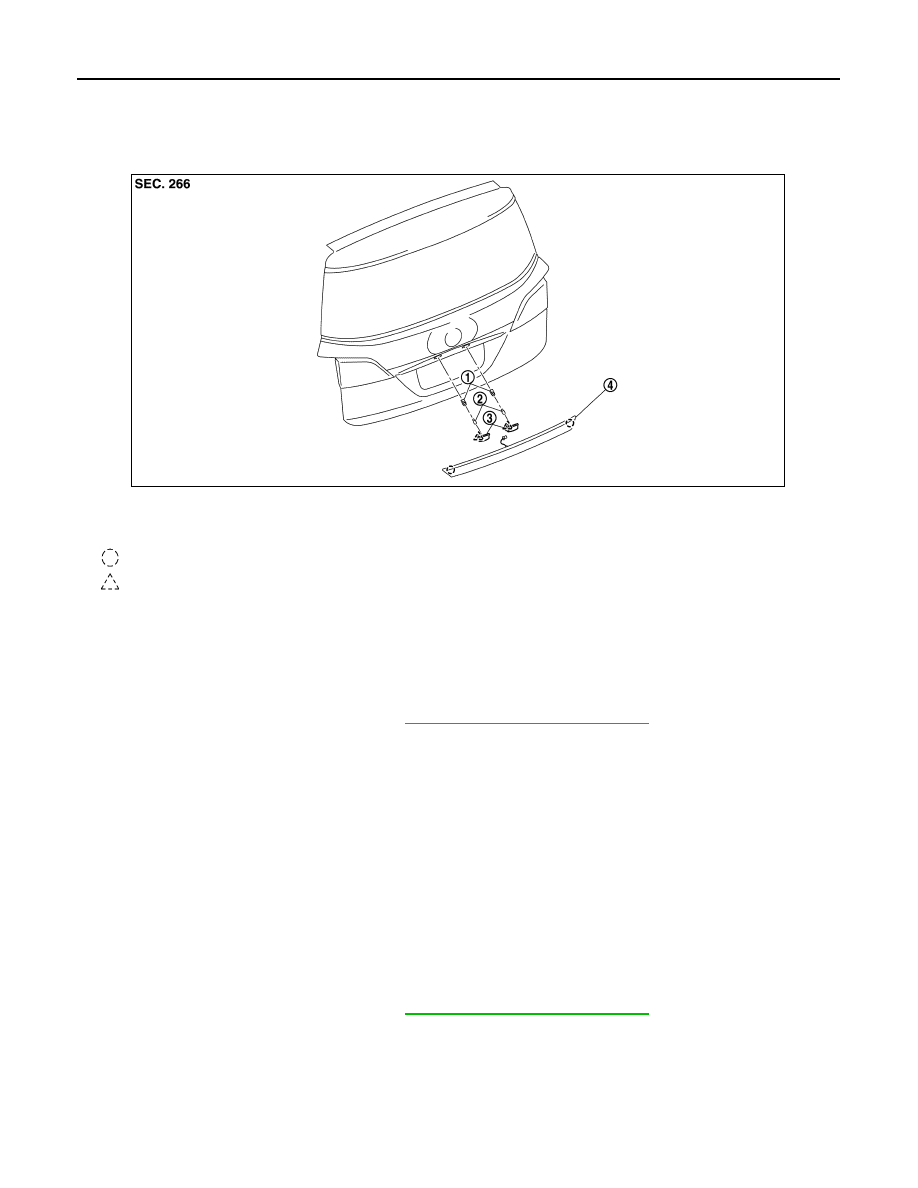

LICENSE PLATE LAMP

LICENSE PLATE LAMP

Exploded View

INFOID:0000000009653110

Removal and Installation

INFOID:0000000009653111

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove back door lower finisher. Refer to

EXT-47, "Removal and Installation"

.

2.

Disconnect license plate lamp connector.

3.

Remove license plate lamp while pushing a resin clip, and then remove license plate lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000009653112

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove back door lower finisher. Refer to

EXT-47, "Removal and Installation"

.

2.

Disconnect license plate lamp connector.

3.

Rotate license plate lamp bulb socket counterclockwise and unlock it.

4.

Remove license plate lamp bulb from license plate lamp bulb socket.

1.

License plate lamp bulb socket

2.

License plate lamp bulb

3.

License plate lamp housing

4.

Back door finisher

: Clip

: Pawl

JMLIA2205ZZ

REFLEX REFLECTOR

EXL-119

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

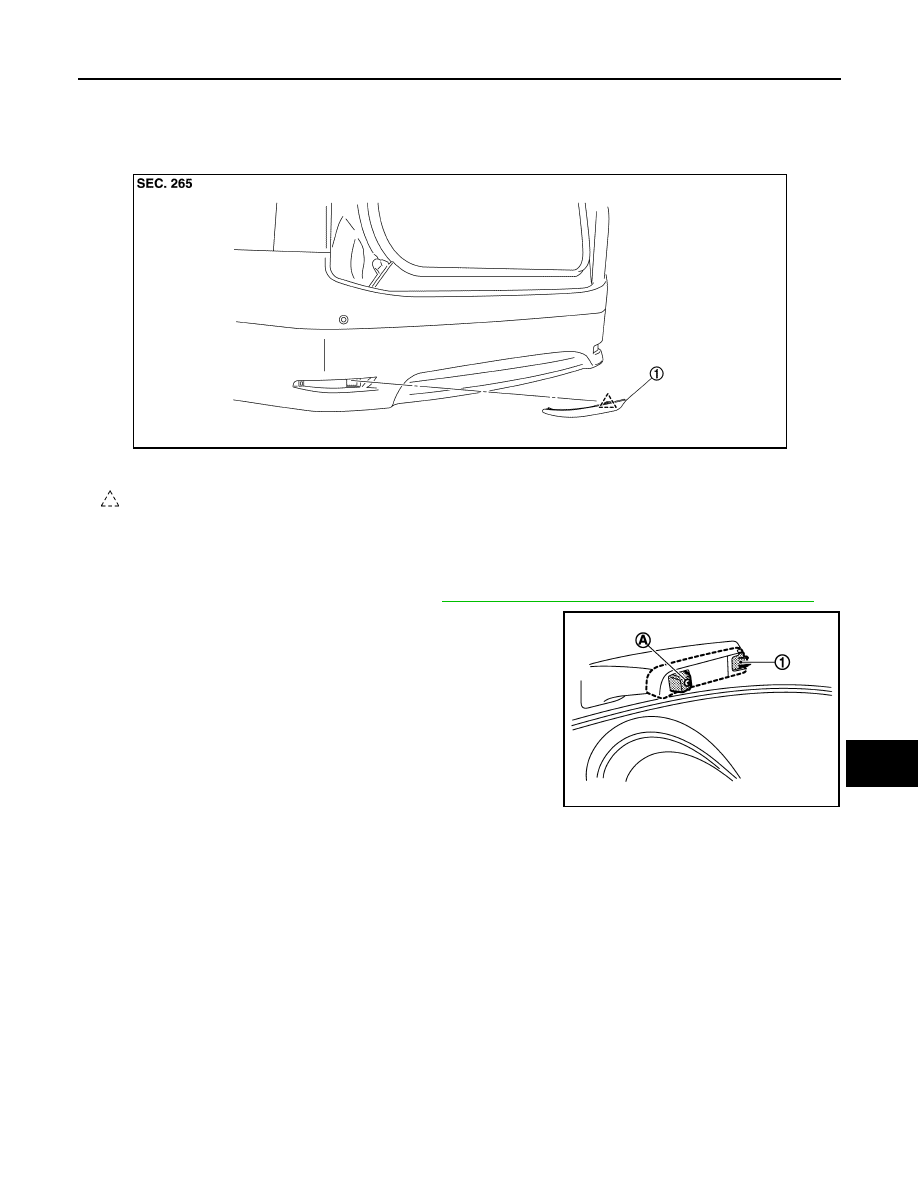

REFLEX REFLECTOR

Exploded View

INFOID:0000000009653113

Removal and Installation

INFOID:0000000009653114

REMOVAL

1.

Remove rear bumper fascia assembly. Refer to

EXT-16, "REAR BUMPER : Removal and Installation"

.

2.

Remove reflex reflector (1) fixing screws (A) (LH and RH), and
then remove reflex reflector (LH and RH).

INSTALLATION

Install in the reverse order of removal.

1.

Reflex reflector

: Pawl

JMLIA1567ZZ
