ENGINE ASSEMBLY

EM-61

< UNIT REMOVAL AND INSTALLATION >

[VQ35DE]

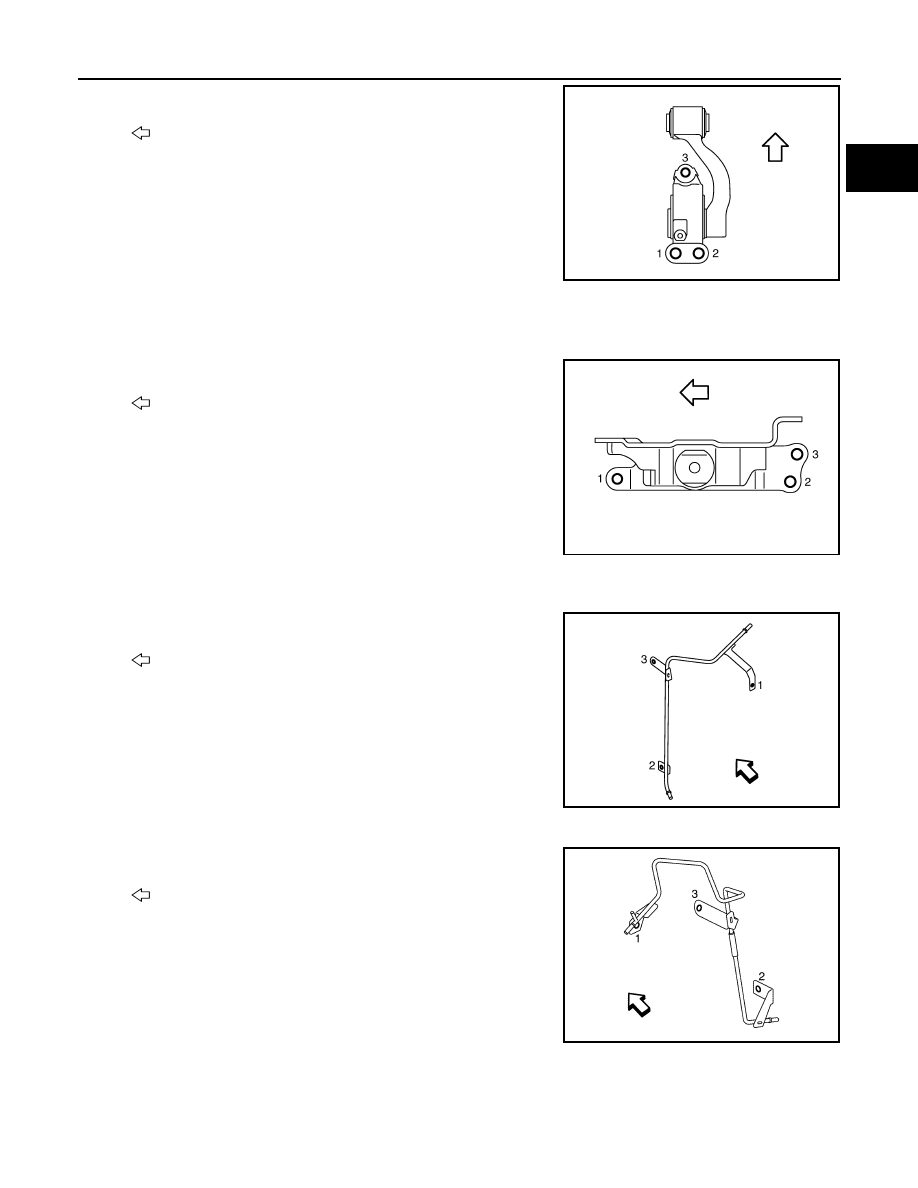

Tighten the bolt No. 3 as shown in the figure. (temporarily)

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

Install the engine mounting brackets (front) to the engine mounting insulators (front).

10. Install engine mounting bracket (rear) to engine mounting insulator (rear).

11. Install the engine mounting insulator (LH) to the front suspension member.

• Tighten the bolts in numerical order as shown in the figure.

12. Install the rear torque rod to the rear torque rod bracket.

13. Install the vacuum tube (front) as follows:
a.

Tighten the bolt No. 3 as shown in the figure. (temporarily)

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

14. Install the vacuum tube (rear) as follows:

Tighten the bolt No. 3 as shown in the figure. (temporarily)

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

Installation

Install the engine mounting insulator (RH) as follows:

: Vehicle front

JPBIA1738ZZ

: Vehicle front

JPBIA1739ZZ

: Engine front

JPBIA1740ZZ

: Engine front

JPBIA4798ZZ

EM-62

< UNIT REMOVAL AND INSTALLATION >

[VQ35DE]

ENGINE ASSEMBLY

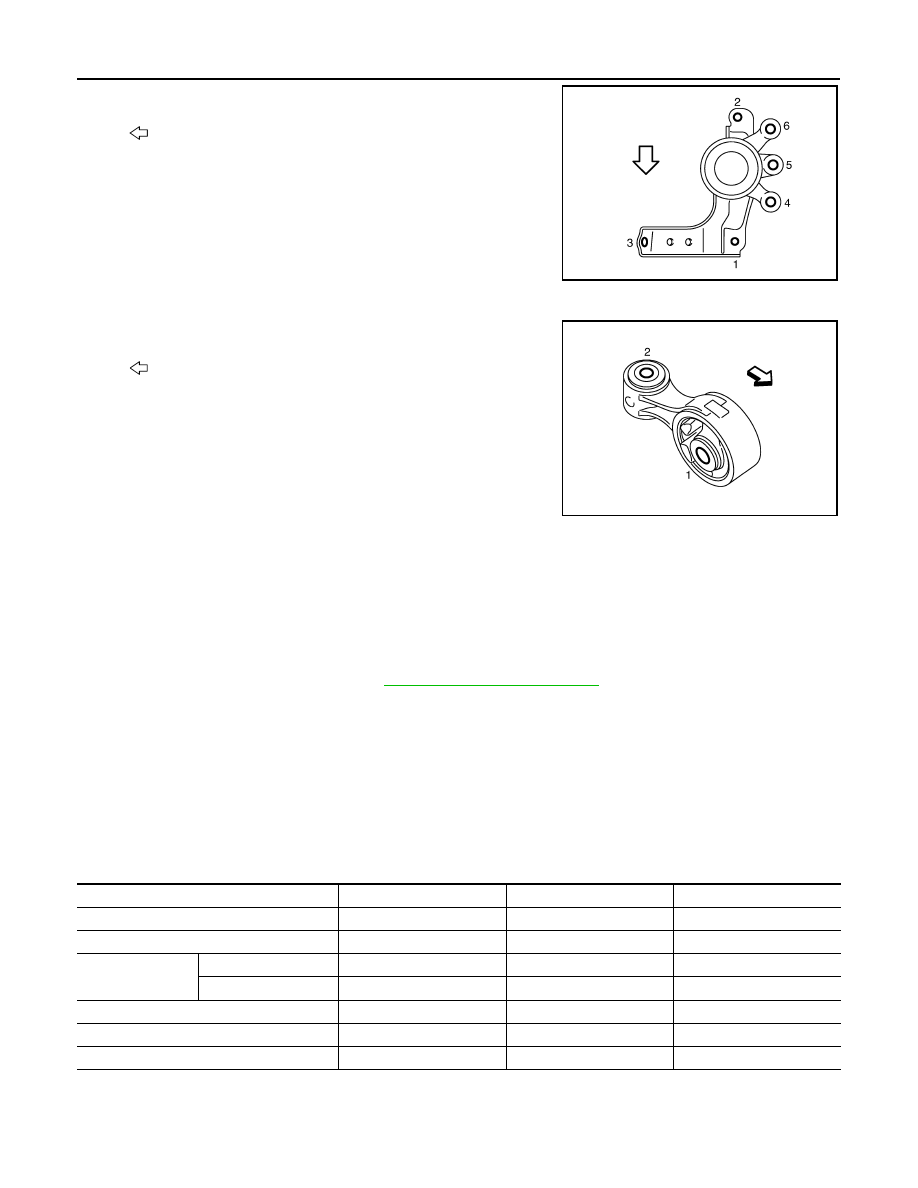

Tighten the bolt No. 1 as shown in the figure. (temporarily)

Tighten the bolts No. 2, 3 in numerical order as shown in the fig-
ure. (specified torque)

Tighten the bolt No. 1 as shown in the figure. (specified torque)

Tighten the bolts No. 4, 5, 6 in numerical order as shown in the
figure. (specified torque)

Install the upper torque rod as follows:

Tighten the bolt No. 2 as shown in the figure. (temporarily)

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

Inspection

INFOID:0000000009652784

INSPECTION AFTER INSTALLATION

Inspection for Leakage

The following are procedures for checking fluids leakage, lubricates leakage, and exhaust gases leakage.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-10, "Fluids and Lubricants"

• Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
• Warm up engine thoroughly to check there is no leakage of fuel, exhaust gases, or any oil/fluids including

engine oil and engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

*: Power steering fluid, brake fluid, etc.

: Vehicle front

JPBIA1742ZZ

: Vehicle front

JPBIA1743ZZ

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission /
transaxle fluid

AT & CVT Models

Leakage

Level / Leakage

Leakage

MT Models

Level / Leakage

Leakage

Level / Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Exhaust gases

—

Leakage

—

ENGINE STAND SETTING

EM-63

< UNIT DISASSEMBLY AND ASSEMBLY >

[VQ35DE]

UNIT DISASSEMBLY AND ASSEMBLY

ENGINE STAND SETTING

Setting

INFOID:0000000009652785

NOTE:
Explained here is how to disassemble with engine stand supporting transaxle surface. When using different
type of engine stand, note with difference in steps and etc.
1.

Remove the engine assembly from the vehicle. Refer to

EM-55, "Exploded View"

Remove the parts that may restrict installation of engine to widely use engine stand.
NOTE:
The procedure is described assuming that you use a widely use engine stand holding the surface, to
which transaxle is installed.
• Remove drive plate. Fix crankshaft pulley with the pulley holder (commercial service tool), and remove

mounting bolts.

• Loosen mounting bolts in diagonal order.
• Check for deformation or damage drive plate.

CAUTION:

• Never disassemble drive plate.
• Never place drive plate with signal plate facing down.
• When handling signal plate, take care not to damage or scratch it.
• Handle signal plate in a manner that prevents it from becoming magnetized.

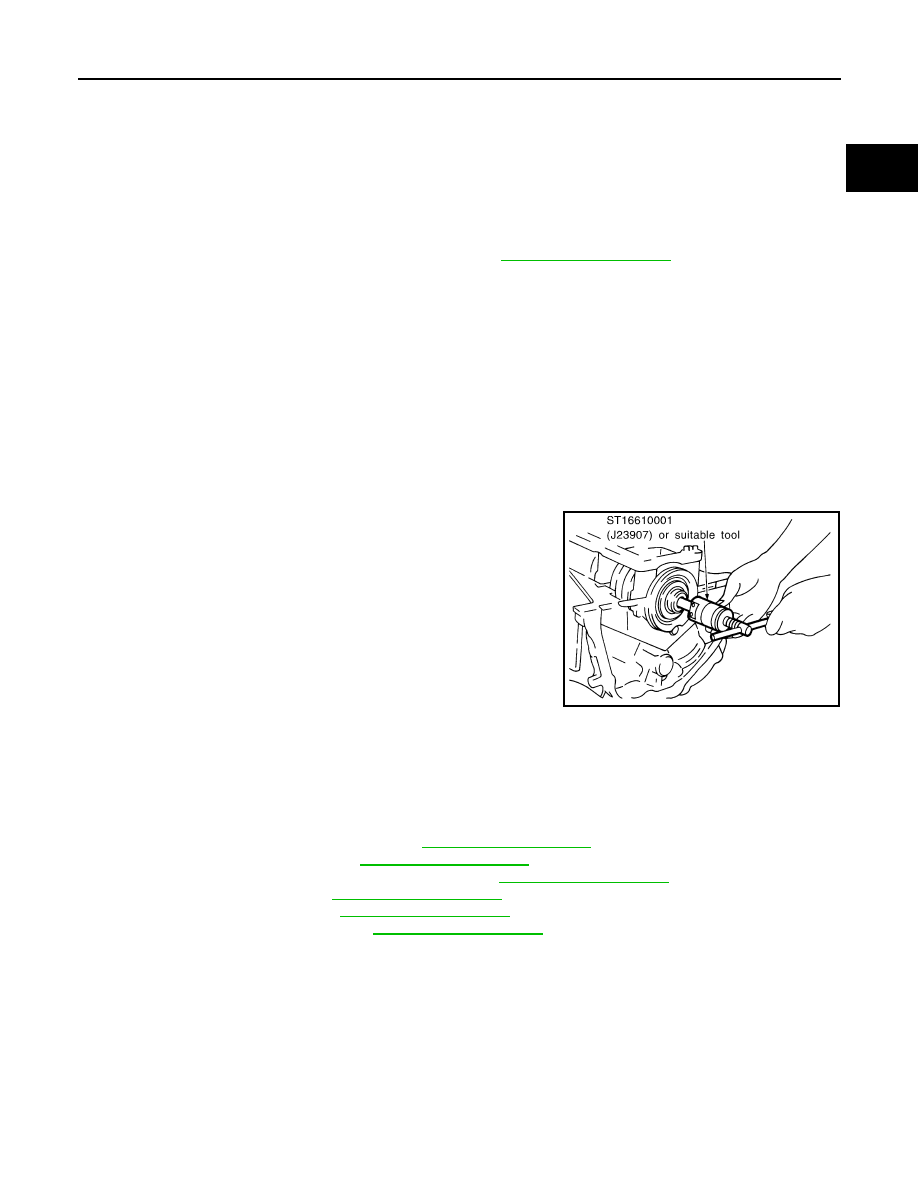

Remove pilot converter using the pilot bushing puller (SST) if
necessary.

Lift the engine with hoist to install it onto the widely use engine stand.

CAUTION:

Use an engine stand that has a load capacity [220 kg (485 lb) or more] large enough for supporting
the engine weight.
• If the load capacity of the stand is not adequate, remove the following parts beforehand to reduce the

potential risk of overturning the stand.

- Remove intake manifold collector. Refer to

EM-28, "Exploded View"

- Remove intake manifold. Refer to

EM-31, "Exploded View"

- Remove fuel injector and fuel tube assembly. Refer to

EM-47, "Exploded View"

- Remove ignition coil. Refer to

EM-52, "Exploded View"

- Remove rocker cover. Refer to

EM-52, "Exploded View"

- Remove exhaust manifold. Refer to
