EC-422

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

ELECTRICAL LOAD SIGNAL

>> INSPECTION END

3.

CHECK HEADLAMP SYSTEM

Check headlamp system. Refer to

EXL-59, "Work Flow"

 (XENON TYPE) or

EXL-171, "Work Flow"

 (HALO-

GEN TYPE).

>> INSPECTION END

4.

CHECK HEATER FAN CONTROL SYSTEM

Check heater fan control system. Refer to

VTL-6, "VENTILATION SYSTEM (FRONT AIR CONDITIONING) :

System Description"

.

>> INSPECTION END

ELECTRONIC CONTROLLED ENGINE MOUNT

EC-423

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

ELECTRONIC CONTROLLED ENGINE MOUNT

Component Function Check

INFOID:0000000009651283

1.

CHECK OVERALL FUNCTION

1.

Start engine and warm it up to normal operating temperature.

2.

Shift selector position is D while depressing the brake pedal and parking brake pedal.

3.

Disconnect electronic controlled engine mount control solenoid valve harness connector.

4.

Check that body vibration increases compared to the condition of step 2 above (with vehicle stopped).

Is the inspection result normal?

YES

>> INSPECTION END

NO

>>

EC-423, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009651284

1.

CHECK VACUUM SOURCE

1.

Turn ignition switch OFF.

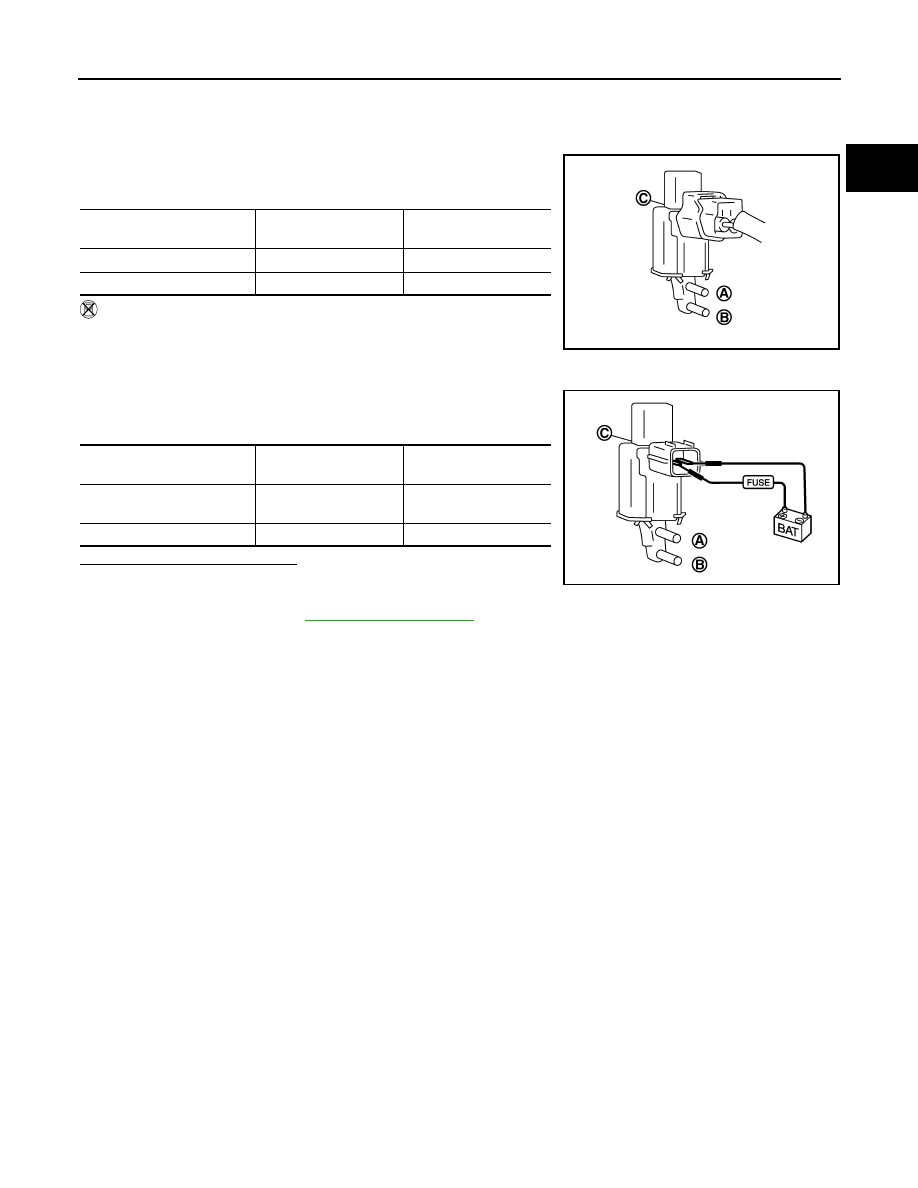

2.

Reconnect electronic controlled engine mount control solenoid valve harness connector.

3.

Disconnect vacuum hose connected to electronic controlled engine mount.

4.

Start engine and let it idle.

5.

Check vacuum hose for vacuum existence.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 2.

2.

CHECK VACUUM HOSES AND VACUUM GALLERY

1.

Turn ignition switch OFF.

2.

Check vacuum hoses and vacuum gallery for clogging, cracks or improper connection. Refer to

EC-46,

"ELECTRONIC CONTROLLED ENGINE MOUNT : System Description"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace vacuum hoses and vacuum gallery.

3.

CHECK ELECTRONIC CONTROLLED ENGINE MOUNT CONTROL SOLENOID VALVE POWER SUPPLY

1.

Disconnect electronic controlled engine mount control solenoid valve harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between front electronic controlled engine mount harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 4.

4.

CHECK ELECTRONIC CONTROLLED ENGINE MOUNT CONTROL SOLENOID VALVE POWER SUPPLY

CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect fuse block (J/B) harness connector.

3.

Check the continuity between electronic controlled engine mount harness connector and fuse block (J/B)
harness connector.

Vacuum should exist.

Electronic controlled engine mount

control solenoid valve

Ground

Voltage

Connector

Terminal

F11

1

Ground

Battery voltage

EC-424

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

ELECTRONIC CONTROLLED ENGINE MOUNT

Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

5.

CHECK ELECTRONIC CONTROLLED ENGINE MOUNT CONTROL SOLENOID VALVE OUTPUT SIG-

NAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check the continuity between ECM harness connector and electronic controlled engine mount control
solenoid valve harness connector.

3.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair open circuit, short to ground or short to power in harness connectors.

6.

CHECK ELECTRONIC CONTROLLED ENGINE MOUNT CONTROL SOLENOID VALVE

Check electronic controlled engine mount control solenoid valve. Refer to

EC-424, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace electronic controlled engine mount control solenoid valve. Refer to

EM-28, "Exploded

View"

.

7.

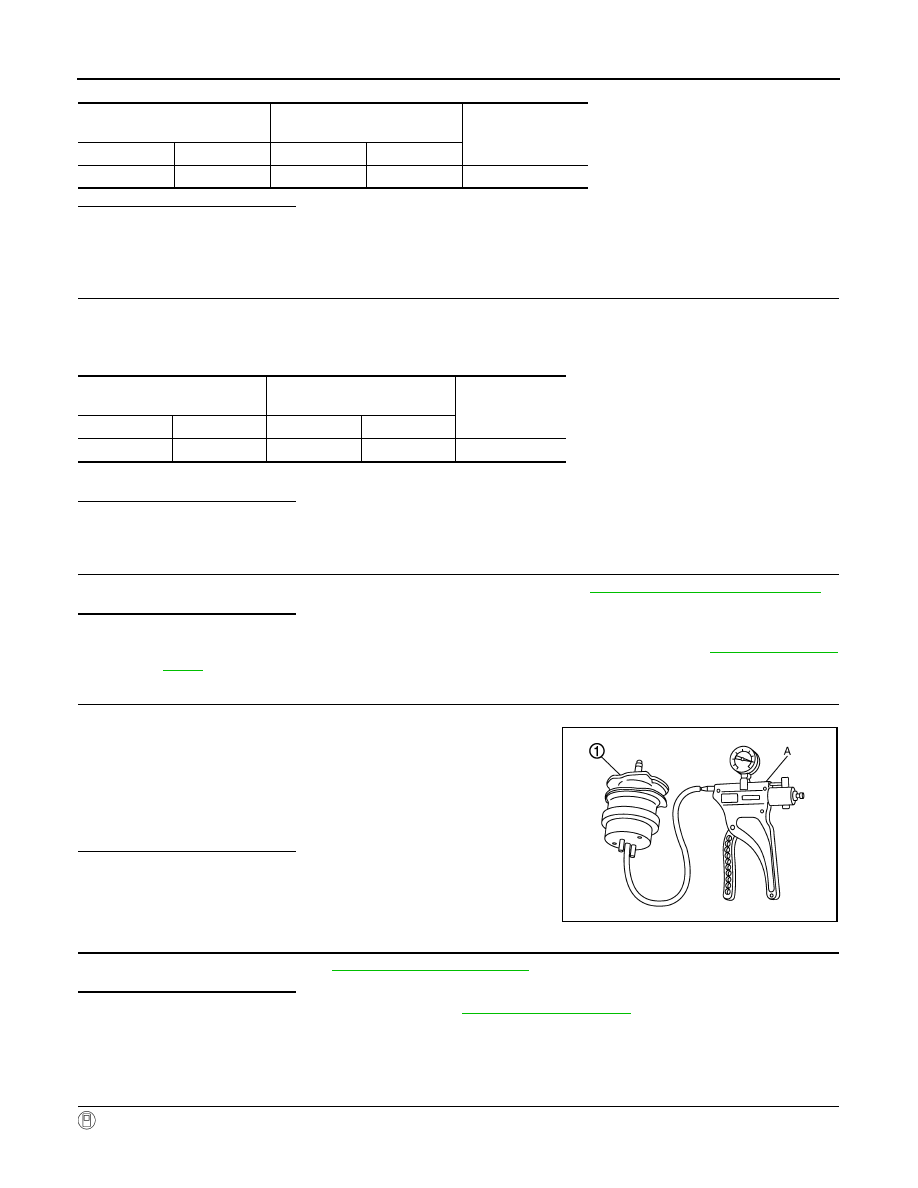

CHECK ELECTRONIC CONTROLLED ENGINE MOUNT

1.

Turn ignition switch OFF.

2.

Install vacuum pump (A) to electronic controlled engine mount
(1).

3.

Check that a vacuum is maintained when applying the vacuum
of -40 kPa (-0.41 kg/cm

2

, -5.8 psi) to electronic controlled engine

mount.

4.

Also visually check electronic controlled engine mount.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace electronic controlled engine mount.

8.

CHECK INTERMITTENT INCIDENT

Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace intake manifold collector. Refer to

EM-28, "Exploded View"

.

NO

>> Repair or replace error-detected parts.

Component Inspection

INFOID:0000000009651285

1.

CHECK ELECTRONIC CONTROLLED ENGINE MOUNT CONTROL SOLENOID VALVE

 With CONSULT

1.

Turn ignition switch OFF.

Electronic controlled engine

mount control solenoid valve

Fuse block (J/B)

Continuity

Connector

Terminal

Connector

Terminal

F11

1

E103

4F

Existed

ECM

Electronic controlled engine

mount control solenoid valve

Continuity

Connector

Terminal

Connector

Terminal

F7

38

F11

2

Existed

MBIB1237E

ELECTRONIC CONTROLLED ENGINE MOUNT

EC-425

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

Reconnect electronic controlled engine mount control solenoid valve harness connector.

3.

Disconnect vacuum hoses connected to electronic controlled engine mount control solenoid valve.

4.

Turn ignition switch ON.

5.

Select “ENGINE MOUNTING” in “ACTIVE TEST” mode with CONSULT.

6.

Check air passage continuity and operation delay time under the
following conditions.

 Without CONSULT

1.

Turn ignition switch OFF.

2.

Disconnect electronic controlled engine mount control solenoid
valve harness connector.

3.

Disconnect vacuum hoses connected to electronic controlled engine mount control solenoid valve.

4.

Check air passage continuity and operation delay time under the
following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace electronic controlled engine mount control sole-

noid valve. Refer to

EM-28, "Exploded View"

.

Condition

(ENGINE MOUNTING)

Air passage continuity

between (A) and (B)

Air passage continuity

between (A) and (C)

TRVL

Existed

Not existed

IDLE

Not existed

Existed

Condition

Air passage continuity

between (A) and (B)

Air passage continuity

between (A) and (C)

12 V direct current supply be-
tween terminals 1 and 2

Existed

Not existed

No supply

Not existed

Existed

JMBIA0180ZZ

PBIB2532E
