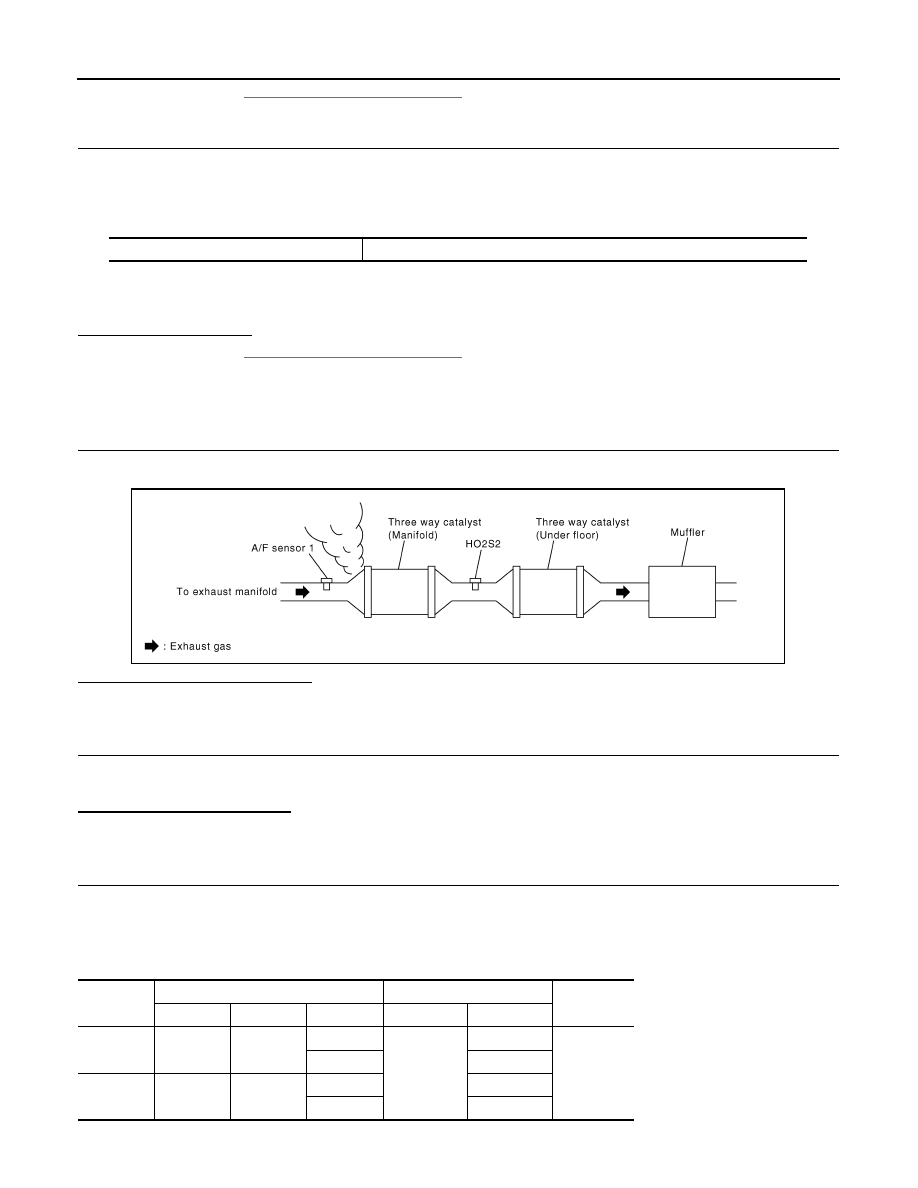

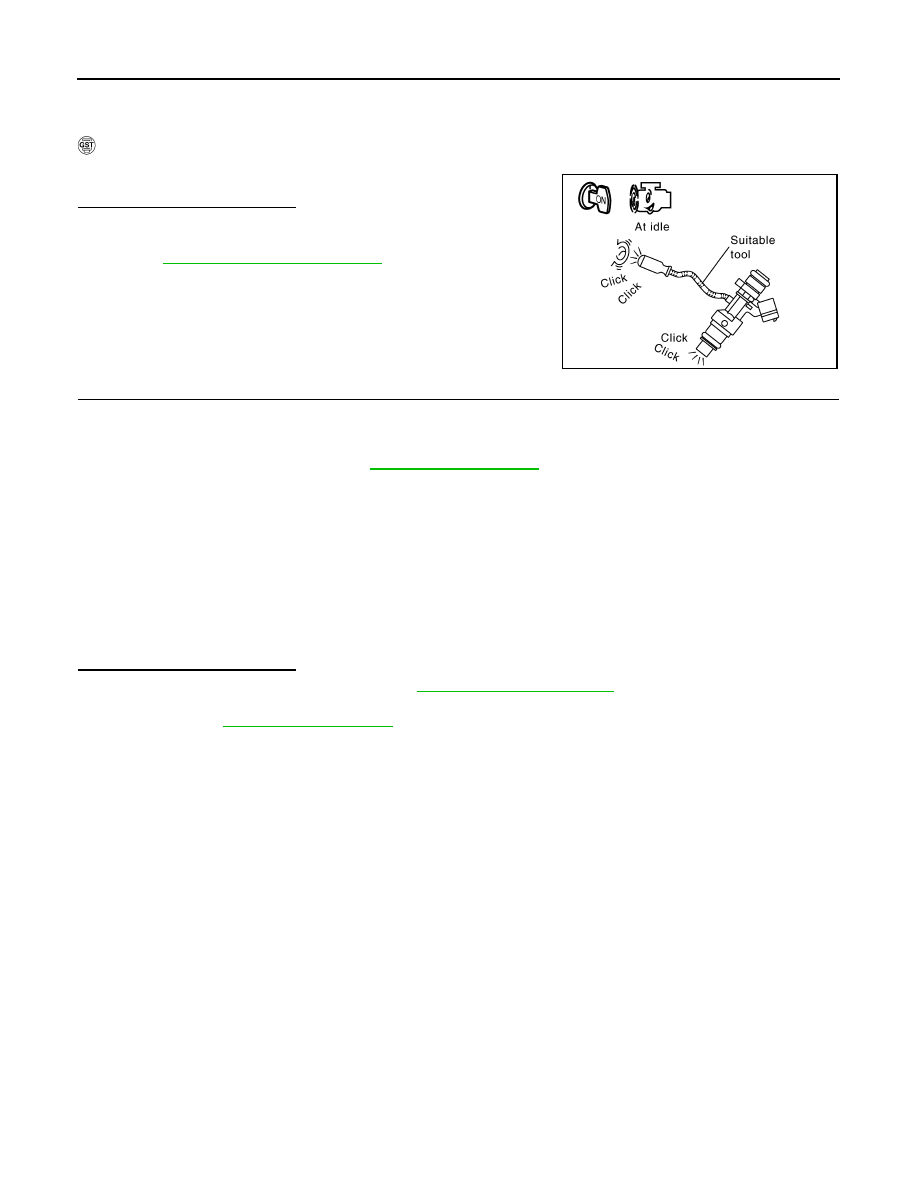

EC-242 < DTC/CIRCUIT DIAGNOSIS > [VQ35DE] P0171, P0174 FUEL INJECTION SYSTEM FUNCTION YES >> Proceed to . NO >> GO TO 5. 5. PERFORM DTC CONFIRMATION PROCEDURE-III 1. Turn ignition switch OFF and wait at least 10 seconds. 2. Start engine. 3. Maintain the following conditions for at least 10 consecutive minutes. CAUTION: Always drive vehicle at a safe speed. 4. Check 1st trip DTC. Is 1st trip DTC detected? YES >> Proceed to . NO >> INSPECTION END Diagnosis Procedure INFOID:0000000009651088 1. CHECK EXHAUST GAS LEAKAGE 1. Start engine and run it at idle. 2. Listen for an exhaust gas leakage before three way catalyst (manifold). Is exhaust gas leakage detected? YES >> Repair or replace malfunctioning part. NO >> GO TO 2. 2. CHECK FOR INTAKE AIR LEAKAGE 1. Listen for an intake air leakage after the mass air flow sensor. 2. Check PCV hose connection. Is intake air leakage detected? YES >> Repair or replace malfunctioning part. NO >> GO TO 3. 3. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect corresponding A/F sensor 1 harness connector. 3. Disconnect ECM harness connector. 4. Check the continuity between A/F sensor 1 harness connector and ECM harness connector. VHCL SPEED SE 50 - 120 km/h (31 - 75 mph) PBIB1216E DTC A/F sensor 1 ECM Continuity Bank Connector Terminal Connector Terminal P0171 1 F27 1 F8 69 Existed 2 73 P0174 2 F64 1 77 2 81 |
