EC-82

< ECU DIAGNOSIS INFORMATION >

[VQ35DE]

ECM

HO2S2 HTR (B2)

• Engine speed: Below 3,600 rpm after the following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at

idle for 1 minute under no load

ON

• Engine speed: Above 3,600 rpm

OFF

I/P PULLY SPD

• Vehicle speed: More than 20 km/h (12 MPH)

Almost the same speed as
the tachometer indication

VEHICLE SPEED

• Turn drive wheels and compare CONSULT value with the speedometer indi-

cation.

Almost the same speed as
the speedometer indication

IDL A/V LEARN

• Engine: Running

Idle air volume learning has not been per-
formed yet.

YET

Idle air volume learning has already been
performed successfully.

CMPLT

ENG OIL TEMP

• Engine: After warming up

More than 70

°

C (158

°

F)

TRVL AFTER MIL

• Ignition switch: ON

Vehicle has traveled after MIL has illumi-
nated.

0 - 65,535 km
(0 - 40,723 miles)

A/F S1 HTR (B1)

• Engine: After warming up, idle the engine

(More than 140 seconds after starting engine)

4 - 100%

A/F S1 HTR (B2)

• Engine: After warming up, idle the engine

(More than 140 seconds after starting engine)

4 - 100%

AC PRESS SEN

• Engine: Idle
• Both A/C switch and blower fan switch: ON (Compressor operates)

1.0 - 4.0 V

VHCL SPEED SE

• Turn drive wheels and compare CONSULT value with the speedometer indi-

cation.

Almost the same speed as
the speedometer indication

SET VHCL SPD

• Engine: Running

ASCD: Operating

The preset vehicle speed is
displayed

MAIN SW

• Ignition switch: ON

MAIN switch: Pressed

ON

MAIN switch: Released

OFF

CANCEL SW

• Ignition switch: ON

CANCEL switch: Pressed

ON

CANCEL switch: Released

OFF

RESUME/ACC SW

• Ignition switch: ON

RESUME/ACCELERATE switch:
Pressed

ON

RESUME/ACCELERATE switch: Re-
leased

OFF

SET SW

• Ignition switch: ON

SET/COAST switch: Pressed

ON

SET/COAST switch: Released

OFF

BRAKE SW1
(ASCD brake switch)

• Ignition switch: ON

Brake pedal: Fully released

ON

Brake pedal: Slightly depressed

OFF

BRAKE SW2
(Stop lamp switch)

• Ignition switch: ON

Brake pedal: Fully released

OFF

Brake pedal: Slightly depressed

ON

VHCL SPD CUT

• Ignition switch: ON

NON

LO SPEED CUT

• Ignition switch: ON

NON

AT OD MONITOR

• Ignition switch: ON

OFF

AT OD CANCEL

• Ignition switch: ON

OFF

CRUISE LAMP

• Ignition switch: ON

MAIN switch: Pressed at the 1st time

→



at the 2nd time

ON

→

 OFF

SET LAMP

• MAIN switch: ON
• When vehicle speed is between

40 km/h (25 MPH) and 144 km/h
(89 MPH)

ASCD: Operating

ON

ASCD: Not operating

OFF

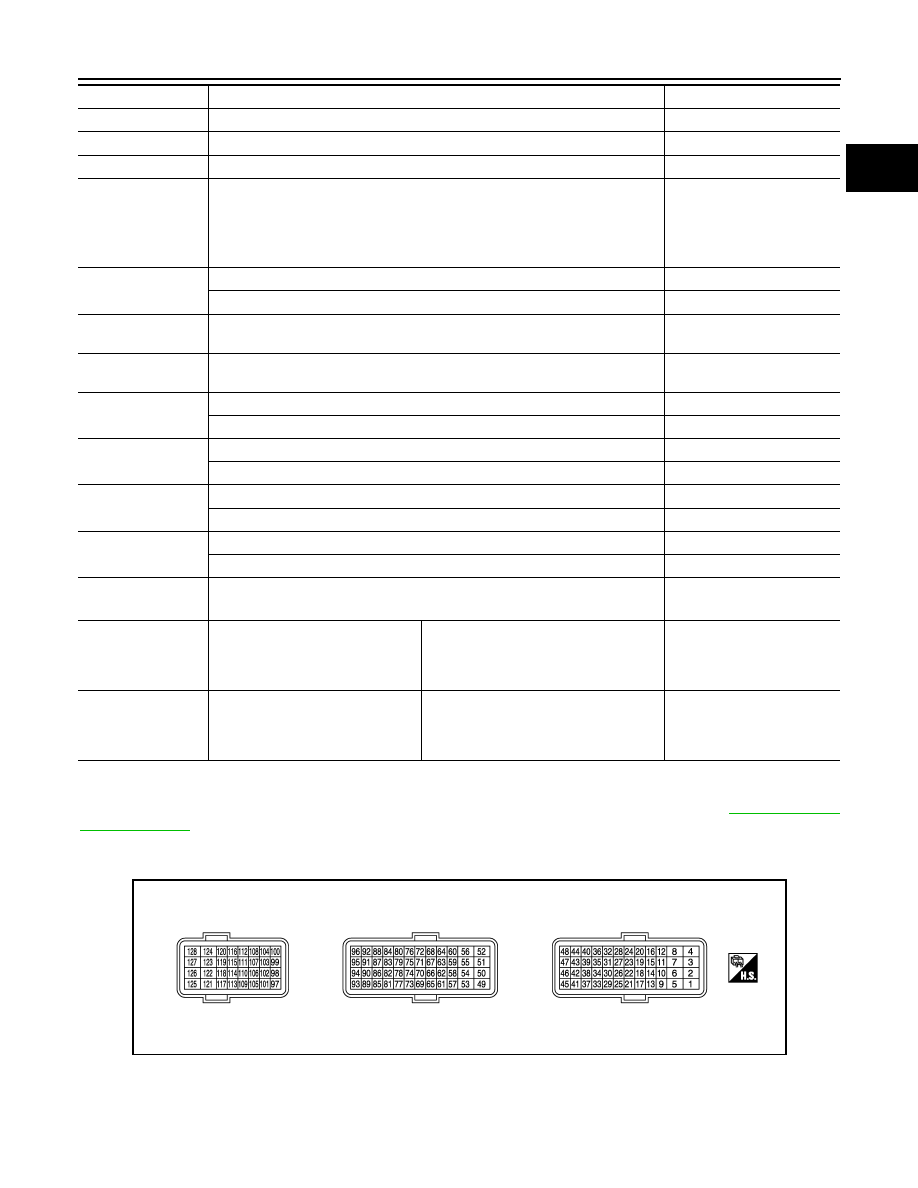

Monitor Item

Condition

Values/Status

ECM

EC-83

< ECU DIAGNOSIS INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

*1: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM inter-
nally. Thus, they differ from ECM terminals voltage signal.
*2: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to

PG-97, "How to

Handle Battery"

.

*3: The item is indicated, but not used.

TERMINAL LAYOUT

PHYSICAL VALUES

NOTE:
• ECM is located in the engine room left side near battery.

ALT DUTY

• Engine: Idle

0 - 80%

A/F ADJ-B1

• Engine: Running

−

0.330 - 0.330

A/F ADJ-B2

• Engine: Running

−

0.330 - 0.330

BAT CUR SEN

• Engine speed: Idle

• Battery: Fully charged*

2

• Selector lever: P or N position
• Air conditioner switch: OFF
• No  load

Approx. 2,600 - 3,500 mV

ALT DUTY SIG

• Power generation voltage variable control: Operating

ON

• Power generation voltage variable control: Not operating

OFF

EVAP LEAK DIAG

Ignition switch: ON

Indicates the condition of

EVAP leak diagnosis.

EVAP DIAG READY

Ignition switch: ON

Indicates the ready condition

of EVAP leak diagnosis.

HO2 S2 DIAG1 (B1)

DTC P0139 self-diagnosis (delayed response) is incomplete.

INCMP

DTC P0139 self-diagnosis (delayed response) is complete.

CMPLT

HO2 S2 DIAG1 (B2)

DTC P0159 self-diagnosis (delayed response) is incomplete.

INCMP

DTC P0159 self-diagnosis (delayed response) is complete.

CMPLT

HO2 S2 DIAG2 (B1)

DTC P0139 self-diagnosis (slow response) is incomplete.

INCMP

DTC P0139 self-diagnosis (slow response) is complete.

CMPLT

HO2 S2 DIAG2 (B2)

DTC P0159 self-diagnosis (slow response) is incomplete.

INCMP

DTC P0159 self-diagnosis (slow response) is complete.

CMPLT

THRTL STK CNT

B1

*3

—

—

BAT TEMP SEN

• Engine: After warming up
• Selector lever: P or N position
• Air conditioner switch: OFF
• No  load

Idle

Indicates the temperature
around the battery.

FUEL PUMP DUTY

• Engine: After warming up
• Selector lever: P or N position
• Air conditioner switch: OFF
• No  load

Idle

30 – 40%

Monitor Item

Condition

Values/Status

JSBIA0505ZZ

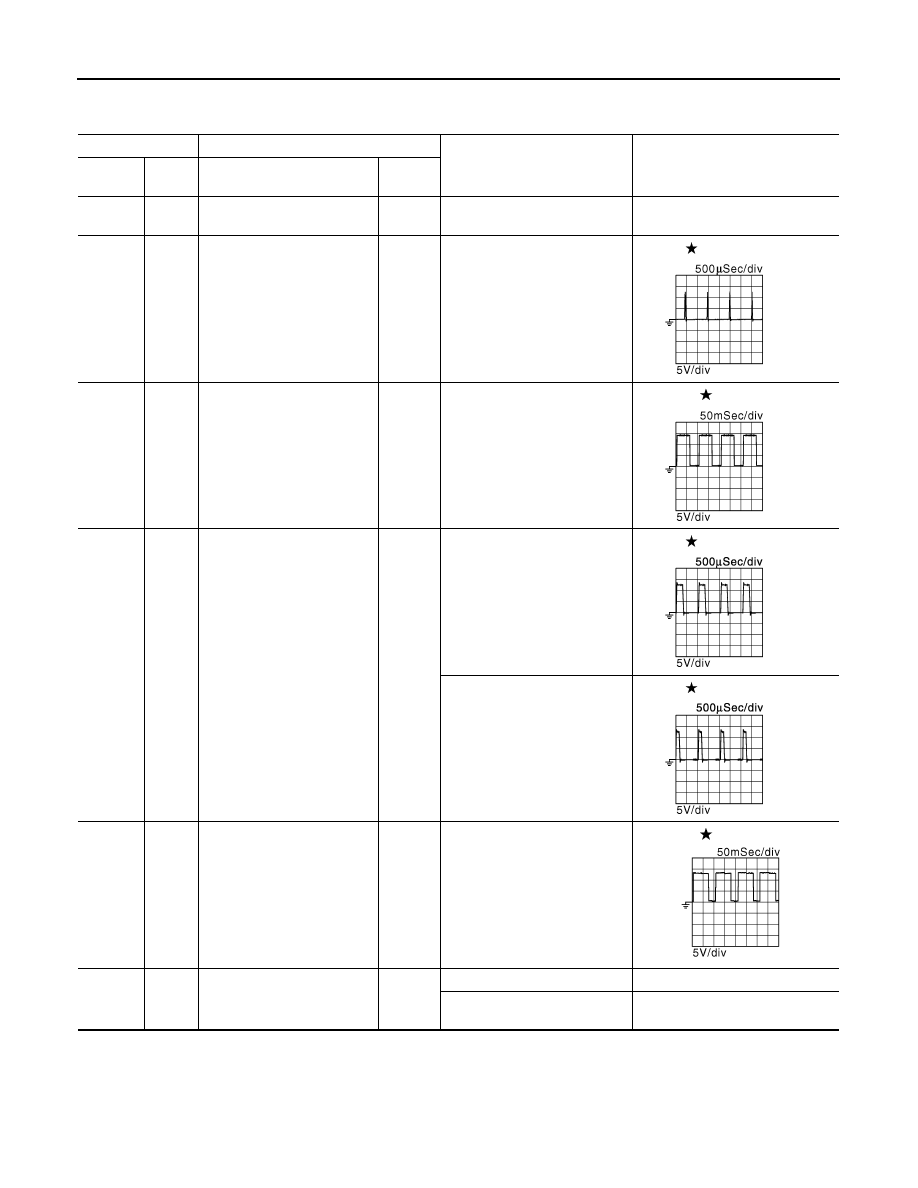

EC-84

< ECU DIAGNOSIS INFORMATION >

[VQ35DE]

ECM

• Specification data are reference values.
• Pulse signal is measured by CONSULT.

Terminal No.

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output

1

(G/W)

128

(B)

Throttle control motor power
supply

Input

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14 V)

2

(P)

128

(B)

Throttle control motor (Close)

Output

[Ignition switch: ON]
• Engine stopped
• Selector lever: D position
• Accelerator pedal: Fully re-

leased

0 - 14 V

3

(SB)

128

(B)

A/F sensor 1 heater (bank 2)

Output

[Engine is running]
• Warm-up condition
• Idle speed

(More than 140 seconds after
starting engine)

2.9 - 8.8 V

5

(L)

128

(B)

Throttle control motor (Open)

Output

[Ignition switch: ON]
• Engine stopped
• Selector lever: D position
• Accelerator pedal: Fully de-

pressed

0 - 14 V

[Ignition switch: ON]
• Engine stopped
• Selector lever: D position
• Accelerator pedal: Fully re-

leased

0 - 14 V

6

(BR/Y)

128

(B)

A/F sensor 1 heater
(bank 1)

Output

[Engine is running]
• Warm-up condition
• Idle speed

(More than 140 seconds after
starting engine)

2.9 - 8.8 V

8

(P)

128

(B)

Starter motor relay cut off sig-
nal

Output

[Ignition switch: ON]

0 V

[Engine is running]
• Idle speed

BATTERY VOLTAGE
(11 - 14 V)

JMBIA1125GB

JMBIA0030GB

JMBIA0031GB

JMBIA0032GB

JMBIA0902GB

ECM

EC-85

< ECU DIAGNOSIS INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

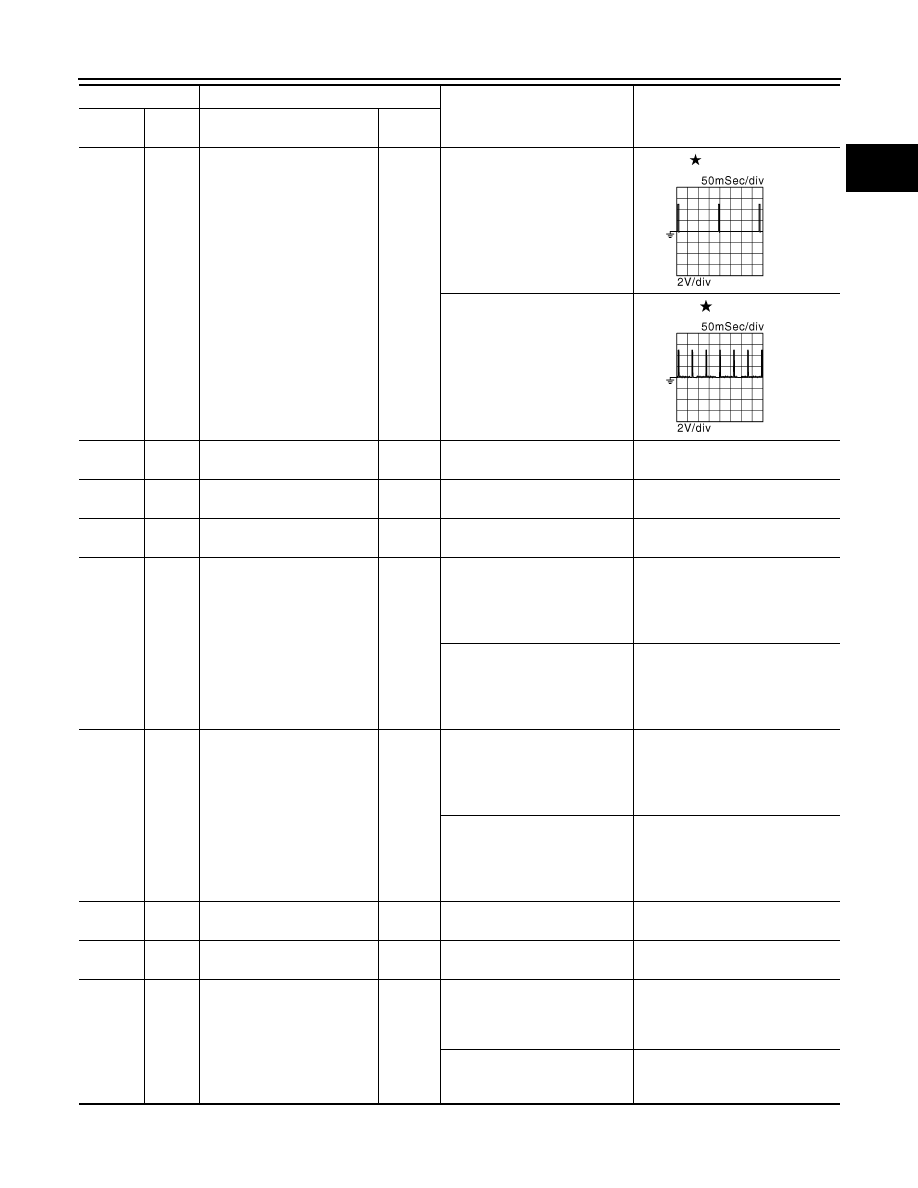

9

(L/B)

128

(B)

Ignition signal No. 3

Output

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes de-
pending on rpm at idle

0 - 0.2 V

10

(G/R)

Ignition signal No. 2

11

(Y/R)

Ignition signal No. 1

13

(GR/R)

Ignition signal No. 6

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

0.1 - 0.4 V

14

(P)

Ignition signal No. 5

15

(W)

Ignition signal No. 4

12

(B)

—

ECM ground

—

—

—

16

(B/Y)

—

ECM ground

—

—

—

19

(B)

—

Sensor ground
(Throttle position sensor)

—

—

—

22

(W)

128

(B)

Throttle position sensor 1

Input

[Ignition switch: ON]
• Engine stopped
• Selector lever: D position
• Accelerator pedal: Fully re-

leased

More than 0.36 V

[Ignition switch: ON]
• Engine stopped
• Selector lever: D position
• Accelerator pedal: Fully de-

pressed

Less than 4.75 V

23

(R)

128

(B)

Throttle position sensor 2

Input

[Ignition switch: ON]
• Engine stopped
• Selector lever: D position
• Accelerator pedal: Fully re-

leased

Less than 4.75 V

[Ignition switch: ON]
• Engine stopped
• Selector lever: D position
• Accelerator pedal: Fully de-

pressed

More than 0.36 V

24

(G)

19

(B)

Sensor power supply
(Throttle position sensor)

—

[Ignition switch: ON]

5 V

26

(W/L)

128

(B)

Power supply for ECM (Back-
up)

Input

[Ignition switch: OFF]

BATTERY VOLTAGE
(11 - 14 V)

31

(W/B)

128

(B)

ECM relay
(Self shut-off)

Output

[Engine is running]
[Ignition switch: OFF]
• A few seconds after turning

ignition switch OFF

0 - 1.5 V

[Ignition switch: OFF]
• More than a few seconds after

turning ignition switch OFF

BATTERY VOLTAGE
(11 - 14 V)

Terminal No.

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output

JMBIA0035GB

JMBIA0036GB
