Nissan Quest E52. Manual - part 447

DLK-502

< REMOVAL AND INSTALLATION >

SLIDING DOOR LOCK ACTUATOR

SLIDING DOOR LOCK ACTUATOR

Removal and Installation

INFOID:0000000009649520

REMOVAL

1.

Remove the remote control assembly. Refer to

DLK-473, "REMOTE CONTROL ASSEMBLY : Removal

and Installation"

.

2.

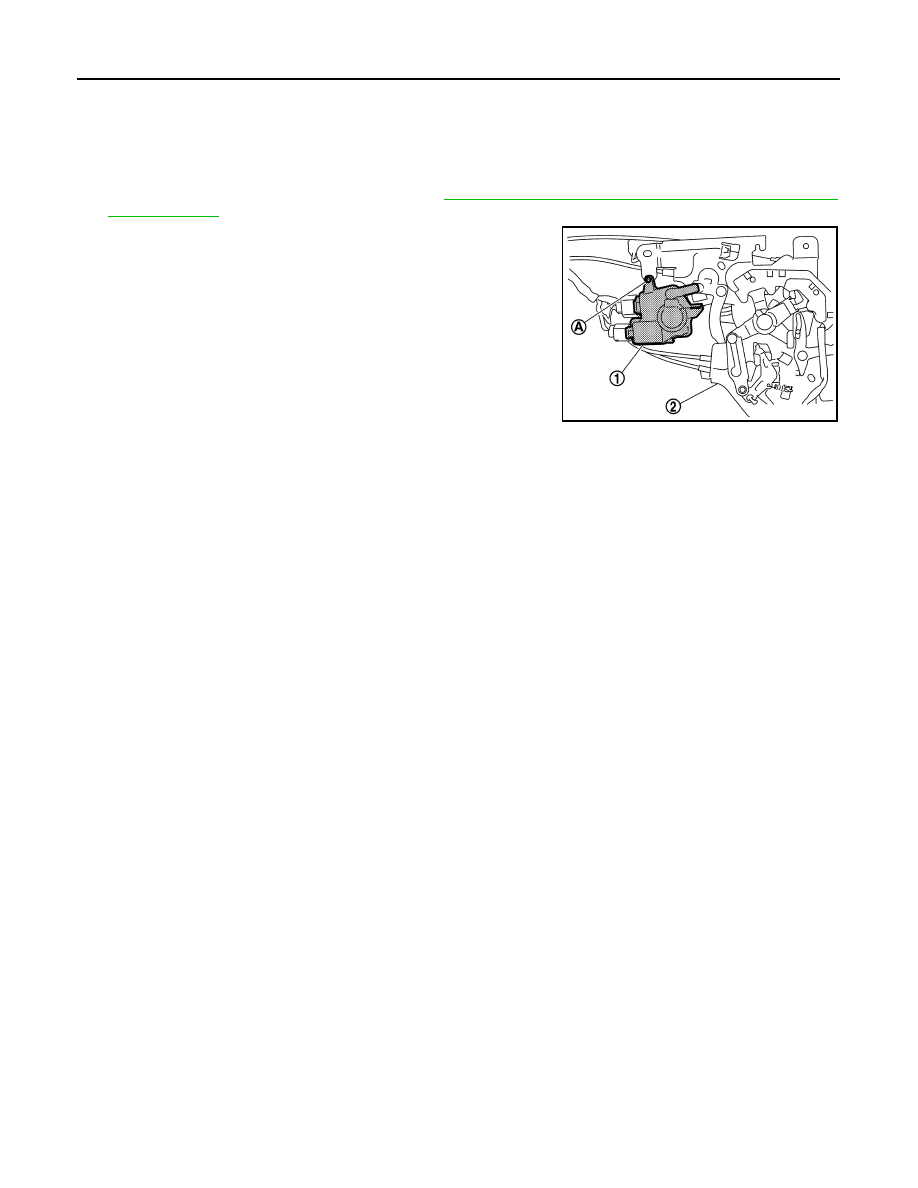

Remove the sliding door lock actuator mounting screw (A), and
then remove the sliding door lock actuator (1) from remote con-
trol assembly (2).

INSTALLATION

Install in the reverse order of removal.

JMKIA6054ZZ

AUTOMATIC SLIDING DOOR WARNING BUZZER

DLK-503

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC SLIDING DOOR WARNING BUZZER

Removal and Installation

INFOID:0000000009649521

REMOVAL

1.

Remove the luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2.

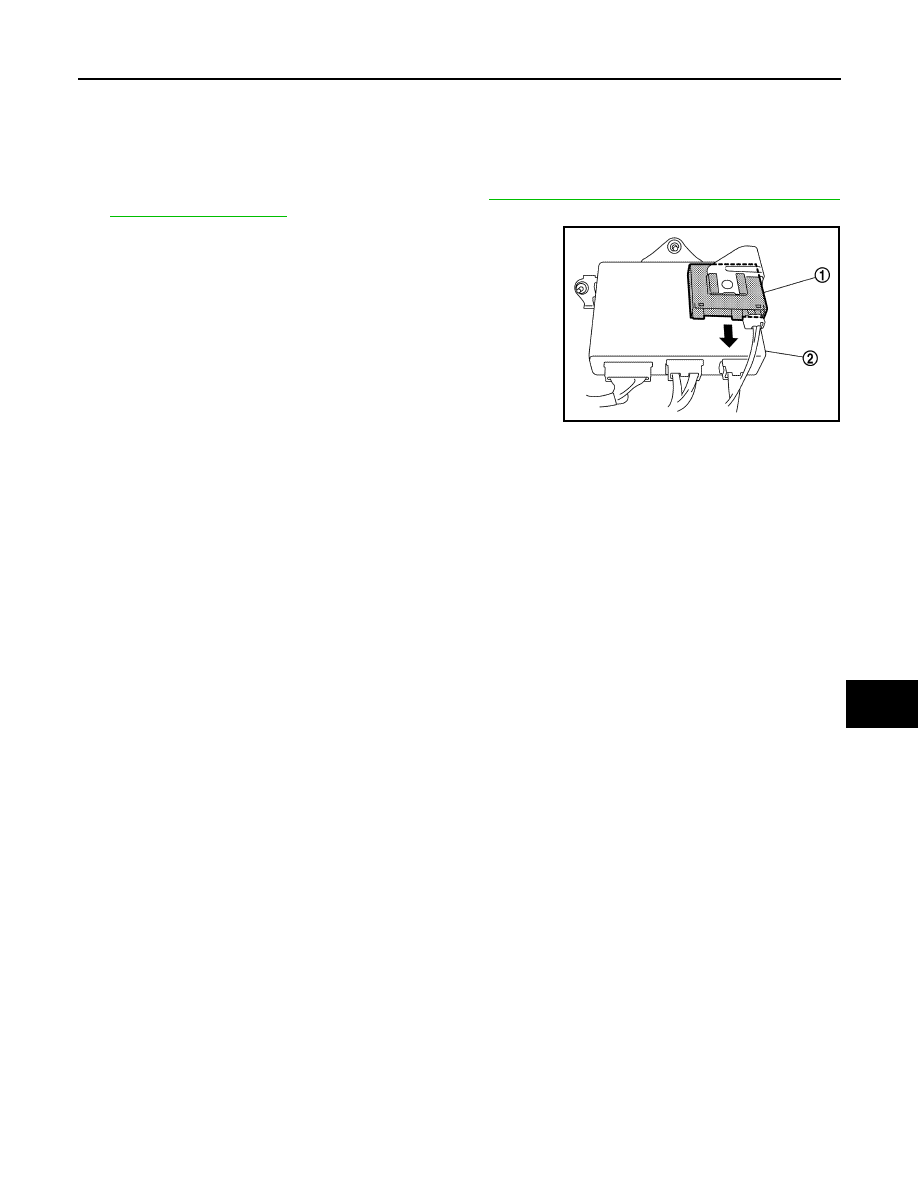

Remove automatic sliding door warning buzzer (1) from sliding
door control unit (2).

INSTALLATION

Install in the reverse order of removal.

JMKIA6053ZZ

DLK-504

< REMOVAL AND INSTALLATION >

SLIDING DOOR ONE-TOUCH OPEN/CLOSE SWITCH

SLIDING DOOR ONE-TOUCH OPEN/CLOSE SWITCH

Removal and Installation

INFOID:0000000009649522

REMOVAL

Remove outside handle escutcheon. Refer to

DLK-471, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.
