DLK-494

< REMOVAL AND INSTALLATION >

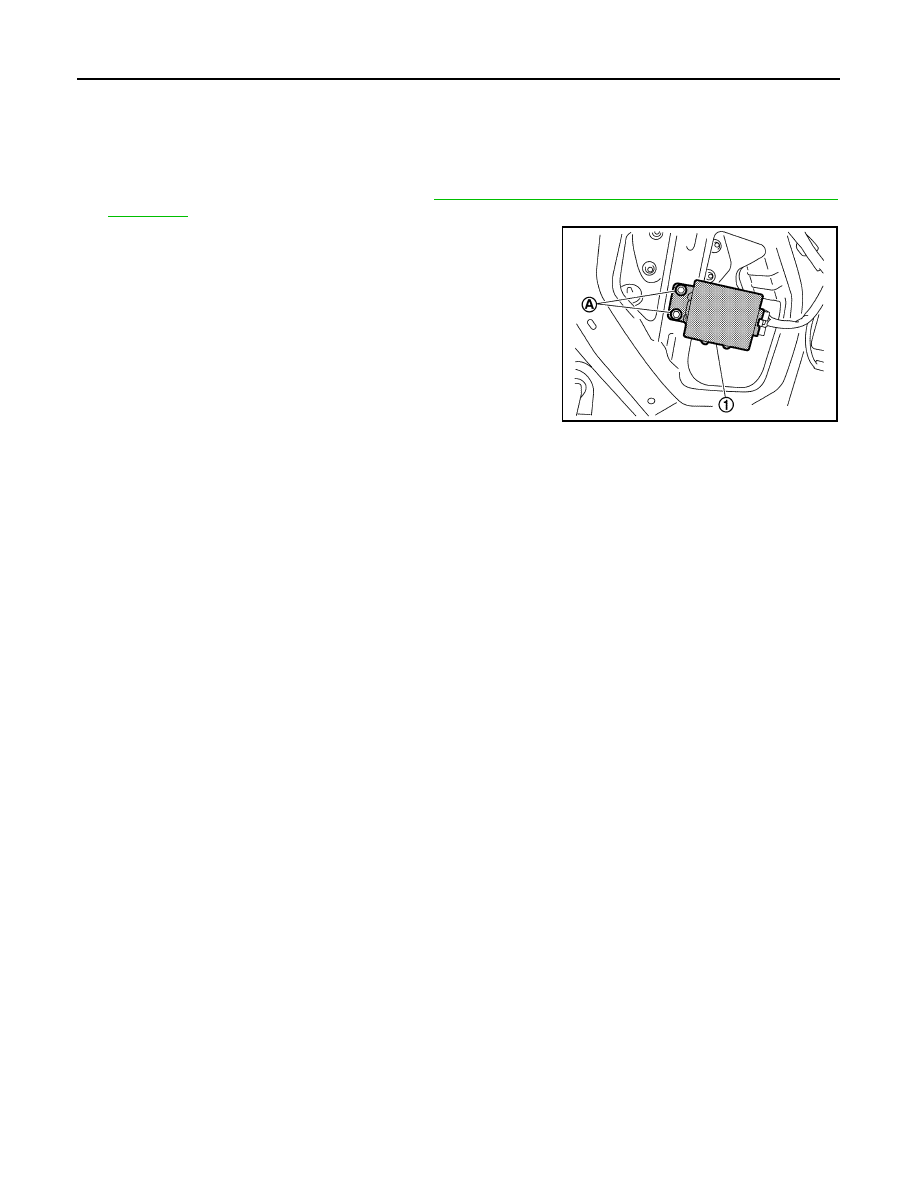

BACK DOOR CONTROL UNIT

BACK DOOR CONTROL UNIT

Removal and Installation

INFOID:0000000009649508

REMOVAL

1.

Remove the back door lower finisher. Refer to

INT-48, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

2.

Remove the back door control unit mounting bolt (A), and then
remove the back door control unit (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA6051ZZ

AUTOMATIC BACK DOOR CONTROL MODULE

DLK-495

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

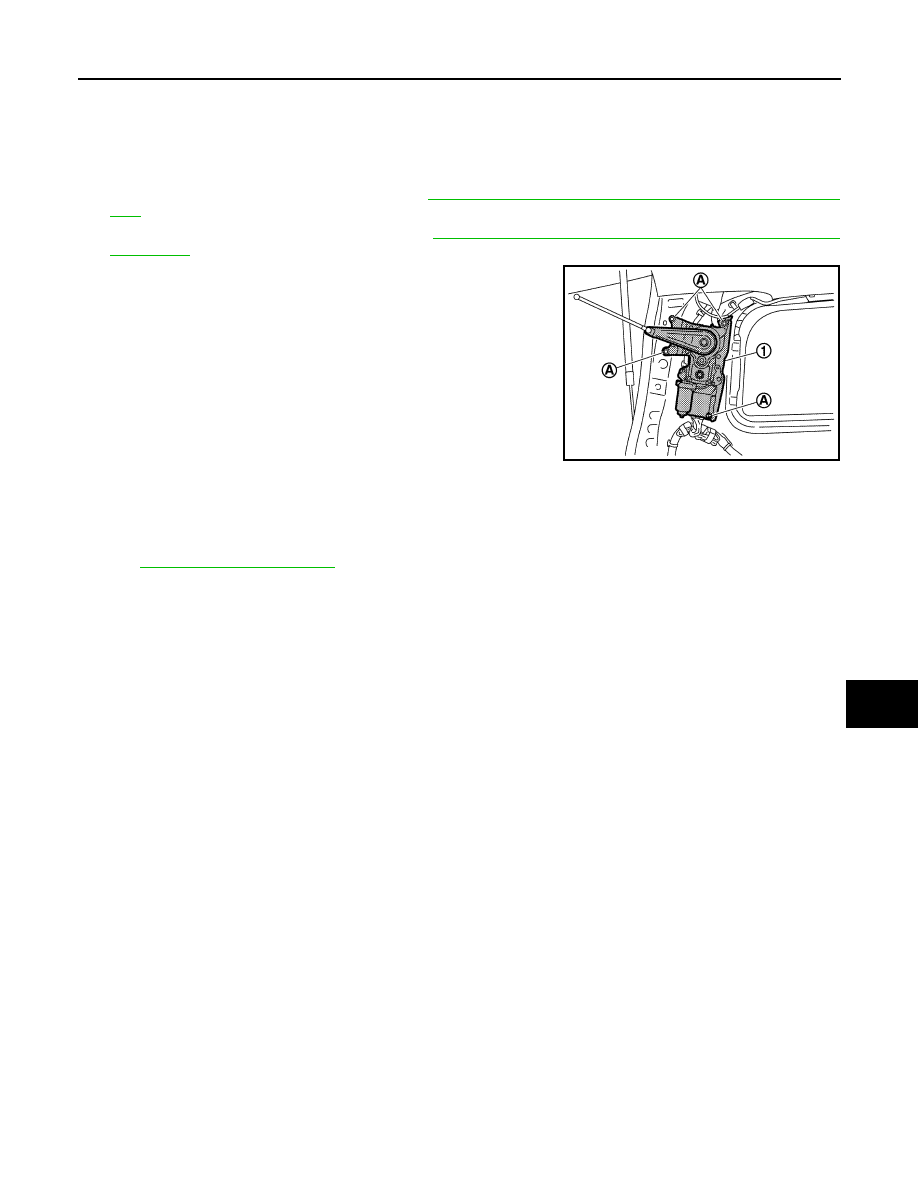

AUTOMATIC BACK DOOR CONTROL MODULE

Removal and Installation

INFOID:0000000009649509

REMOVAL

1.

Remove the back pillar garnish LH. Refer to

INT-27, "BACK PILLAR GARNISH : Removal and Installa-

tion"

.

2.

Remove the back door support rod. Refer to

DLK-477, "BACK DOOR SUPPORT ROD : Removal and

Installation"

.

3.

Remove the automatic back door control module mounting bolt
(A), and then remove the automatic back door control module
(1).

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing automatic back door control module, perform additional service when replace control unit.
Refer to

DLK-169, "Work Procedure"

.

JMKIA6044ZZ

DLK-496

< REMOVAL AND INSTALLATION >

AUTOMATIC BACK DOOR WARNING BUZZER

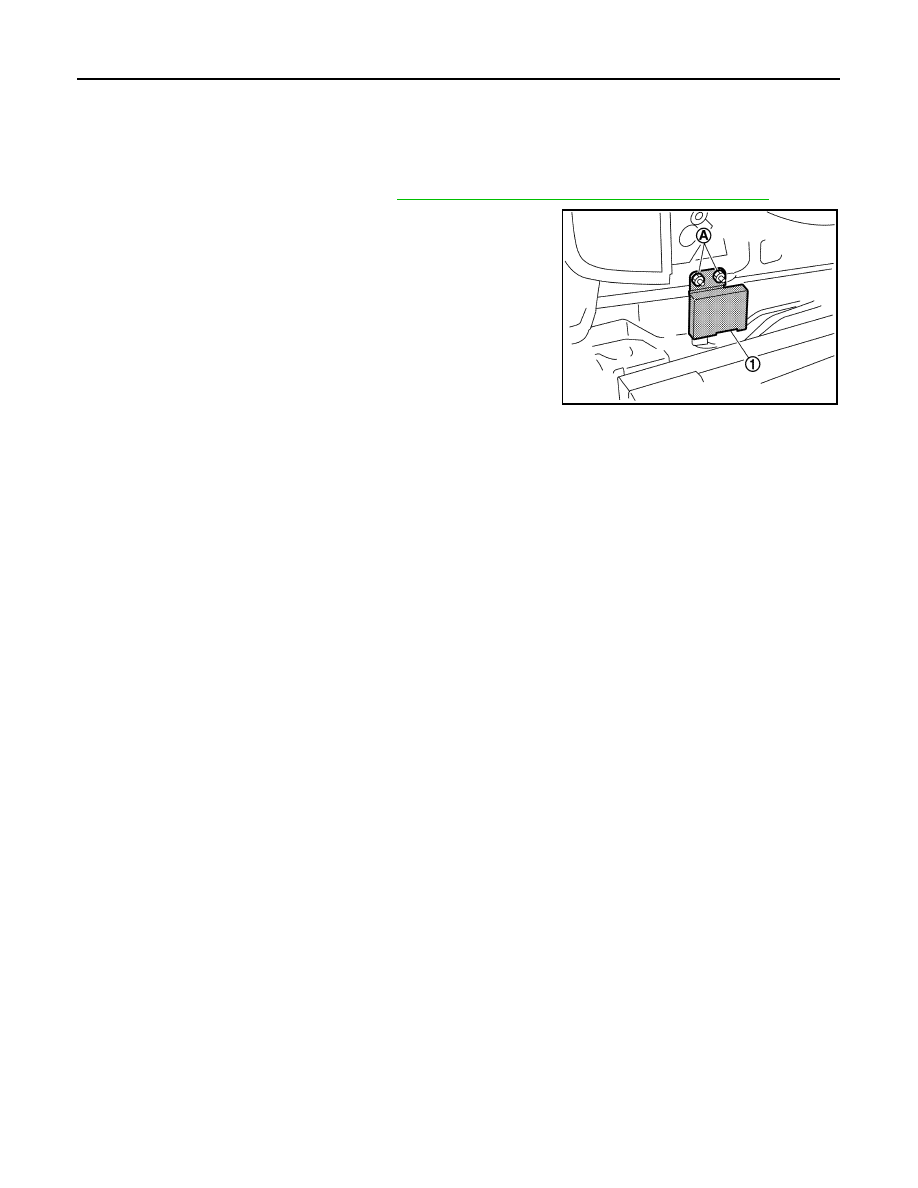

AUTOMATIC BACK DOOR WARNING BUZZER

Removal and Installation

INFOID:0000000009649510

REMOVAL

1.

Remove the rear bumper fascia. Refer to

EXT-16, "REAR BUMPER : Removal and Installation"

.

2.

Remove the automatic back door warning buzzer mounting bolt
(A), and then remove the automatic back door warning buzzer
(1).

INSTALLATION

Install in the reverse order of removal.

JMKIA6046ZZ

AUTOMATIC DOOR MAIN SWITCH

DLK-497

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

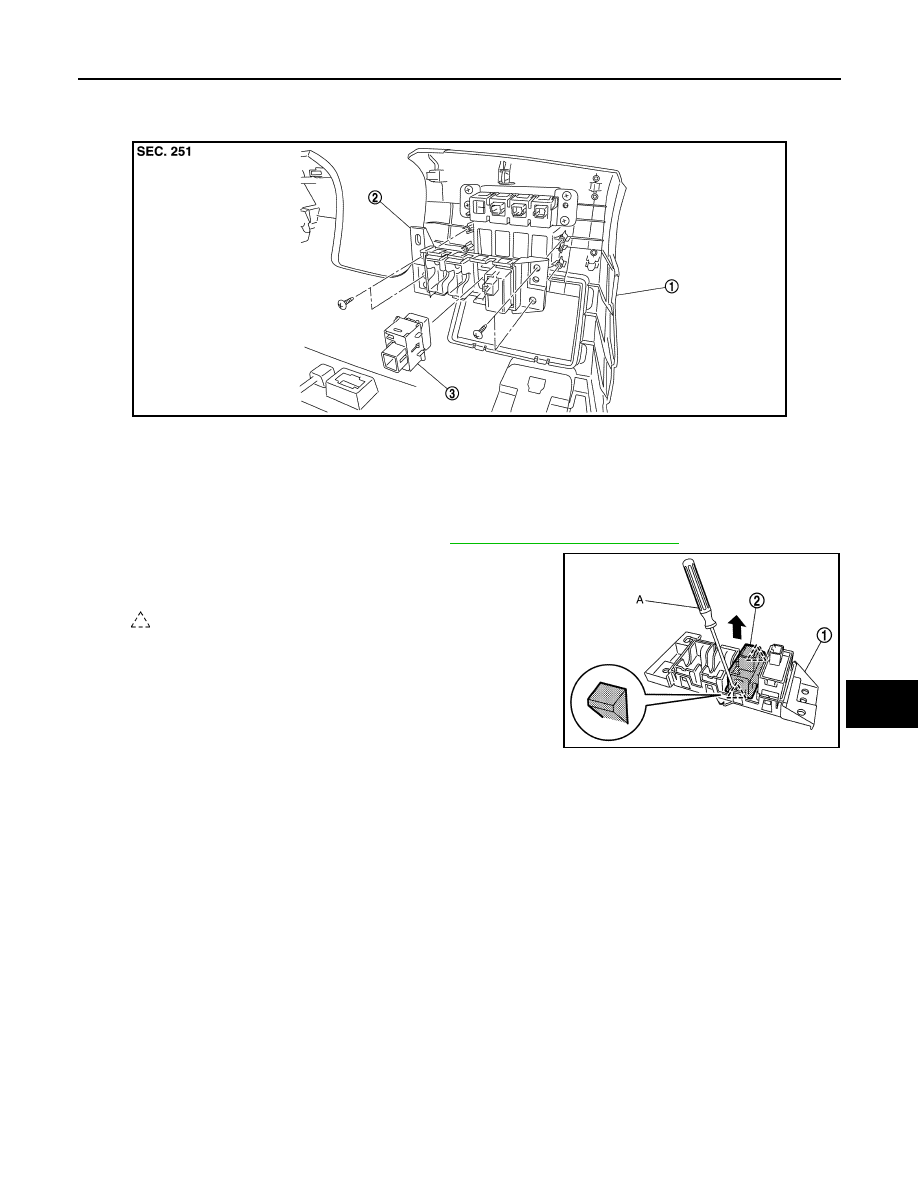

AUTOMATIC DOOR MAIN SWITCH

Exploded View

INFOID:0000000009649511

Removal and Installation

INFOID:0000000009649512

REMOVAL

1.

Remove the instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2.

Removed automatic door main switch (1) from switch bracket
lower (2) using remover tool (A).

INSTALLATION

Install in the reverse order of removal.

JMKIA8177ZZ

1.

Instrument lower panel LH

2.

Switch bracket lower

3.

Automatic door main switch

: Pawl

JMKIA8178ZZ
