BACK DOOR CONTROL UNIT

BACK DOOR CONTROL UNIT

Reference Value

INFOID:0000000009649023

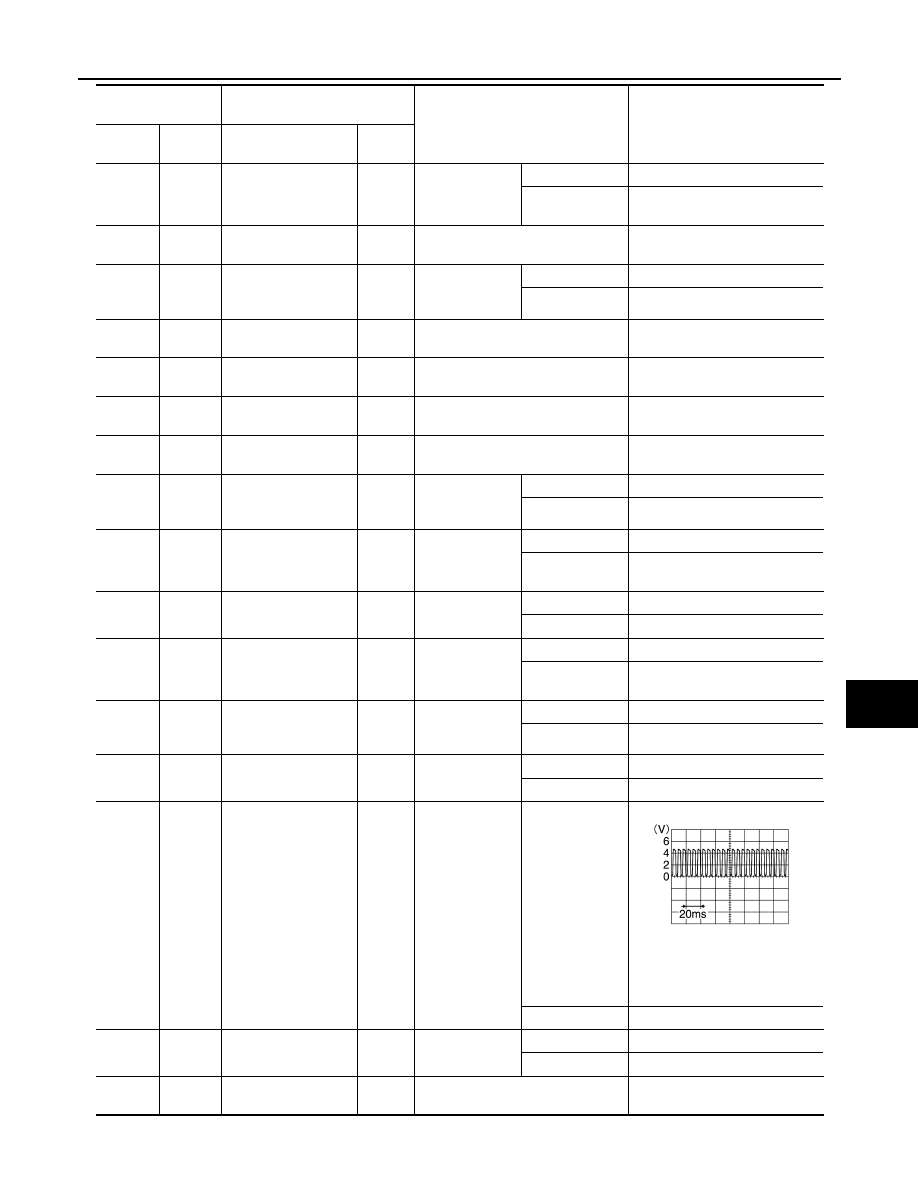

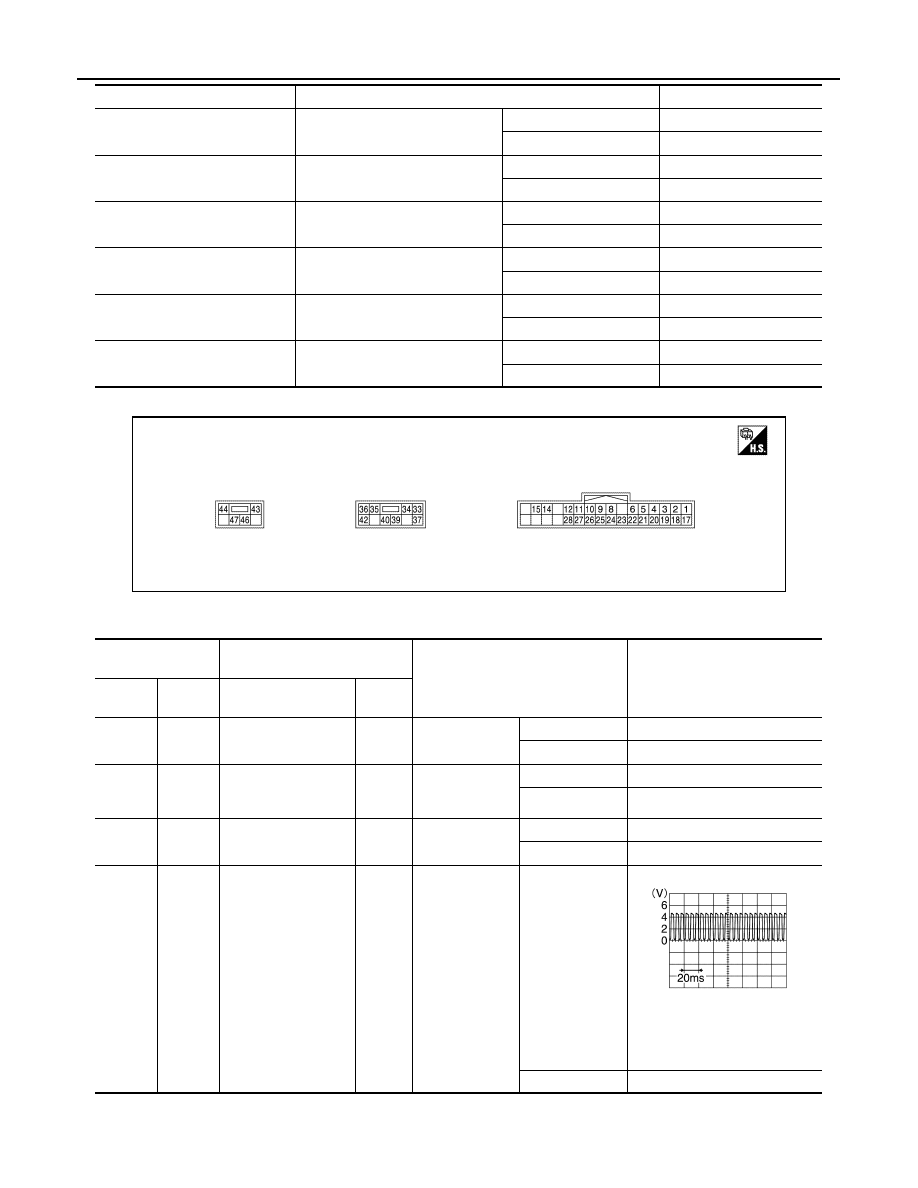

TERMINAL LAYOUT

PHYSICAL VALUES

JMKIA6074ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage

(+)

(–)

Signal name

Input/

Output

1

(L)

Ground

Close switch signal

Input

Closure motor

Stop

8 - 16 V

Close operation

8 - 16 V

Open operation

0 - 1.5 V

2

(GR)

Ground

Half-latch switch signal

Input

Back door

Open

0 - 1.5 V

Fully closed/half latch

3.5 - 5.5 V

3

(G)

Ground

Battery power supply

Input

—

8 - 16 V

4

(V)

Ground

Back door closure mo-
tor (close)

Output

Back door

Close operation

5 - 16 V

Other than above

0 - 1.5 V

5

(O)

Ground

Open switch signal

Input

Closure motor

Stop

8 - 16 V

Close operation

0 - 1.5 V

Open operation

8 - 16 V

6

(BR)

Ground

Back door open re-
quest signal

Input

Back door opener
switch

Pressed

0 - 1.5 V

Released

8 - 16 V

7

(B)

Ground

Ground

—

—

—

0 - 1.5 V

8

(B/W)

Ground

Ground

—

—

—

0 - 1.5 V

10

(G)

Ground

Back door closure mo-
tor (open)

Output

Back door

Open operation

5 - 16 V

Other than above

0 - 1.5 V

SLIDING DOOR CONTROL UNIT

DLK-111

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SLIDING DOOR CONTROL UNIT

LH

LH : Reference Value

INFOID:0000000009649024

CONSULT MONITOR ITEM

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor Item

Condition

Value/Status

SPEED METER

While driving

Equivalent to speedometer

reading

ABS SPEED

While driving

Equivalent to speedometer

reading

MAIN SW

Automatic door main switch

OFF

OFF

ON

ON

KNOB LCK SW L

Sliding door lock knob LH

Lock

OFF

Unlock

ON

ONE-TOUCH SW

Sliding door one-touch open/close
switch LH

Release

OFF

Press

ON

F LID SW

Fuel filler lid status switch

OFF

OFF

ON

ON

B PILLER SW

Sliding door open/close switch
(rear LH)

Release

OFF

Press

ON

DRIVER SW

Sliding door open/close switch
(front LH)

Release

OFF

Press

ON

ACC On SW

Ignition position

Other than below

OFF

ON, ACC position

ON

DOR HAND SW L

Sliding door handle LH

Release

OFF

Pull

ON

TOUCH SEN LH

Sliding door touch sensor LH

Other than below

OFF

Pinching detection

ON

RR-LH DOOR SW

Sliding door LH

Close

OFF

Open

ON

HAF LATC SW L

Sliding door LH

Half latch/fully closed

OFF

Open

ON

P RANGE SW

Selector lever

Other than P position

OFF

P position

ON

BRAKE SW

Brake pedal

Not depressed

OFF

Depressed

ON

P BRAKE SW

Parking brake

Not operate

OFF

Operate

ON

KEYLESS SIG

Intelligent Key button (sliding door
LH)

Pressed for short period
of time

REV

Pressed for long period of
time

MOVE

No operation

OFF

DLK-112

< ECU DIAGNOSIS INFORMATION >

SLIDING DOOR CONTROL UNIT

TERMINAL LAYOUT

PHYSICAL VALUES

IGN SW

Ignition position

Other than below

OFF

ON position

ON

ENCODER A LH

Sliding door LH

Moving (auto or manual)

HI

⇔

 LO

When stopped

HI or LO

ENCODER B LH

Sliding door LH

Moving (auto or manual)

HI

⇔

 LO

When stopped

HI or LO

CHILD LOCK SW

Child lock

Lock

OFF

Unlock

ON

FULL LATC SW L

Sliding door LH

Full closed

OFF

Other than below

ON

NEUTRAL SW

Sliding door closure motor LH

Neutral position

OFF

Other than below

ON

Monitor Item

Condition

Value/Status

JMKIA8170ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage

(+)

(–)

Signal name

Input/

Output

1

(Y)

Ground

Automatic door main
switch

Input

Automatic door
main switch

OFF

8 – 16 V

ON

0 – 1.5 V

2

(R)

Ground

Sliding door open/
close switch (rear LH)

Input

Sliding door
open/close
switch (rear LH)

Released

8 – 16 V

Pressed

0 – 1.5 V

3

(SB)

Ground

Sliding door lock sta-
tus switch

Input

Sliding door lock
knob

Unlock

0 – 1.5 V

Lock

8 – 16 V

4

(GR)

Ground

Encoder A signal

Input

Sliding door LH

Moving (auto or
manual)

NOTE:
Waveform width changes ac-
cording to sliding door open/
close speed

When stopped

4 V or 0 – 0.5 V

JMKIA6157ZZ

SLIDING DOOR CONTROL UNIT

DLK-113

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5

(LG)

Ground

Half latch switch

Input

Sliding door LH

Open

0 – 1.5 V

Full closed/half
latch

8 – 16 V

6

(W)

Ground

Power supply (IGN)

Input

Ignition switch ON

9 – 16 V

8

(W)

Ground

Automatic sliding
door warning buzzer

Output

Automatic slid-
ing door warning
buzzer LH

Sounding

0 – 1.5 V

Not sounding

8 – 16 V

9

(P)

Ground

CAN - L

Input/

Output

—

—

10

(L)

Ground

CAN - H

Input/

Output

—

—

11

(O)

Ground

Encoder power sup-
ply

Output

Ignition switch OFF

8 – 16 V

12

(LG)

Ground

Power supply (BAT)

Input

Ignition switch OFF

8 – 16 V

14

(GR)

Ground

Sliding door one-
touch open/close
switch

Output

Sliding door one-
touch open/
close switch LH

Released

8 – 16 V

Pressed

0 – 1.5 V

15

(R)

Ground

Neutral switch

Input

Sliding door clo-
sure motor

Neutral position

8 – 16 V

Other than
above

0 – 1.5 V

17

(G)

Ground

Fuel filler lid status
switch

Input

Fuel filler lid sta-
tus switch

OFF

8 – 16 V

ON

0 – 1.5 V

18

(L)

Ground

Full latch switch

Input

Sliding door LH

Full closed

8 – 16 V

Other than
above

0 – 1.5 V

19

(P)

Ground

Sliding door open/
close switch (front
side)

Input

Sliding door
open/close
switch (front LH)

Released

8 – 16 V

Pressed

0 – 1.5 V

20

(R)

Ground

Child lock status
switch

Input

Child lock

Unlock

0 – 1.5 V

Lock

8 – 16 V

21

(BR)

Ground

Encoder B signal

Input

Sliding door LH

Moving (auto or
manual)

NOTE:
Waveform width changes ac-
cording to sliding door open/
close speed

When stopped

4 V or 0 – 0.5 V

22

(O)

Ground

Sliding door handle
switch

Input

Sliding door han-
dle LH

Released

8 – 16 V

Pulled

0 – 1.5 V

23

(B)

Ground

Ground

—

—

0 V

Terminal No.

(Wire color)

Description

Condition

Voltage

(+)

(–)

Signal name

Input/

Output

JMKIA6157ZZ
