DLK-66

< SYSTEM DESCRIPTION >

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

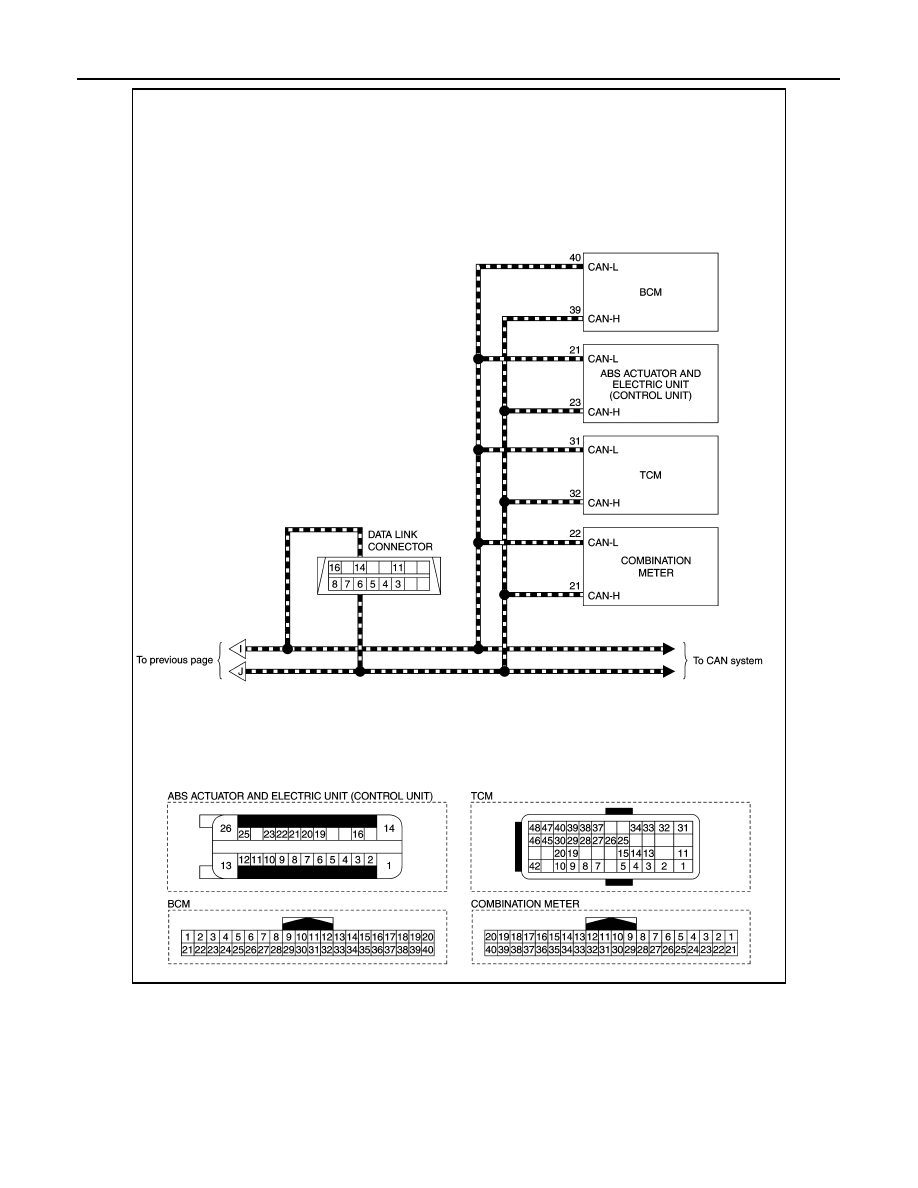

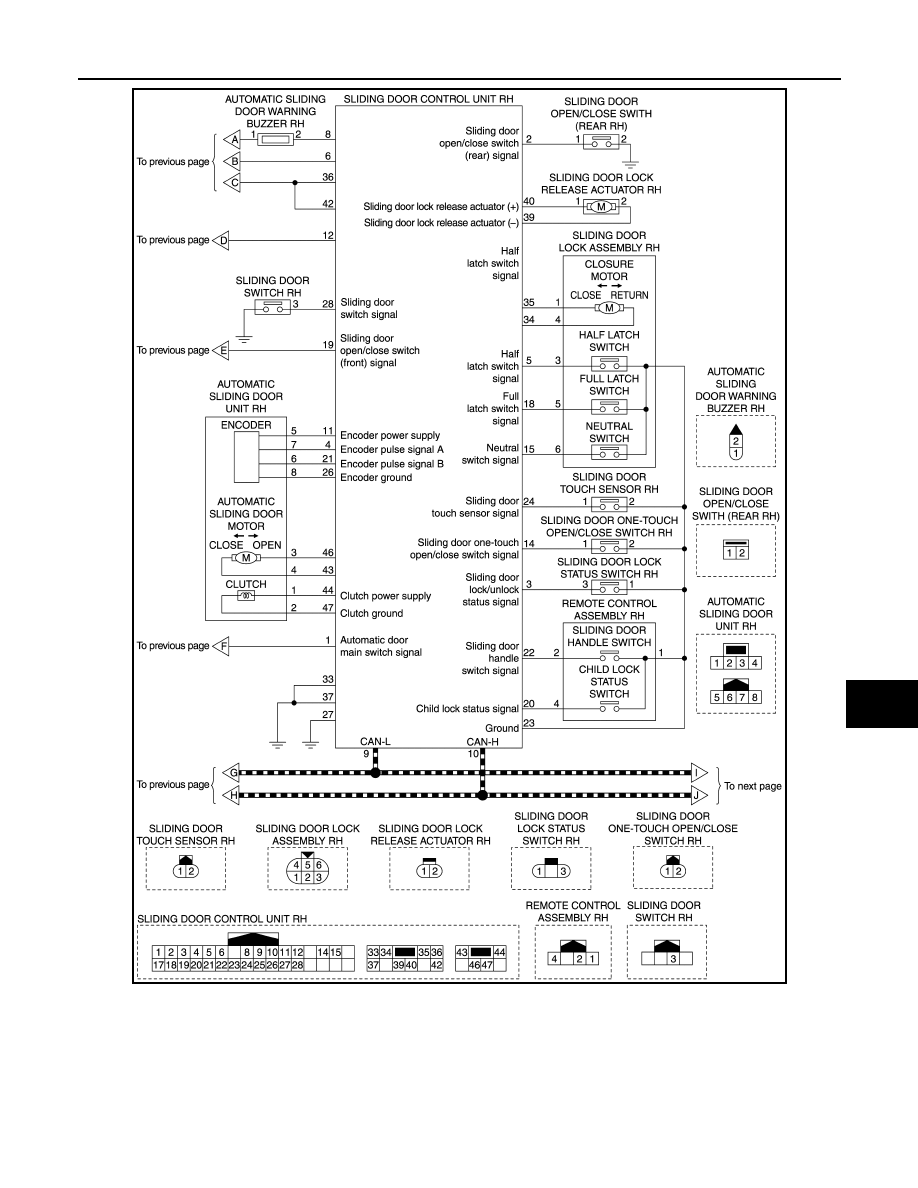

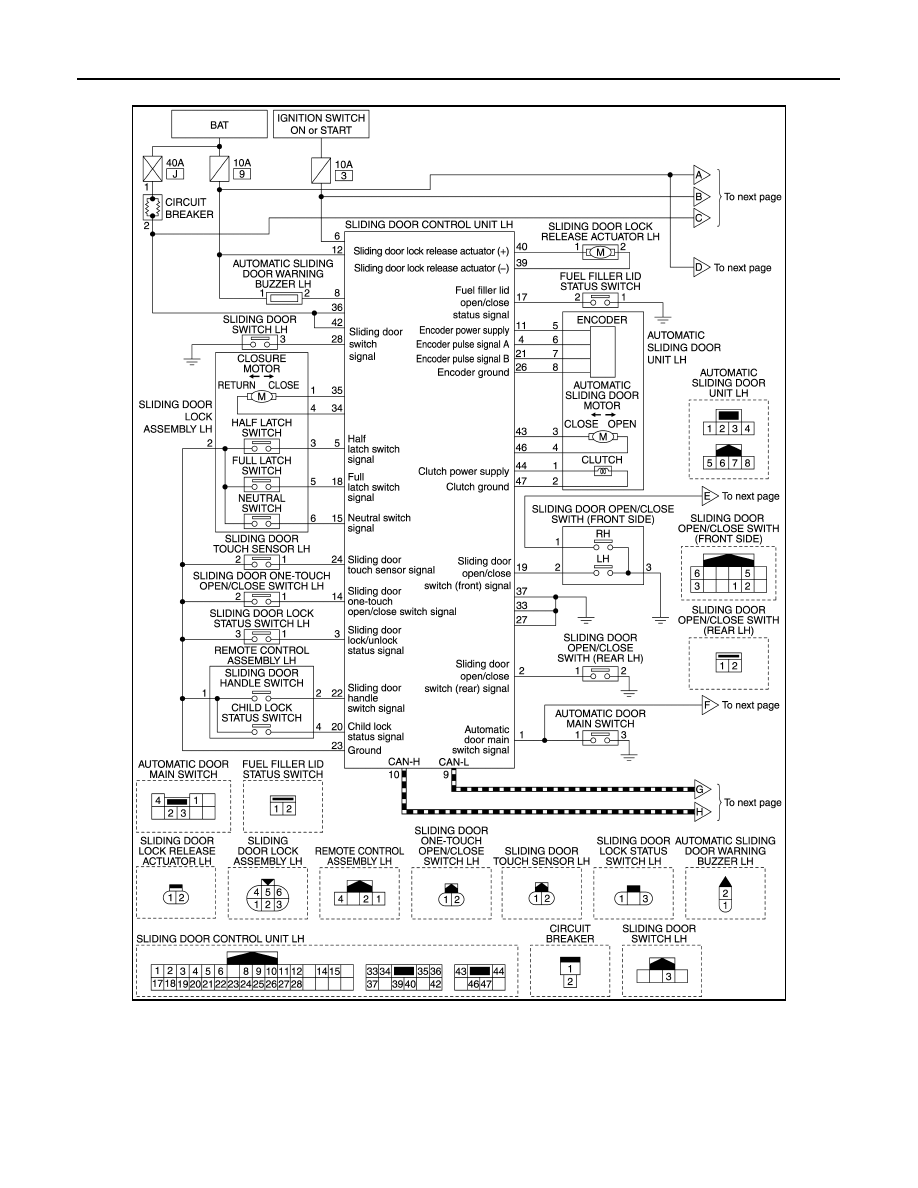

AUTOMATIC SLIDING DOOR SYSTEM : Circuit Diagram

INFOID:0000000009648990

JMKIA8191GB

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

DLK-67

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JMKIA8192GB

DLK-68

< SYSTEM DESCRIPTION >

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

AUTOMATIC SLIDING DOOR SYSTEM : Fail-safe

INFOID:0000000009648991

FAIL-SAFE CONTROL BT DTC

Sliding door control unit performs fail-safe control when any DTC is detected.

JMKIA8193GB

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

DLK-69

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*1

: When battery is reconnected, cancellation conditions are unconditionally fulfilled.

*2

: After returning to normal status, auto open/close function does not operate unless sliding door auto closure

function is operated.

AUTO OPEN/CLOSE FUNCTION

Display contents of CONSULT

Fail-safe

Reference page

*1

U1010: CAN COMM CIRCUIT

Intermittent clutch operation

Return to normal status

*2

B2401: IGN OPEN

When the following conditions are
fulfilled
• Sliding door control unit detects

that ignition switch is in the OFF
position

• Sliding door control unit detects

that ignition switch is not in the
ON position via CAN communica-
tion

B2402: TOUCH SENSOR OPEN

Return to normal status

B2403: PULSE ENCODER

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2405: ECU FAIL

Erase DTC

*2

B2409: HALF LATCH SW

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2412: ASD MTR/ENCDR

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2413: ASD MTR/ENCDR

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2414: ASD MTR TIME OUT

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B241A: ENCDR PWR SUPLY

When the following conditions are
fulfilled
• Return to normal status
• Sliding door control unit detects

that sliding door is in the fully
closed position
