DLK-58

< SYSTEM DESCRIPTION >

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

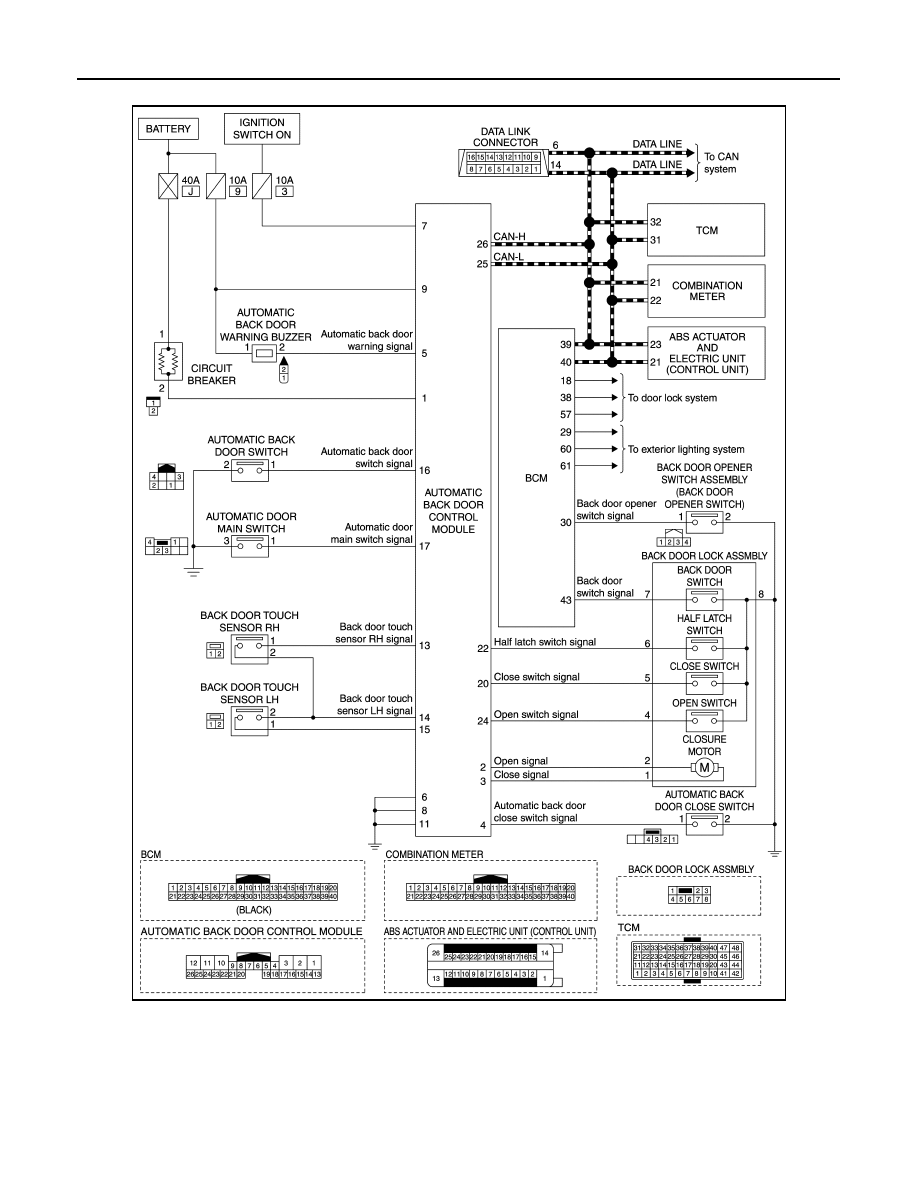

Circuit Diagram

INFOID:0000000009648984

JMKIA8115GB

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

DLK-59

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Fail Safe

INFOID:0000000009648985

Display contents of CONSULT

Fail-safe

Cancellation

B2401 IGN OPEN

Intermittent clutch function

All following condition are satisfied
• Power supply condition of auto-

matic back door control unit: OFF

• BCM receive ignition position sig-

nal (OFF) via CAN

B2403 PULSE ENCODER

Inhibit automatic back door operation

When receiving the pulse from en-
coders A and B normally (5 pulses)

B2409 HALF LATCH SW

Intermittent clutch function

Half latch switch is ON from OFF

B2416 TOUCH SEN R OPEN

During close operation: Intermittent clutch
function

Normal return

B2417 TOUCH SEN L OPEN

During close operation: Intermittent clutch
function

Normal return

B2419 OPEN SW

Inhibit automatic back door operation

Erase DTC, reconnect battery

B2420 CLOSE SW

Inhibit automatic back door operation

Erase DTC, reconnect battery

B2421 CLUTCH TIME OUT

Intermittent clutch function

Reception of next operation request

B2422 BACK DOOR STATE

Intermittent clutch function

Detect back door fully closed posi-
tion

B2423 ABD MTR TIME OUT

Intermittent clutch function

Reception of next operation request

B2424 CLSR CONDITION

Inhibit automatic back door operation

Normal return or reconnect battery

DLK-60

< SYSTEM DESCRIPTION >

SYSTEM (BACK DOOR AUTO CLOSURE SYSTEM)

SYSTEM (BACK DOOR AUTO CLOSURE SYSTEM)

CLOSURE FUNCTION

CLOSURE FUNCTION : System Description

INFOID:0000000009648986

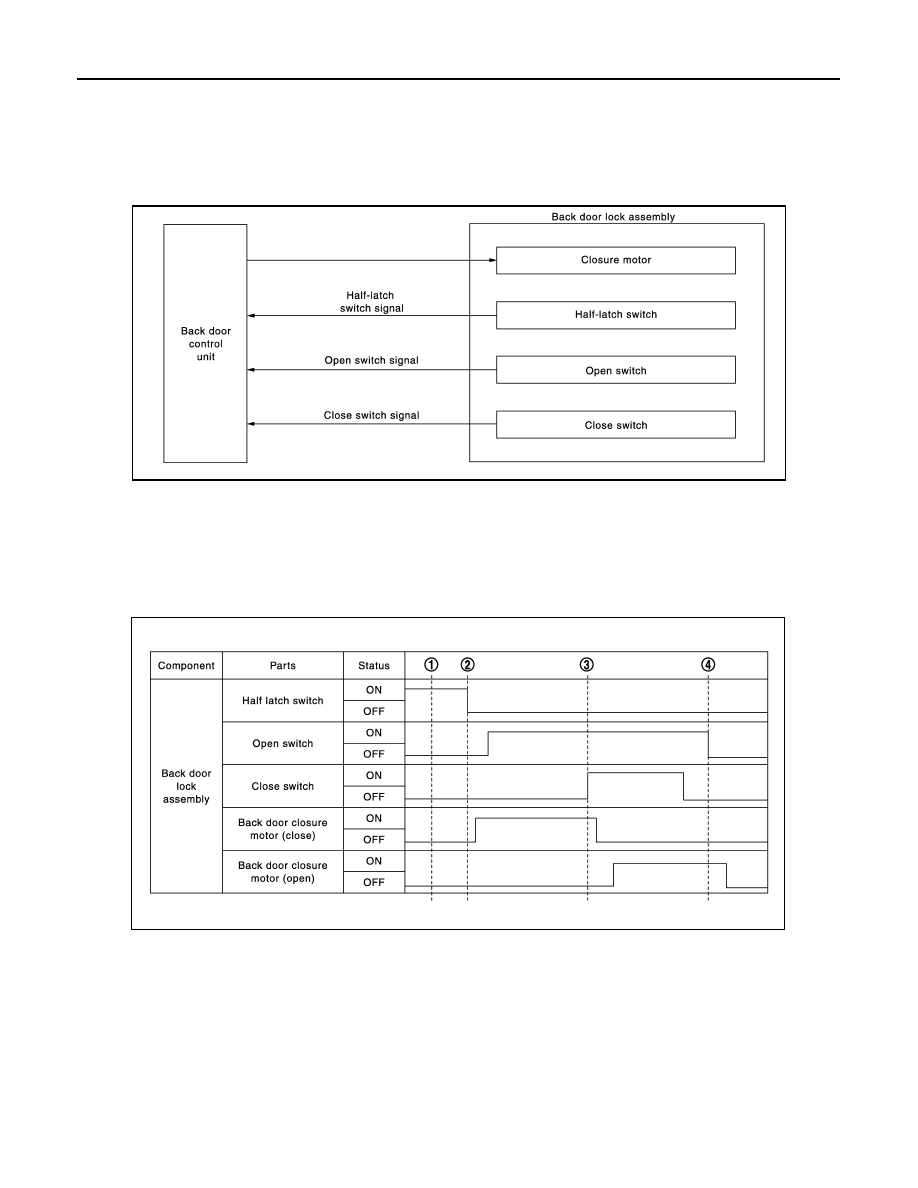

SYSTEM DIAGRAM

AUTO CLOSURE OPERATION

When back door is closed to the half-latch position, closure motor operates to rotate the latch lever from the
half latched to fully latched position and automatically closes back door. Then, closure motor reverses to the
neutral position.

From fully Open to Fully Closed Operation

The back door closure system operates as per the following.

1.

Back door is fully open.

2.

Back door closure motor starts the close operation after turning half latch switch OFF.

3.

Back door closure motor stops the close operation and starts the neutral operation after turning close
switch ON.

4.

Back door closure motor stops the open operation and returns the latch to the neutral position after turning
open switch OFF.

OPEN FUNCTION

JMKIA5250GB

JMKIA2684GB

SYSTEM (BACK DOOR AUTO CLOSURE SYSTEM)

DLK-61

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OPEN FUNCTION : System Description

INFOID:0000000009648987

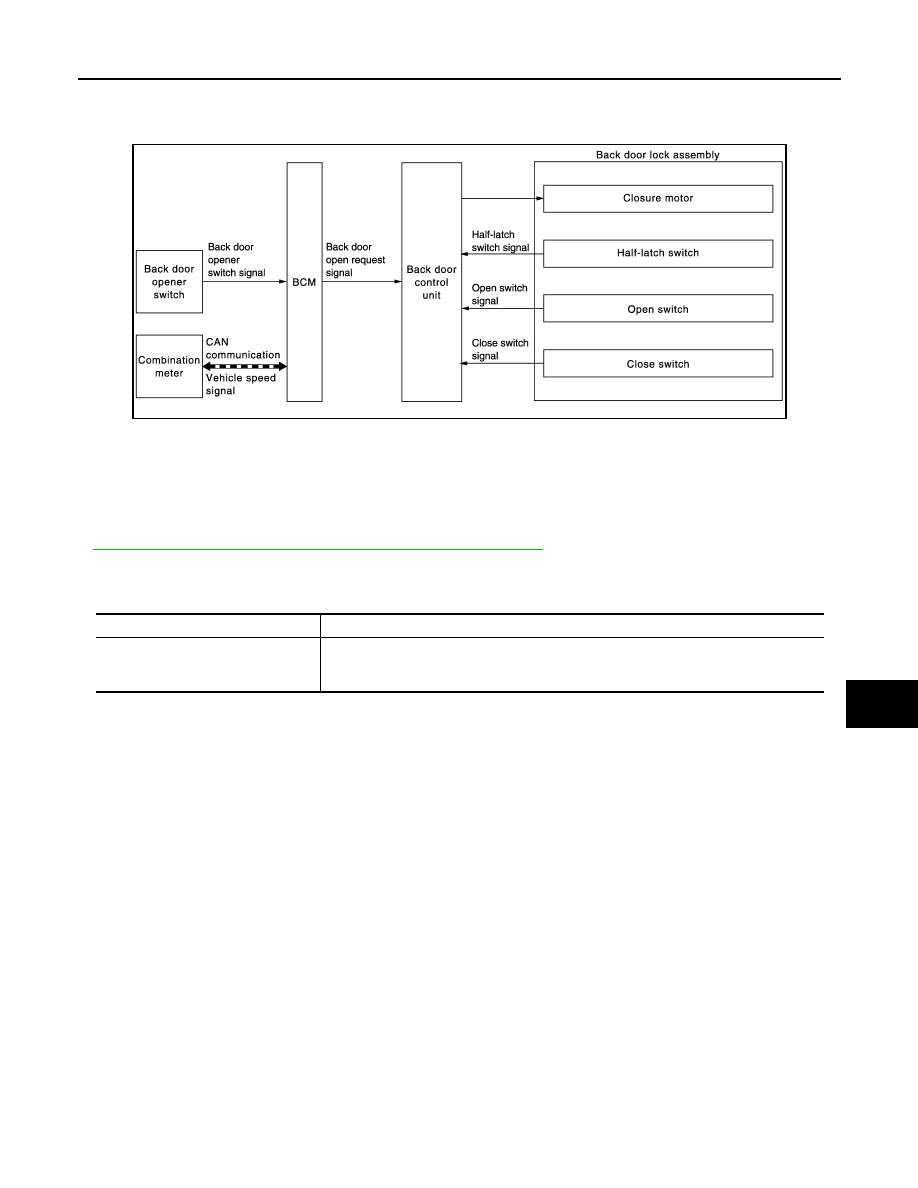

SYSTEM DIAGRAM

OPEN OPERATION

• When the back door opener switch operation signal is input into back door control unit from BCM, back door

is opened by the closure motor open operation.

• When back door opener switch is pressed, BCM transmits the back door open request signal to back door

control unit and back door control unit opens back door.

• The operation to open back door with Intelligent Key is the same as the Intelligent Key system. Refer to

DLK-42, "BACK DOOR OPEN FUNCTION : System Description"

Operation Condition

If the following conditions are satisfied, the back door opener operation is performed.

NOTE:
• When battery terminal is disconnected and reconnected during all doors unlock state, back door may not

open.

• Regardless of door lock actuator state, BCM resets recognition of all doors unlock state approximately 30

seconds after battery terminal is disconnected and BCM recognizes that all doors are in lock state.

• When battery terminal is reconnected and back door does not open, have BCM recognize that all doors are

in unlock state.

From Fully Closed To Fully Open Operation

JMKIA5226GB

Back door opener switch operation

Operation condition

Back door open

• When back door is unlocked using back door request switch (selective unlock mode),

or after BCM outputs all doors unlock signal

• Vehicle speed is less than 5 km/h (3 MPH)
