SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

System Description

INFOID:0000000009648983

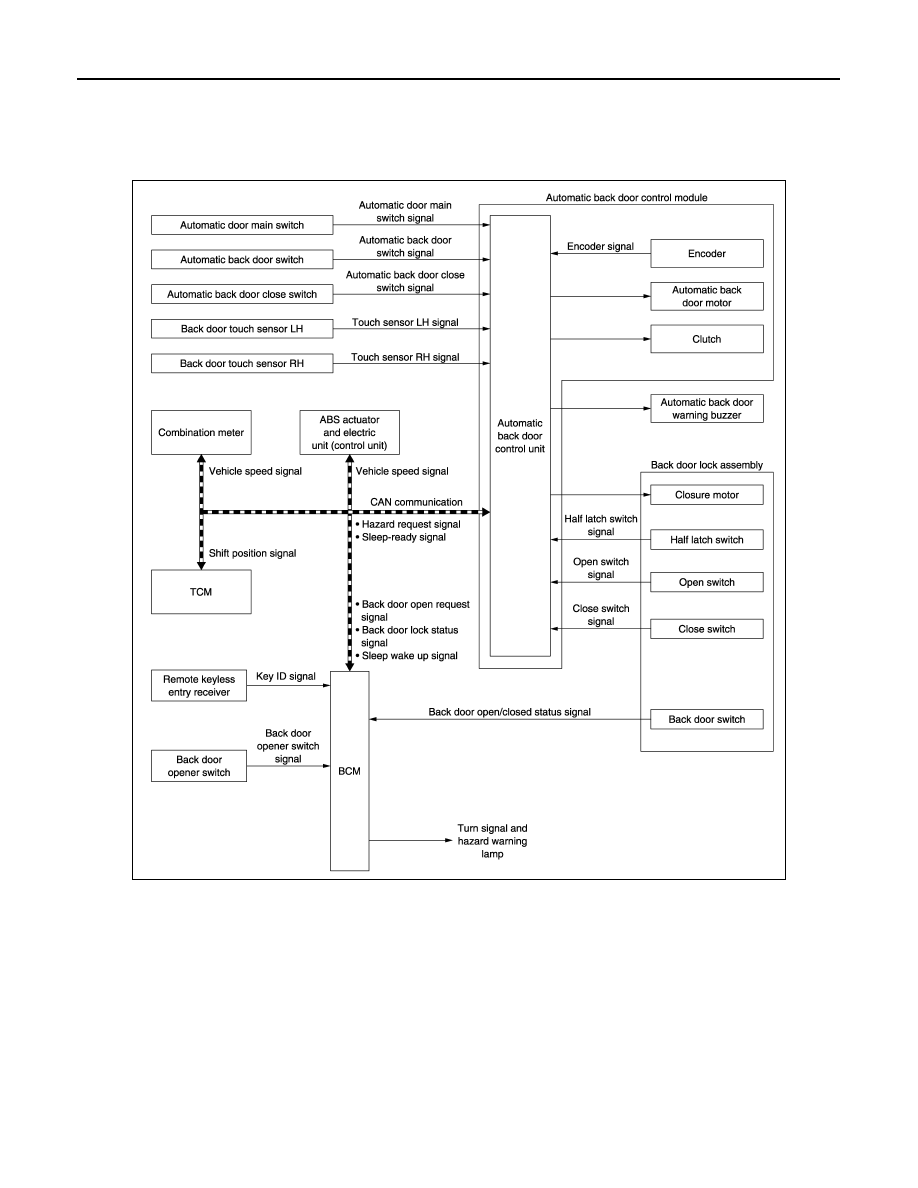

SYSTEM DIAGRAM

BASIC OPRATION

The automatic back door system performs the automatic open/close operation of the back door by operating
the automatic back door switch, the automatic back door close switch, the back door opener switch, and Intel-
ligent Key.

AUTOMATIC BACK DOOR OPEN/CLOSE FUNCTION

• In the case of the back door fully closed, operate the automatic back door switch, Intelligent Key or back

door opener switch with the back door unlock. The back door closure motor releases the latch, then the
automatic back door motor opens the back door to the fully open position. Reverse the closure motor to the
neutral position simultaneously.

• In the case of the back door fully open, operate the automatic back door switch, Intelligent Key or automatic

back door close switch. The automatic back door motor closes the back door to the half-latch position, then
the back door closure motor to the full latch position. Then, reverse the closure motor to the neutral position.

JMKIA8013GB

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

DLK-53

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR AUTO CLOSURE FUNCTION

Open Function

When back door opener switch is pressed and automatic door main switch in the OFF position, BCM transmits
the back door open request signal to automatic back door control module via CAN communication, and auto-
matic back door control module opens back door lock assembly.

Closure Function

When the back door is closed to the half-latch position, the motor drives to rotate the latch lever and pulls it in
from half latched to fully latched and automatically closes the door. Then, reverse the closure motor to the
neutral position.

WARNING FUNCTION

The warning function is as follows and gives the user warning information and warnings using automatic back
door buzzer and hazard.

Buzzer Operation Condition

ANTI-PINCH FUNCTION

During auto operation, if an object is detected by encoder pulse in the door's path, a warning chime sounds
and the back door operates in the reverse direction to prevent pinching.
During auto close operation, if an object is detected by the touch sensors in the door's path, a warning chime
sounds and the back door operates in the open direction until it is fully open.

Operation Condition

Pattern

Time

Description

A

0.75 sec.

Operation start announcement

Anti-pinch operation start announcement

B

Pi---

2.0 sec.

During the closure operation, the touch
sensor detects any trapped foreign materi-
al and stops halfway

C

Pi------••••••

Back door fully closed or vehi-
cle is stopped

The conditions are not satisfied in the fully
open position or during the operation, and
then the operation continues

D

During open/close operation

During operation announcement

JMKIA1862ZZ

JMKIA1863ZZ

Detection method

Encoder pulse

Touch sensor

Applicable operation

Open/close operation

Close operation

Operation when
any trapped for-
eign material is de-
tected

Stop the vehicle

Buzzer sounds (pattern A)
and reverse operation

• Buzzer sounds (pattern A) and the back door stops in

the fully-open position after reverse operation

• During closure (close) operation (at main switch OFF):

Closure [open (neutral position return)] operation

Running the ve-
hicle

No reverse operation (buzzer
sounds, pattern C)

• The back door reverses a certain amount, and then it

reverses automatically to perform the auto close oper-
ation

• During closure (close) operation (at main switch ON):

Closure (open) operation
