SYSTEM (BACK DOOR AUTO CLOSURE SYSTEM)

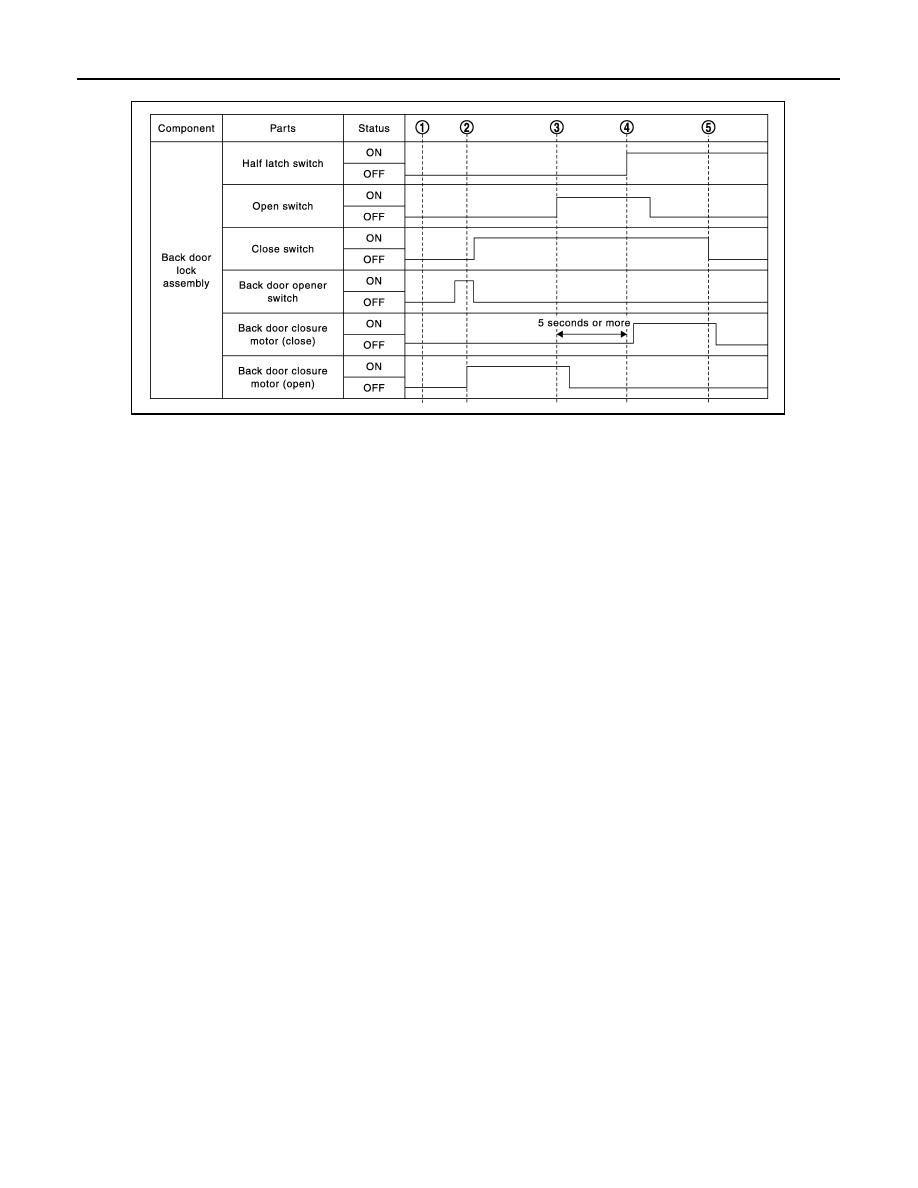

The back door open system operates as per the following.

1.

Back door is fully closed.

2.

Back door closure motor starts the open operation after turning back door opener switch ON.

3.

Back door closure motor stops the open operation after turning open switch ON.

4.

Back door closure motor starts the close operation after turning half latch switch ON.

5.

Back door closure motor stops the close operation and returns the latch to the neutral position after turn-
ing close switch OFF.

JMKIA2991GB

SYSTEM (BACK DOOR AUTO CLOSURE SYSTEM)

DLK-63

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

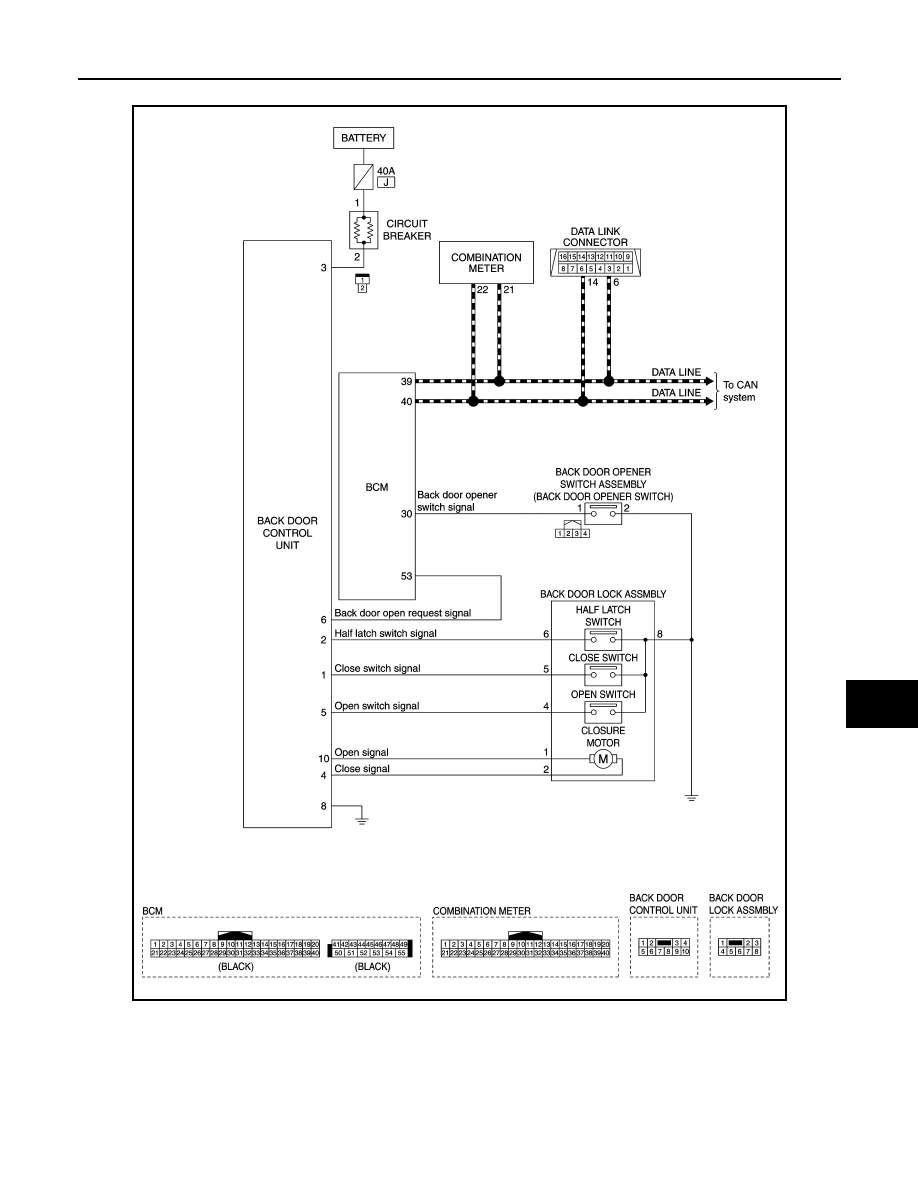

Circuit Diagram

INFOID:0000000009648988

JMKIA8116GB

DLK-64

< SYSTEM DESCRIPTION >

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

AUTOMATIC SLIDING DOOR SYSTEM

AUTOMATIC SLIDING DOOR SYSTEM : System Description

INFOID:0000000009648989

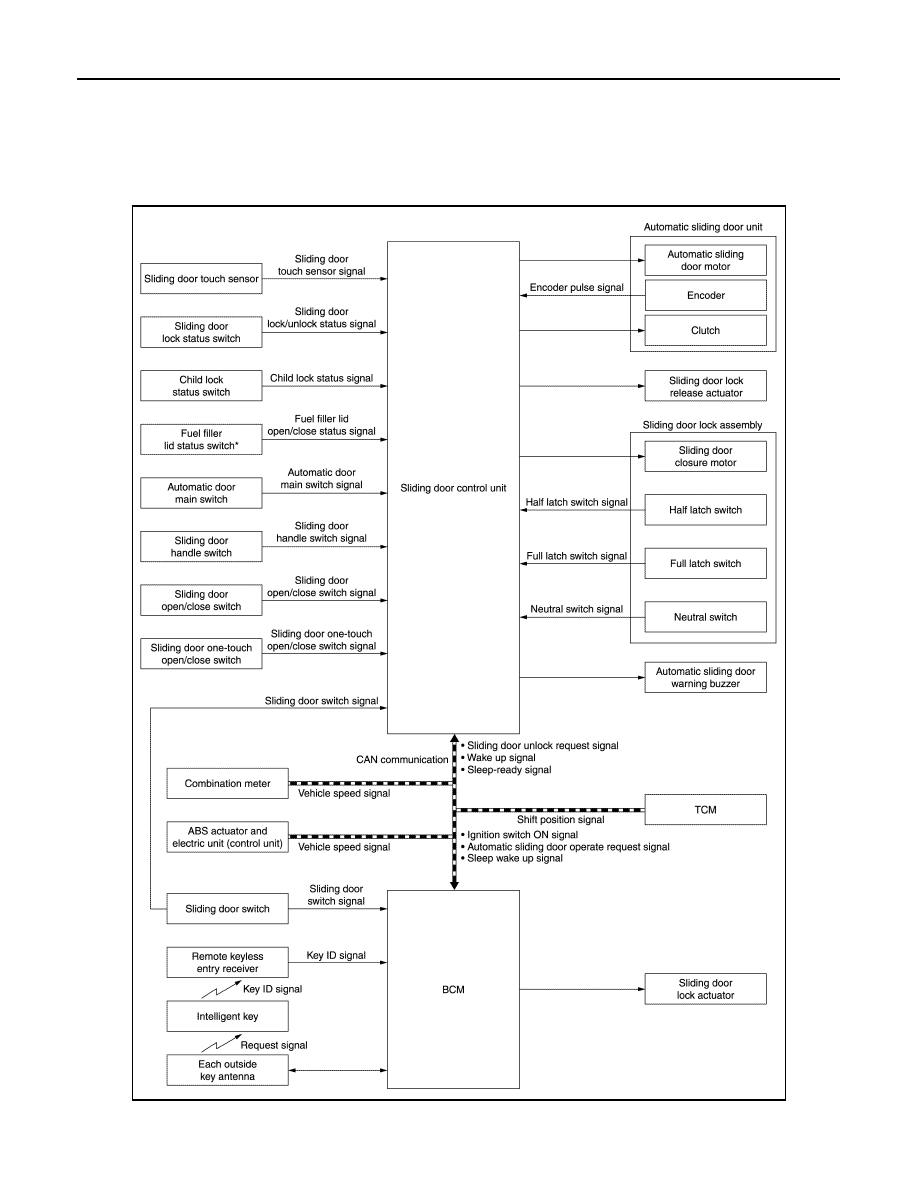

SYSTEM DIAGRAM

*

: For automatic sliding door LH

• Automatic sliding door system controls auto open/close operation of sliding door LH and sliding door RH.

JMKIA8089GB

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

DLK-65

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Sliding door control unit controls each function of automatic sliding door system.

Function

Description

Refer

Auto open/close

Sliding door is automatically opened or closed according to op-
eration of sliding door handle, sliding door open/close switch,
sliding door one-touch open/close switch, and Intelligent Key

DLK-70

One-touch unlock

By carrying Intelligent Key, sliding door is unlocked and auto-
matically opened according to operation of sliding door one-
touch open/close switch, even when sliding door is in fully
closed and locked status

DLK-75

Unlock-linked opening

Sliding door is unlocked and automatically opened according to
operation of sliding door open/close switch (front side) or Intelli-
gent Key button, even when sliding door is in fully closed and
locked status

DLK-77

Power assist

Sliding door is automatically opened or closed according to di-
rection of sliding door movement, when sliding door is manually
opened or closed

DLK-79

Sliding door auto closure

Sliding door closure motor operates and sliding door is automat-
ically retracted and closed to fully closed status, when sliding
door is in half latch status

DLK-81

Hold

During vehicle driving, if sliding door is in open status because
of incorrect operation or any other cause, sliding door control
unit continuously keeps clutch to the ON position and holds the
position of sliding door so that it does not open further

DLK-83

Anti-pinch

During sliding door auto open/close operation, if pinching of for-
eign materials is detected, sliding door control unit operates slid-
ing door in the reverse direction

DLK-85

Intermittent clutch

During sliding door auto open/close operation, if system mal-
function is detected, sliding door control unit operates clutch in-
termittently to the ON/OFF position and prevents sliding door
from opening or closing suddenly, so that safety can be ensured

DLK-87

Buzzer reminder

Automatic sliding door warning buzzer sounds so that user is in-
formed of operation start when sliding door auto open/close op-
eration starts to operate

DLK-88
