BRAKE PEDAL

Brake Pedal Height

1.

Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2.

Disconnect the stop lamp switch and brake switch harness connector.

3.

Loosen the stop lamp switch and brake switch 45

°

 counterclockwise.

4.

Loosen the lock nut of input rod (1).

5.

Rotate the input rod (2), adjust the brake pedal to the specified
height (H

1

).

CAUTION:

The threaded end of the input rod must project to the inner
side of the clevis (3).

6.

Tighten the lock nut. Refer to

BR-31, "Exploded View"

.

Stop Lamp Switch and Brake Switch

1.

Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2.

Disconnect the stop lamp switch and brake switch harness connector.

3.

Loosen the stop lamp switch and brake switch 45

°

 counterclockwise.

4.

Press-fit the stop lamp switch and brake switch (2) until the stop
lamp switch and brake switch hits the stopper rubber (1) 45

°

clockwise while pulling the brake pedal pad slightly.

CAUTION:

• The clearance (C) between the stopper rubber and stop

lamp switch and brake switch threaded end must be the
specified value.

• The stop lamp must be turned off when the brake pedal is

released.

Brake Pedal Play

1.

Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2.

Disconnect the stop lamp switch and brake switch harness connector.

3.

Loosen the stop lamp switch and brake switch 45

°

 counterclockwise.

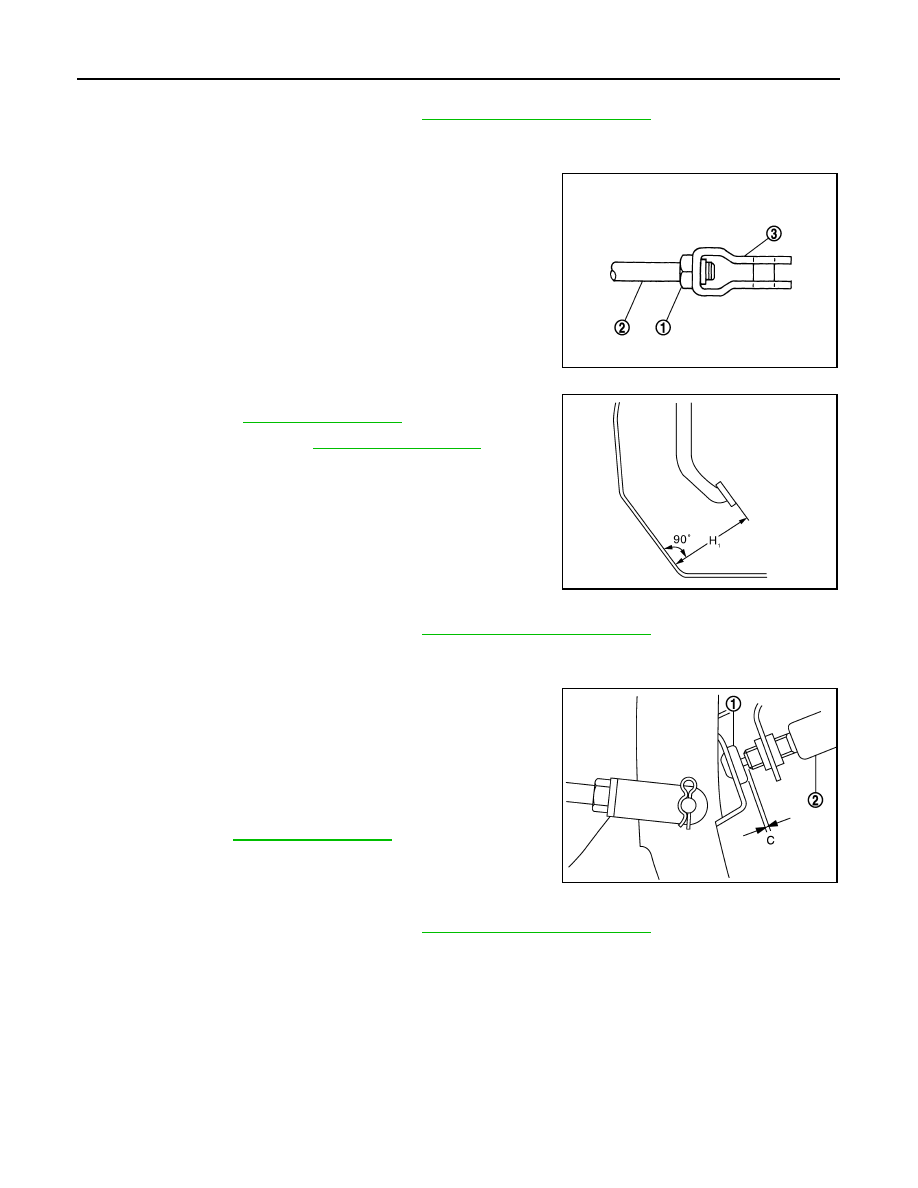

JPFIA0662ZZ

H

1

: Refer to

BR-51, "Brake Pedal"

.

JPFIA0279ZZ

C

: Refer to

BR-51, "Brake Pedal"

.

JPFIA0122ZZ

BRAKE PEDAL

BR-9

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

4.

Press-fit the stop lamp switch and brake switch (2) until the stop
lamp switch and brake switch hits the stopper rubber (1) 45

°

clockwise while pulling the brake pedal pad slightly.

CAUTION:

• The clearance (C) between the stopper rubber and stop

lamp switch and brake switch threaded end must be the
specified value.

• The stop lamp must be turned off when the brake pedal is

released.

Depressed Brake Pedal Height

1.

Perform the air bleeding. Refer to

BR-11, "Bleeding Brake System"

.

2.

Check the height between the dash lower panel (1) and the
brake pedal upper surface (H

2

) when depressing the brake

pedal at 490 N (50 kg, 110 lb) while turning engine ON.

CAUTION:

Remove the floor trim.

3.

Adjust brake pedal height and brake pedal play.

C

: Refer to

BR-51, "Brake Pedal"

.

JPFIA0122ZZ

H

2

: Refer to

BR-51, "Brake Pedal"

.

JPFIA0068ZZ

BR-10

< PERIODIC MAINTENANCE >

BRAKE FLUID

BRAKE FLUID

Inspection

INFOID:0000000009651803

BRAKE FLUID LEVEL

• Check that the fluid level in the reservoir tank is within the specified range (MAX – MIN lines).
• Visually check for any brake fluid leakage around the reservoir tank and sub tank.
• Check the brake system for any leakage if the fluid level is extremely low (lower than MIN).
• Check the brake system for fluid leakage if the warning lamp remains illuminated even after the parking

brake is released.

• Check the reservoir tank and sub tank for the mixing of foreign matter (e.g. dust) and oils other than brake

fluid.

BRAKE LINE

1.

Check brake line (tubes and hoses) for cracks, deterioration or other damage. Replace any damaged
parts.

2.

Depress the brake pedal with a force of 785 N (80 kg, 176 lb)
and hold down the pedal for approximately 5 seconds with the
engine running. Check for any fluid leakage.

CAUTION:

Retighten the applicable connection to the specified torque
and repair any abnormal (damaged, worn or deformed) part
if any brake fluid leakage is present.

Draining

INFOID:0000000009651804

CAUTION:

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface. For brake component parts,
never wash them with water.

• Turn the ignition switch OFF and disconnect the ABS actuator and electric unit (control unit) har-

ness connector or the battery negative terminal before performing work.

• If the brake fluid adheres to the brake caliper assembly and disc rotor, quickly wipe it off.
1.

Connect a vinyl tube to the bleed valve.

2.

Depress the brake pedal and loosen the bleeder valve to gradu-
ally discharge brake fluid.

Refilling

INFOID:0000000009651805

CAUTION:

• Turn the ignition switch OFF and disconnect the ABS actuator and electric unit (control unit) har-

ness connector or the battery negative terminal before performing work.

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface. For brake component parts,
never wash them with water.

1.

Check that there is no foreign material in the reservoir tank and sub tank, and refill with new brake fluid.

CAUTION:

• Never reuse drained brake fluid.

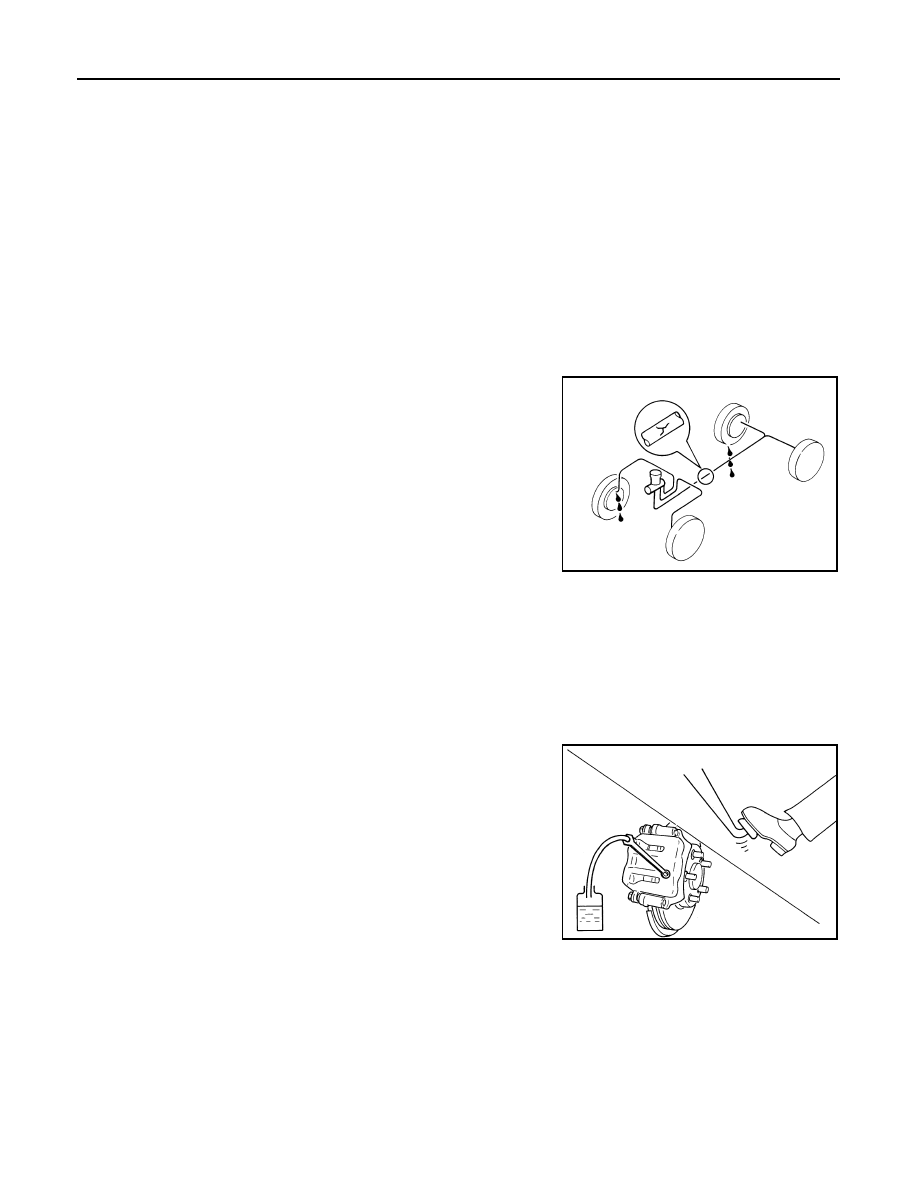

SBR389C

BRA0007D

BRAKE FLUID

BR-11

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

• Never allow oils other than brake fluid to enter the reservoir tank.

2.

Loosen the bleeder valve, slowly depress the brake pedal to the full stroke, and then release the pedal.
Repeat this operation at intervals of 2 or 3 seconds until new brake fluid is discharged. Then close the
bleeder valve with the brake pedal depressed. Repeat the same work on each wheel.

3.

Perform the air bleeding. Refer to

BR-11, "Bleeding Brake System"

.

Bleeding Brake System

INFOID:0000000009651806

CAUTION:

• Turn the ignition switch OFF and disconnect the ABS actuator and electric unit (control unit) har-

ness connector or the battery negative terminal before performing the work.

• Monitor the fluid level in the reservoir tank while performing the air bleeding
• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface. For brake component parts,
never wash them with water.

• If the brake fluid adheres to the brake caliper assembly and disc rotor, quickly wipe it off.

1.

Check that there is no foreign material in the reservoir tank and sub tank, and refill with new brake fluid.

CAUTION:

• Never reuse drained brake fluid.
• Never allow oils other than brake fluid to enter the reservoir tank.

2.

Connect a vinyl tube to the bleeder valve of the rear right brake.

3.

Fully depress the brake pedal 4 to 5 times.

4.

Loosen the bleeder valve and bleed air with the brake pedal depressed, and then quickly tighten the
bleeder valve.

5.

Repeat steps 3 and 4 until all of the air is out of the brake line.

6.

Tighten the bleeder valve to the specified torque.
• Front disc brake: Refer to

BR-37, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

• Rear disc brake: Refer to

BR-45, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

7.

Perform steps 2 to 6. Occasionally fill with the brake fluid in order to keep it in the reservoir tank at least
half of MAX line. Bleed air in the following order: rear right brake

→

 front left brake

→

 rear left brake

→

and front right brake in order.

8.

Check that the fluid level in the reservoir tank is within the specified range after air bleeding. Refer to

BR-

10, "Inspection"

.

9.

Check each item of brake pedal. Adjust it if the measurement value is not the standard. Refer to

BR-7,

"Inspection and Adjustment"

.
